VEVOR 80 Plate Brazed Heat Exchanger 127x305mm, Copper/316L Stainless Steel, for Floor Heating, Water Heating, Beer Cooling

  • High-Quality Materials: Made of 316L stainless steel with 99% copper brazing at edges and contact points, forming a robust and leak-resistant unit that withstands high pressure and temperature. CE certified for reliable quality.

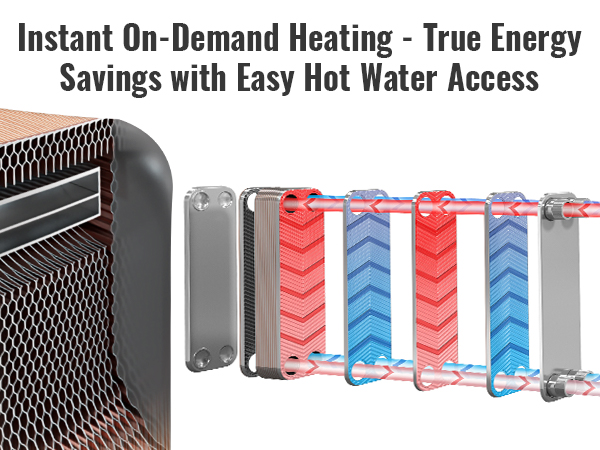

  • Efficient Heat Transfer: The high-conductivity stainless steel plates feature an asymmetrical herringbone pattern, creating intense pressure turbulence for efficient heating/cooling. With up to 99% heat efficiency, it generates 780-1080K BTU per hour, saving pump power and electricity, reducing overall application costs.
  • Large Heat Exchange Area: The heat exchanger features 5”x12” plates with up to 80 plates, providing excellent heat transfer performance for maximum efficiency. Suitable for operating temperatures from -292℉ to 392℉.
  • Tight and Leak-Proof: To eliminate the possibility of micro-leaks, the heat exchanger uses high-pressure vacuum brazing and undergoes helium leak testing, ensuring long life and high reliability.
  • Stable Installation: Includes two stainless steel brackets made of 304 stainless steel, offering excellent rust resistance and stability for easy and secure mounting of the heat exchanger.

264,49 € Incl. VAT 21%

Available for order

PointsEarn 794 🌟 when you buy this product!
Produkto kodas: M4I4LUR8 Kategorijas: , , ,
Product QR code
Brand:
VEVOR Heat Exchanger, 5"x 12" 80 Plates Brazed Plate Heat Exchanger, Copper/316L Stainless Steel Water To Water Heat Exchanger For Floor Heating, Water Heating, Snow Melting, Beer Cooling
M4I4LUR8
QHBSHRQ51280HRF9VV0
Unleashing Ultimate Heat Efficiency
Our heat exchanger is compact and lightweight, offering excellent thermal performance. Made with 316L stainless steel and 99% copper brazing for durability, it is perfect for solar heating, oil heat recovery, engine cooling, and condensation.

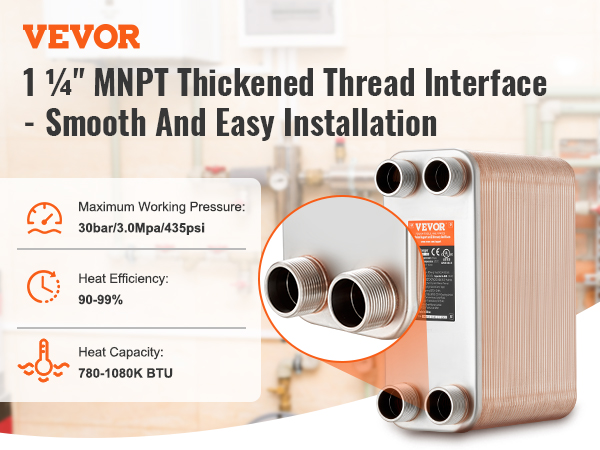

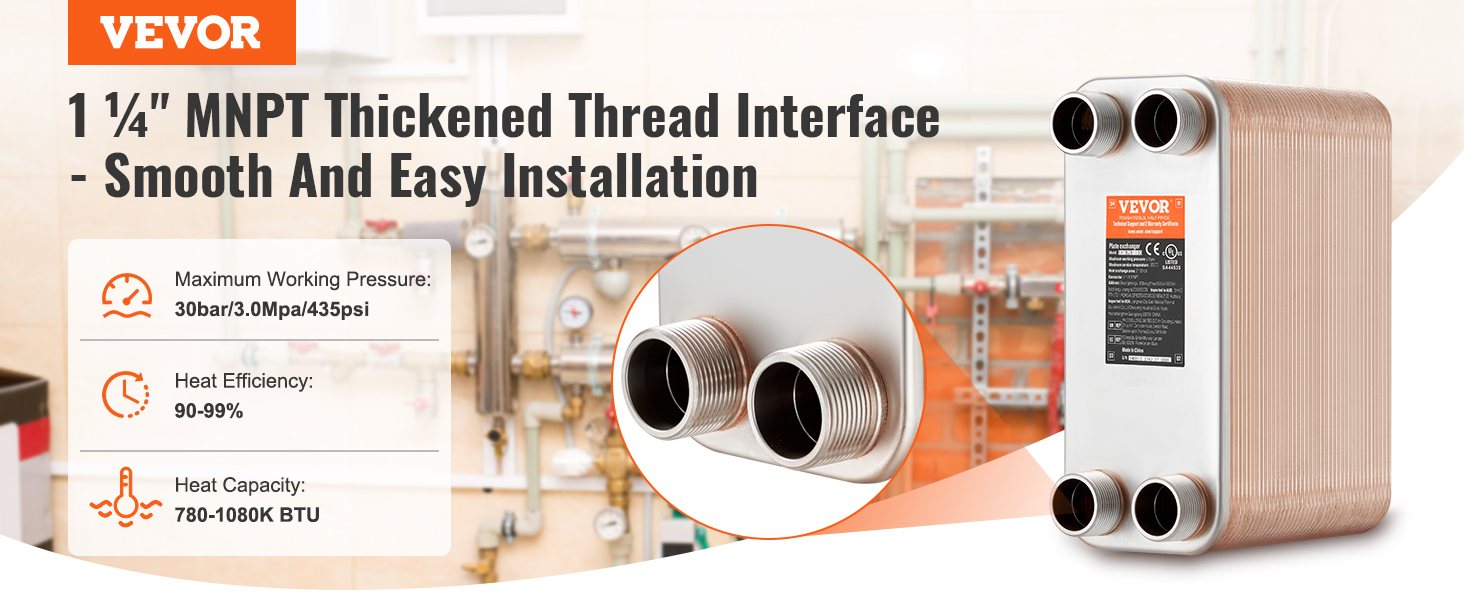

Our heat exchanger features a 1 ¼” MNPT interface with smooth threads for easy and convenient connection.

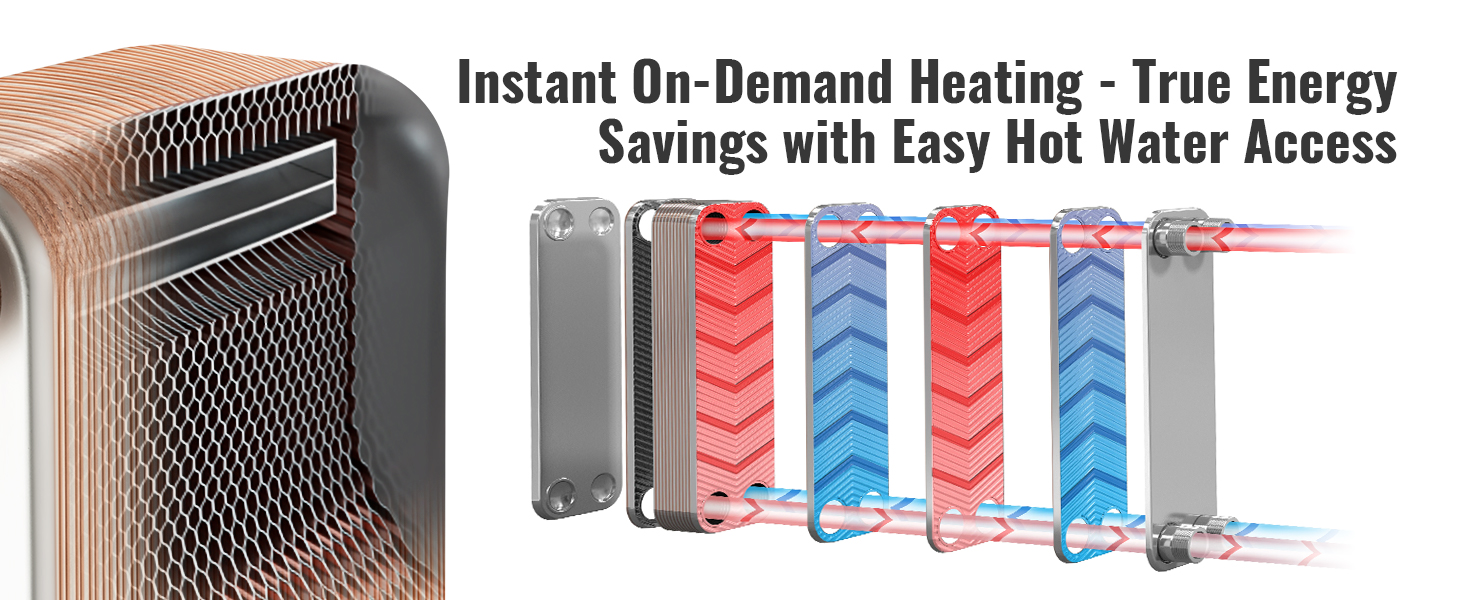

This heat exchanger heats liquids with irregular plates, requiring no electricity or wood burning, providing hot water at low cost, making it cost-effective and practical.

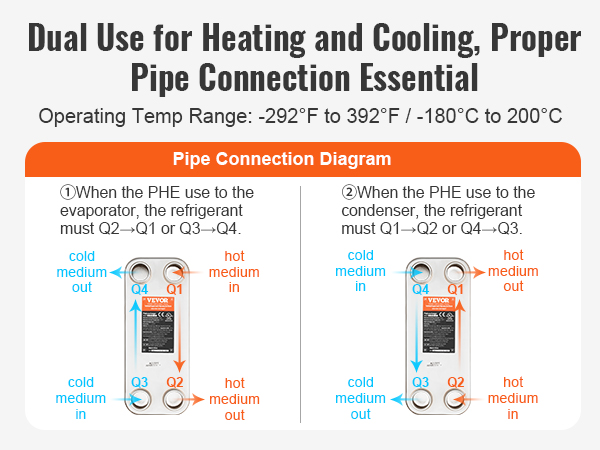

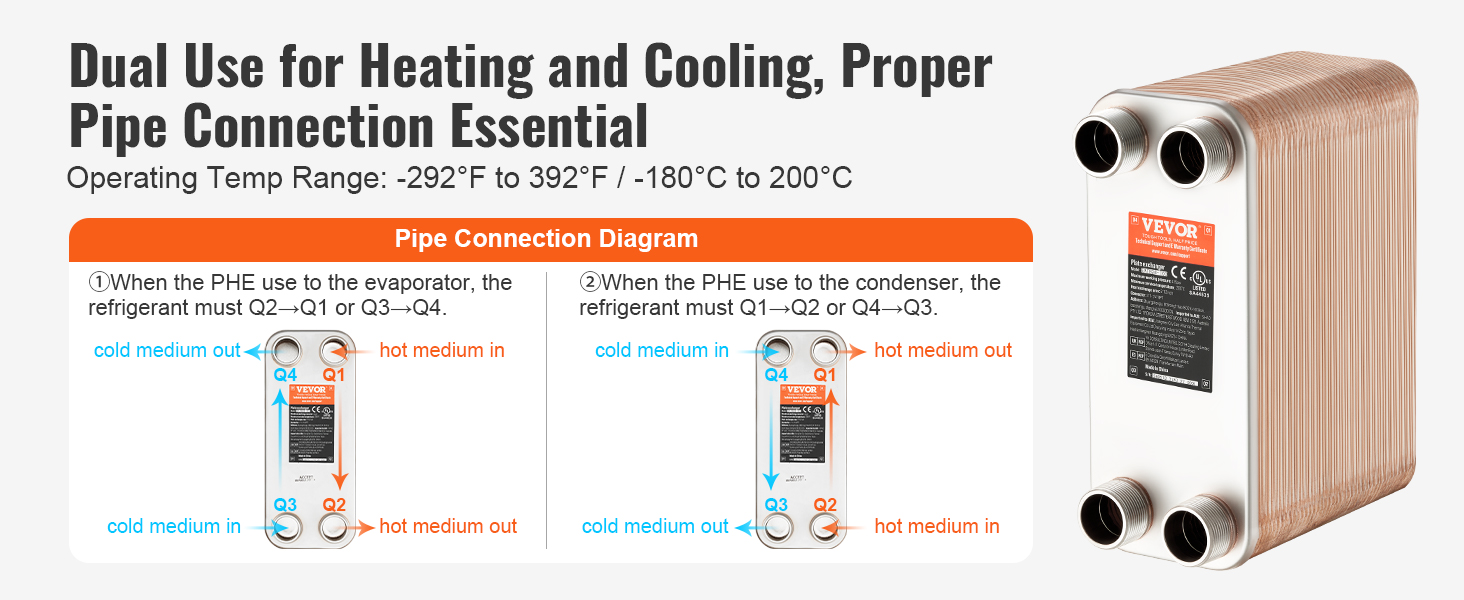

Equipped with 4 interfaces, the heat exchanger accommodates different media needs with correct piping and operates within -292℉ to 392℉ temperature range.

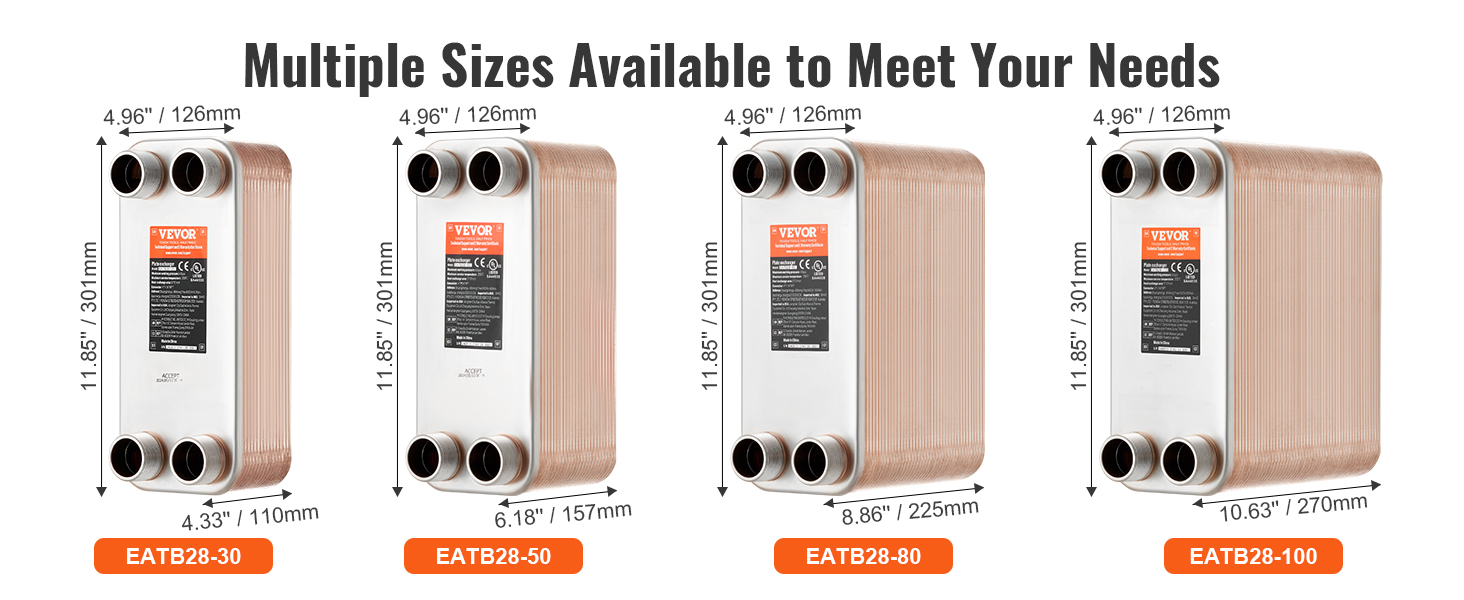

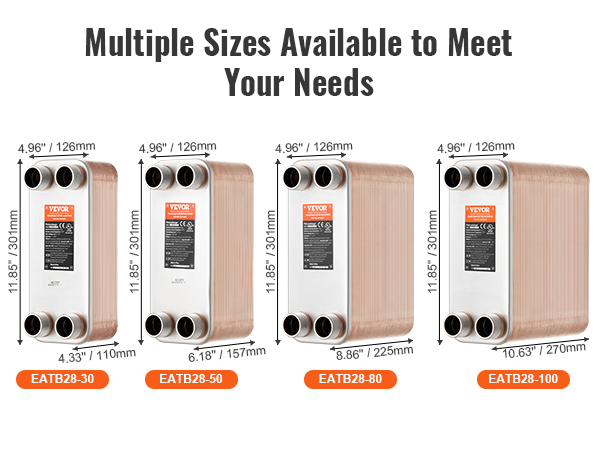

Our heat exchanger comes in 4 different sizes to meet your needs.

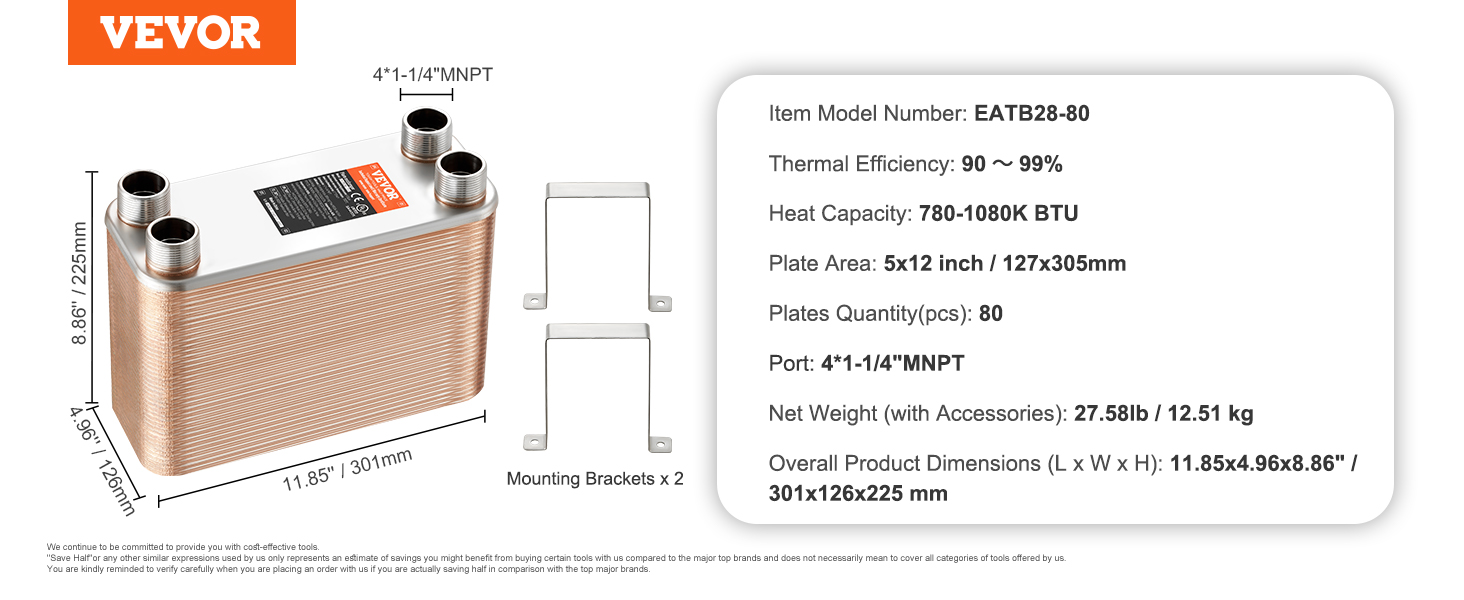

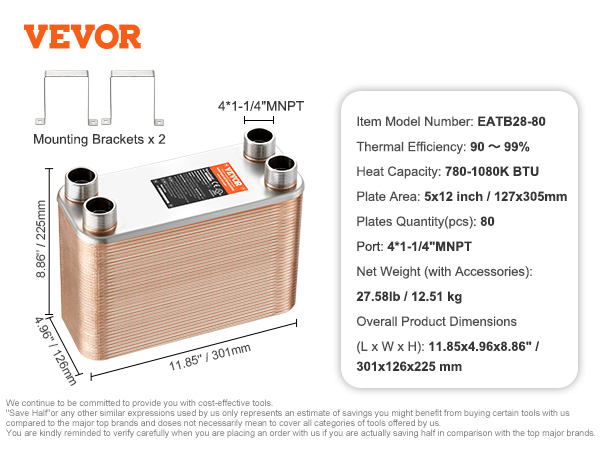

Product specification
Model
EATB28-80
Thermal Efficiency
90～99%
Heat Capacity
780-1080K BTU
Plate Area
5x12 inch/ 127x305mm
Plates Quantity(pcs)
80
Port
4*1-1/4" MNPT External Thread
Color
Stainless Steel + Copper Color
Material
304/316 Stainless Steel, Solder
Net Weight (with Accessories)
27.58lb / 12.51 kg
Product Dimensions (L x W x H)
11.85x4.96x8.86" / 301x126x225 mm
Svars 13,65 кг
Dimensijas 33,20 × 21 × 29 см
Model

EATB28-80
Plates Quantity

80 pcs
Plate Area

12.7 x 30.48 cm
Plate Dimensions

127×305 mm
Dimensions

301 x 126 x 225 mm
Weight

12.51 kg
Material

304/316 L Stainless Steel, Copper Brazing
Thermal Efficiency

90-99 %
Tank Capacity

780-1080K BTU
Pool Size

4 x 1-1/4" MNPT External Thread
Operating Temperature Range

-292 to 392 ℉
Color

Stainless Steel + Copper
Copper Purity

99 %
Bucket Material

304 Stainless Steel
