30W Fiber Laser Marking Machine, Separated Type, 150×150 mm, Manual Focus, High-Speed Engraving for Metal
- Manual Focus Function: This fiber laser engraving machine features laser focusing function, as long as the thickness of the material to be marked entered the software, the device can be manually positioned by red light.
- Scanning System: The powerful galvanometer system is stable and dramatically enhances the marking speed. Infrared engraver metal adopts advanced technology, which is high-efficiency and reliable.
- Refined Fittings: The laser engraver for metal is equipped with a lifting wheel for height adjustment, and three switches on the control panel are easy to operate.
- Strong Compatibility: It can be compatible with Windows XP, 7, 8, 10 (Support 32 bit / 64 bit. NOT compatible with the iOS system). The marking software is compatible with CorelDRAW, AutoCAD, PHOTOSHOP, and other format files.
- Wide Application: The 20W fiber laser is widely used in many industries: Jewelry, computer, cell phone keyboards, auto parts, and so on.
2666,99 € Ar PVN 21%
Laost otsas
Kuupäev varude taastootmise teadmata
Tahan olla teavitatud, kui see toode on tagasi laos?
M4I4KL5N
GXDBJ30WFTSJGDJ01V1

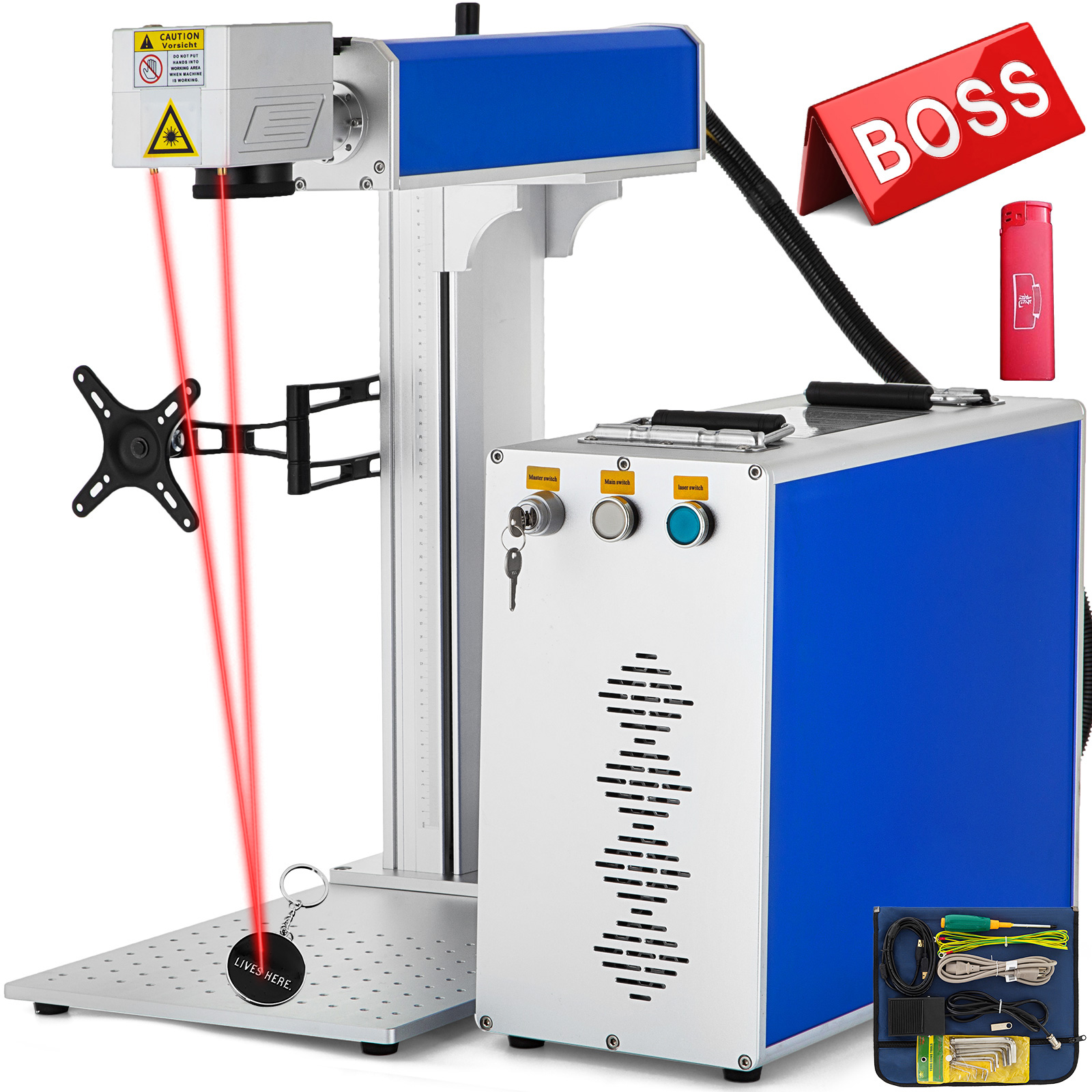

30W Portable Fiber Laser Marking Machine
The 30W portable fiber laser machine can mark on both metal and non-metal, which has the characteristics of sturdy, high efficiency, and reliable. It is widely used for marking jewelry, keyboards of cell phones, auto parts, electronic components, electronic appliances, communication apparatus, sanitary wares, etc.
- Tugev Ühilduvus
- Käsitsi Teravustamise Funktsiooniga
- Scanning System
- Refined Fittings
VEVOR on juhtiv kaubamärk, mis on spetsialiseerunud seadmed ja tööriistad. Koos tuhandete motiveeritud töötajad, VEVOR on pühendunud pakkuma oma klientidele karm seadmed ja vahendid, uskumatult madalad hinnad. Täna, VEVOR on hõivatud turul rohkem kui 200 riiki, kus 10 miljonit eurot pluss ülemaailmse liikmed.
Miks Valida VEVOR?
- Lisatasu Karm Kvaliteet
- Uskumatult Madalad Hinnad
- Kiire Ja Turvaline Kohaletoimetamine
- 30-Päevase Tasuta Tagastab
- 24/7 Tähelepanelik Teenindus
VEVOR on juhtiv kaubamärk, mis on spetsialiseerunud seadmed ja tööriistad. Koos tuhandete motiveeritud töötajad, VEVOR on pühendunud pakkuma oma klientidele karm seadmed ja vahendid, uskumatult madalad hinnad. Täna, VEVOR on hõivatud turul rohkem kui 200 riiki, kus 10 miljonit eurot pluss ülemaailmse liikmed.
Miks Valida VEVOR?
- Lisatasu Karm Kvaliteet
- Uskumatult Madalad Hinnad
- Kiire Ja Turvaline Kohaletoimetamine
- 30-Päevase Tasuta Tagastab
- 24/7 Tähelepanelik Teenindus

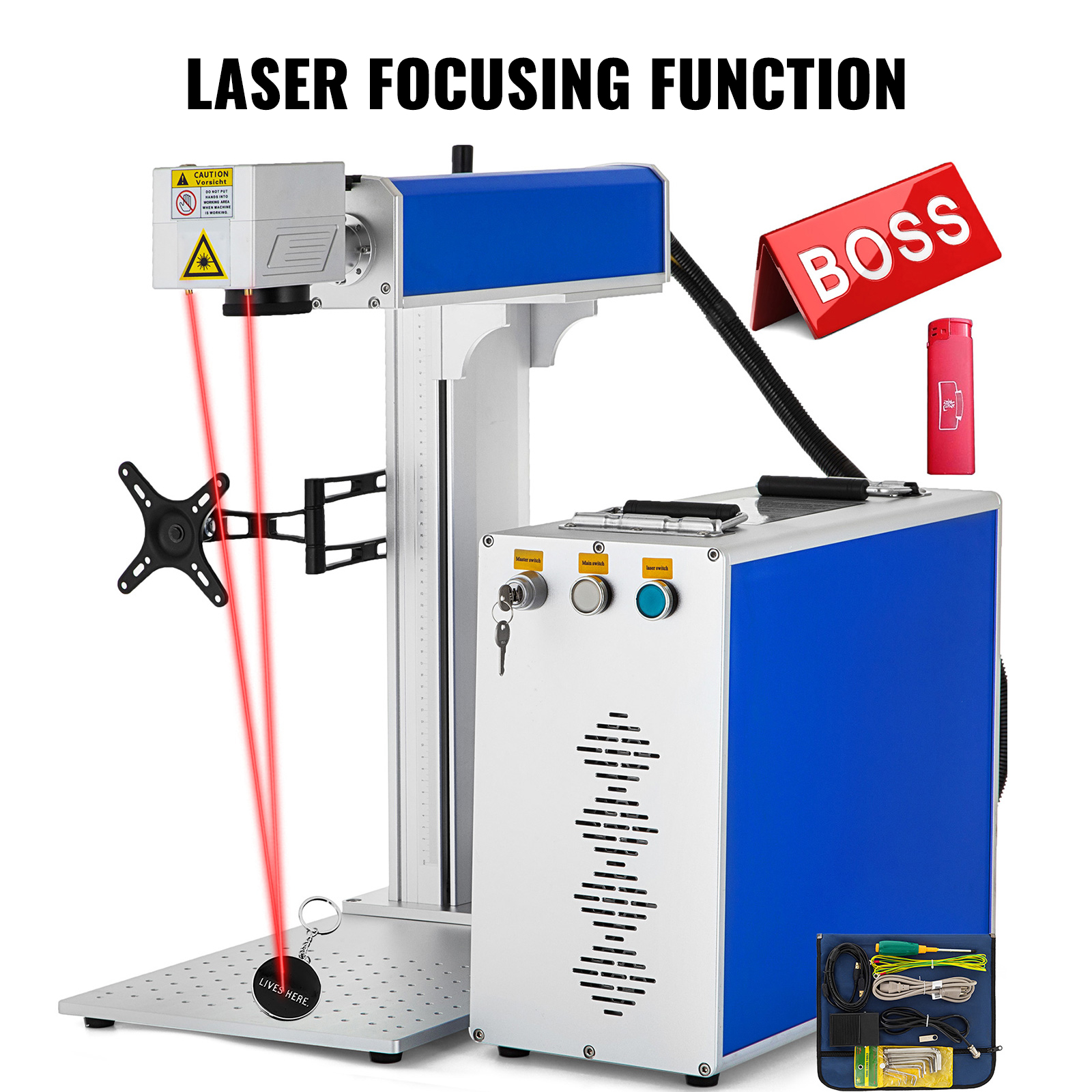

Laser Focusing Function
Laser engraver features laser focusing function for manually focus by identifying the thickness of the material.

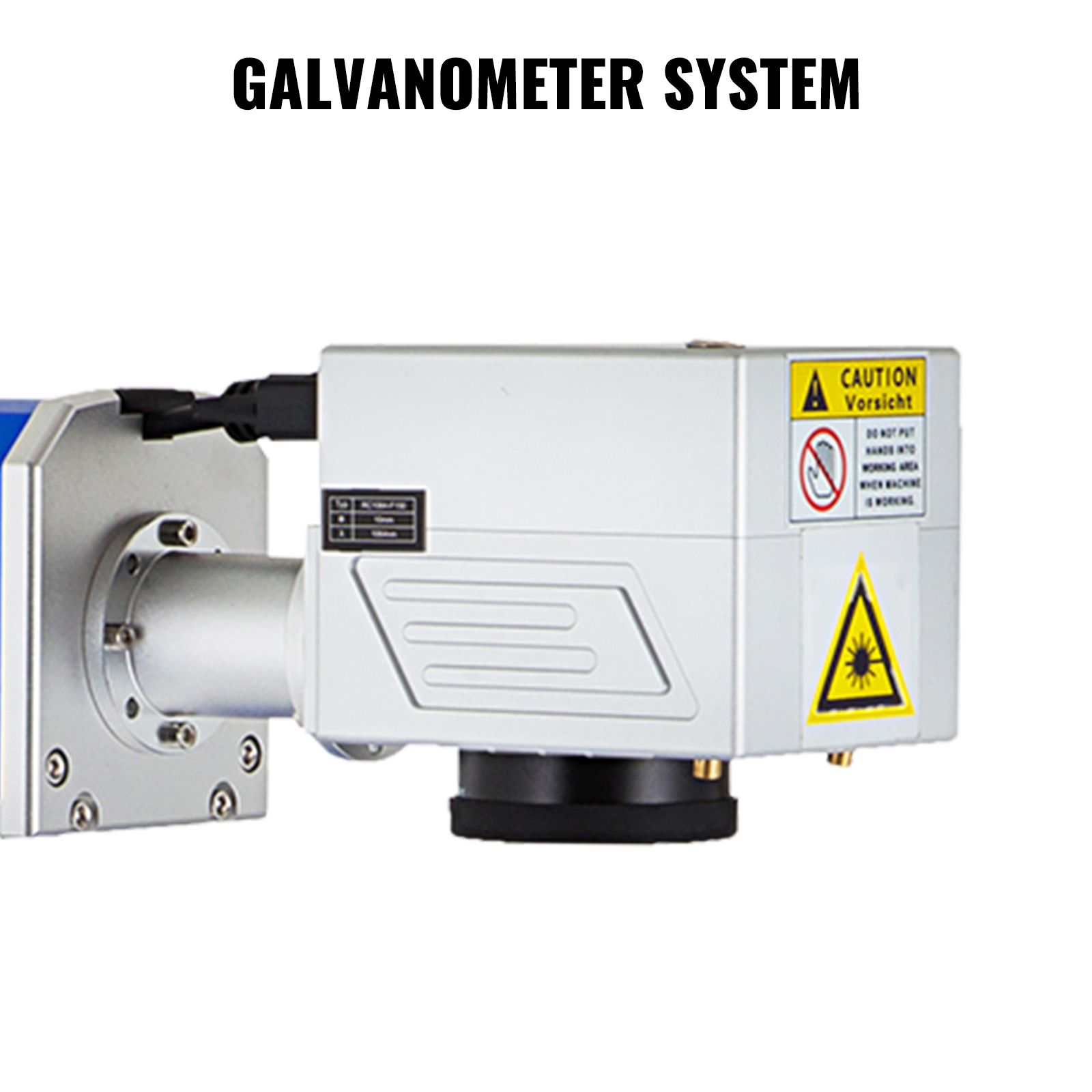

Galvanometer System
High-speed digital scanning galvanometer system, the imported high-speed galvanometer scanning head greatly reduces the delay and improves the marking speed.

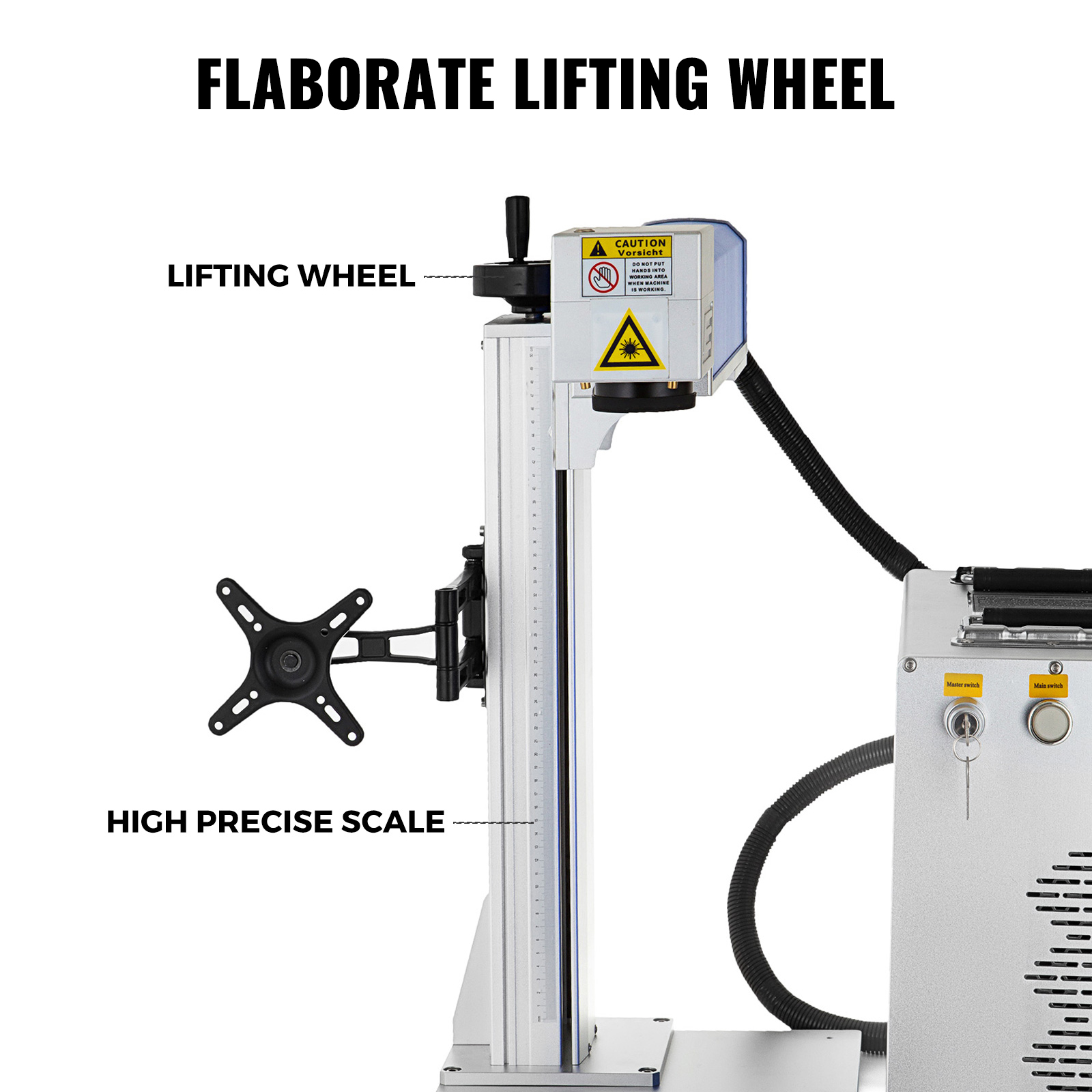

Töötada Tõste-Ratta
Equipped with a hidden lifting rod for high positioning accuracy. The wheel can be used to adjust the height of the galvanometer system, and the little handle on the wheel makes the adjustment easier.

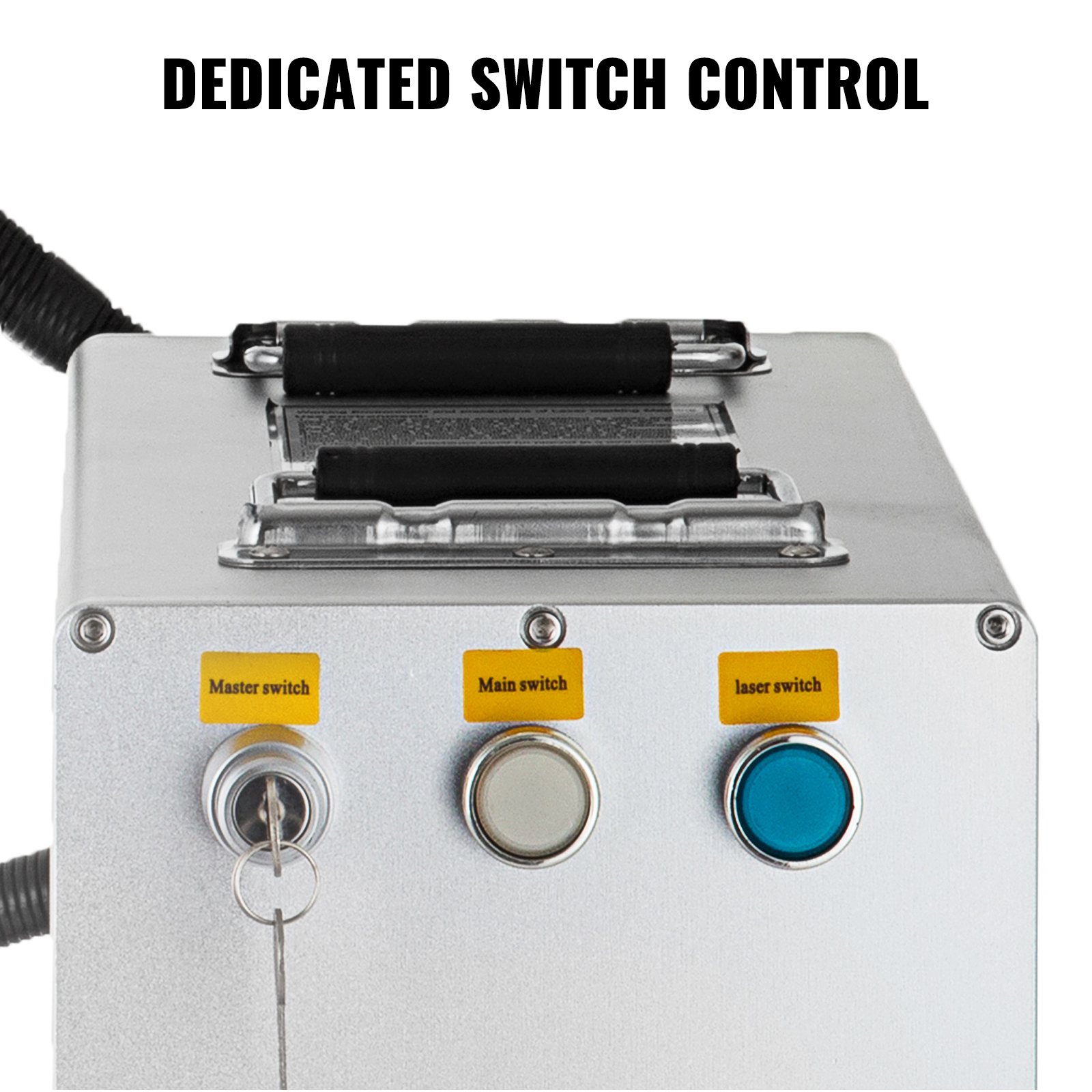

Dedicated Switch Control
This 30W fiber machine comes with three switches, master switch, main switch, and infrared switch, for dedicated control. The key to the master switch is designed as physical control for a high security coefficient.

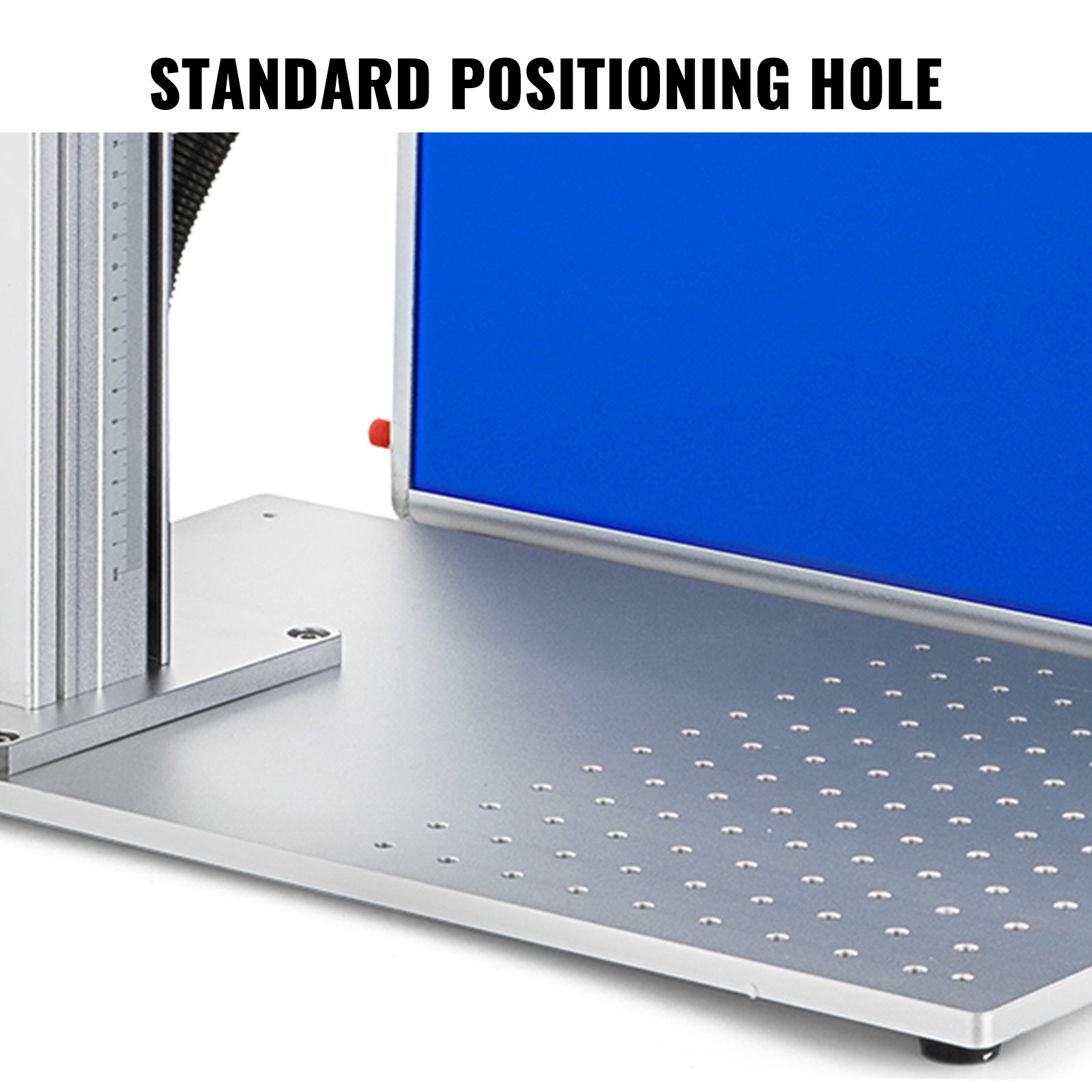

Standard Positioning Hole
Standard positioning holes are provided for quick and easy positioning. Any adjustable position can realize various combinations. It can cooperate with software multi-position printing to improve efficiency.
Erinevate Taotluse
Fiber laser rotary engraver Capable to mark on varieties of metals and non-metallic materials, especially suitable for high hardness, high melting point, and brittle materials, making it an ideal tool for many industries.
Kirjeldused
- Product: Fiber Infraed engraver
- Power: 30 W
- Voltage: 110 V, 60 Hz
- Marking size: 150x150 mm (5.9x5.9 inch)
- Laser wavelength: 1064 nm
- Laser frequency: 20-80 kHz
- Marking depth: <1 mm
- Märgistus kiirus: 8000 mm/s
- Minimaalne joone laius: 0.01 mm
- Repeatability: +/-0.0001 mm
- Beam quality: <1.6
- Life: 100000 h
- Compatible Software: Auto-Cad, CorelDRAW, Photoshop
- Computer system: Windows XP/7/8/10 (Support 32/64 bit)
- File format: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, etc

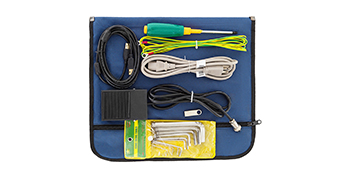

Pakendi Sisu
- 1 x Fiber Infrared Machine
- 1 x Power Cable
- 1 x Suu Lüliti
- 1 x USB Kaabel
- 1 x Ground Wire
- 1 x Software CD
Spetsifikatsioon
- Toode
- Fiber Infraed engraver
- Võimsus
- 30 W
- Pinge
- 110 V, 60 Hz
- Marking size
- 150x150 mm (5.9x5.9 inch)
- Laser wavelength
- 1064 nm
- Laser frequency
- 20-80 kHz
- Märgistus sügavus
- <1 mm
- Märgistus kiirus
- 8000 mm/s
- Minimaalne joone laius
- 0.01 mm
- Korratavus
- +/-0.0001 mm
- Beam quality
- <1.6
- Life
- 100000 h
- Compatible Software
- Auto-Cad, CorelDRAW, Photoshop
- Computer system
- Windows XP/7/8/10 (Support 32/64 bit)
- File format
- AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, etc
| Kaal | 48,00 kg |
|---|---|

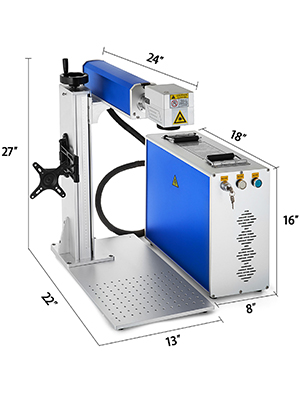

| Mõõtmed | 78,00 × 48,00 × 86,00 cm |
