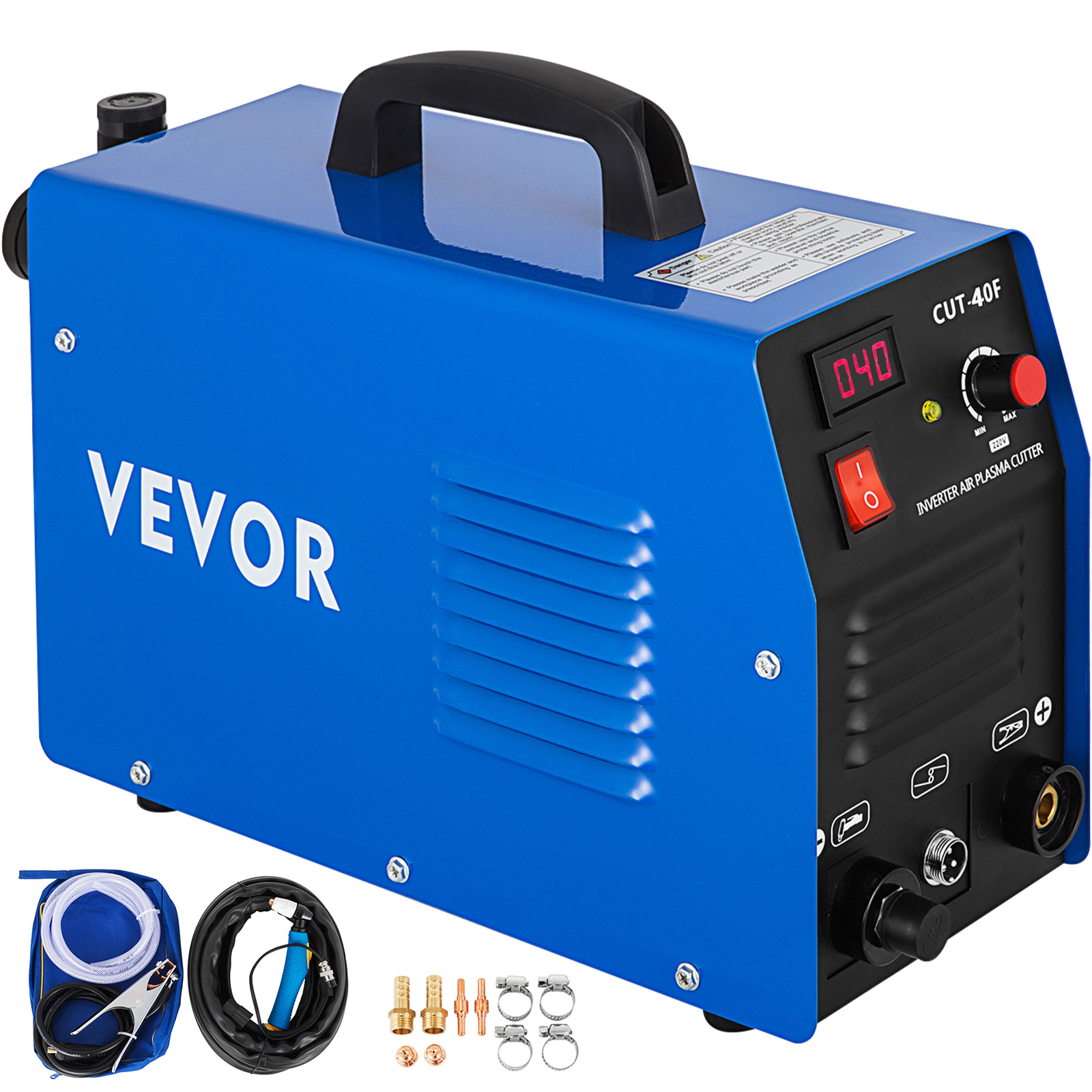

Vevor CUT-40F nešiojamas 40A DC inverterinis oro plazminis pjoviklis, pjauna iki 12 mm metalą, energiją taupantis įrenginys
- 【EXCELLENT PLASMA CUTTER】- The Cut-40 Plasma cutter can easily cut up to 0.47” (12 mm) metal under maximum output with ultimate portability weighing only 21.56 lbs.
- 【COMPACT & PORTABLE】- The inverter plasma cutter has a handle and a thoughtful torch design that can provide a sure, comfortable grip, making the whole machine easy to take.
- 【HIGH EFFICIENCY & ENERGY SAVING】- The cutting machine adopts the inverter technical of switch power, greatly reducing the main transformer’s dimensions and weight. Energy conservation can reach up to 50% while efficiency is increased by 30%.
- 【PROTECTION & DISSIPATION】- This plasma cutting machine has over-voltage, over-current, over-heat protection, and it can supply gas ahead or turn off gas delayed cooling the gun head and protect the cutting gun.
- 【VARIOUS APPLICATION】- It is perfect for home DIY in the garage and general repairing work such as cutting stainless steel, alloy steel, mild steel, copper, and aluminum.
243,79 eur Ar PVN 21%
Neturime
Date of restocking unknown
Want to be notified when this product is back in stock?
M4I4K0H5
DLZQGJCUT40FWSX01V2

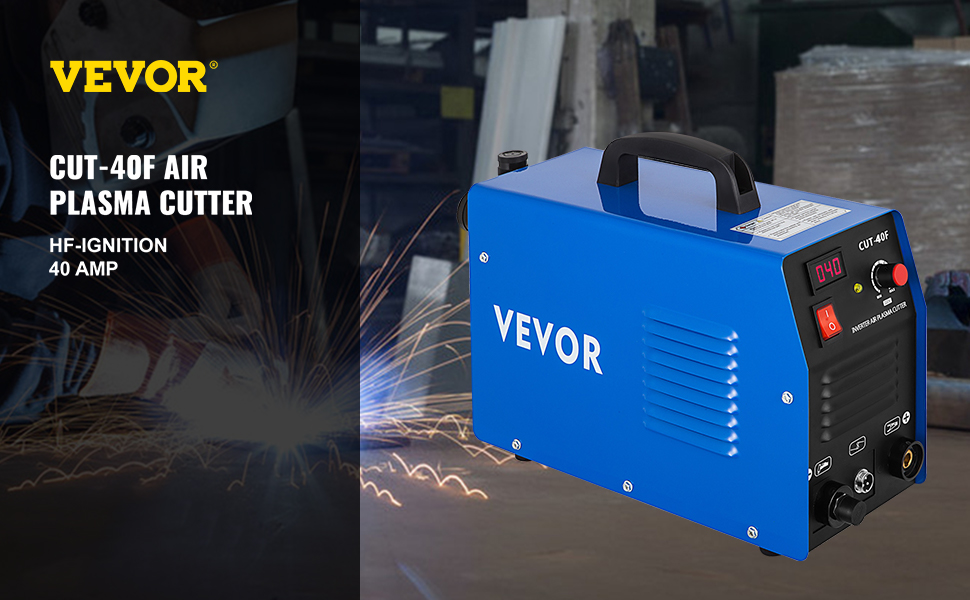

CUT-40F Inverter Air Plasma Cutter
CUT-40F is made by international advantaged invert technical. 50Hz/60Hz frequency is inverted to high frequency (frequency is over 100KHz) by V-MOSFET, then step down voltage and rectification current, an inverter power supply generates powerful DC welding current through PWM technical.
- Pastaba
- 1. Make sure the copper tip must not connect to the workpiece directly when the user is cutting. The torch should be inclined, and it is 1 mm from the inter-hole of the copper tip to the workpiece in order to protect the copper tip.
- 2. As an arc-supporting cutting machine, if the arc-supporting frequency is down or there is no arc supporting, the user may be got rid of the oxidized film of inter-electrode by abrasive paper. Then the machine will be operated normally.
- Oro Plasma Cutter
- Efektyvi Aušinimo Sistema
- HF ignition
- Kompaktiškas Ir Nešiojamieji
VEVOR yra pirmaujantis prekinis ženklas, kuris specializuojasi įranga ir įrankiai. Kartu su tūkstančiais motyvuotų darbuotojų, VEVOR yra skirta teikti savo klientams su kieta įranga ir įrankiai neįtikėtinai mažas kainas. Šiandien, VEVOR užima rinkas, daugiau nei 200 šalių, su 10 milijonų plius visuotinio narių.
Kodėl verta Rinktis VEVOR?
- Premium Kokybės Kietas
- Neįtikėtinai Mažos Kainos
- Greitas Ir Saugus Pristatymas
- 30-Dieną Nemokamai Grįžta
- 24/7 Dėmesingas Aptarnavimas
VEVOR yra pirmaujantis prekinis ženklas, kuris specializuojasi įranga ir įrankiai. Kartu su tūkstančiais motyvuotų darbuotojų, VEVOR yra skirta teikti savo klientams su kieta įranga ir įrankiai neįtikėtinai mažas kainas. Šiandien, VEVOR užima rinkas, daugiau nei 200 šalių, su 10 milijonų plius visuotinio narių.
Kodėl verta Rinktis VEVOR?
- Premium Kokybės Kietas
- Neįtikėtinai Mažos Kainos
- Greitas Ir Saugus Pristatymas
- 30-Dieną Nemokamai Grįžta
- 24/7 Dėmesingas Aptarnavimas

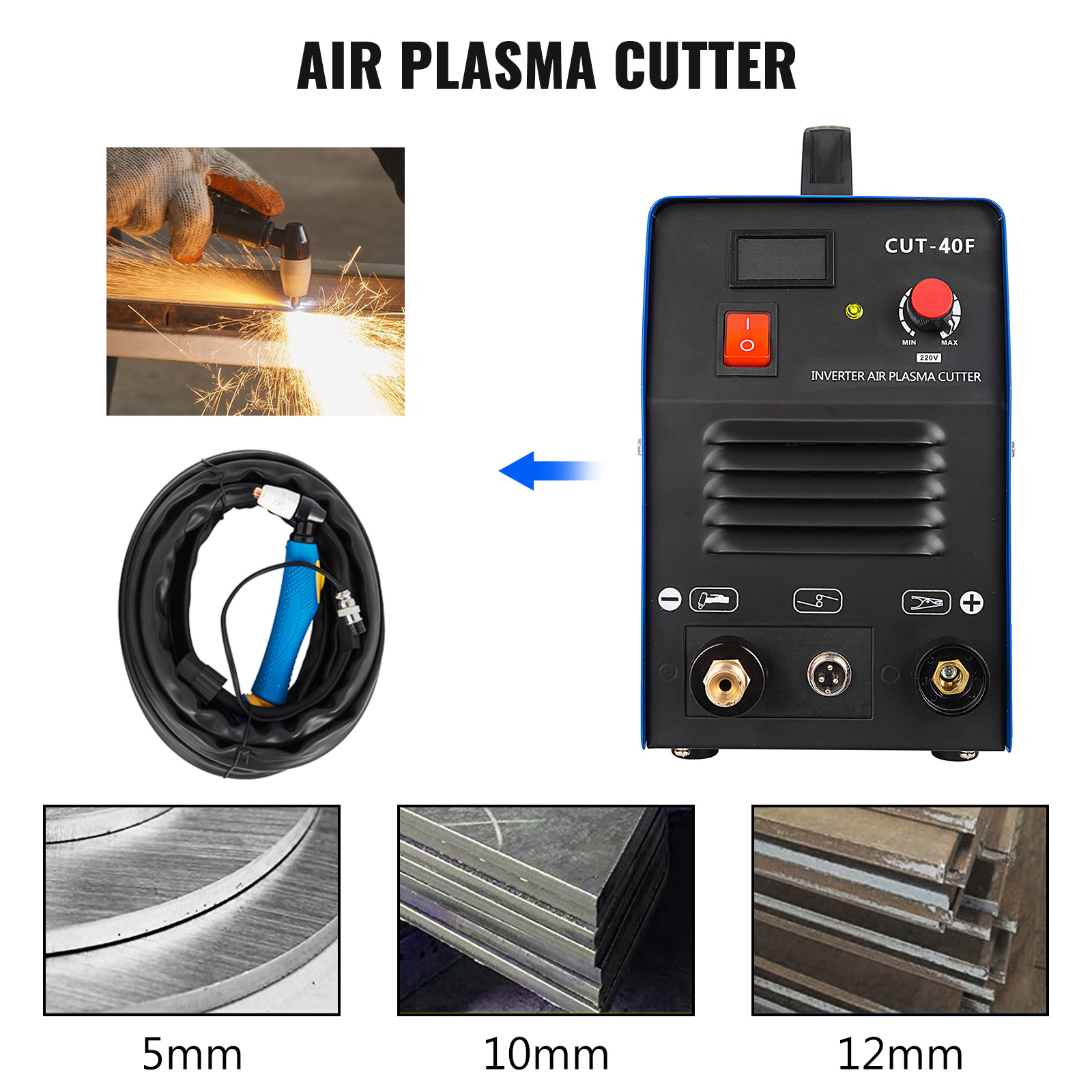

Oro Plasma Cutter
The plasma cutter can easily cut up to 0.47’’(12 mm) metal under maximum output. Compared with oxyhydrogen cutting, plasma cutting is more secure, cost-effective, and easier to use.

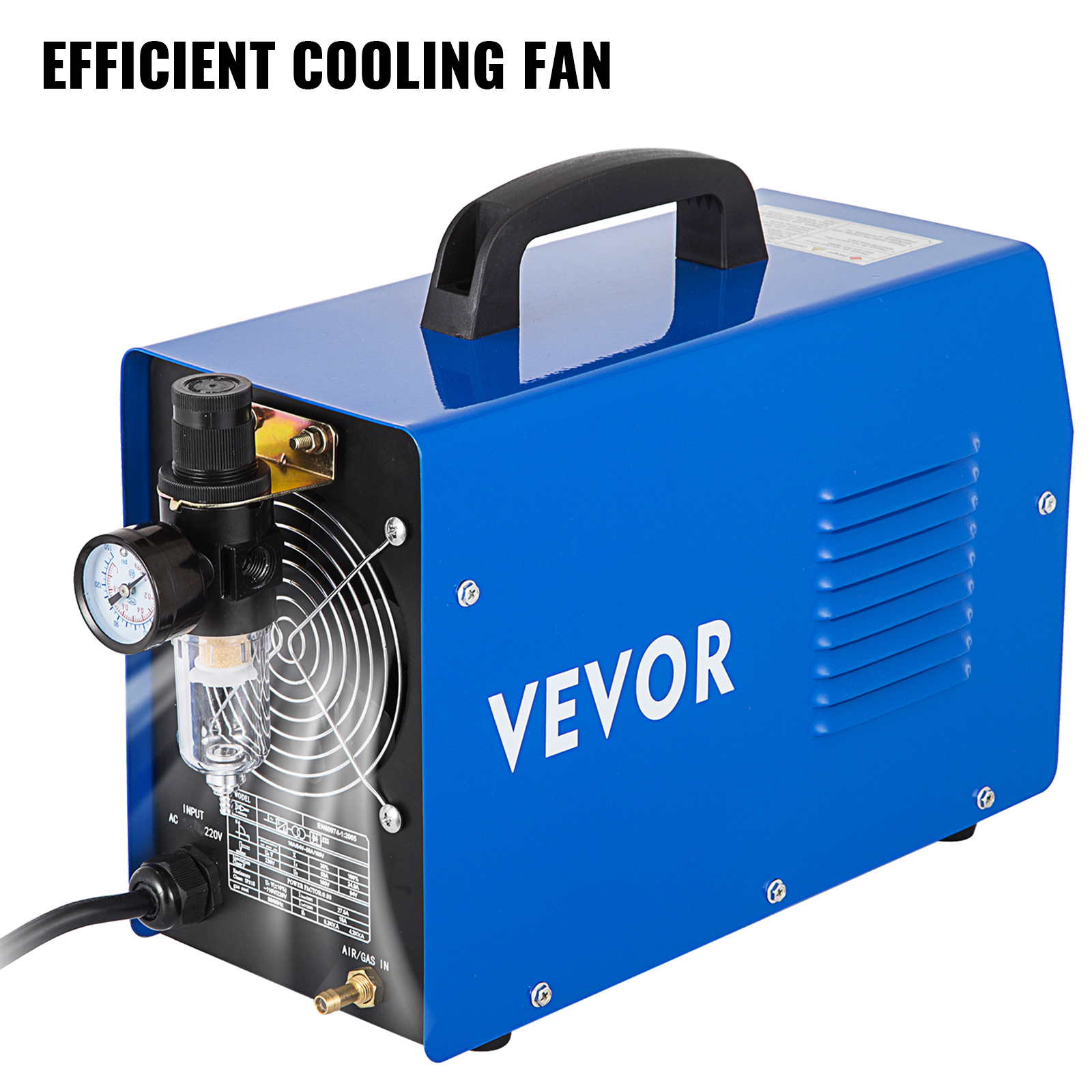

Efektyvi Aušinimo Sistema
The advanced cooling system offers built-in over-heat protection, over-voltage protection, under-voltage protection, ensuring the plasma cutter has stable performance.

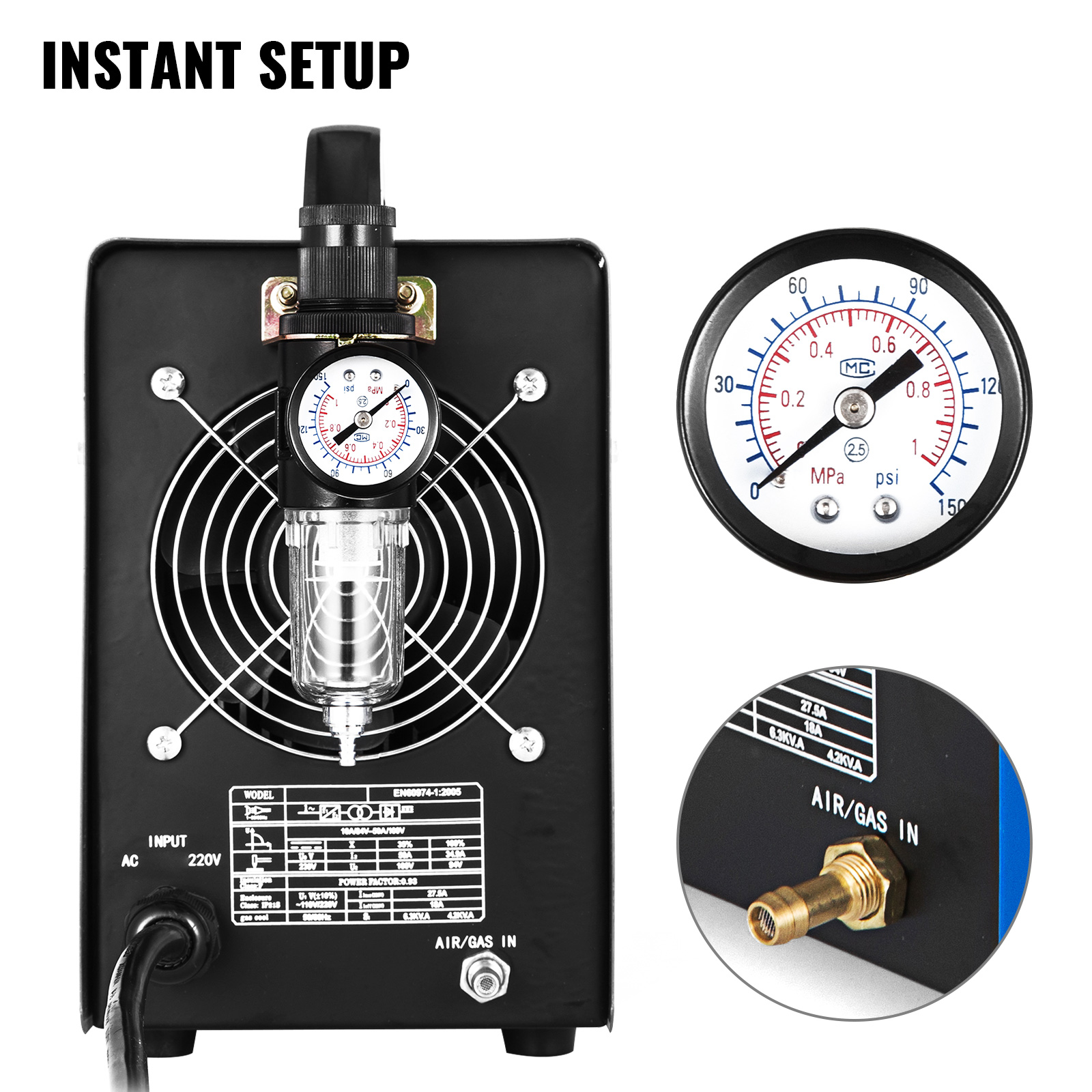

Momentiniai Setup
The whole machine can be set up quickly within 1 min. The 220V input design allows the machine to connect to your existing wall outlet easily.

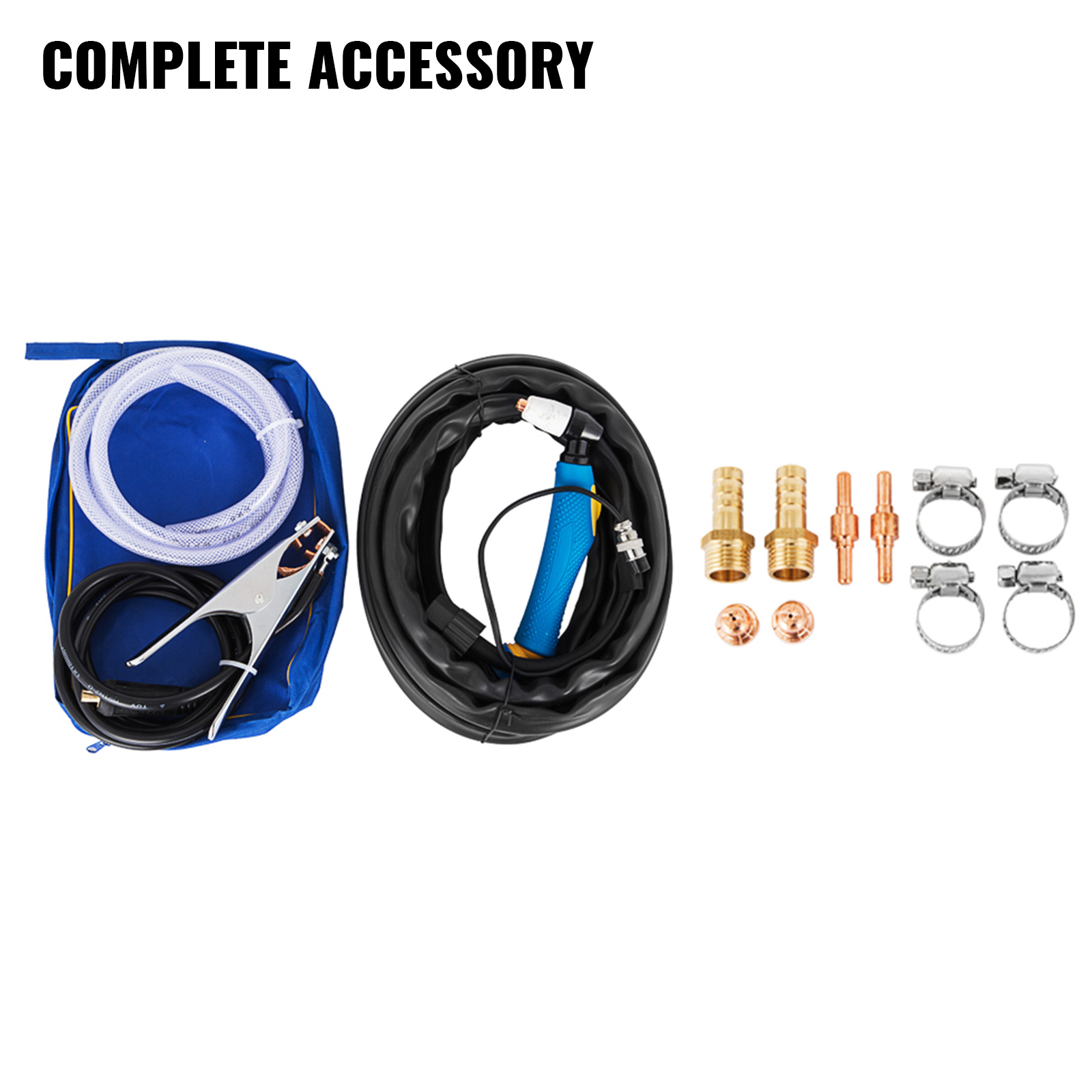

Pilnas Priedų
We prepare a standard accessory kit for you to meet different demands, including one inverter plasma cutter, one cutting torch, one earth clamp, one pressure reducing valve, one 2M air hose, two electrodes nozzles.
Kompaktiškas Ir Nešiojamieji
The inverter plasma cutter features mini size and lightweight. Besides, it has a handle and a thoughtful torch design that make the whole machine easy to take.

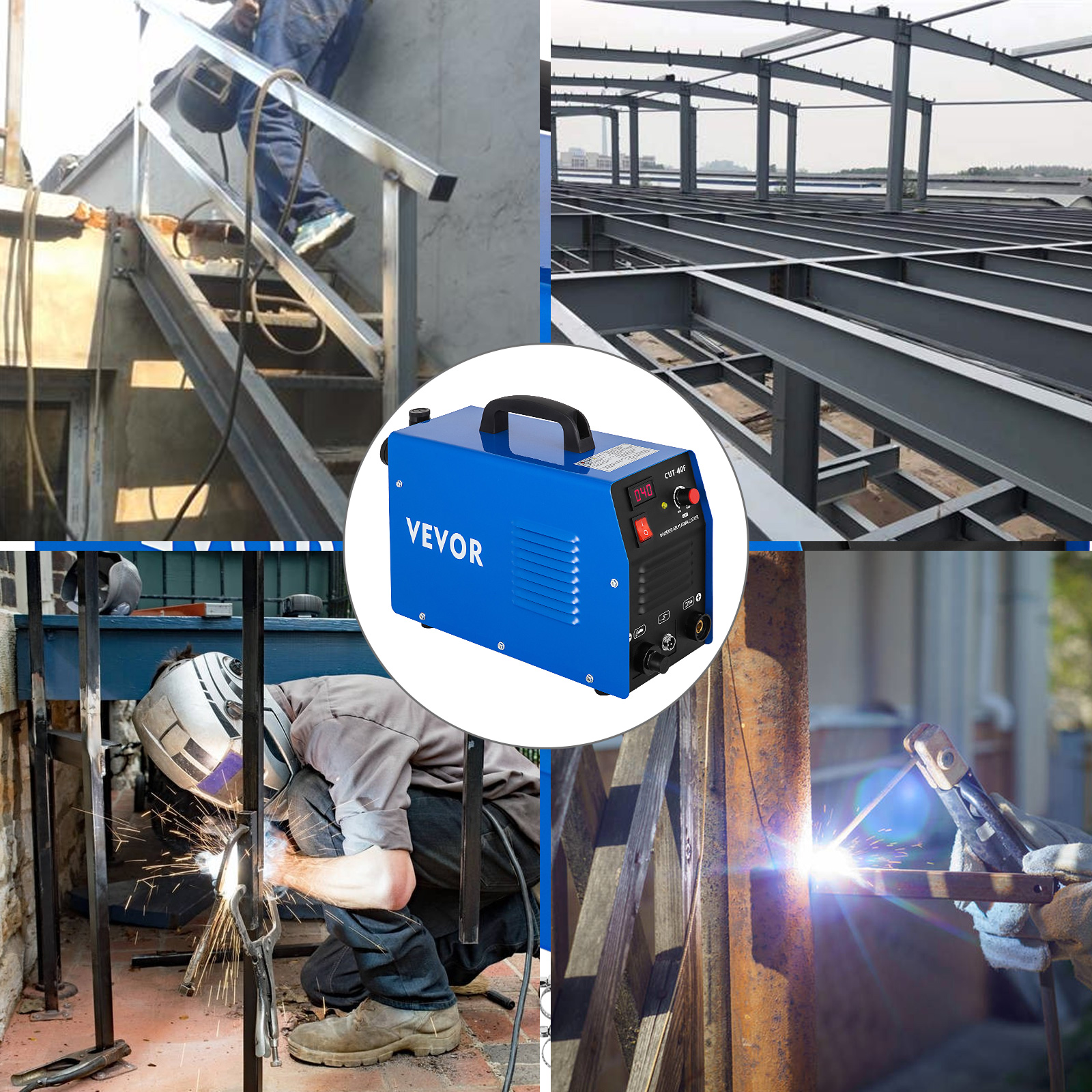

Platus Taikymas
It is suitable for a wide range of applications, including sheet metal fabrication, light industrial use, site work, automotive, ducting work, repair, and maintenance services.
Specifikacijos
- Model: CUT-40F
- Power supply: 230V, 50Hz
- Rated Power: 6.5KW
- No-load voltage: 250V
- Rated output current: 40A
- Rated output voltage: 96V
- Cutting Thickness: 1 - 12MM
- Gas Supply: Air
- Air Pressure:30-70psi
- Duty cycle: 30A
- Apsaugos Laipsnis: IP21
- Cooling Way: Fan
- Power Factor: 0.93

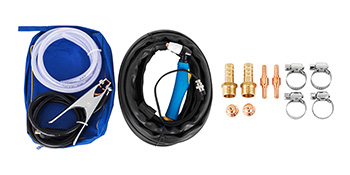

Pakuotės Turinys
- 1 x Inverter Plasma Cutter
- 1 x Cutting Torch
- 1 x Žemės Gnybtas
- 1 x Pressure Reducing Valve
- 1 x 2M Air Hose
- 2 x Electrode Nozzle
Specifikacija
- Modelis
- CUT-40F
- Maitinimo šaltinis
- 230V, 50Hz
- Nominali Galia
- 6.5KW
- Be apkrovos įtampa
- 250V
- Nominali išėjimo srovė
- 40A
- Nominali išėjimo įtampa
- 96V
- Pjovimo Storis
- 1 - 12MM
- Gas Supply
- Air
- Oro Slėgis
- 30-70psi
- Darbo ciklas
- 60%
- Apsaugos Lygis
- IP21
- Aušinimo Būdas
- Ventiliatorius
- Galios Koeficientas
- 0.93
| Svoris | 9,29 kg |
|---|---|
| Išmatavimai | 47,00 × 35,00 × 28,00 cm |
