90V 375W Pastāvīgā Magnēta DC Motors, 1750RPM, 56C Rāmis, TENV, Augsta Efektivitāte
- 【PERMANENT MAGNET DC MOTOR】- The dc motor we offered is permanent magnet DC motor. 90V voltage, 1/2HP horsepower, 1750RPM rated speed, 56C frame. Our TENV DC motor features excellent speed regulation characteristics, high efficiency.
- 【EFFICIENT & DURABLE】- The permanent magnet dc motor of Rated Speed: 1750 RPM, features high efficiency, small size and low noise. The outer casing is made from robust steel, F insulation class, durable and reliable.
- 【DETACHABLE BASE】- The tenv dc motor is easy to mounted and remove with 56C face and Removable mounting bases for dual mounting versatility. The motor is easy to mounted and remove.
- 【SPARE CARBON BRUSHES】- The package includes one pair of carbon brushes. The carbon brush is a device that transfers energy or signals between the fixed part and the rotating part of the motor. It is a consumable part and should be regularly maintained and replaced.
- 【WIDE APPLICATION】- Widely used in light industry, textile, chemical, printing and dyeing, metallurgy, mining, wire drawing, extrusion machinery, medical equipment, health fitness equipment, food processing, printing and packaging, machine tools and other machinery and automated control systems.
93,00 € Ar PVN 21%
118 ir noliktavā
M4I4KXCZ
ZLDJ113ZYT90-1-2VV0

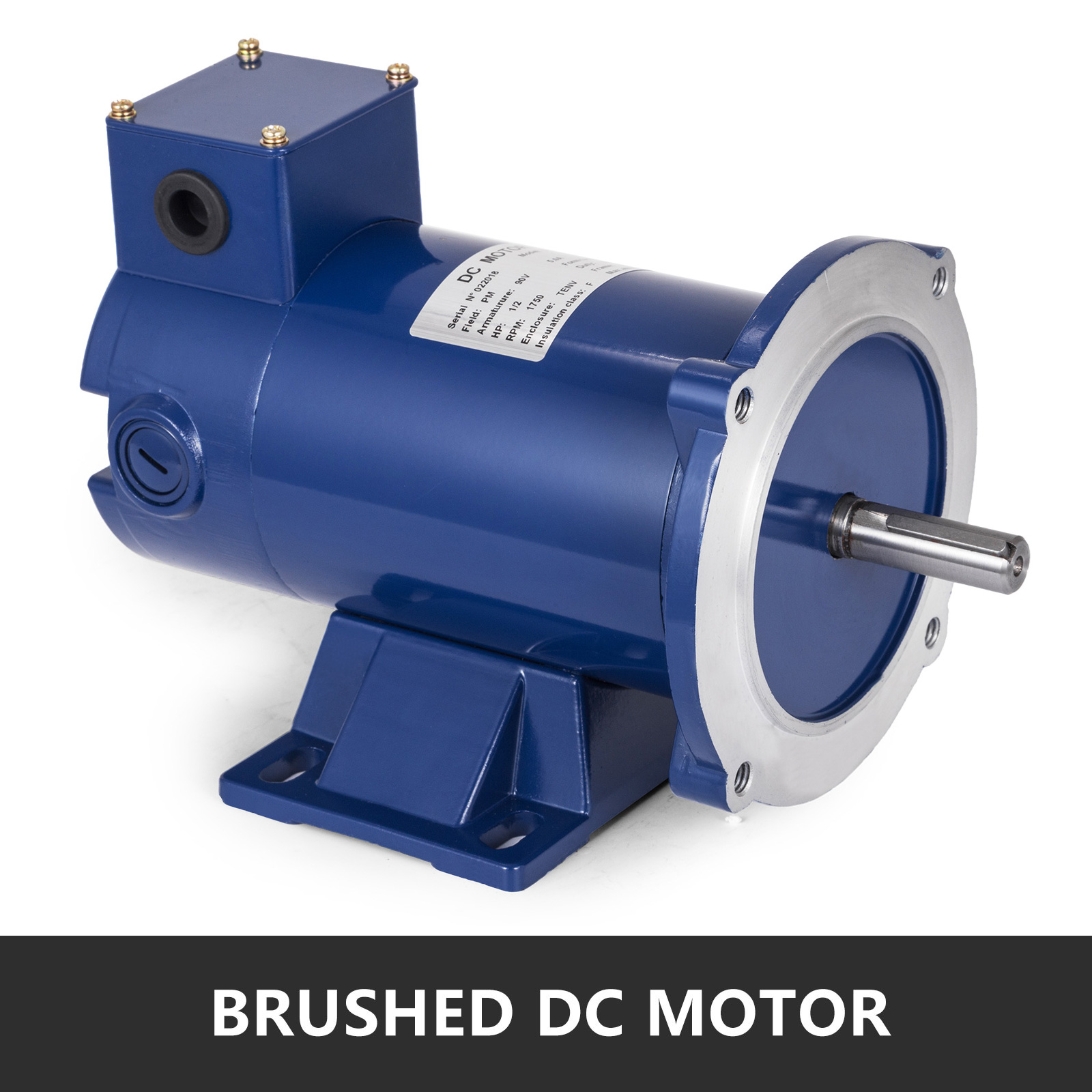

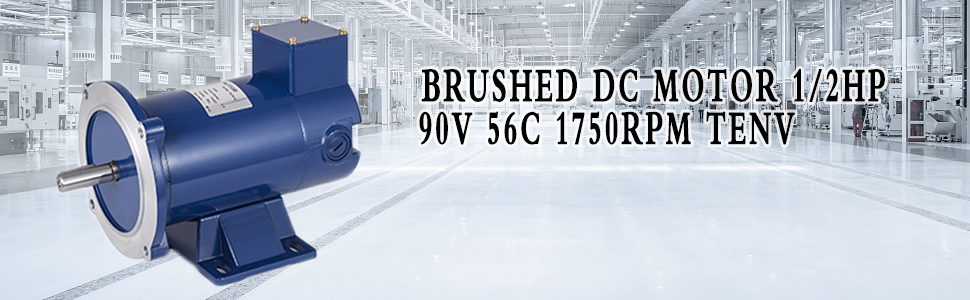

Brushed DC Motor 1/2HP 90V 56C 1750RPM TENV

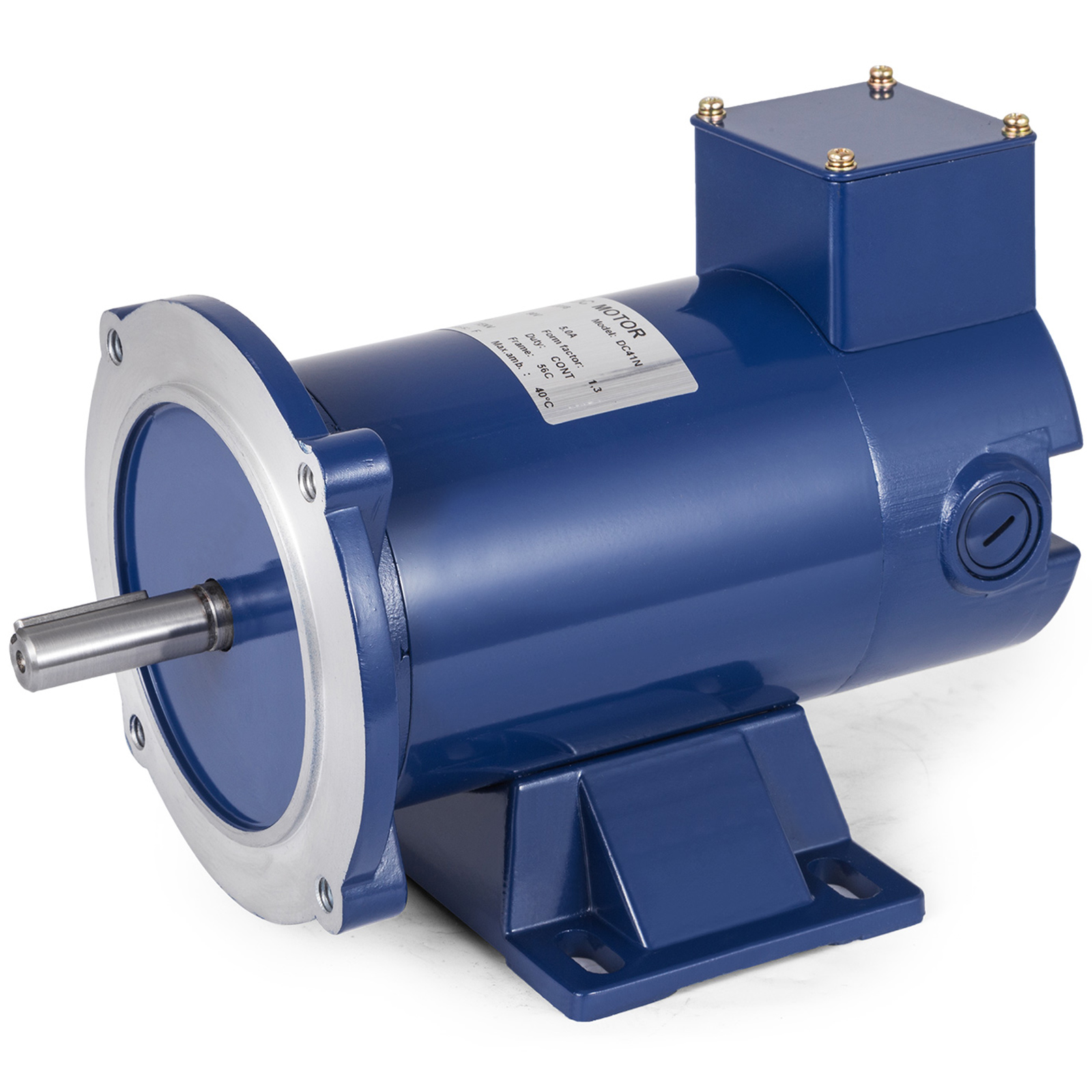

The 1/2HP DC motor we offered is permanent magnet DC motor, 90V voltage, TENV system, 56C frame and 1750RPM rated speed. With removable base and durable stylish blue casing, high efficiency with long life, you can rest assured to buy.
- Permanent Magnet DC Motor
- Efficient & Durable
- Noņemama bāze
- Spare Carbon Brushes
VEVOR ir vadošais zīmols, kas specializējas aprīkojuma un instrumentu jomā. Kopā ar tūkstošiem motivētu darbinieku VEVOR ir apņēmies nodrošināt saviem klientiem izturīgu aprīkojumu un instrumentus par neticami zemām cenām. Šodien VEVOR ir aizņēmis vairāk nekā 200 valstu tirgus ar vairāk nekā 10 miljoniem biedru visā pasaulē.
Kāpēc izvēlēties VEVOR?
- Premium izturīga kvalitāte
- Neticami zemas cenas
- Ātra un droša piegāde
- 30 dienu bezmaksas atgriešana
- 24 stundas diennaktī, 7 dienas nedēļā, 7 dienas nedēļā, 7 dienas nedēļā, uzmanīgs serviss
VEVOR ir vadošais zīmols, kas specializējas aprīkojuma un instrumentu jomā. Kopā ar tūkstošiem motivētu darbinieku VEVOR ir apņēmies nodrošināt saviem klientiem izturīgu aprīkojumu un instrumentus par neticami zemām cenām. Šodien VEVOR ir aizņēmis vairāk nekā 200 valstu tirgus ar vairāk nekā 10 miljoniem biedru visā pasaulē.
Kāpēc izvēlēties VEVOR?
- Premium izturīga kvalitāte
- Neticami zemas cenas
- Ātra un droša piegāde
- 30 dienu bezmaksas atgriešana
- 24 stundas diennaktī, 7 dienas nedēļā, 7 dienas nedēļā, 7 dienas nedēļā, uzmanīgs serviss

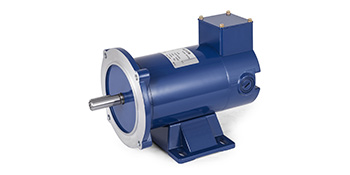

Līdzstrāvas motors ar sukām
With built-in fan cooling system, the TENV (totally enclosed non-ventilated ) motor can dissipate heat better to prevent damage from overheating. Rated Speed: 1750 RPM, HP: 1/2.

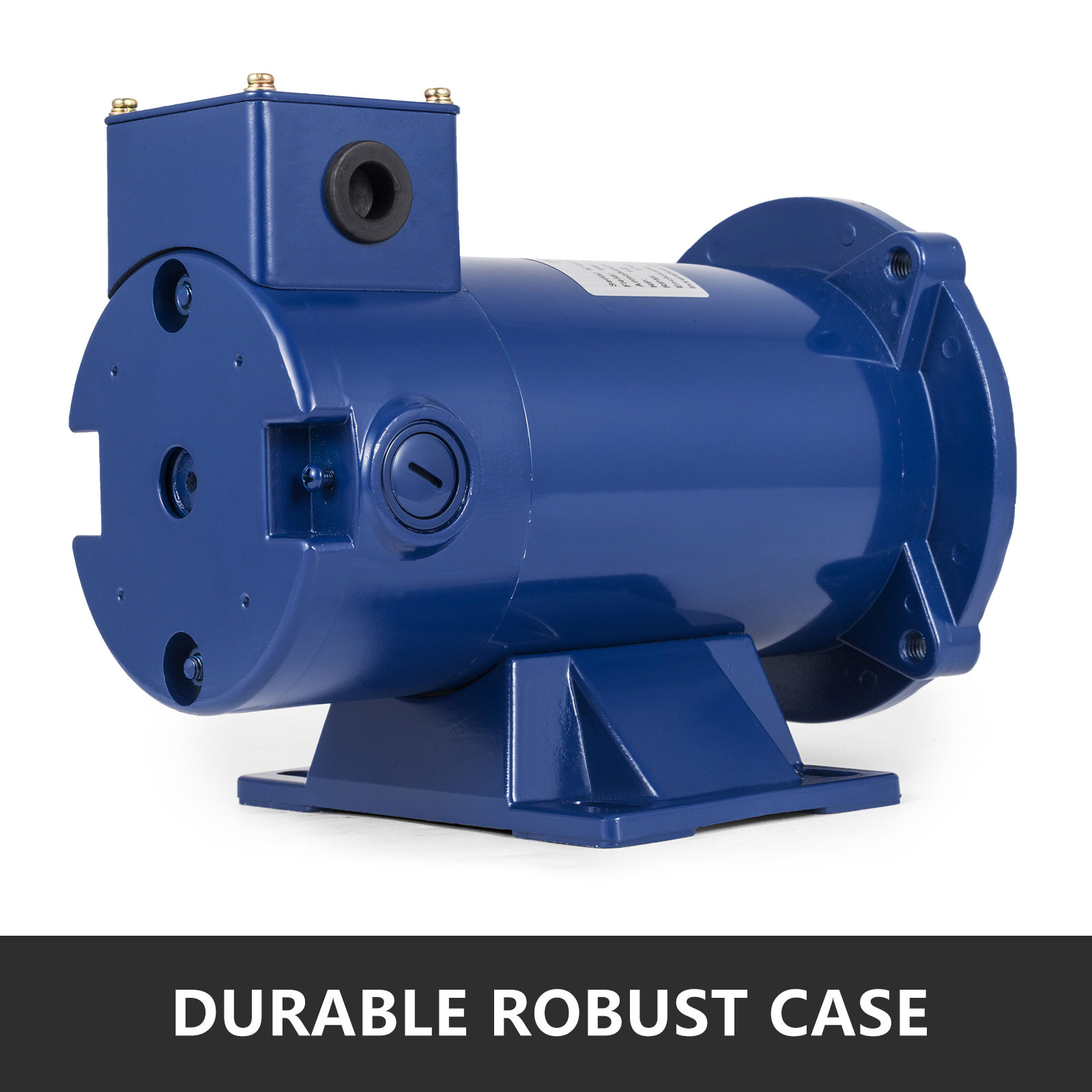

Durable Robust Case
High quality steel outer casing, F insulation class, durable and robust. Double seal ball bearings with permanent grease filling for long life.
With Removable Base
Our tenv dc motor has removable base and 56C frame for dual mounting versatility. Easy to mounted and remove.

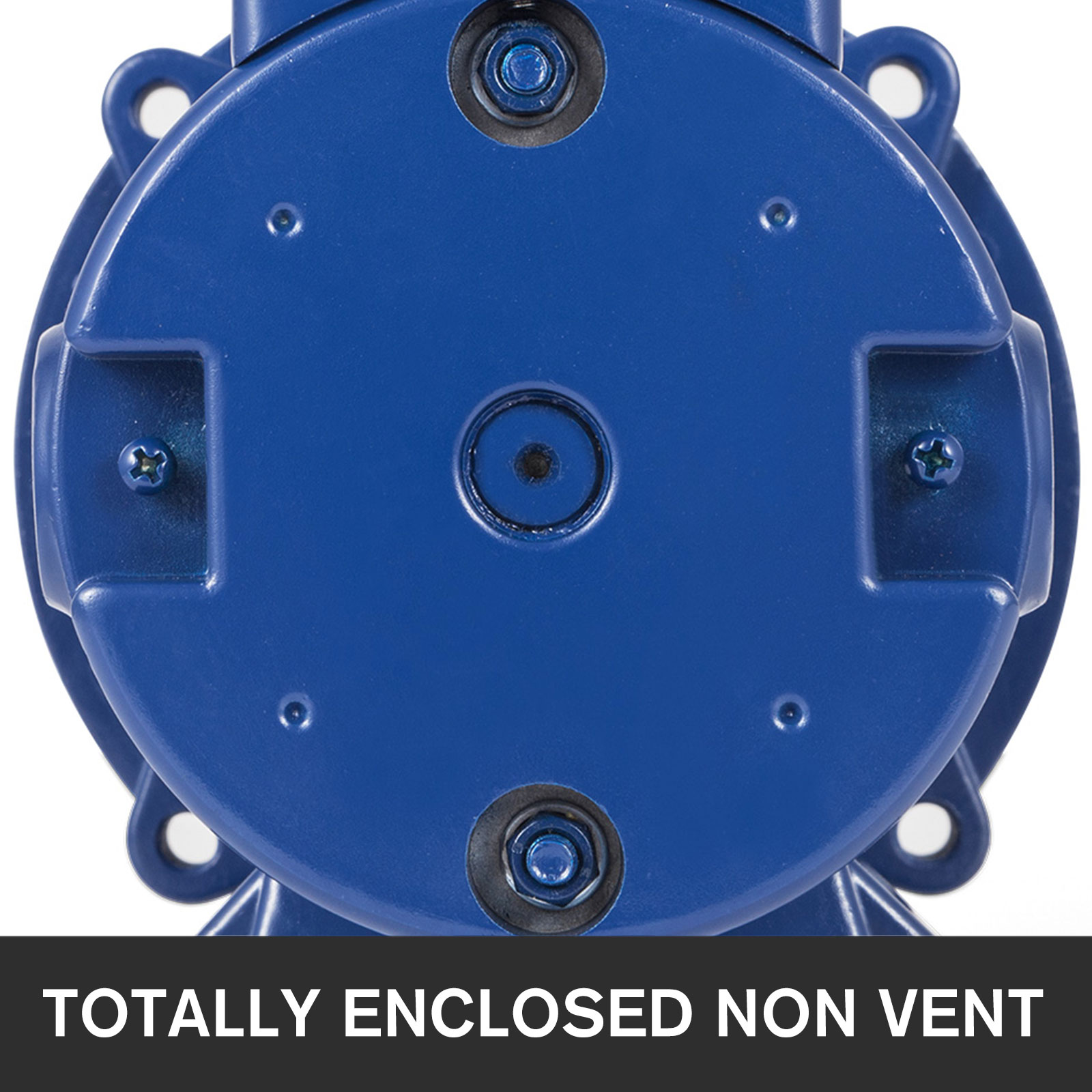

Totally Enclosed Non Vent
The motor is TENV (totally enclosed Non Vent) brushed DC motor. The built-in fan cooled for no temp rise. Aluminum alloy end plate to prevent corrosion.

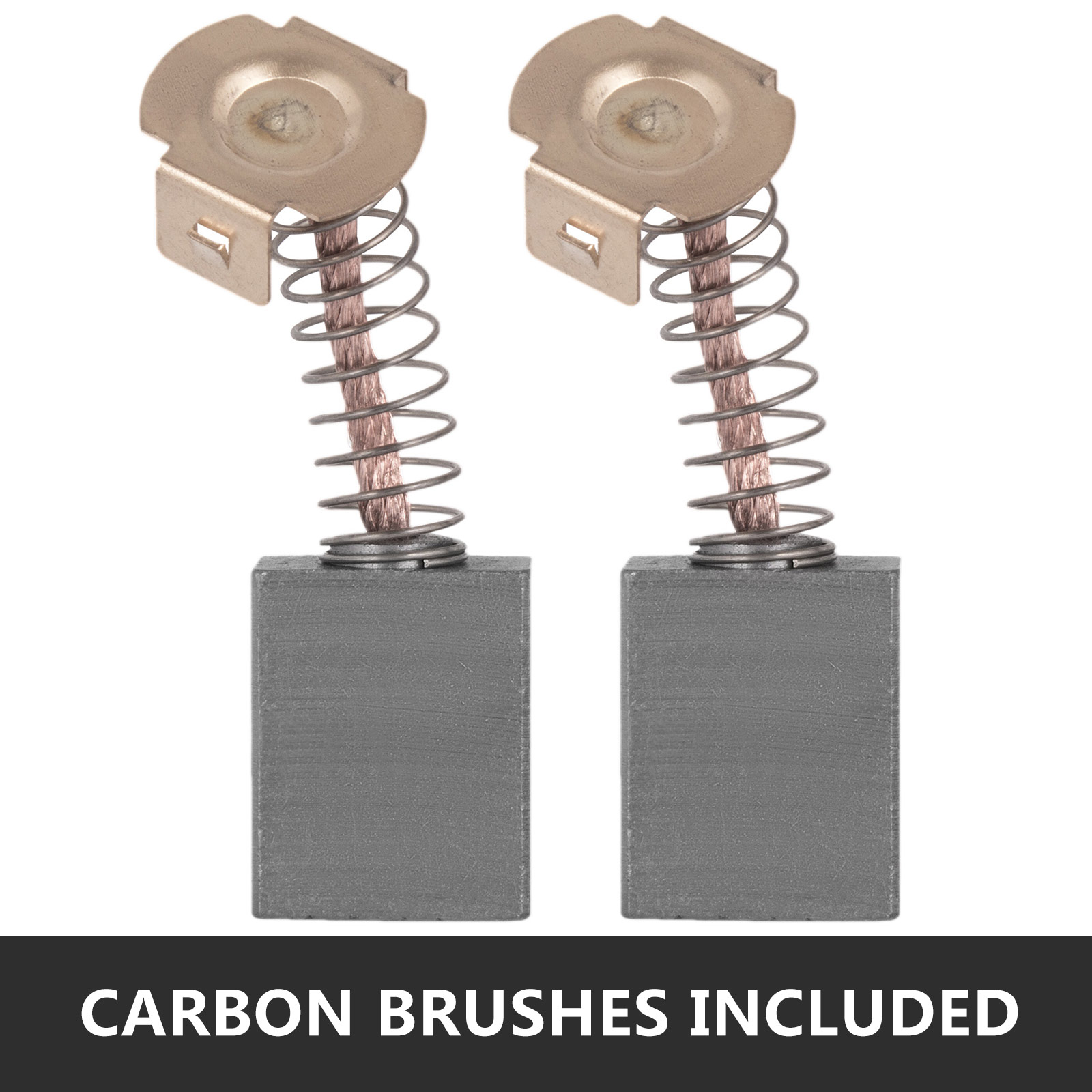

Carbon Brushes Included
One pair of spare carbon brushes. Carbon brush is consumable part, should be replaced regularly. Insulation Class: F, Service Factor: 1.10.

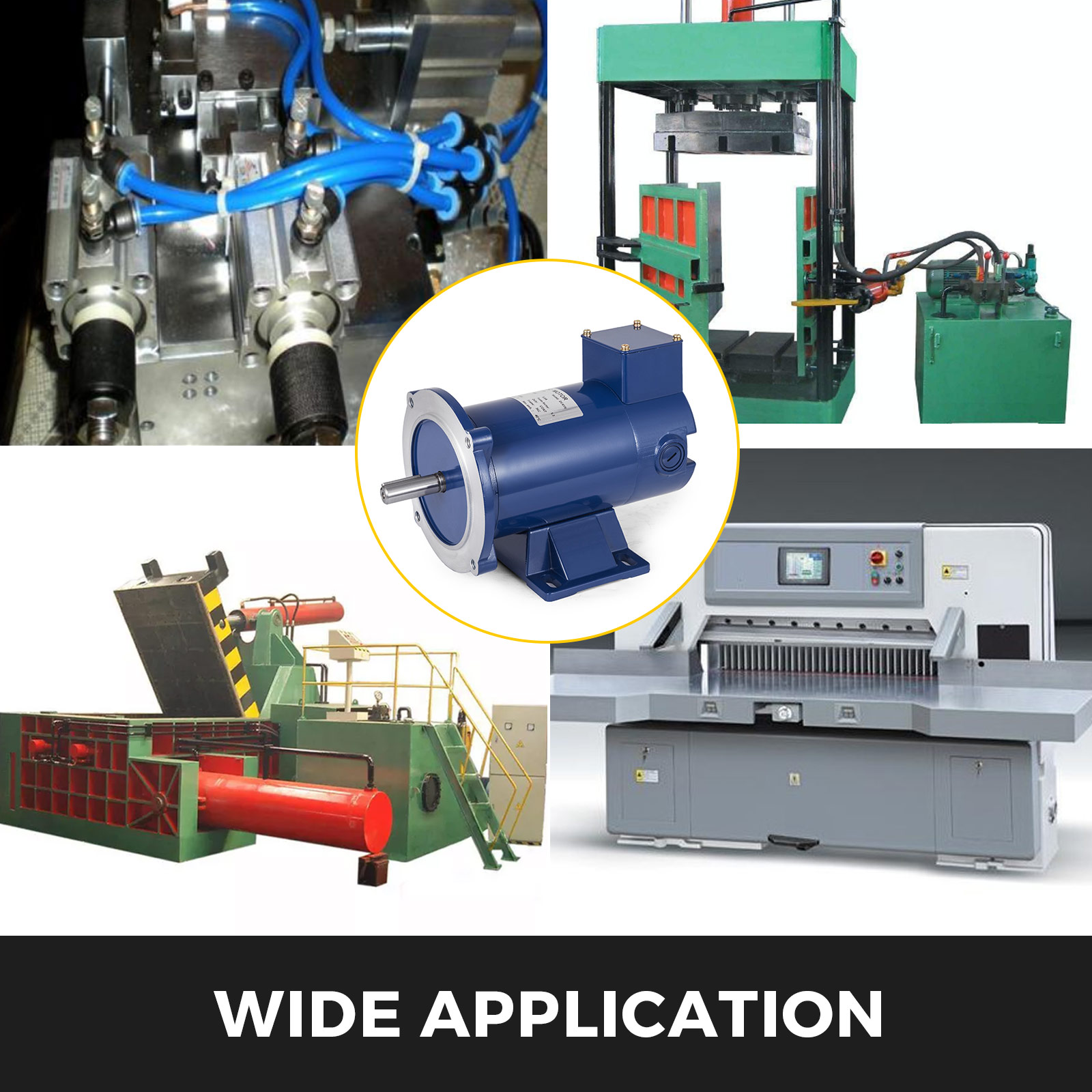

Plašs pielietojums
Brushed DC motors have come to dominate many applications. Our DC motors are generally used for equipment such as wire peeler, baler, paper cutter, etc.
Specifikācijas
- Rated Voltage: 90V
- Rated Current: 5.0 A
- Rated Power: 1/2 HP
- Nominālais ātrums: 1750 apgr.
- No-load Speed: 1930 RPM
- Rated Torque: 2.05 N.m
- Enclosure: TENV
- Rāmis: 56C
- Service Factor: 1.10
Iepakojuma saturs
- 1 x 1/2HP DC Motor
- 2 x oglekļa birste
Specifikācija
- Nominālais spriegums
- 90V
- Nominālā strāva
- 5.0 A
- Nominālā jauda
- 1/2 HP
- Nominālais ātrums
- 1750 RPM
- Brīvgaitas ātrums
- 1930 RPM
- Nominālais griezes moments
- 2.05 N.m
- Apvalks
- TENV
- Rāmis
- 56C
- Service Factor
- 1.10
- Rokasgrāmata
- Lejupielādes saite
| Svars | 8,70 kg |
|---|---|
| Dimensijas | 35,00 × 23,50 × 25,50 cm |
