VEVOR 200 mm 3 Jaw Self Centering Lathe Chuck with M57x2 Threaded Backing Plate for Metalworking and Machining

VEVOR 200 mm 3-žokļu pašcentrējošs virpas patronas komplekts ar M57x2 vītņotu pamatni metālapstrādei un darbgaldiem

  • Outstanding Hardness: Crafted from premium HT300 cast iron, this lathe chuck features jaws with a hardness of ≥53 HRC and a scroll plate hardness of ≥45 HRC. Quench-hardened for enhanced durability, it ensures excellent hardness and rust resistance, ensuring a long-lasting service life
  • Self-Centering Function: The built-in self-centering feature allows for hassle-free use without repeated calibration. It ensures precise control over clamping accuracy, maintaining the stability and high precision of the lathe chuck for flawless performance
  • 8-Inch 3-Jaw Lathe Chuck: Featuring a 2 1/4 in-8 threaded adapter backing plate, this lathe chuck achieves a faster and more stable connection to your machine. With a 2.56 in (65 mm) inner diameter and 8 in (200 mm) outer diameter, it clamps workpieces ranging from 0.16-7.87 in (4-200 mm), making it versatile for a variety of sizes
  • Hassle-Free Operation: Featuring a simple, compact design, this lathe chuck balances functionality and reliability. Equipped with a T-shaped tool, installation of our lathe chuck is a breeze. Just follow the correct sequence for a seamless setup
  • Ideal for Most Lathes: Whether you’re working with metal, drilling, or milling, our lathe chuck will enhance your machining efficiency and flexibility. It helps you achieve precise and consistent results every time

188,43 € Ar PVN 21%

5 ir noliktavā

Pievienot cenu pieprasījumam
SKU: M9UU9DX3 Kategorijas: , , Brand:
M9UU9DX3
JGKPDBB3GKZ8BOLITV0
8-Inch 3-Jaw Lathe Chuck with Backing Plate
Our lathe chuck with backing plate achieves faster, steadier machine connection. Built from premium HT300 cast iron, jaw hardness ≥53 HRC for exceptional durability. The self-centering design ensures high-precision clamping ranging from 0.16 in to 7.87 in with 2.56 in I.D and 8 in O.D.
Galvenās funkcijas
Stable and Reliable
Engineered for high hardness and precision, this lathe chuck features a T-shaped tool for easy installation. Whether you're turning or clamping small workpieces, expect consistent, reliable performance every time.
Precīza apstrāde
With a self-centering function and fine gears, our lathe chuck ensures precise control over the clamping accuracy, making it ideal for precision machining tasks.
Vairāki lietojumi

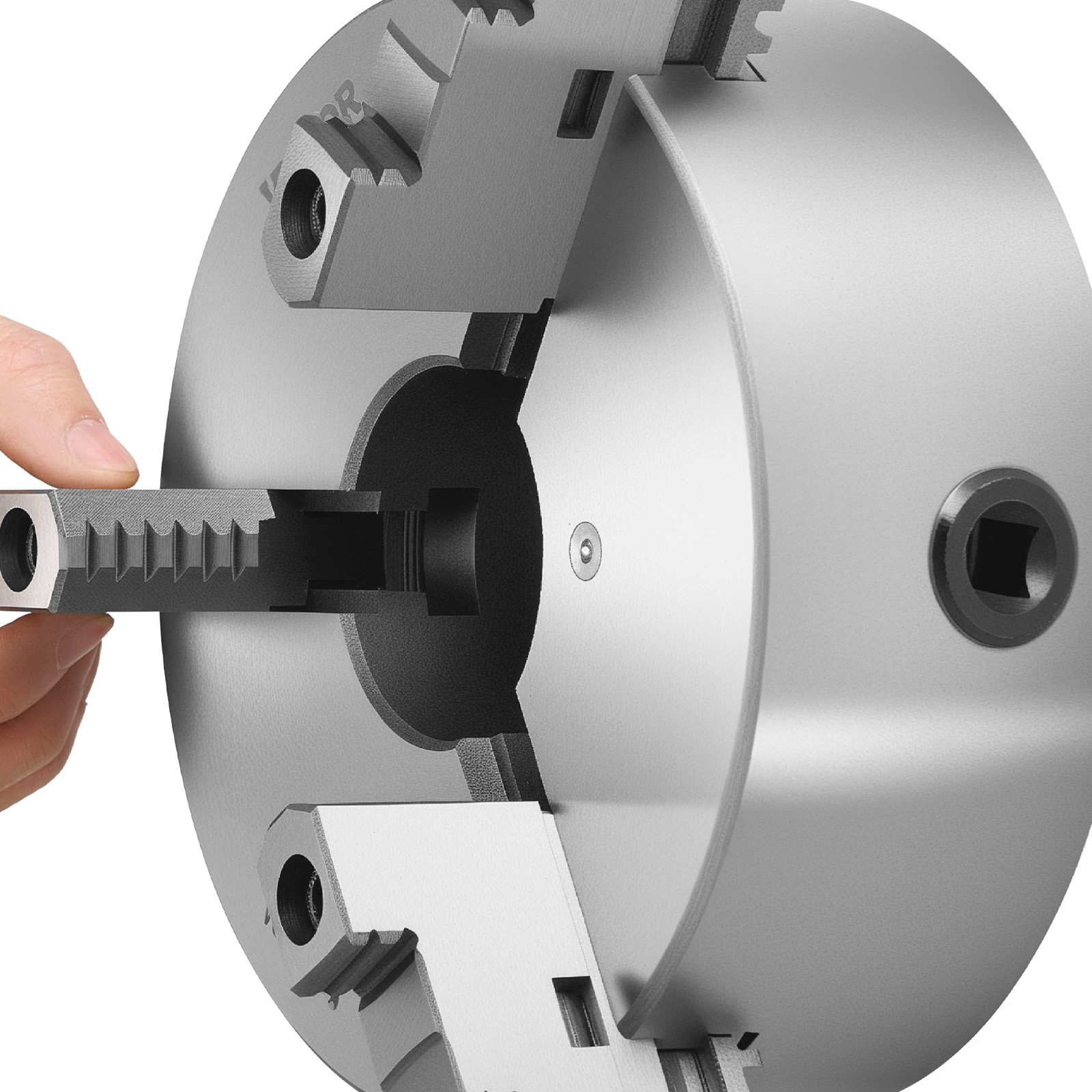

Designed for both internal and external clamping, this self centering lathe chuck meets a variety of machining needs, providing you with efficient and stable clamping performance.

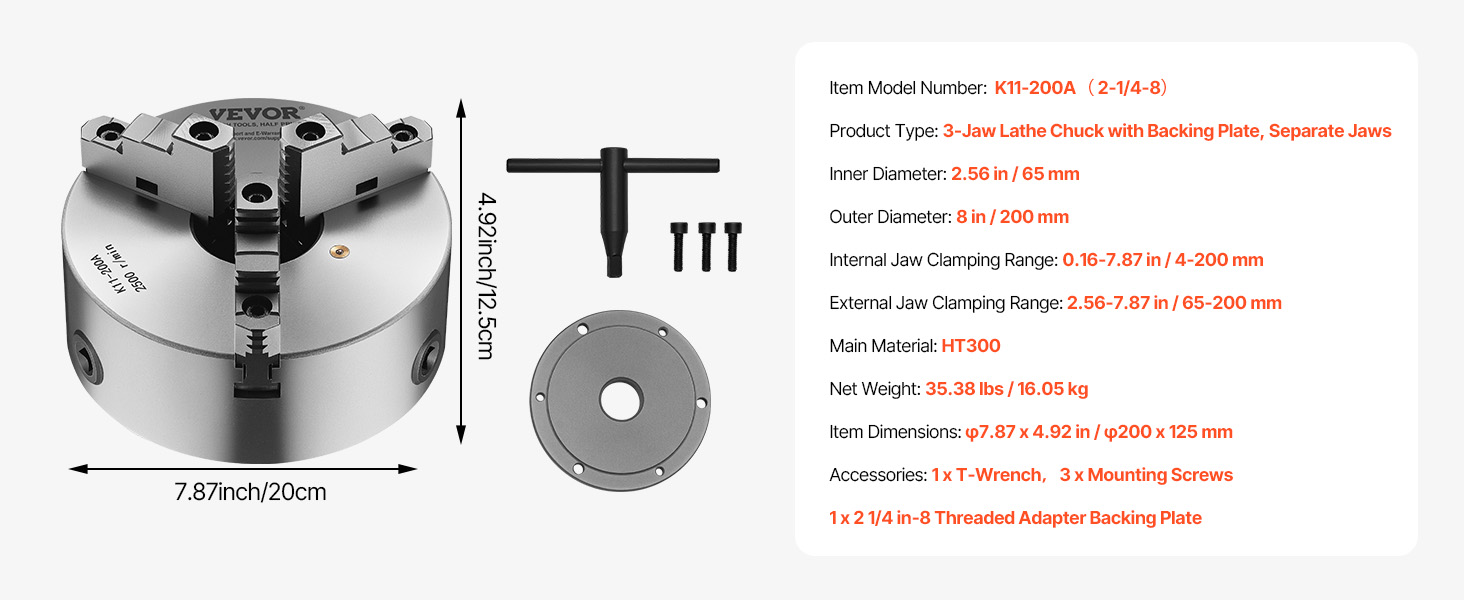

Specifikācija

Preces modeļa numurs
K11 200A（ 2-1/4-8）
Produkta veids
3-Jaw Lathe Chuck with Backing Plate, Separate Jaws
Iekšējais diametrs
2.56 in / 65 mm
Ārējais diametrs
8 in / 200 mm
Iekšējo žokļa spīļu iespīlēšanas diapazons
0.16-7.87 in / 4-200 mm
Ārējo žokļa skavu iespīlēšanas diapazons
2.56-7.87 in / 65-200 mm
Galvenais materiāls
HT300
Neto svars
35.38 lbs / 16.05 kg
Vienuma izmēri
7.87 x 4.92 in / φ200 x 125 mm
Rokasgrāmata
Lejupielādes saite
Svars 16,9 kg
