VEVOR Concealed Hinge Jig Kit with C Clamp

Precision Woodworking Tool for 35mm 138 and 26mm 102 Cabinet Door Hinges

VEVOR Slēptās Eņģes Šablons, 35mm Skapju Durvju Urbšanas Šablons ar C-veida Skavu, Izturīgs PA66 un Tērauds, Precīzs Kokapstrādes Instruments

Wide Application: The hinge jig suits 1.38” and 1.02” hinges. It is primarily designed for precise hinge hole positioning in wood and can be used with power tools like drills for easy angled drilling. It is ideal for everyday household equipment installations and repairs, such as cabinets, wardrobes, and door locks. It has a 1.38”/35 mm drill bit for drilling holes. The distances between hinge screws are 1.81” (46 mm), 1.89” (48 mm) or 2.05” (52 mm).
Sturdy and Durable: The main panel of our door hinge jig is made of high-strength engineering PA66 material, while the drilling tools are made of carbon steel and YG8 hard alloy. Its overall structure is stable, ensuring durability and adaptability to harsh weather conditions, high temperatures, and moisture. It maintains strength and stability, with minimal risk of deformation or damage, even with prolonged use.
Precision Drilling: Our hinge jig kit can precisely position holes without marking. The C-type clamp, limit positioning accessories, and the 4-stage adjustable dial (0.12”/0.16”/0.20”/0.24”) prevent hole deviation, making it easy to accomplish accurate and quick drilling work.
User-Friendly: The concealed hinge jig is easy to operate and install without professional assistance. Just follow the 4-step instructions in the manual: Step 1, install the drilling tool and tighten the limit positioning accessories; Step 2, adjust the dial and insert the positioning rod; Step 3, secure the drill bit with the C-type clamp; Step 4, drill the 1.38” hole and side holes in sequence, then install the hinge. You can complete the installation in just a few minutes.

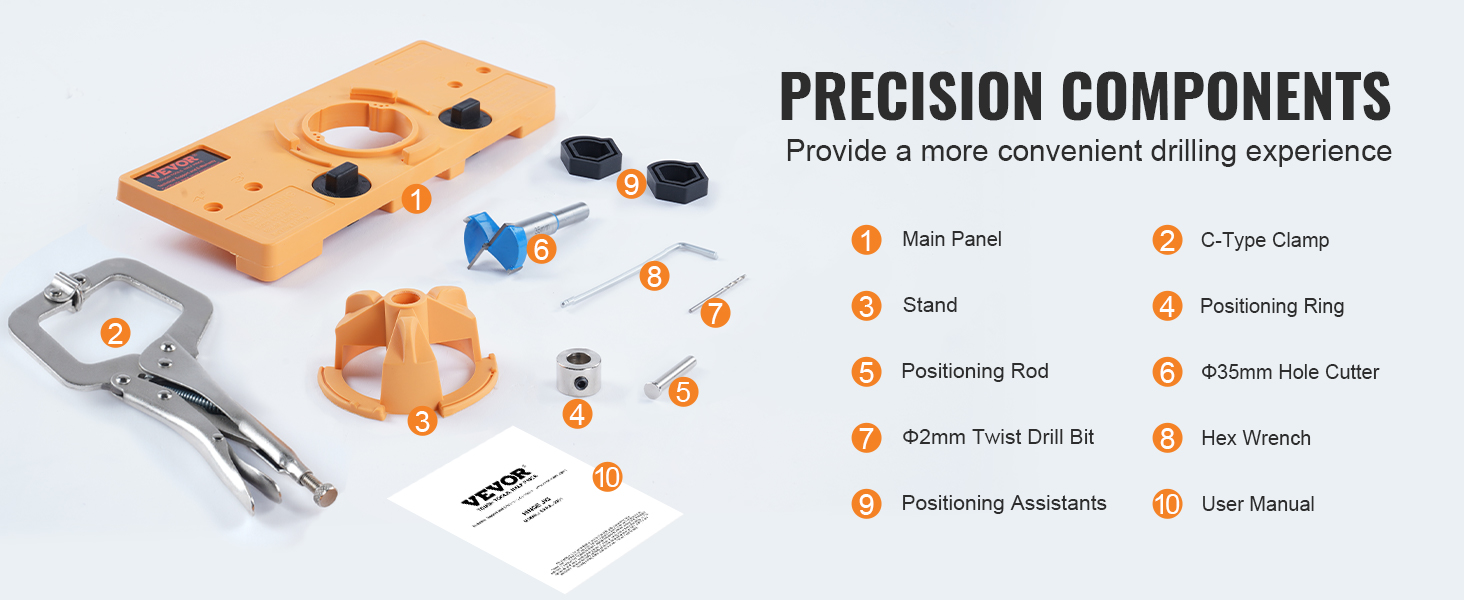

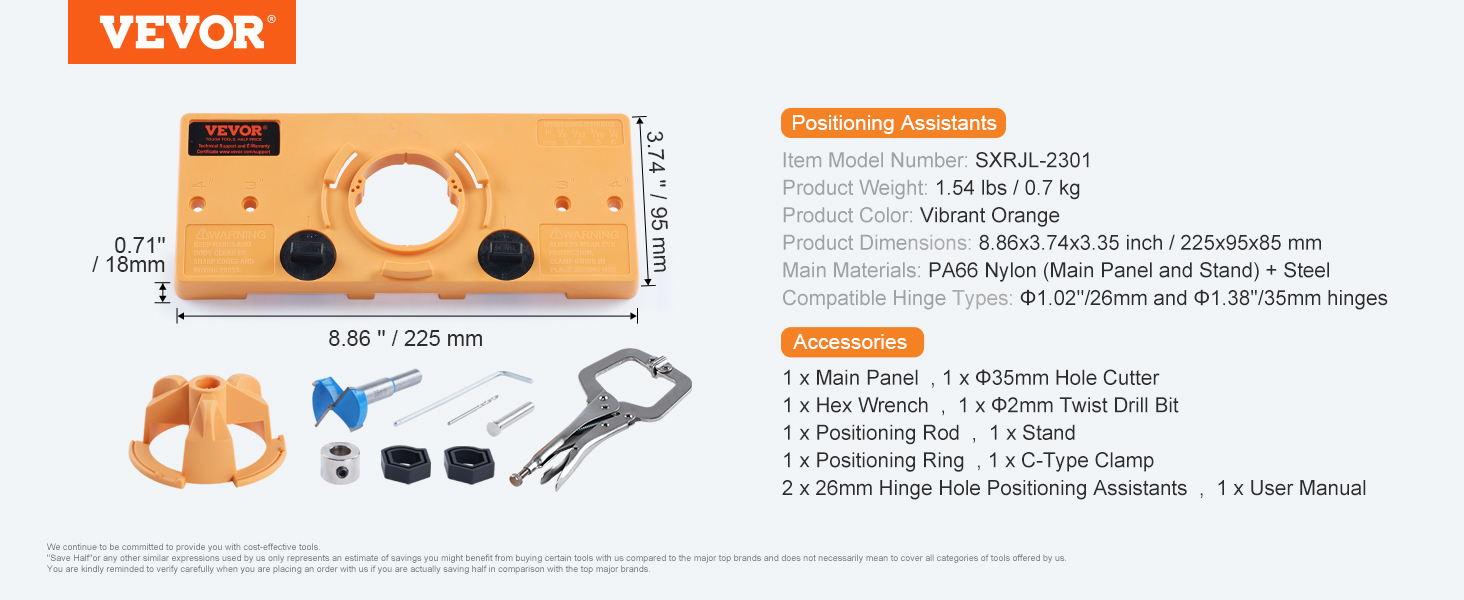

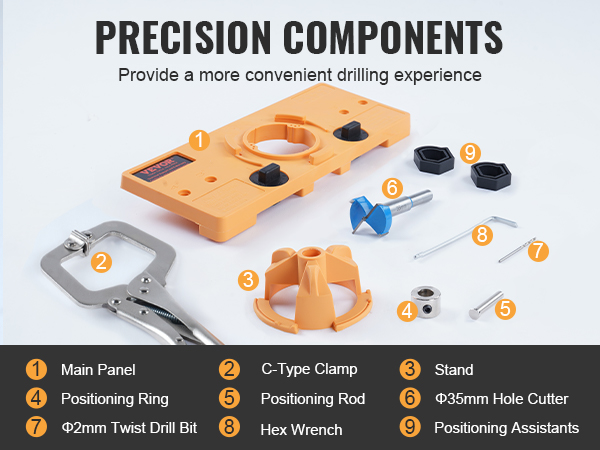

Comprehensive Accessories: The 35mm cabinet hinge jig kit comes with a rich set of accessories, including 1 x main panel, 1 x φ35mm hole cutter, 1 x hex wrench, 1 x φ2mm twist drill bit, 1 x positioning rod, 1 x stand, 1 x positioning ring, 1 x c-type clamp, 2 x 26mm hinge hole positioning assistants. This comprehensive kit provides everything you need to handle hinge-hole drilling tasks effortlessly.

41,99 € Ar PVN 21%

Pieejams pasūtīšanai. Ilgāks piegādes laiks

Būs pieejams piegādātāja noliktavā 1-2 nedēļu laikā

SKU: M4I4KQ9E Kategorijas: Jig piederumi, Elektroinstrumentu daļas un piederumi, Elektroinstrumenti

Apraksts
Papildu informācija

M4I4KQ9E

JLDWKKQMINIS40G22V0

VEVOR durvju eņģes statīvs, kas nodrošina precīzu un ātru urbšanu kokapstrādē

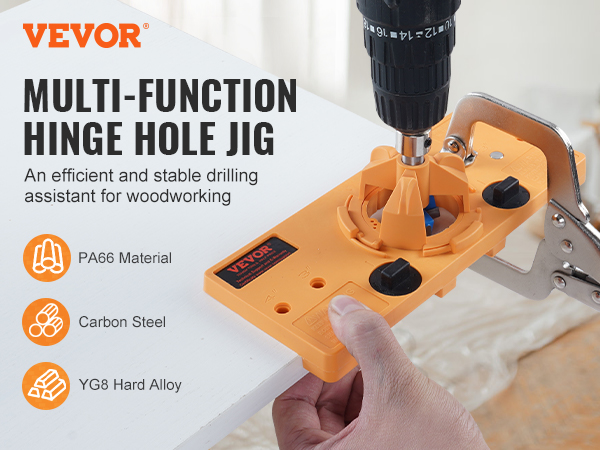

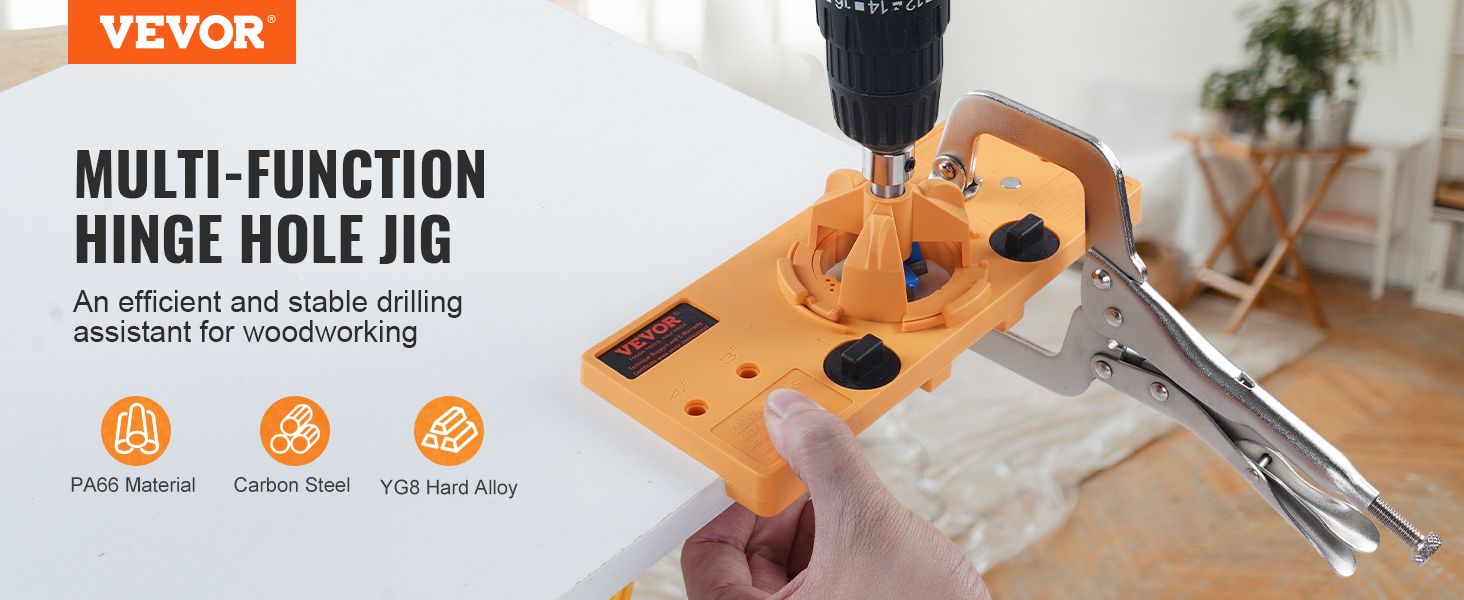

VEVOR cabinet hinge jig, efficient drilling tool for woodworking, includes pa66, carbon steel, yg8 alloy.

Our hinge jig features a main panel made of high-strength engineering PA66, and carbon steel + YG8 hard alloy for the drilling tools. Its stable structure can withstand substantial weight and pressure, extending its lifespan. It can also maintain stability in various complex environments.

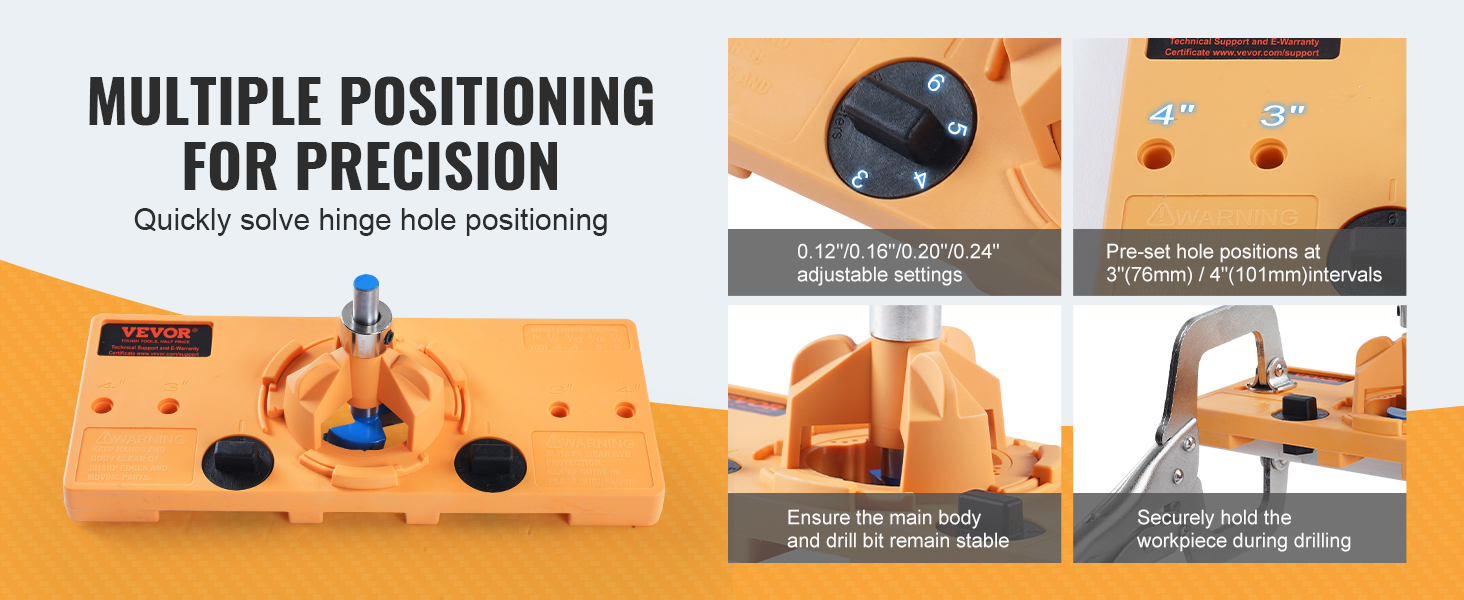

VEVOR cabinet hinge jig for precise hinge hole positioning, adjustable settings, and secure drilling.

This door hinge jig boasts an adjustable horizontal positioning knob, preset holes at 3" /4" for vertical distance, a bracket for securing the main body and drill bit, and a C-type fixing clamp. These multiple limitations allow for quick and precise hinge-hole positioning.

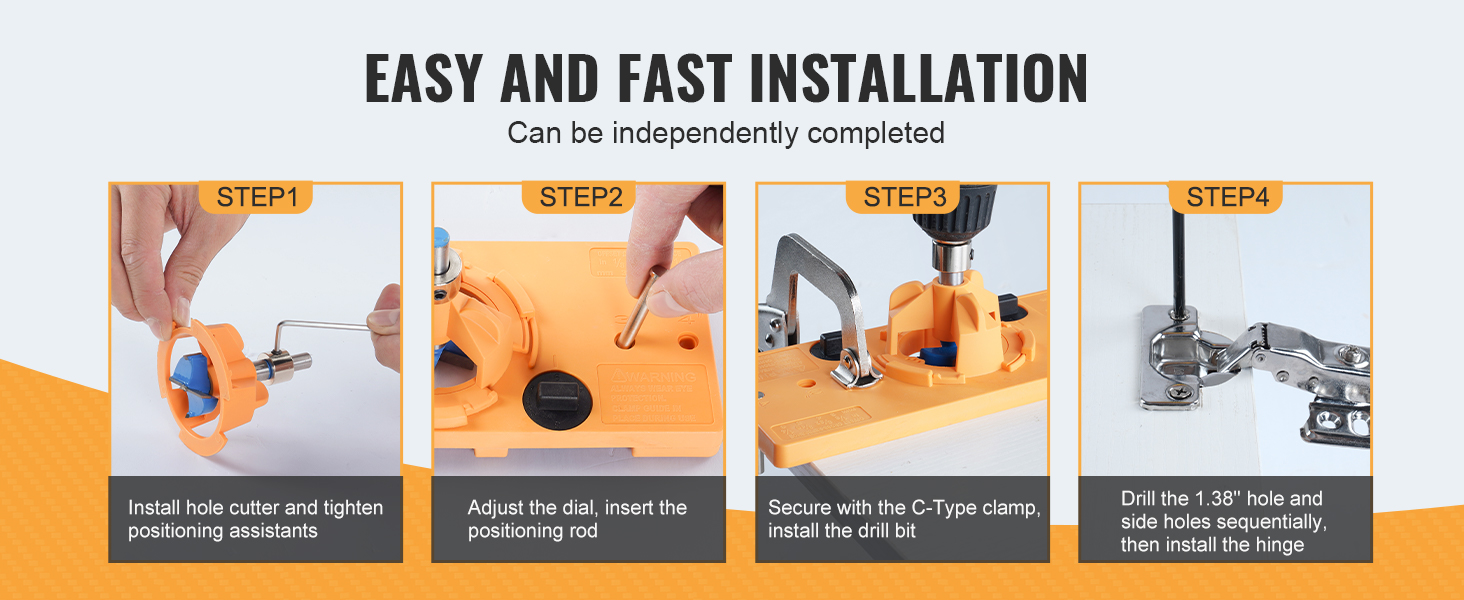

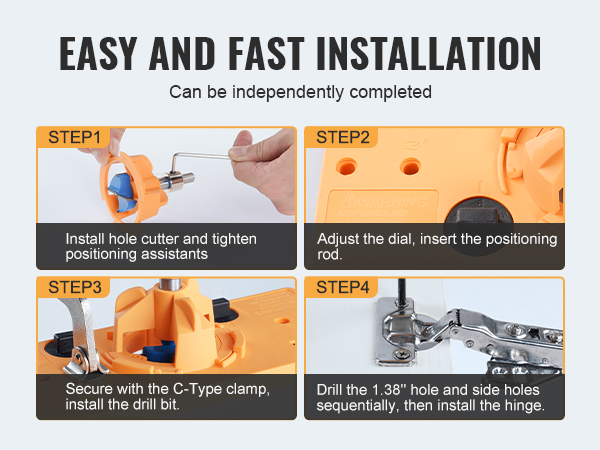

easy steps for VEVOR cabinet hinge jig installation: cutter, dial, c-clamp, drill, and hinge.

This hinge jig kit is user-friendly and easy to install, requiring no professional training. It eliminates complex setup steps and tedious installation processes, saving time and increasing work efficiency. It also reduces errors during operation, ensuring correctness and drilling precision.

compatible with 1.38" and 1.02" hinges for doors, bookshelves, wardrobes, and cabinets. VEVOR cabinet hinge jig

This concealed hinge jig is suitable for 1.38'' and 1.02'' hinges, meeting the hinge hole needs for cabinets, doors, wardrobes, bookshelves, etc. Equipped with a 1.38''/35mm drill bit and depth stop, it features a drilling axis hole function. The hinge screw distances are 46mm, 48mm, or 52mm.
