3500W Hybrid Solar Inverter

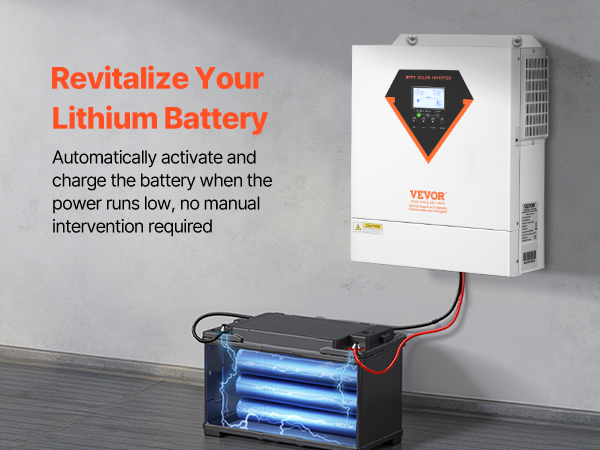

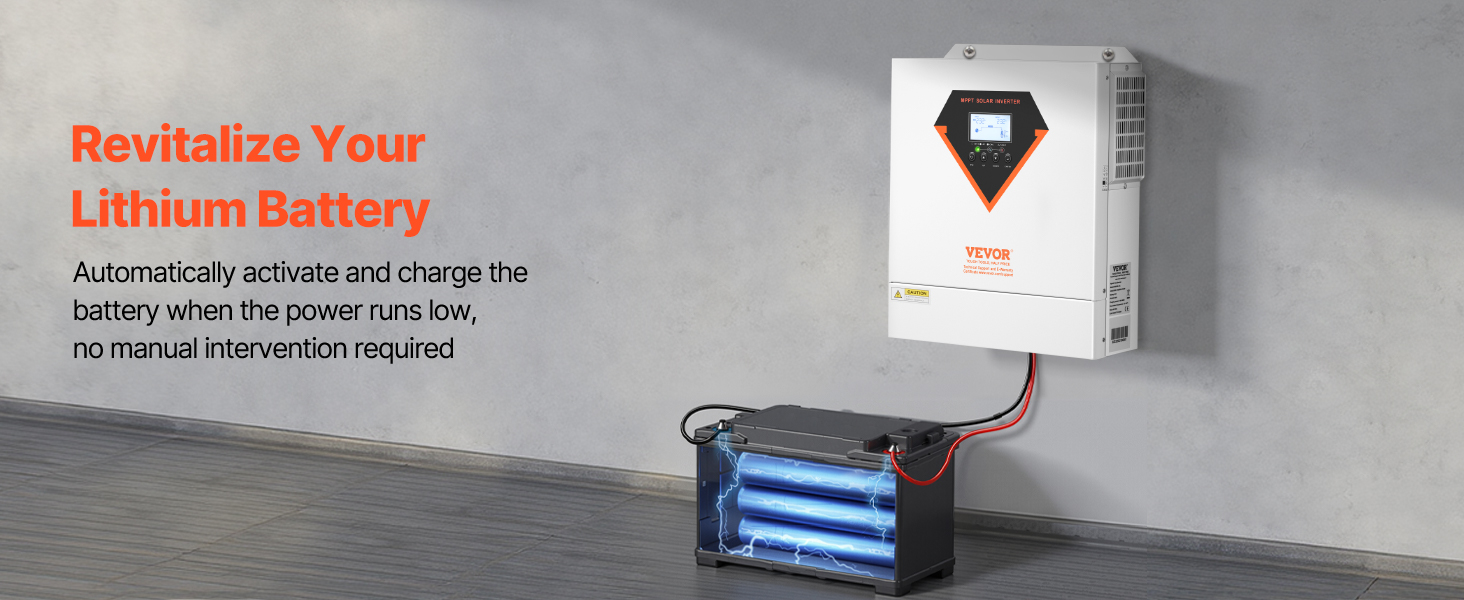

Our 2-in-1 hybrid solar inverter controller delivers a 3500W pure sine wave output and boasts an impressive 7000VA peak performance. Advanced MPPT technology achieves up to 94% conversion efficiency. Compatible with lithium, lead-acid, and LiFePO4 batteries, it has lithium activation function.
Q: Does this hybrid solar inverter support parallel operation?
A: No, it does not support parallel operation.
Q: Are there any installation location requirements?
A: It is not waterproof, so it should be installed in a well-ventilated indoor area or a sheltered location away from rain.
Q: Can I monitor the solar power generation via my phone?
A: Yes, it comes with a built-in WiFi chip and APP support, allowing you to monitor the system's power generation and energy storage status anytime, anywhere.
A: No, it does not support parallel operation.
Q: Are there any installation location requirements?
A: It is not waterproof, so it should be installed in a well-ventilated indoor area or a sheltered location away from rain.
Q: Can I monitor the solar power generation via my phone?
A: Yes, it comes with a built-in WiFi chip and APP support, allowing you to monitor the system's power generation and energy storage status anytime, anywhere.


Спецификация
- Номер модели изделия
- EM3500-24L
- Inverter Output Voltage
- AC 220/230V 50/60Hz
- Inverter Response Time
- 10 ms (UPS); 20 ms (Appliance)
- Output Waveform
- Pure Sine Wave
- Battery Type
- 24V Lead Acid/Lithium/LIFePO4 Battery
- Выходная мощность
- 3500W

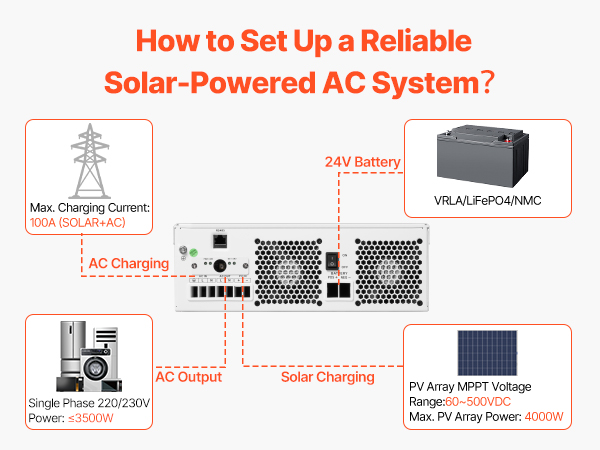

- Maximum Charging Current
- 100A (PV & PV + AC) / 80A (AC)
- PV Array MPPT Voltage Range
- 60-500VDC
- No-Load Power Consumption
- 35W
- Размеры изделия
- 14.37 x 12.13 x 4.13 in / 365 x 308 x 105 mm
- Масса нетто
- 13.45 lbs / 6.1 kg
