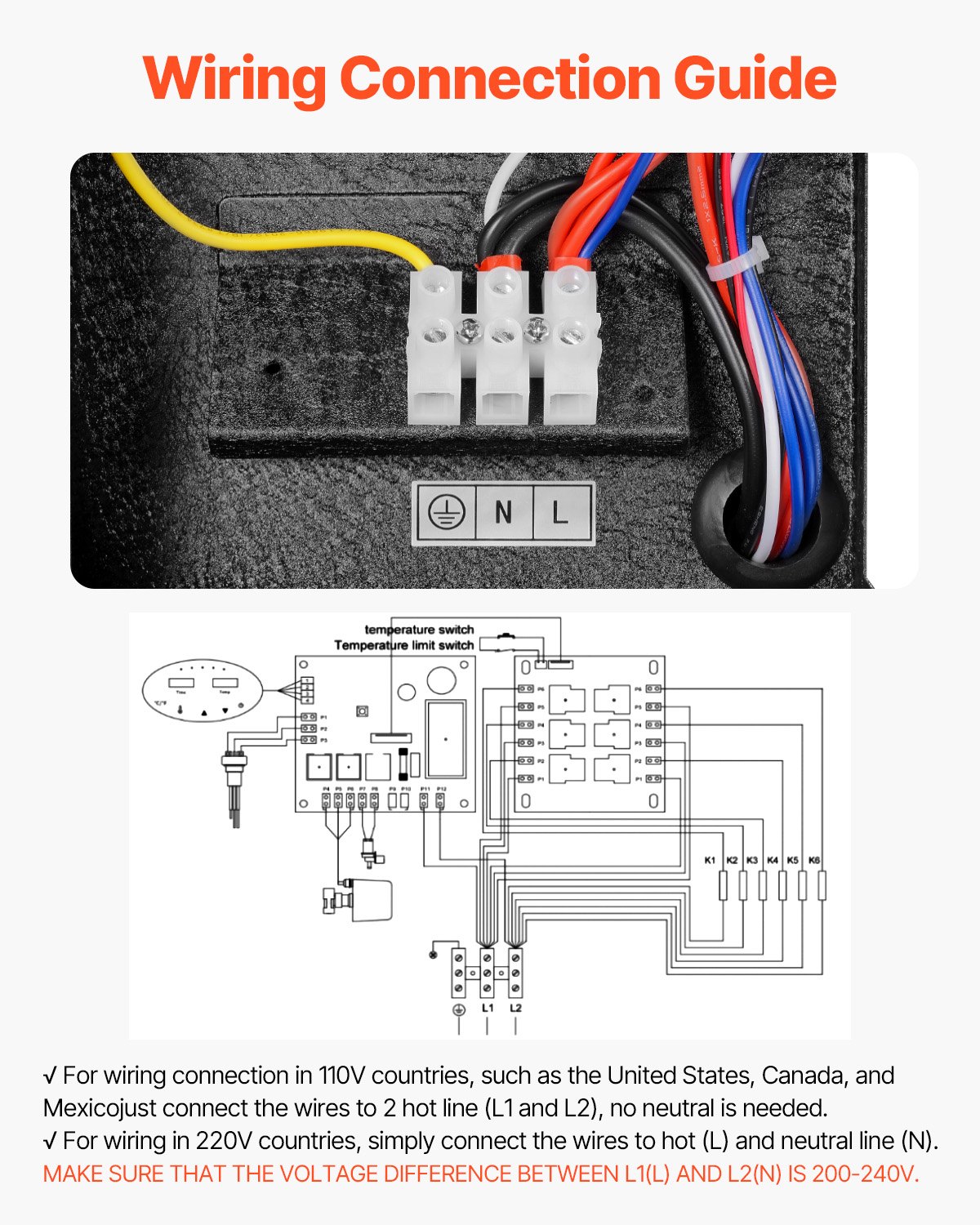

Q: What voltage and circuit breaker rating is the product suitable for?
A: Voltage: 220 V–240 V; Circuit breaker: choose one with a rated current 1.3 x the product’s rated current.
Q: What tools are required for installation?
A: Electric drill / Phillips screwdriver / voltage tester (“test pencil”) / Adjustable wrench / Pipe wrench.

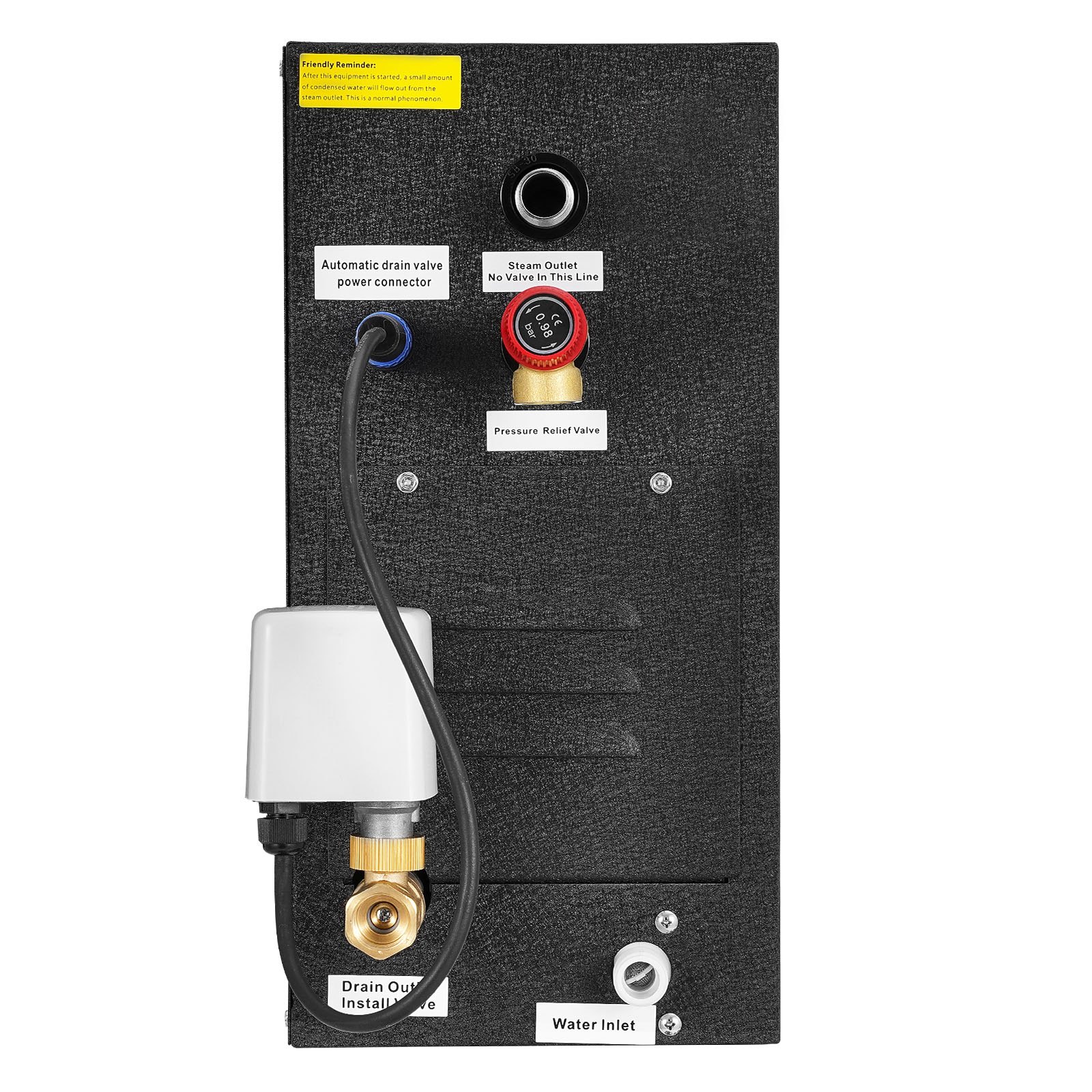

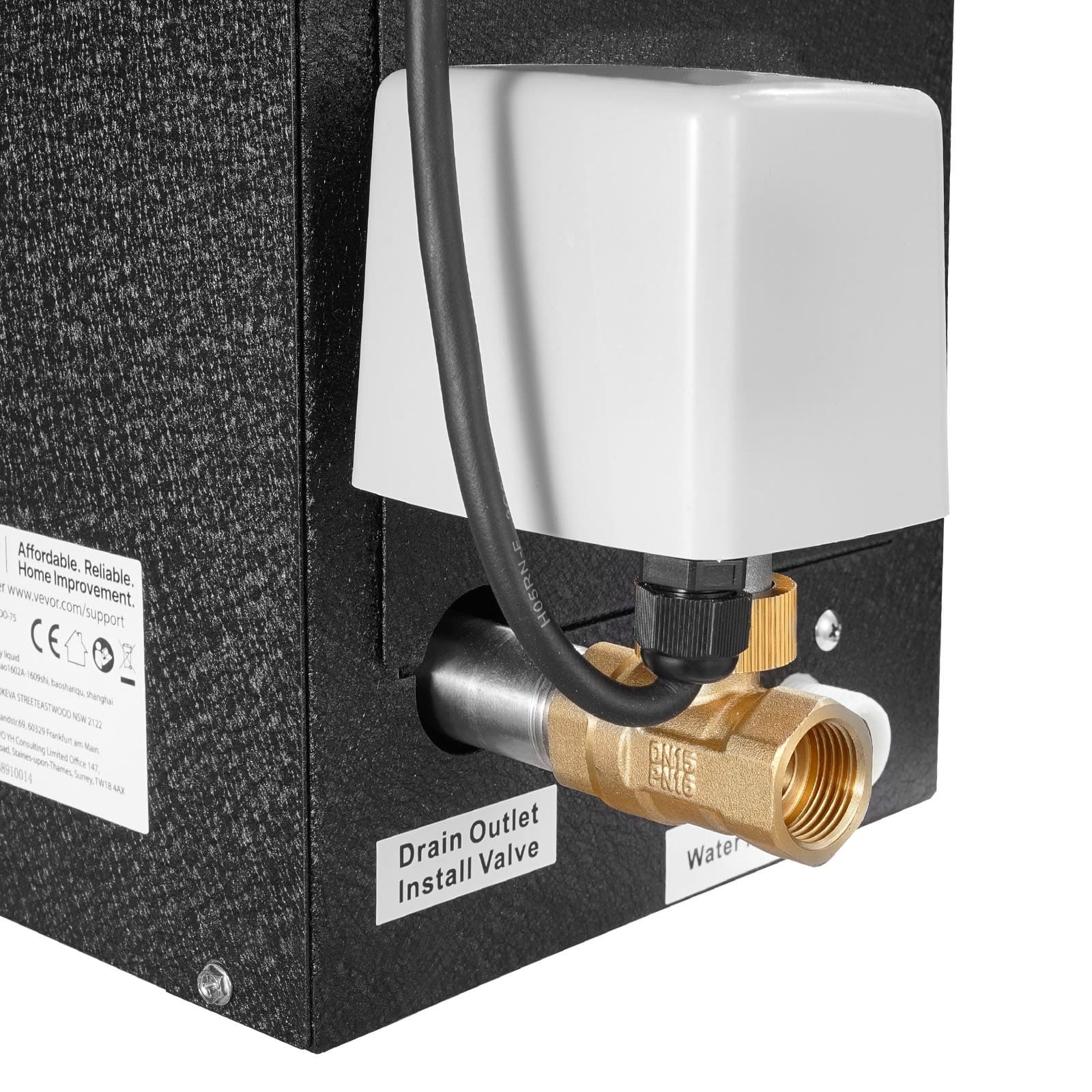

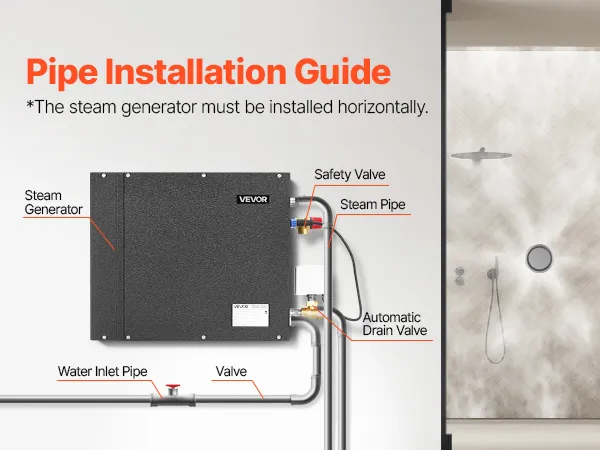

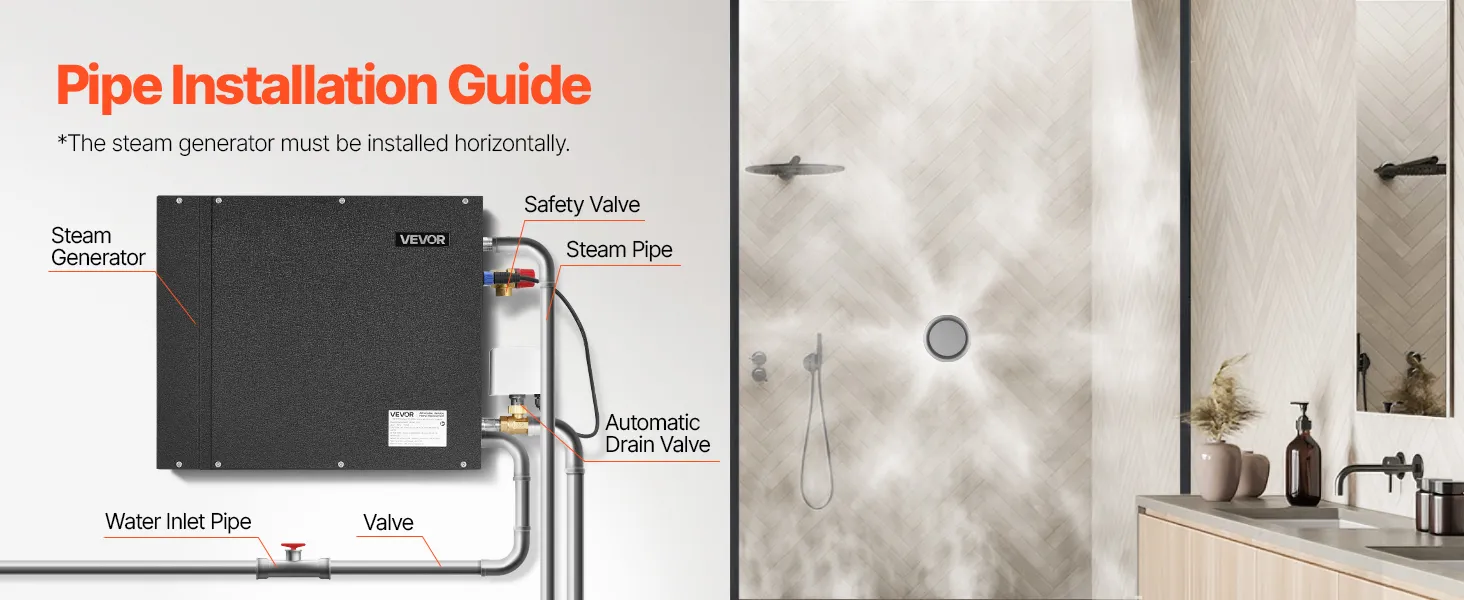

Q: What water‐pipe sizes does it fit?
A: Inlet and outlet water pipes: G 1/2; Steam pipe: G 1/2.

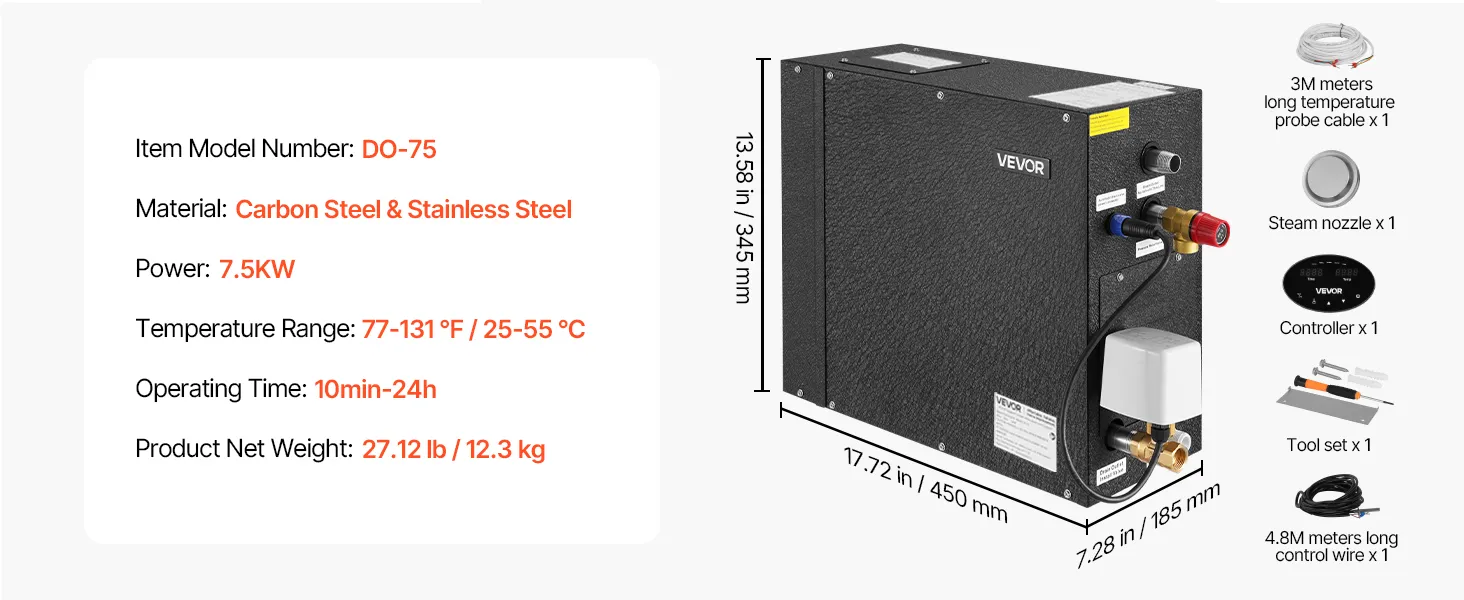

- Номер модели изделия
- DO-75
- Напряжение и частота
- 220–240V (1PH/2PH), 50/60Hz
- Сила
- 7.5 kW

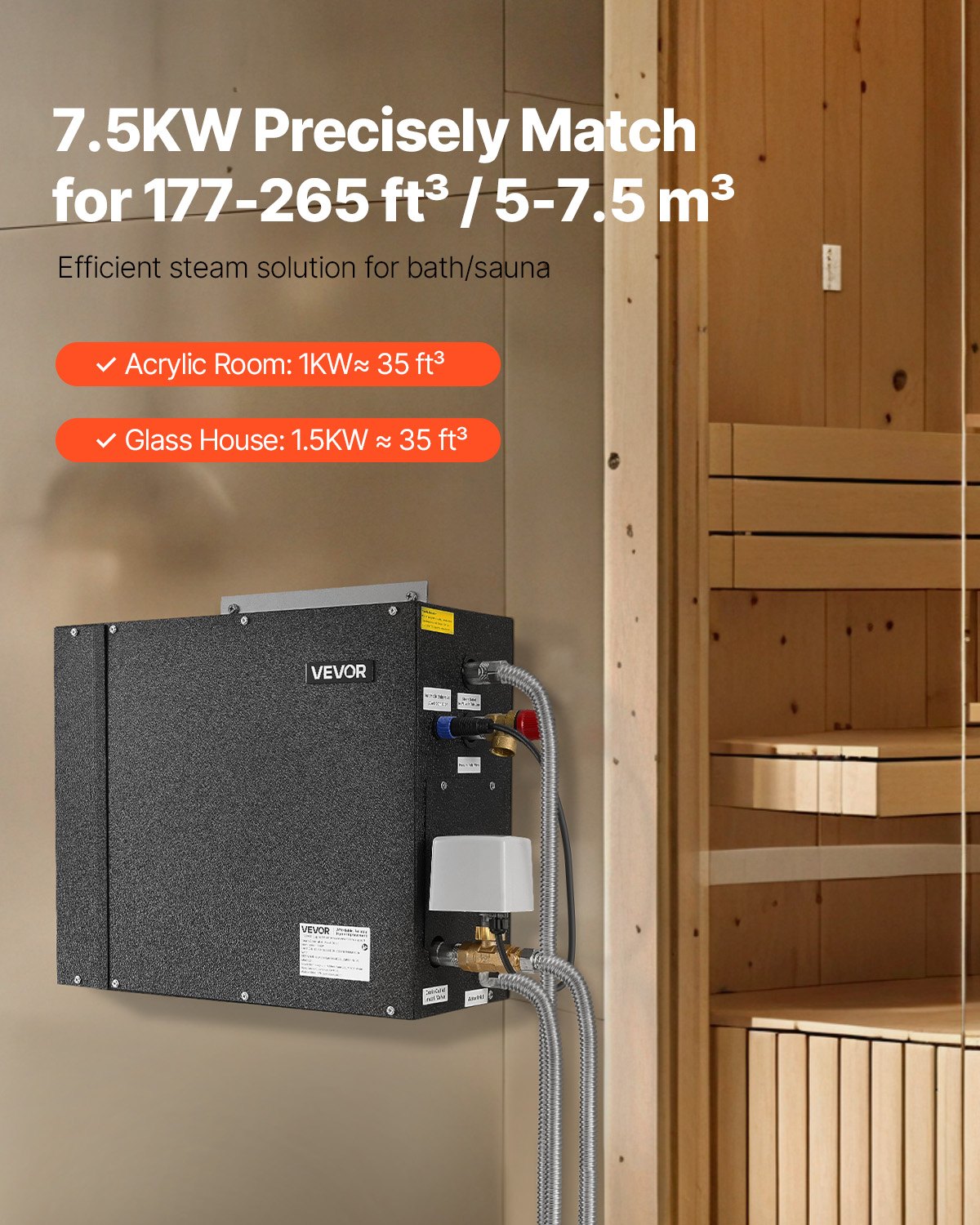

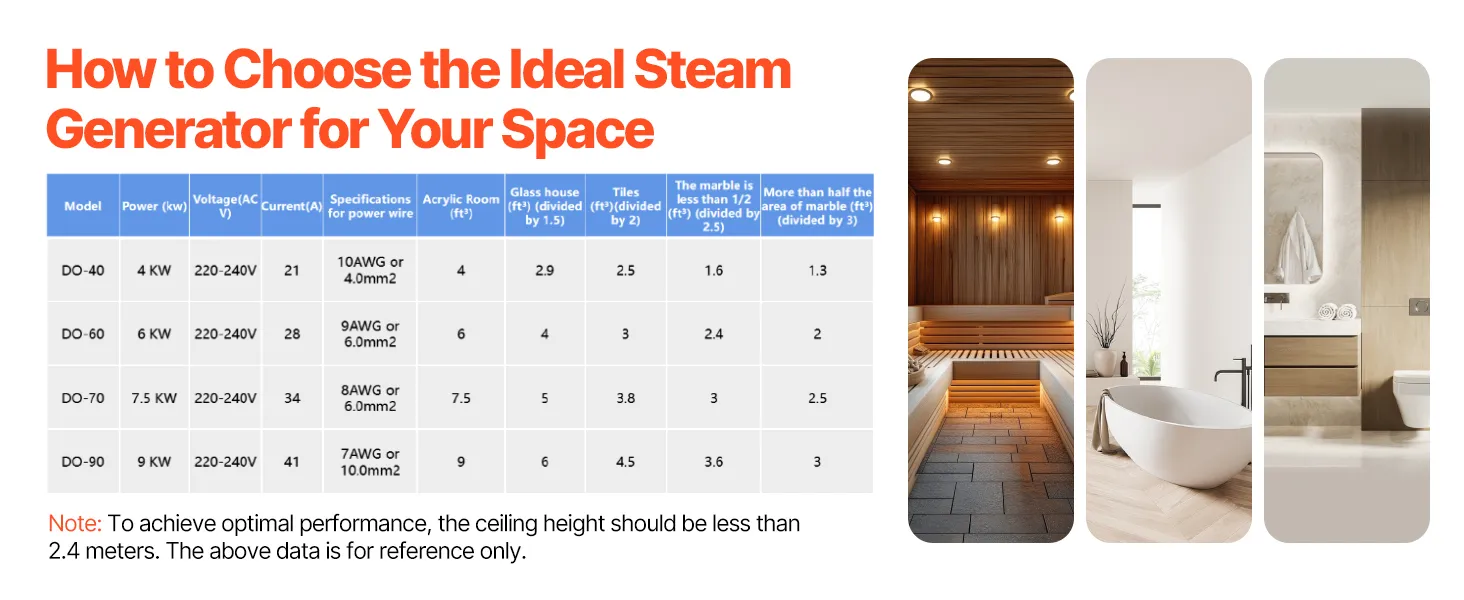

- Applicable Room Volume
- 177–265 ft³ / 5–7.5 m³

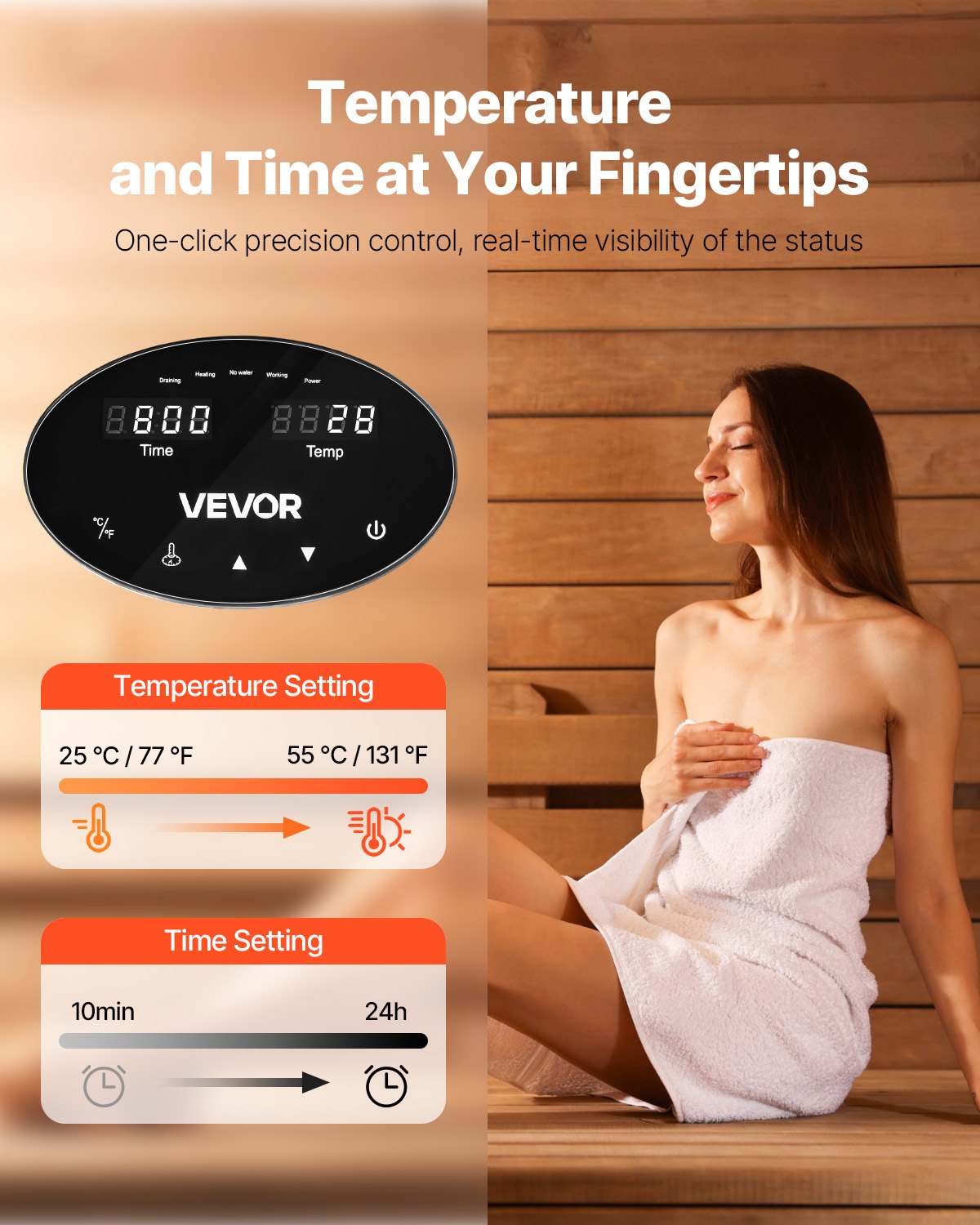

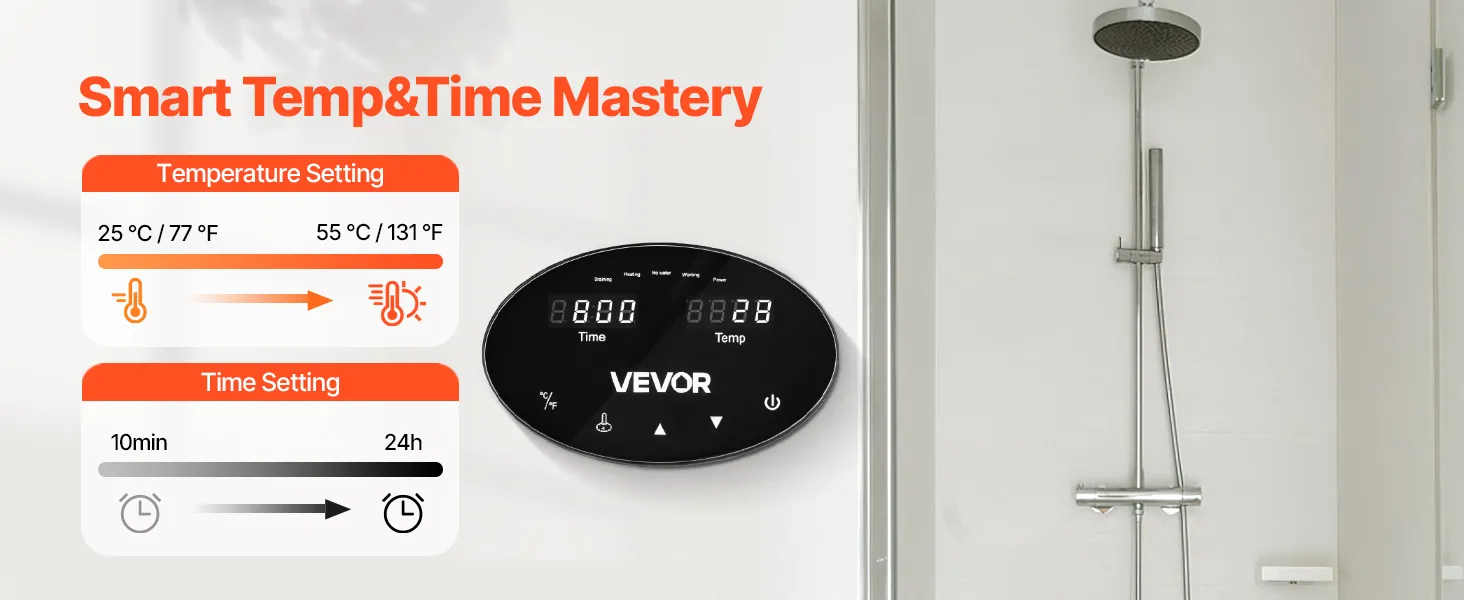

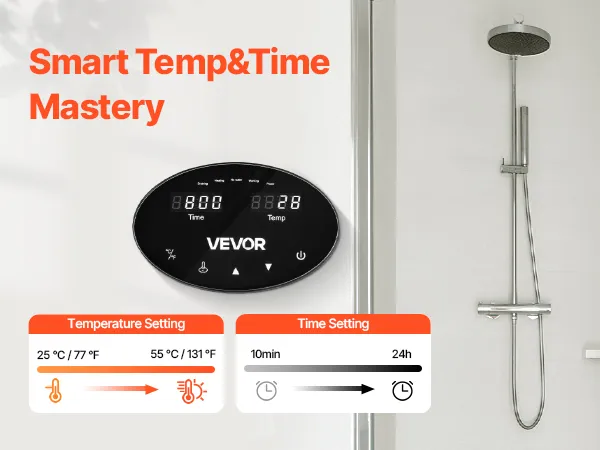

- Диапазон Температур
- 25–55 ℃ / 77–131 ℉
- Operating Time
- 10 min – 24 h
- Outer Casing Material
- Сталь Q235B
- Inner Tank Material
- Нержавеющая Сталь
- Цвет
- Черный
- Масса нетто
- 27.12 lb / 12.3 kg

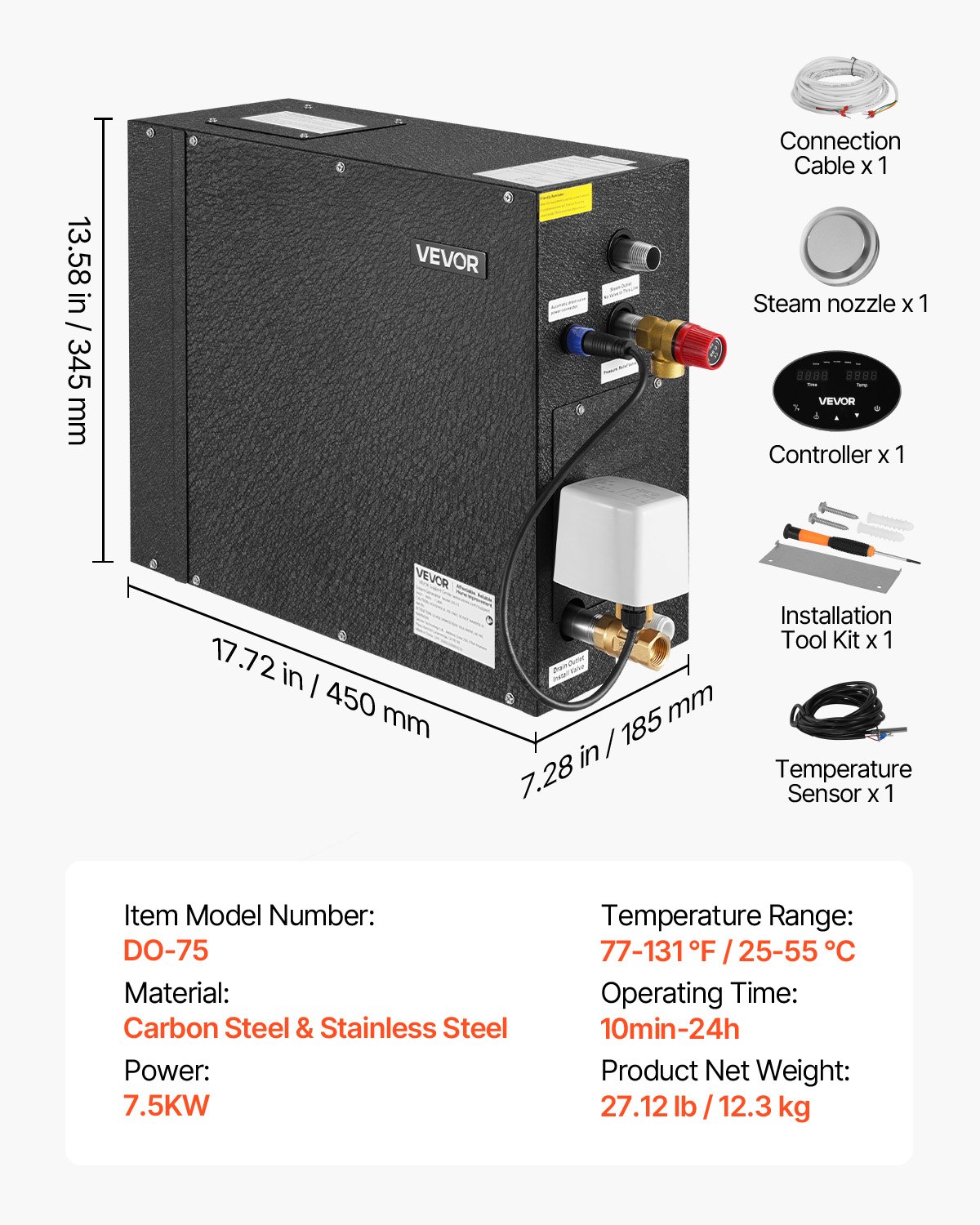

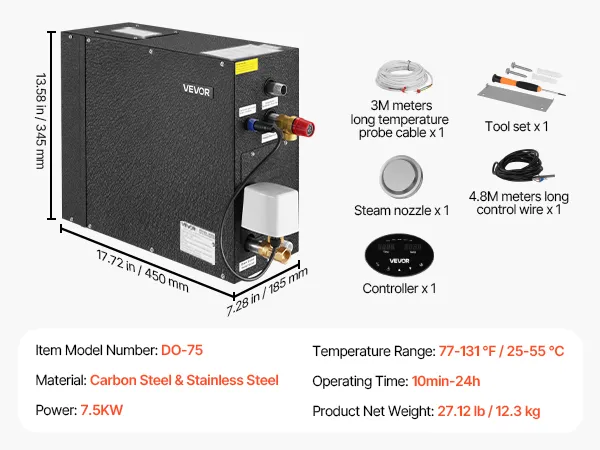

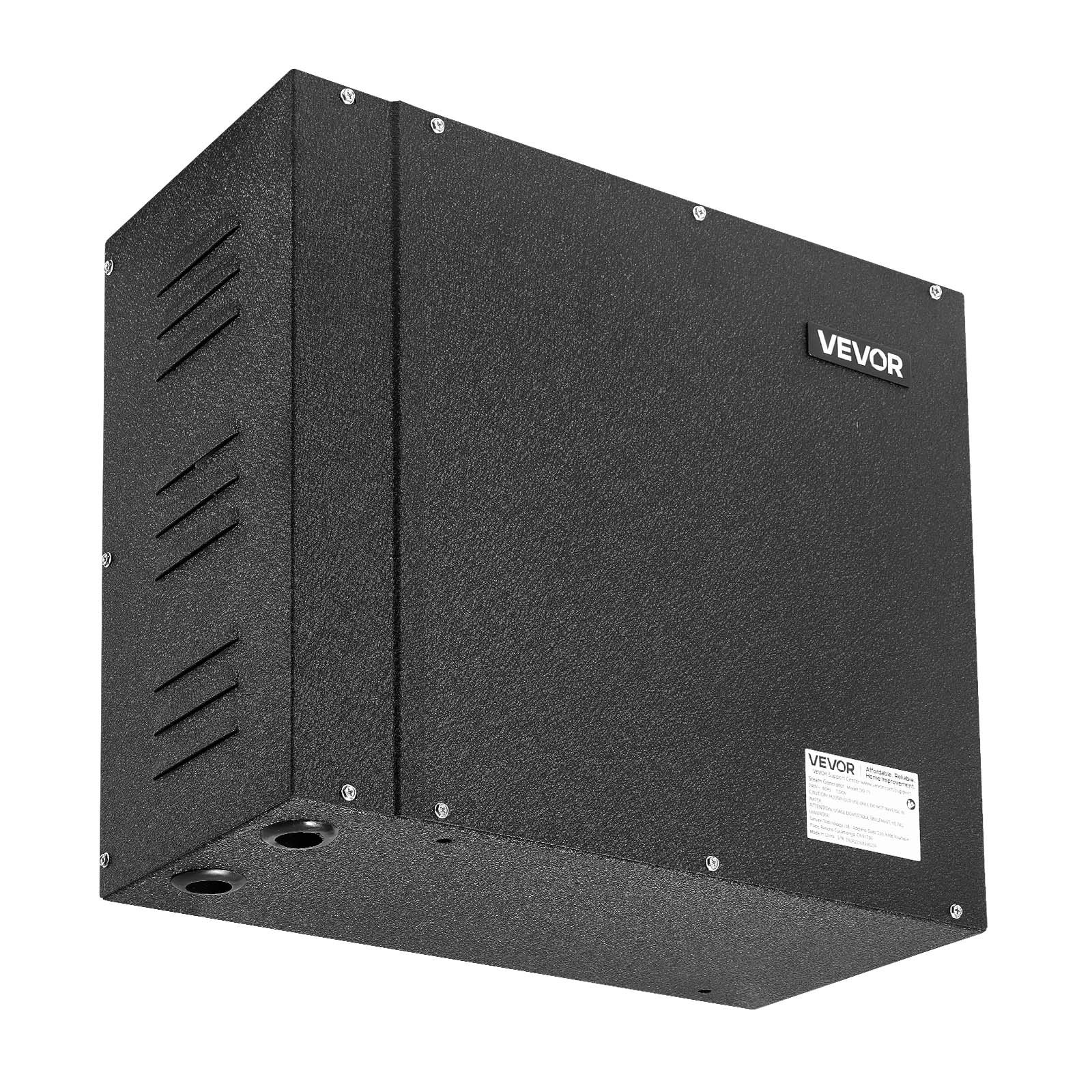

- Chassis Dimensions
- 17.72 x 7.28 x 13.58 in / 450 x 185 x 345 mm
- Item Size (With Water Outlet)
- 19.09x7.28x14.96in / 485x185x380mm
