VEVOR 4-я ось CNC с 100 мм 4-кулачковым патроном, 2-фазным шаговым двигателем, высотой центра 65 мм и задней опорой
- 【PRODUCT PARAMETERS】- Reducing ratio: 6：1, Center height: 65MM, Motor: 2-phase 57 stepper motor, Output shaft diameter: 30MM, Hollow shaft diameter: 21MM, Step Angle: 0.3 degrees/step.
- 【EXCELLENT MOTOR】- This router rotary axis uses a 2-phase 57 stepper motor with 1.8N force-torque, stable control, accurate positioning, and high conversion rate.
- 【ACCURATE CHUCK】- The 65mm chuck features high accuracy and excellent durability, suitable for clamping various types of materials. After special processing, the chuck is not easy to rust.
- 【SOLID BASE】- The base of the CNC rotational rotary axis adopts special thickening treatment, which makes the machine have excellent stability during the operation.
- 【VARIOUS APPLICATION】- This superior rotational rotary axis is designed for professional four-axis engraving machine. A-axis, 4th-axis,4-Jaw design is available for the stereoscopic process for a cylindrical, curved, round, etc.
231,48 € Ar PVN 21%
Нет в наличии
Date of restocking unknown
Хотите получить уведомление, когда товар снова будет в наличии?
M4I4K0GQ
DKJSZKPDSZZJ00001V0
CNC Rotational Rotary Axis
We offer you a superior rotational rotary axis with A-axis, 4th-axis,4-Jaw. Because of the rotary movement of the fourth rotary axis, it is available for the stereoscopic process for a cylindrical, curved, round, etc. The four-axis engraving machine is widely used in the scroll, stigma, bamboo, and so on so like.
- Product parameters
- Отличный Мотор
- Accurate Chuck
- Įvairių Programos
VEVOR yra pirmaujantis prekinis ženklas, kuris specializuojasi įranga ir įrankiai. Kartu su tūkstančiais motyvuotų darbuotojų, VEVOR yra skirta teikti savo klientams su kieta įranga ir įrankiai neįtikėtinai mažas kainas. Šiandien, VEVOR užima rinkas, daugiau nei 200 šalių, su 10 milijonų plius visuotinio narių.
Kodėl verta Rinktis VEVOR?
- Premium Kokybės Kietas
- Neįtikėtinai Mažos Kainos
- Greitas Ir Saugus Pristatymas
- 30-Dieną Nemokamai Grįžta
- 24/7 Dėmesingas Aptarnavimas
VEVOR yra pirmaujantis prekinis ženklas, kuris specializuojasi įranga ir įrankiai. Kartu su tūkstančiais motyvuotų darbuotojų, VEVOR yra skirta teikti savo klientams su kieta įranga ir įrankiai neįtikėtinai mažas kainas. Šiandien, VEVOR užima rinkas, daugiau nei 200 šalių, su 10 milijonų plius visuotinio narių.
Kodėl verta Rinktis VEVOR?
- Premium Kokybės Kietas
- Neįtikėtinai Mažos Kainos
- Greitas Ir Saugus Pristatymas
- 30-Dieną Nemokamai Grįžta
- 24/7 Dėmesingas Aptarnavimas

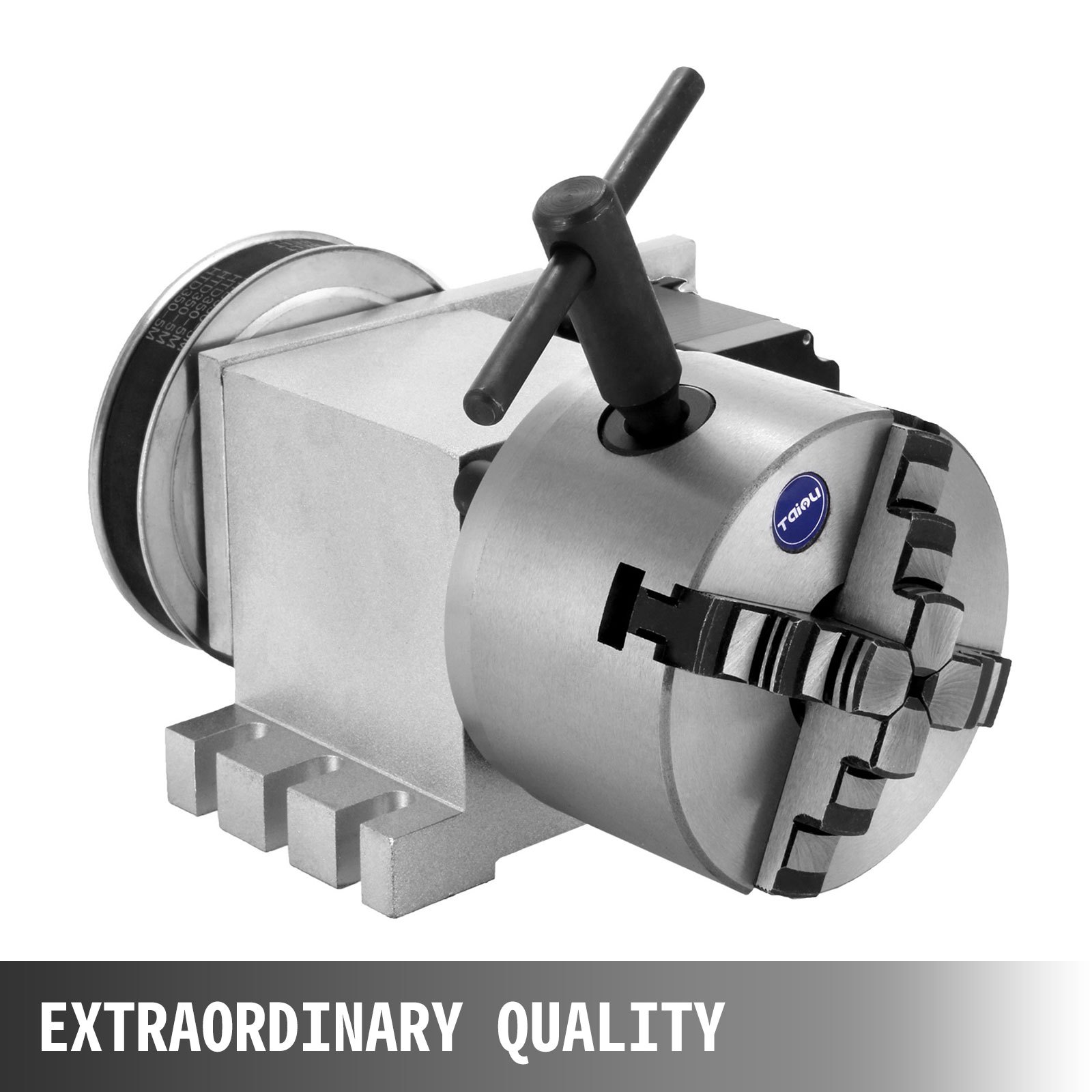

Экстраординарное Качество
The all-metal body has a particular strength, toughness, and wear resistance. At the same time, it is not easy to rust after special processing.

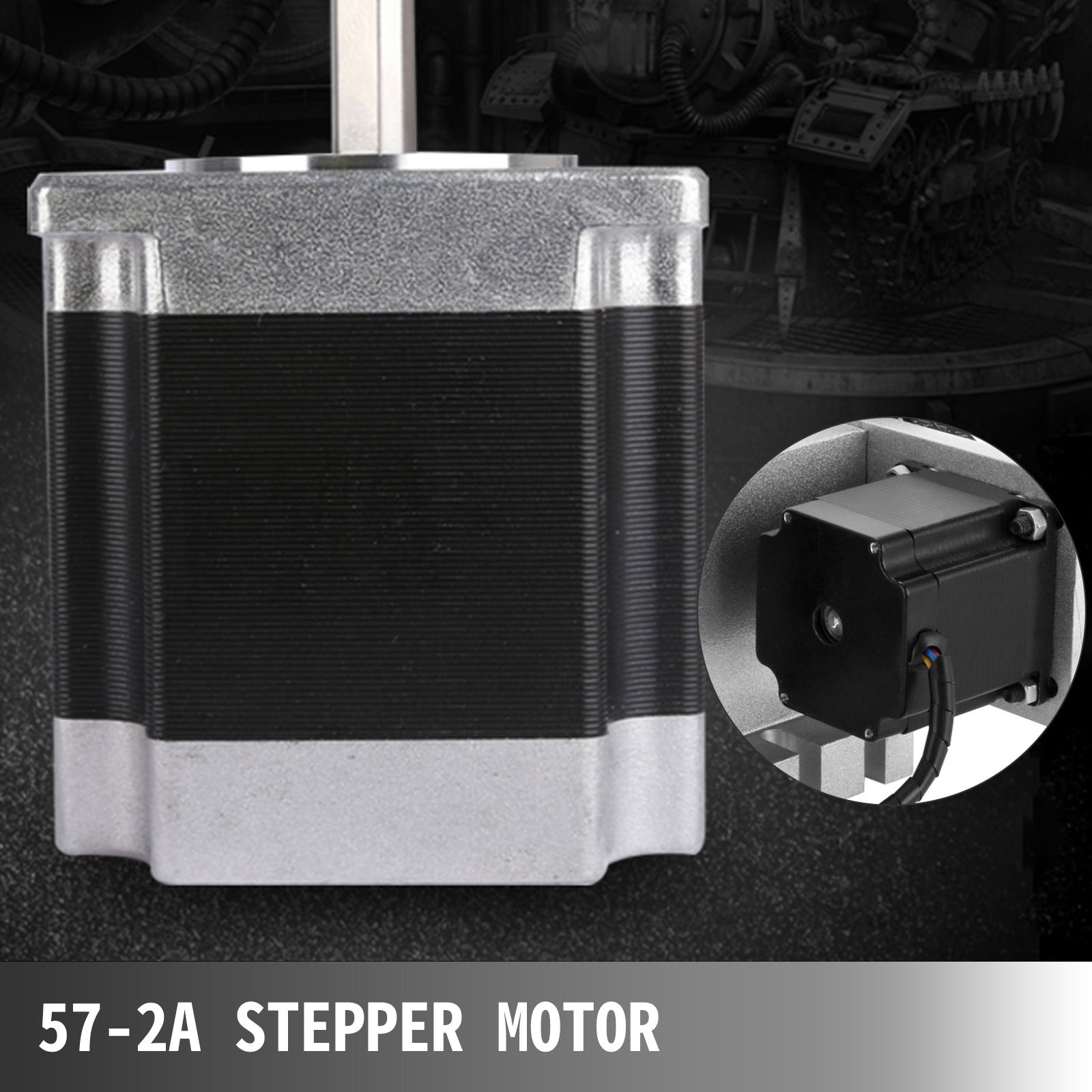

57-2A Stepper Motor
The rotary axis and tailstock adopt a two-phase stepper motor with a high conversion rate, stable control, and precise positioning.

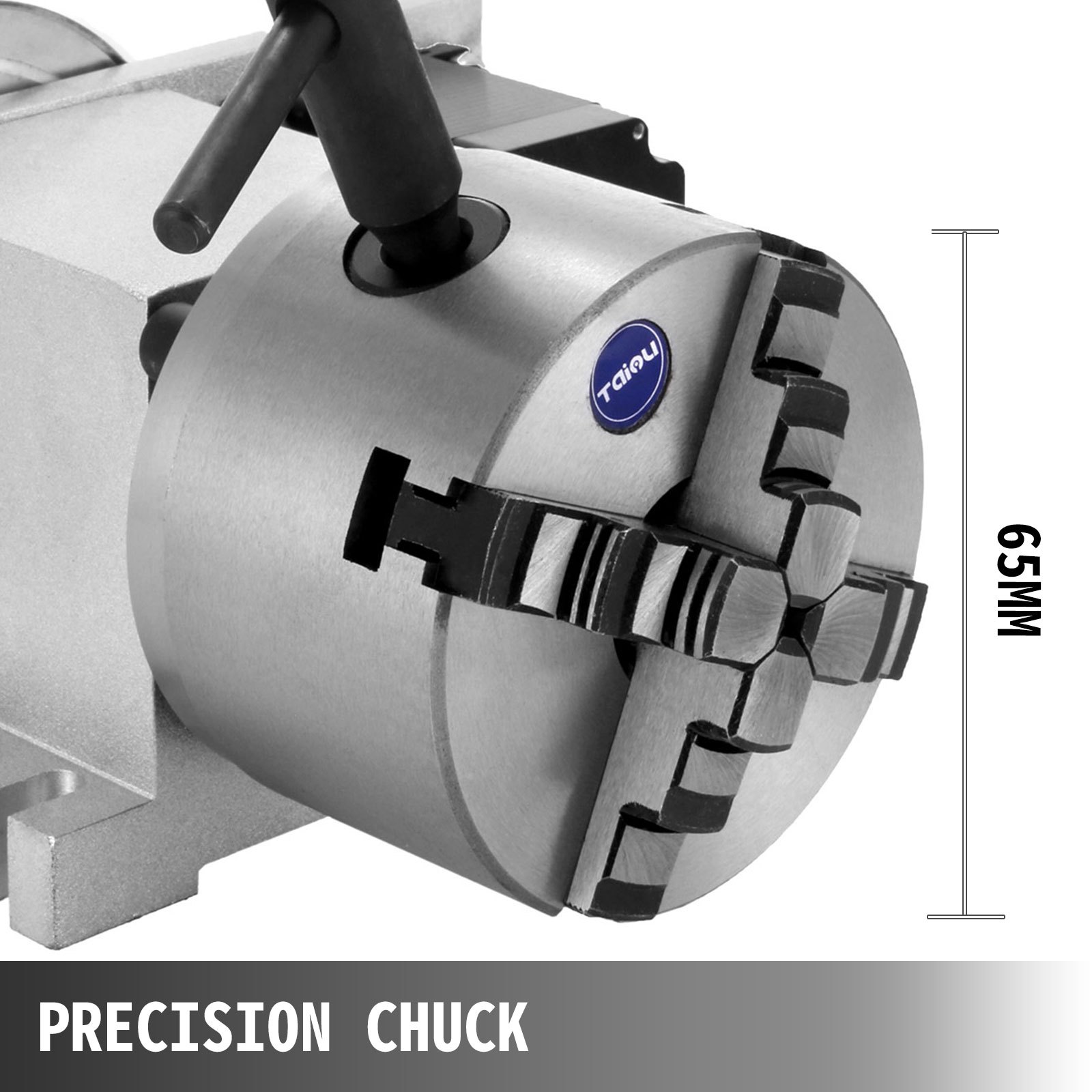

Precision Chuck
65mm chuck with high precision provides better precise positioning and excellent concentricity, suitable for clamping various types of materials, high compatibility.

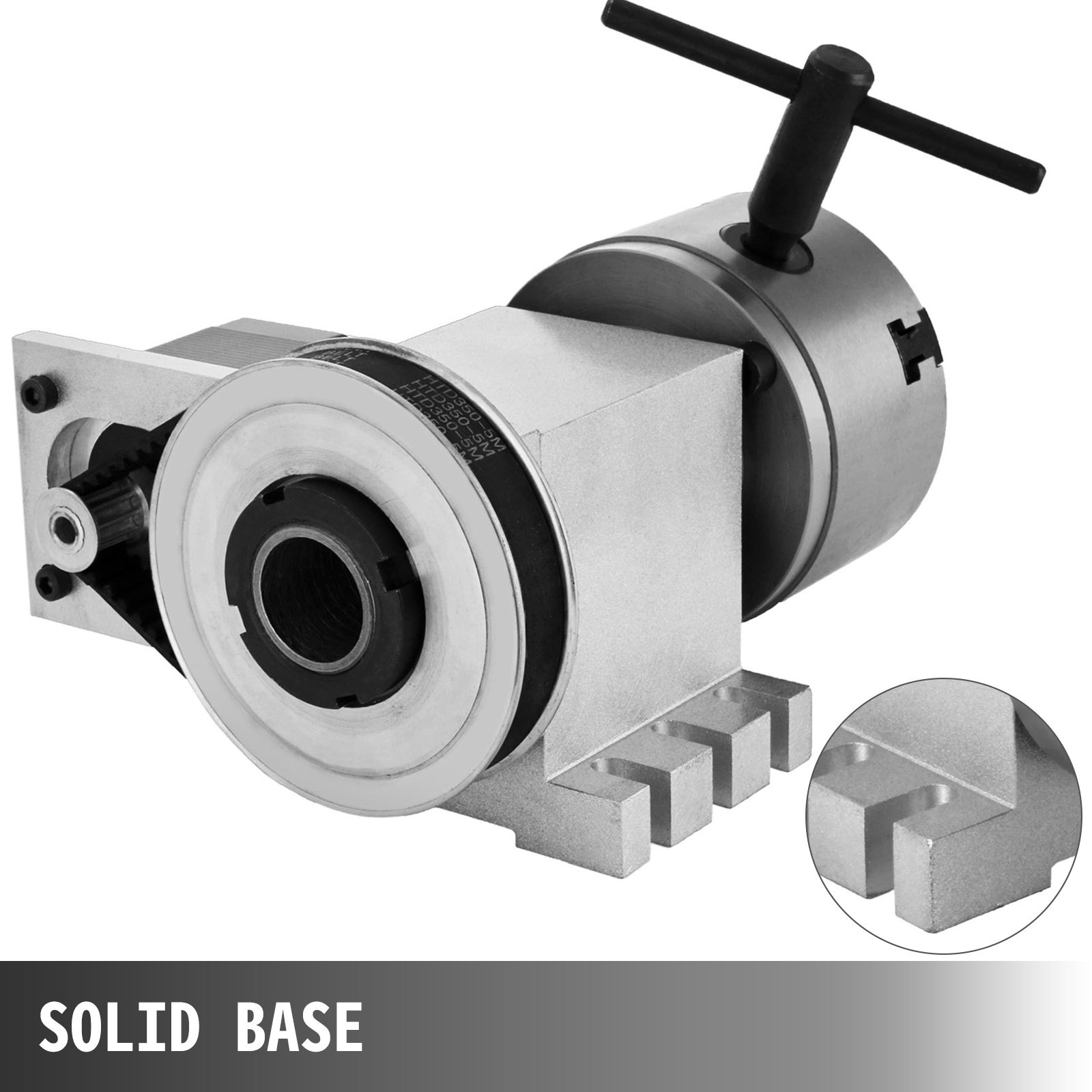

Прочное Основание
The base of the machine is made of sturdy material and has been thickened to ensure its stability during operation.

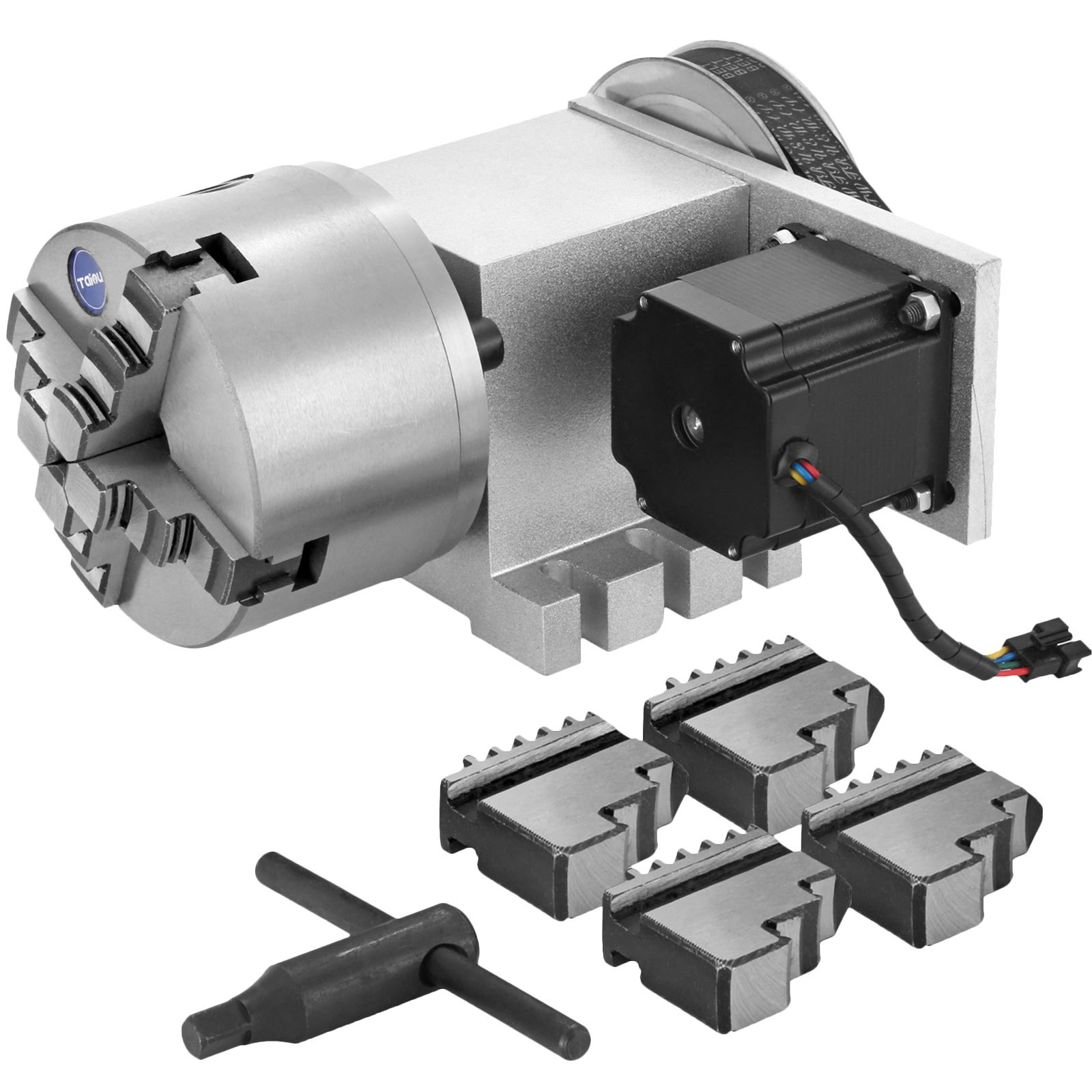

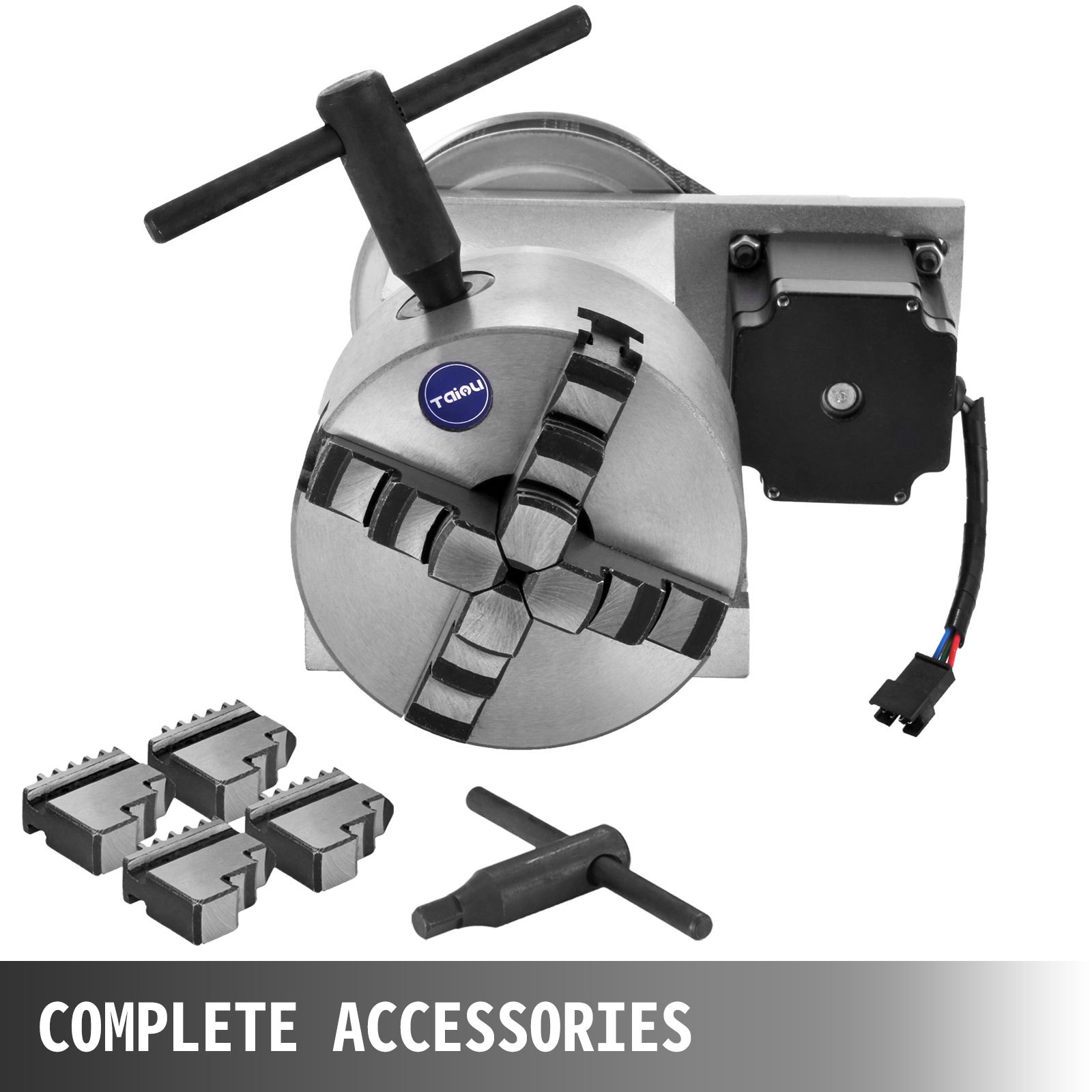

Комплектные Аксессуары
With the router rotary axis, some necessary accessories will be provided, including one pair of wire, a wrench as well as several back paws.

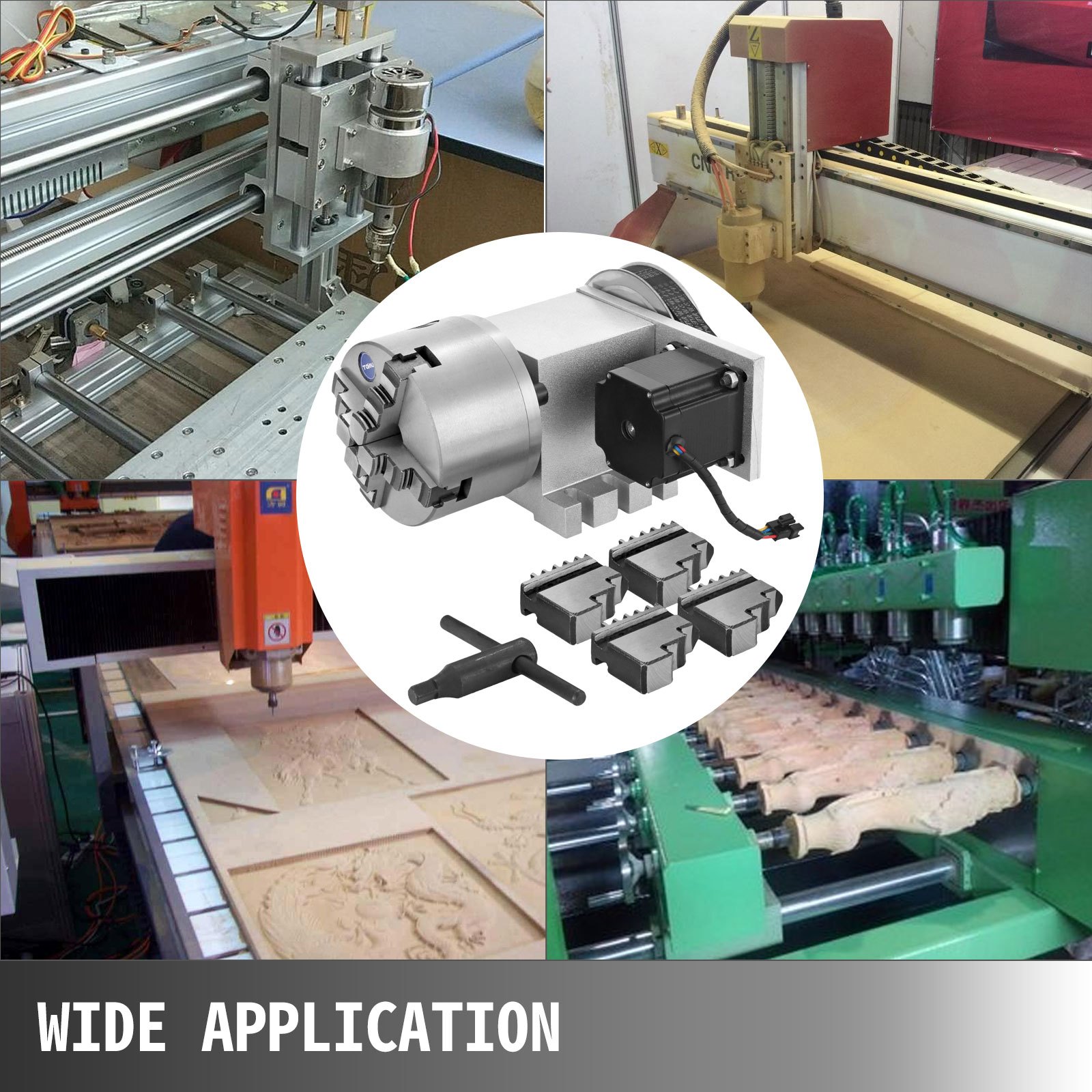

Platus Taikymas
The four-axis engraving machine is widely used in the scroll, stigma, bamboo and also can be applied in cylindrical, curved, round, etc.
Specifikacijos
- Type: 4 Jaw
- Center height: 65MM
- Reducing ratio: 6:1
- Output shaft diameter: 30MM
- Hollow shaft diameter: 21MM
- Total height: 115MM
- Motor: 2-phase 57 stepper motor
- Step Angle: 0.3 degree/step
Pakuotės Turinys
- 1 x Necessary parts kit
- 1 x Complete kit of the rotational rotary axis
Спецификация
- Тип
- 4 Jaw
- Высота по центру
- 65MM
- Reducing ratio
- 6
- Output shaft diameter
- 30MM
- Hollow shaft diameter
- 21MM
- Общая высота
- 115MM
- Variklis
- 2-phase 57 stepper motor
- Step Angle
- 0.3 degree/step
- Руководство пользователя
- Ссылка для скачивания
| Вес | 7,65 кг |
|---|---|
| Габариты | 39,01 × 28,00 × 19,00 см |
