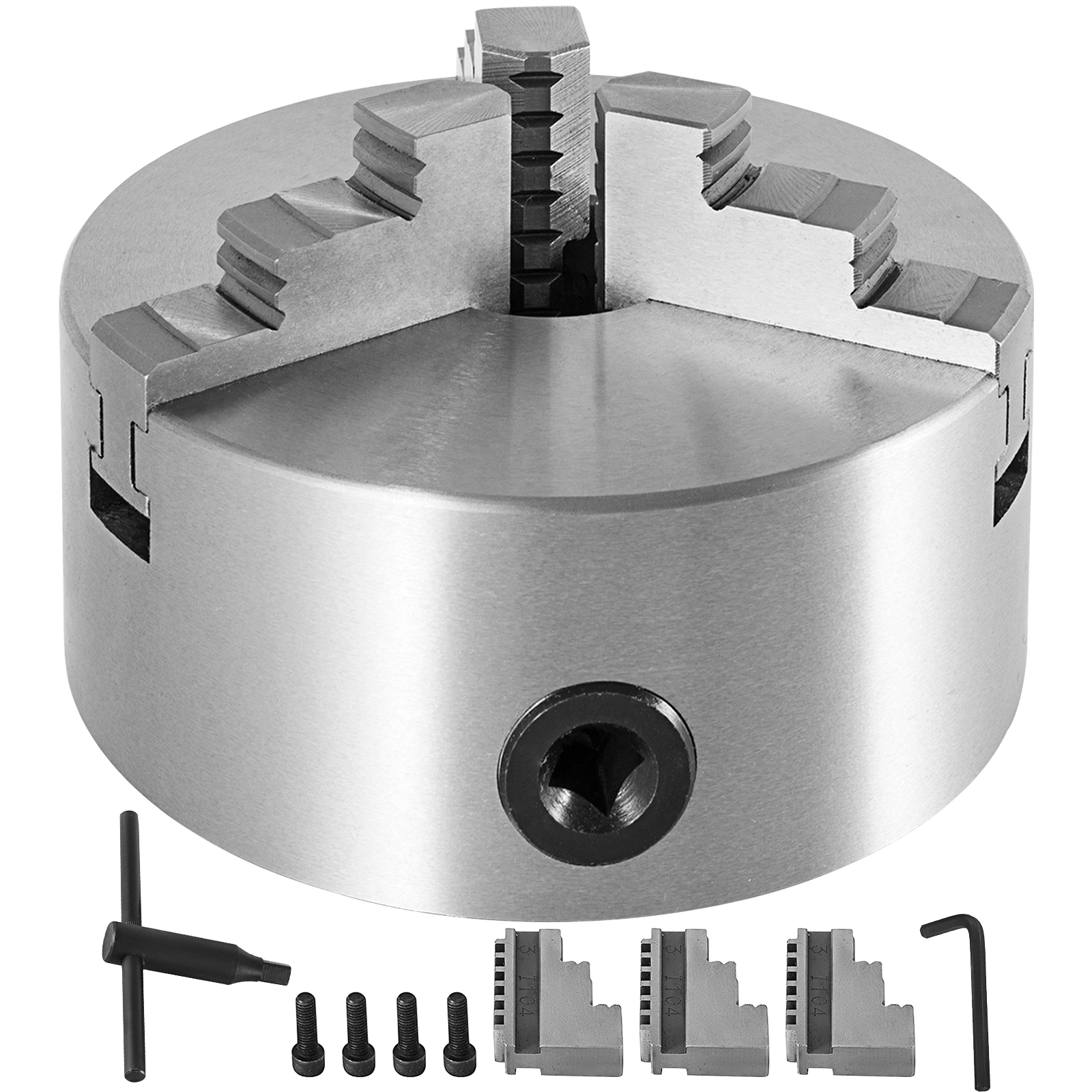

VEVOR 200мм 3-кулачковый патрон для токарного станка с ЧПУ, самоустанавливающийся, обратимый, с внутренними и внешними кулачками
- Premium Steel Structure: The lathe chuck body is made of high-quality hardened steel, and the hardness test of the jaws and guides is HRC 58-62. It has high strength and toughness, compression resistance and durability, and long service life.
- Large Clamping Range: This chuck includes two sets of internal and external jaws. The clamping range of this chuck is between 0.16″ / 4 mm – 7.87″ / 200 mm, which is suitable for clamping a variety of industrial parts.
- High-Performance Chuck: The wood lathe chuck jaws and three jaws are self-centering, the alignment accuracy is less than or equal to 0.002″ / 0.05 mm, and no adjustment is required after installation. The high precision design of the chuck bevel gear guarantees the accuracy of the chuck operation.
- Effortless Operation: The lathe chuck has an automatic centering function, so it does not need to be repeatedly calibrated during installation. It only needs to be installed in the correct order, which is simple, fast, and convenient. The chuck has 1″ x 8 TPI Thread and 3/4″ x 16 TPI Adapter (Mounted on the Chuck)
- Wide Application: This scroll chuck is highly adaptable and can be used with the same series of jaws, which is suitable for a variety of parts such as hanging shafts, disks, equilateral triangles, etc.
132,39 € Ar PVN 21%
Нет в наличии
Date of restocking unknown
Хотите получить уведомление, когда товар снова будет в наличии?
M4I4JXKJ
KPK11-200ZFZ00001V0

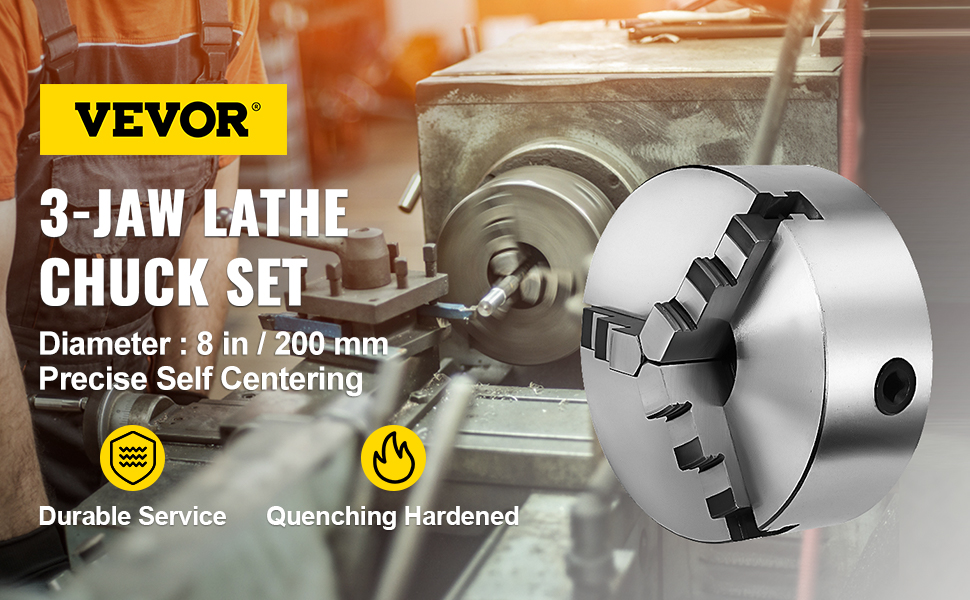

8" Lathe Chuck 3 Jaw
Two Sets of Jaws & Self-Centering Function & High-Precision
This versatile chuck is made of high-quality hardened steel, compressive and has a long service life. It has two sets of jaws that can hold industrial parts in the range of 0.16" / 4 mm - 7.87" / 200 mm. The self-centering function can save the trouble of repeated calibration during installation. It is suitable for all kinds of general-purpose lathes, economical CNC lathes, grinding machines, milling machines, drilling machines, and machine tool accessories.
- Premium Steel Structure
- Большой Диапазон Зажима
- High-Performance Chuck
- Простое управление
VEVOR yra pirmaujantis prekinis ženklas, kuris specializuojasi įranga ir įrankiai. Kartu su tūkstančiais motyvuotų darbuotojų, VEVOR yra skirta teikti savo klientams su kieta įranga ir įrankiai neįtikėtinai mažas kainas. Šiandien, VEVOR užima rinkas, daugiau nei 200 šalių, su 10 milijonų plius visuotinio narių.
Kodėl verta Rinktis VEVOR?
- Premium Kokybės Kietas
- Neįtikėtinai Mažos Kainos
- Greitas Ir Saugus Pristatymas
- 30-Dieną Nemokamai Grįžta
- 24/7 Dėmesingas Aptarnavimas
VEVOR yra pirmaujantis prekinis ženklas, kuris specializuojasi įranga ir įrankiai. Kartu su tūkstančiais motyvuotų darbuotojų, VEVOR yra skirta teikti savo klientams su kieta įranga ir įrankiai neįtikėtinai mažas kainas. Šiandien, VEVOR užima rinkas, daugiau nei 200 šalių, su 10 milijonų plius visuotinio narių.
Kodėl verta Rinktis VEVOR?
- Premium Kokybės Kietas
- Neįtikėtinai Mažos Kainos
- Greitas Ir Saugus Pristatymas
- 30-Dieną Nemokamai Grįžta
- 24/7 Dėmesingas Aptarnavimas

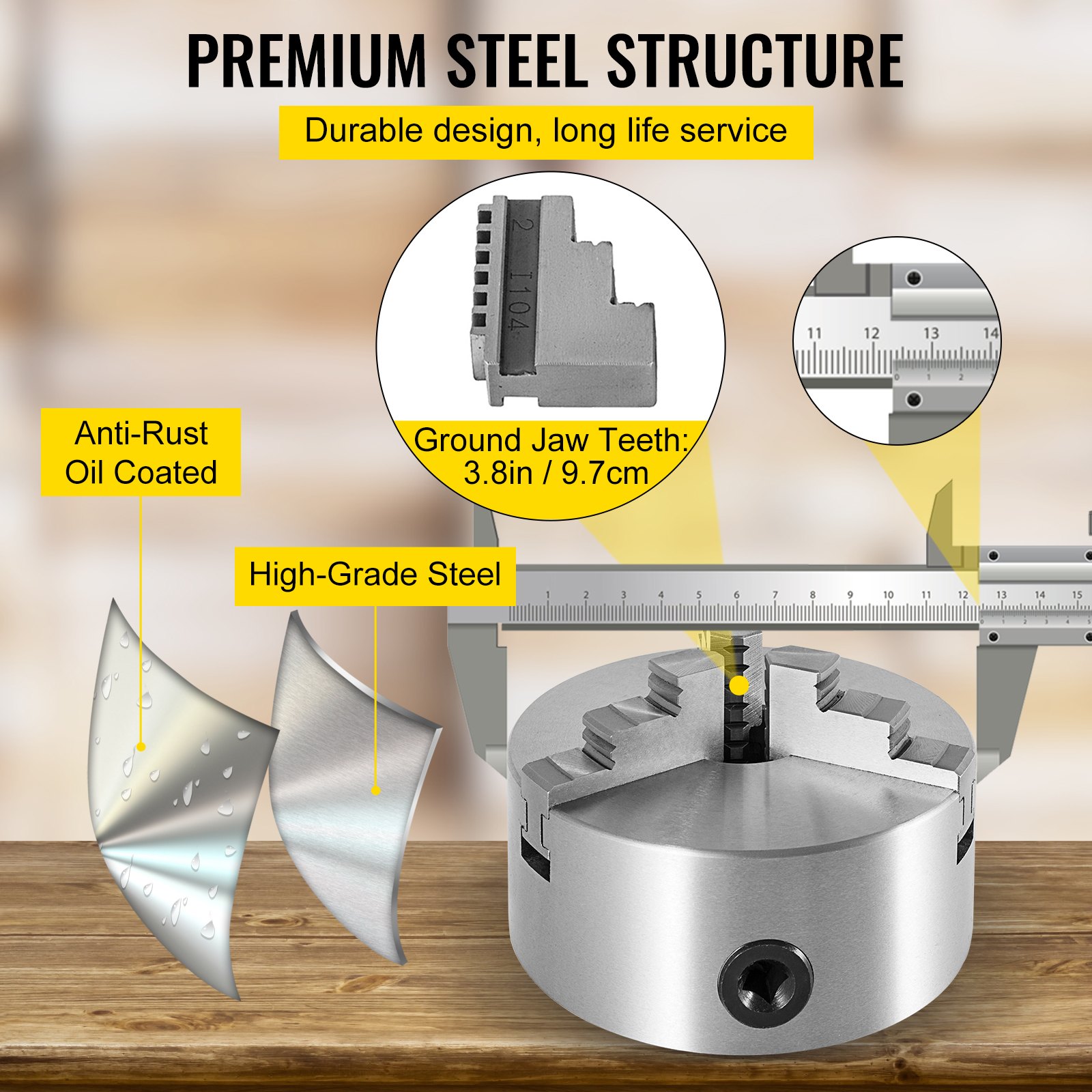

Прочный Стальной материал
Made of quality cast iron, the lathe chuck have passed the HRC 58-62 test for better performance. Flimsy parts are specifically engineered by quenching process to enhance durability.

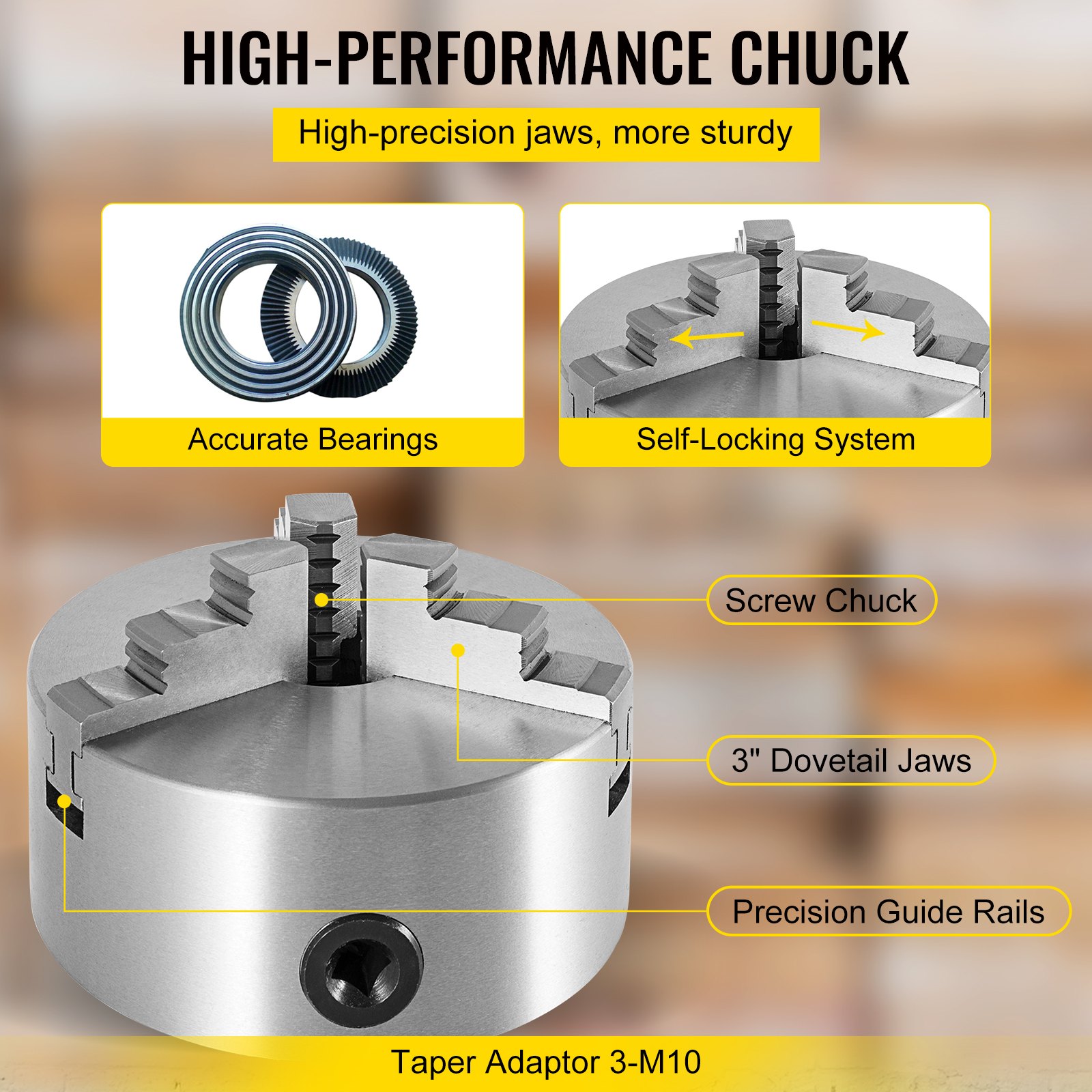

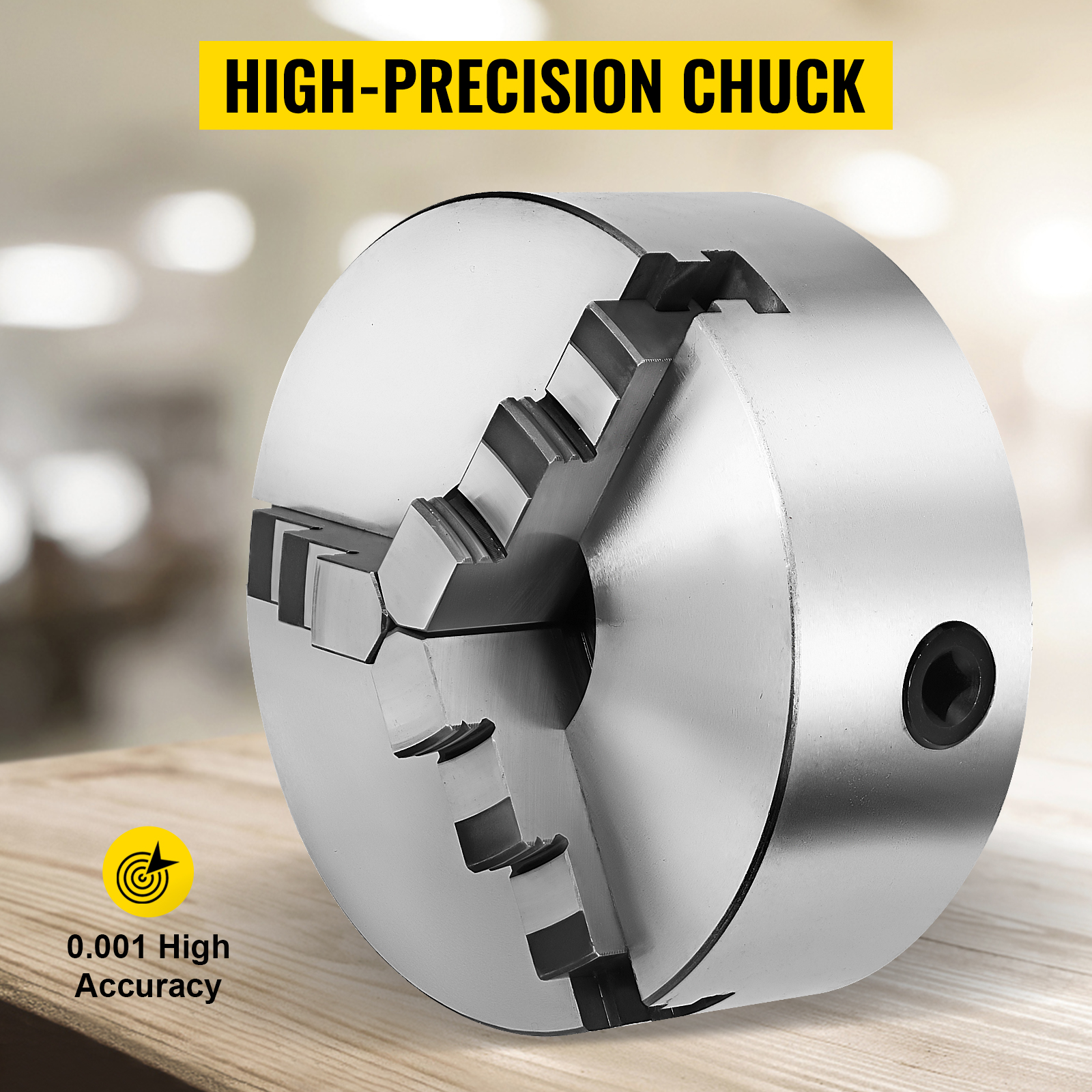

Высокоточный патрон
The lathe chuck is milled by pricise milling skill for high precision and accuracy. It looks more beautiful and concise.
Универсальный Адаптер
An adapter is also in the package to convert 1'' x 8TPI to 3/4" x 16TPI. Thus, it can adapt to more types of machines.

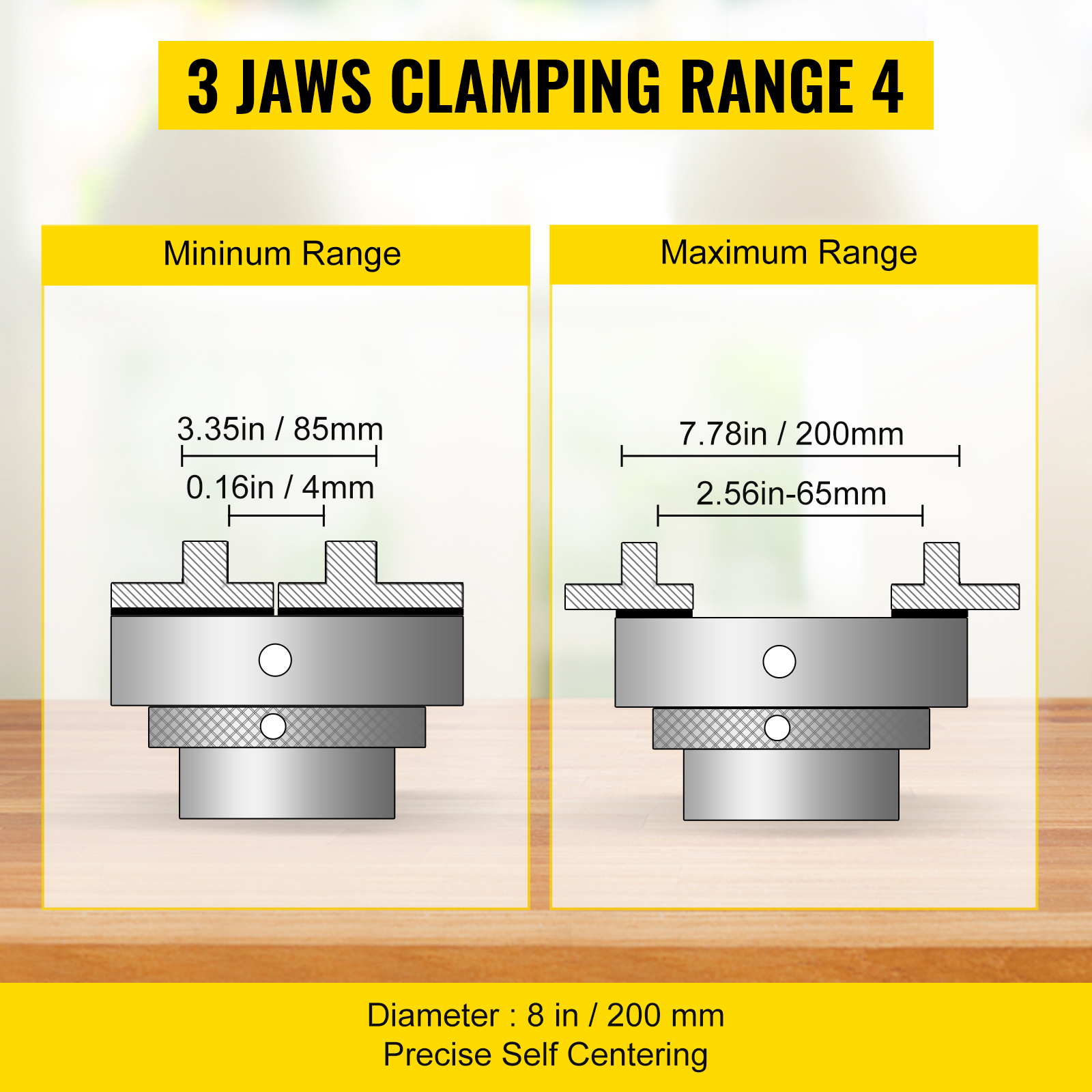

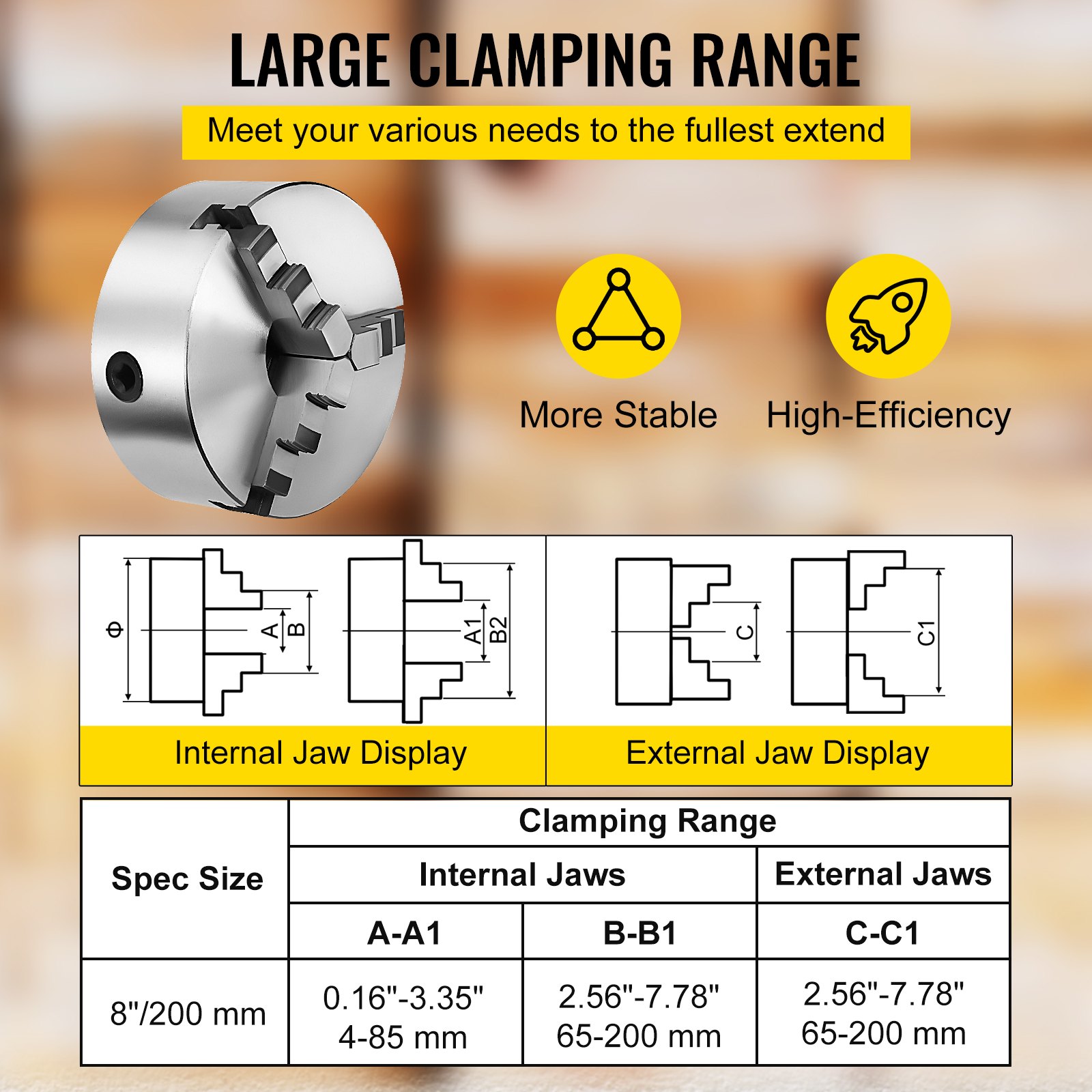

3 Jaws Clamping Range
The chuck has two sets of internal and external jaws. This chuck has a large clamping range and is suitable for clamping a variety of industrial parts. The clamping range of this chuck is between 0.16" / 4 mm and 7.87" / 200 mm.

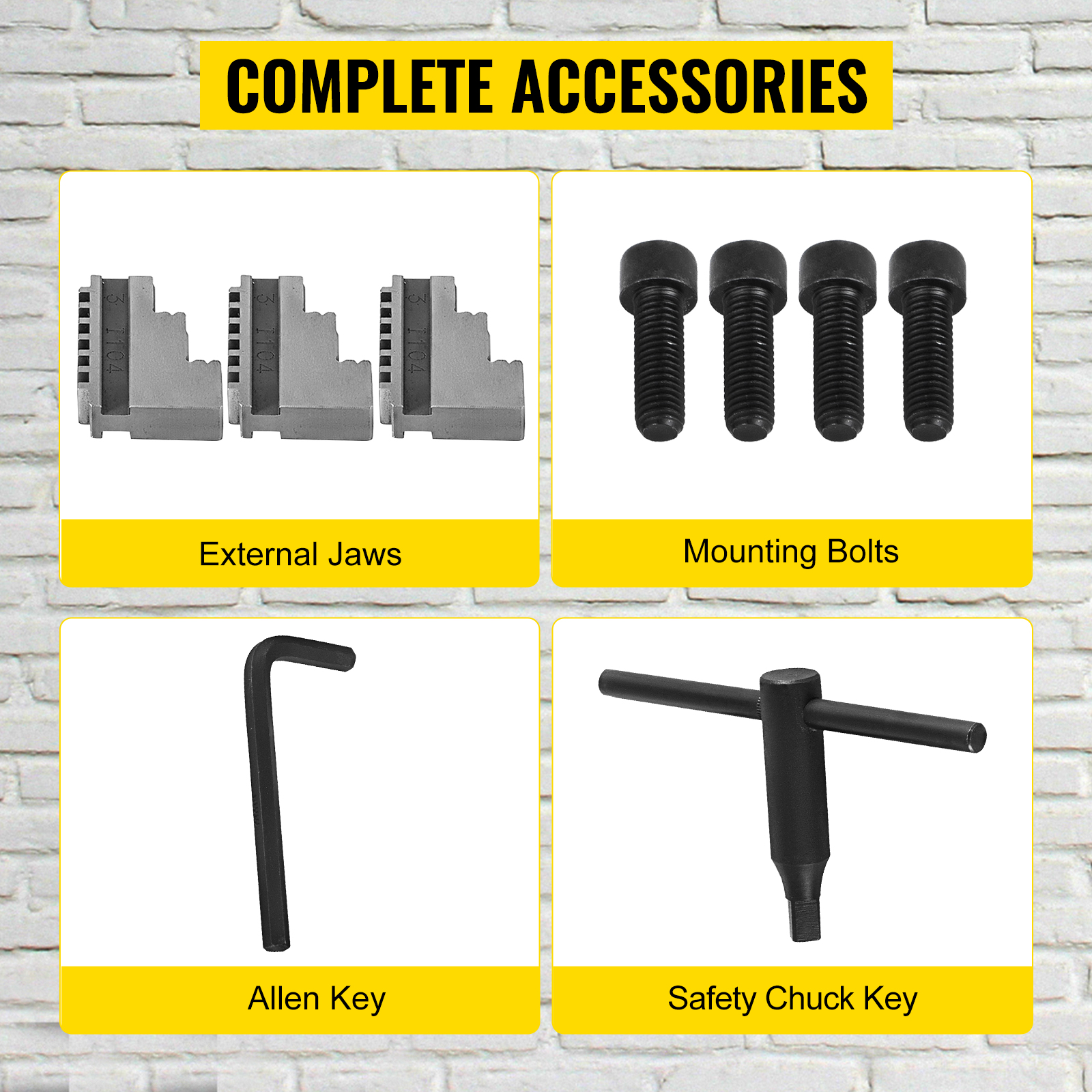

Комплектные Аксессуары
Этот токарный мини-патрон состоит из корпуса патрона, подвижного патрона и зубчатого привода. Поскольку патрон самоцентрирующийся и не требует калибровки, установка выполняется просто и быстро.

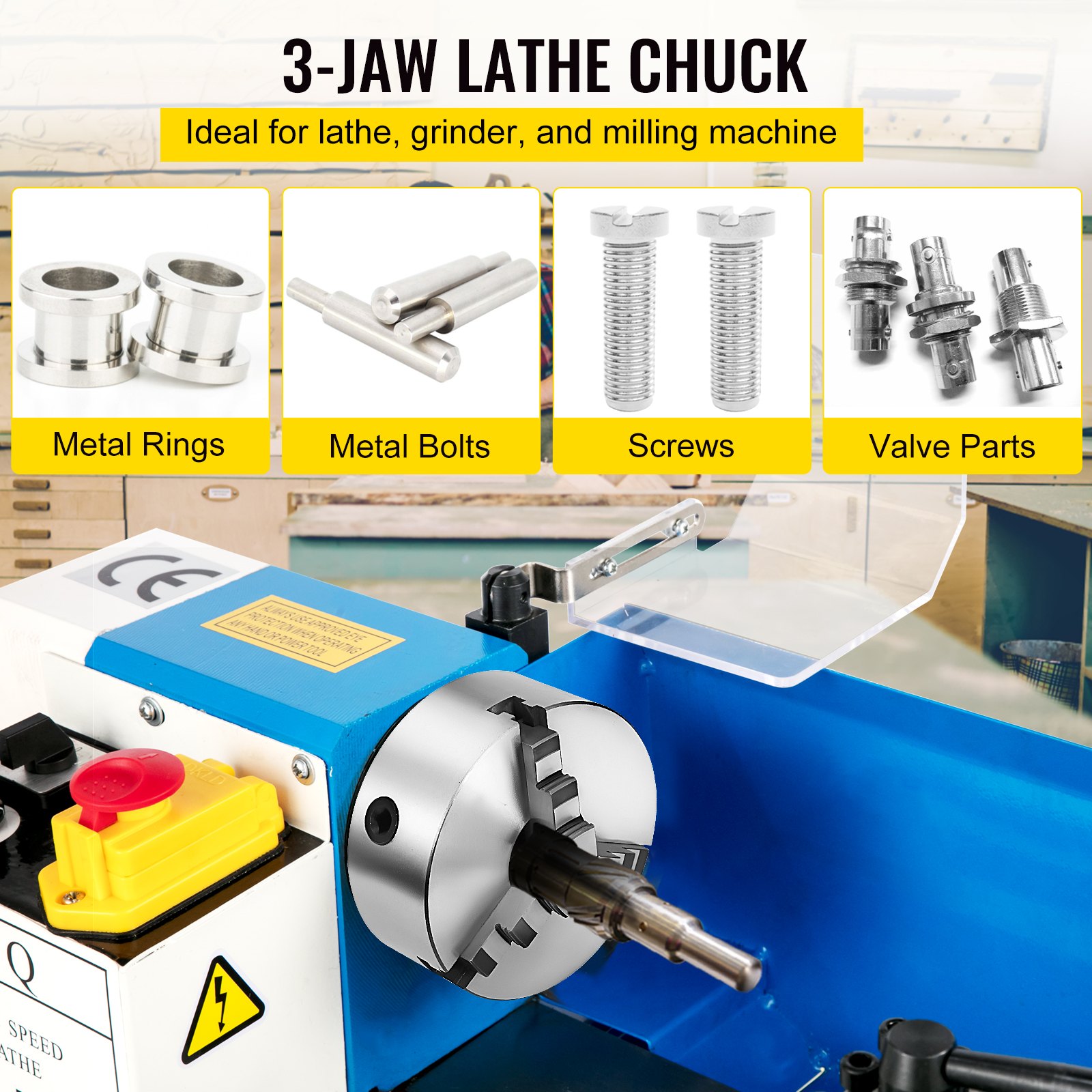

Широкое Применение
Токарный патрон с 3 кулачками подходит для различных токарных станков общего назначения, экономичных токарных станков с ЧПУ, шлифовальных станков, фрезерных станков, сверлильных станков и принадлежностей для станков.
Specifikacijos
- Model: K11-200
- Mounting Thread: 3-M10
- Chuck Body Thickness: 2.95" / 75 mm
- Bolt Circle Diameter: 7.1" / 180 mm
- Center Thru Hole Diameter: 2.6" / 65 mm
- Chuck Body Material: 300 Cast Iron
- Internal Jaw Clamping Range (A-A1): 0.16" / 4 mm - 3.35" / 85 mm
- Internal Jaw Jamming Range (B-B1): 2.56" / 65 mm - 7.87"/ 200 mm
- External Jaw Clamping Range (C-C1): 2.56" / 65 mm - 7.87" / 200 mm

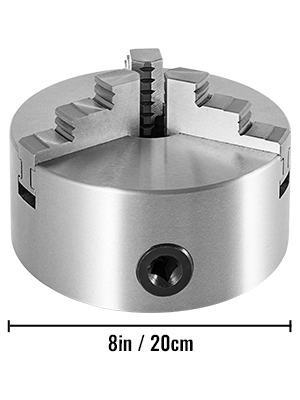

- Item Diameter: 8 in / 200 mm
- Item Weight: 31.2 lbs / 14.14 kg

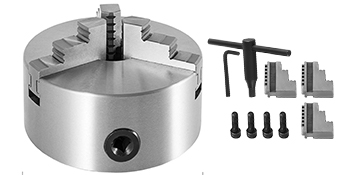

Pakuotės Turinys
- 1 x 8" / 200 mm Lathe Chuck Body
- 3 x Внутренних Губки
- 3 x Внешних Губки
- 3 x Крепежных Болта
- 1 x Ключ-Патрон
Спецификация
- Монтажная Резьба
- 3-М10
- Диапазон зажима внутренней губки (A-A1)
- 0.16" / 4 mm - 3.35" / 85 mm
- Диапазон заклинивания внутренней челюсти (B-B1)
- 2.56" / 65 mm - 7.87"/ 200 mm
- Диапазон зажима внешней челюсти (C-C1)
- 2.56" / 65 mm - 7.87" / 200 mm
| Вес | 15,42 кг |
|---|---|
| Габариты | 27,00 × 27,00 × 19,00 см |
