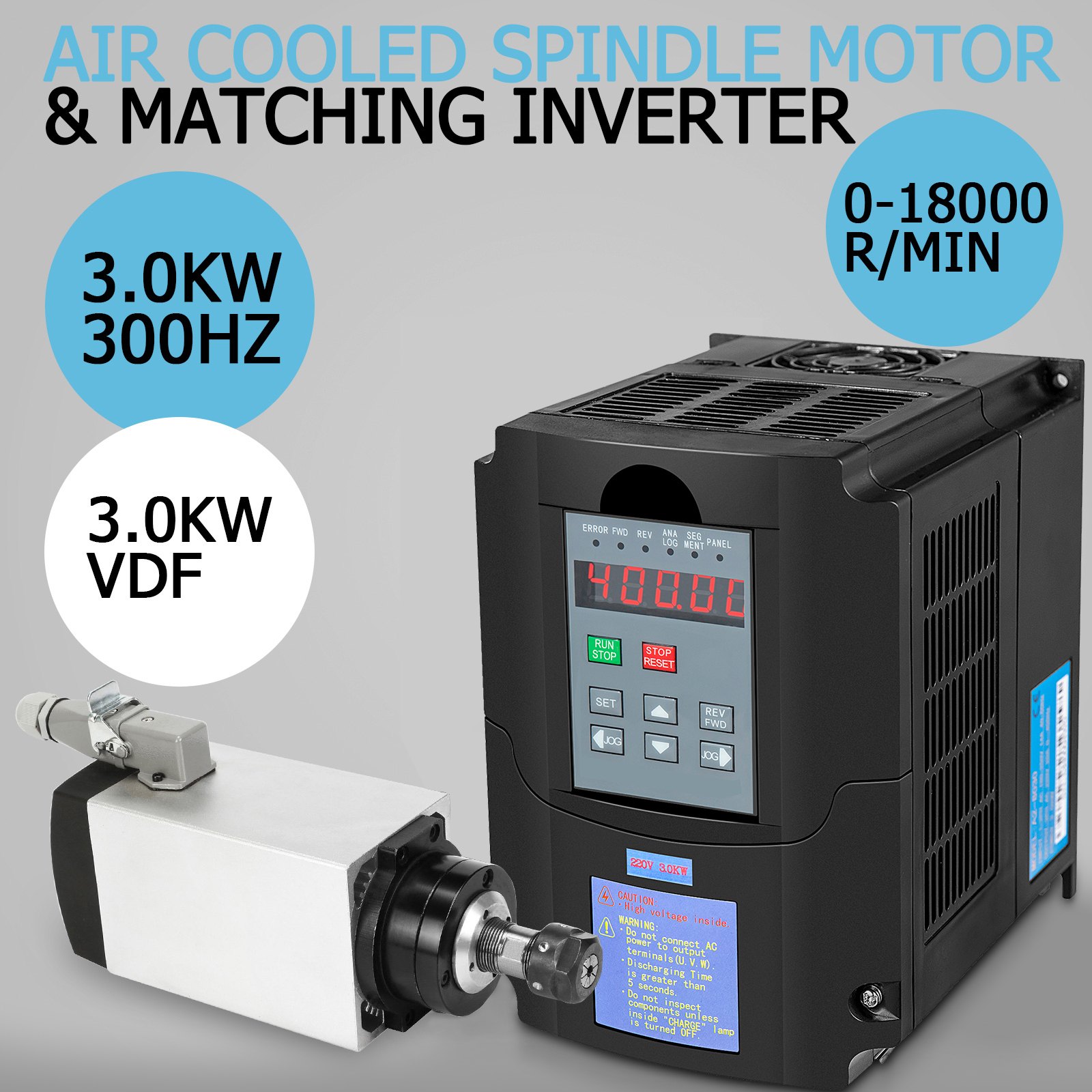

Оновлений 3кВт шпиндельний двигун з повітряним охолодженням та відповідним інвертором, 220В/110В, високоякісний комплект для ЧПК

Unlike other selling low quality spindle at doubtful low price, this is a high quality Spindle with stainless steel 304 casing and the Germany made ball bearing.New upgraded with adopt germany imported bearing: three times useful time than ordinary spindle motor. More speed:8000-24000 R/min. More precis collet: ER20(4mm,6mm,8mm,12mm) Runout off: less than 0.005mm. Pass ISO9001 quality certification which means this item is the top quality item.

We also stock the followingupdated top-quality water-cooling electric motor spindles for your selection

Kindly Notices: the water-cooling electric motor spindles 110v and 220v can be generic

We also stock the following updated top-quality air-cooling electric motor spindles for your selection

Kindly Notices: the air-cooled spindle motors spindles 110v and 220v can be generic

• This spindle motor adopts Germany imported bearing which can make it use for three times longer useful time than ordinary spindle motor.
• In extremely high speed working environment, ordinary bearing can not ensure this high rotate speed for using for long time.
• Our Germany imported bearing can make spindle motor three times longer useful time than ordinary spindle motor.
• The cost for Germany Imported Bearing is more than 150$ than ordinary bearing.
• MORE SPEED: 8000-24000 R/min.MORE PRECISE.
• ER20(4mm,6mm,8mm,12mm) Runout off: less than 0.005mm.
• ISO9001 quality certifications which means this item is the top quanlity item.

• Spec: φ88x98x190 mm (Diameter:88x98x190mm)
• Power: 3 KW
• Voltage: 220V~250V
• Frequency: 300 Hz
• Speed: 0-18000 R/min
• Повітряне Охолодження
• ER20(4mm,6mm,8mm,12mm) collet chuck
• Runout off: less than 0.005 mm
• Grease Lubrication

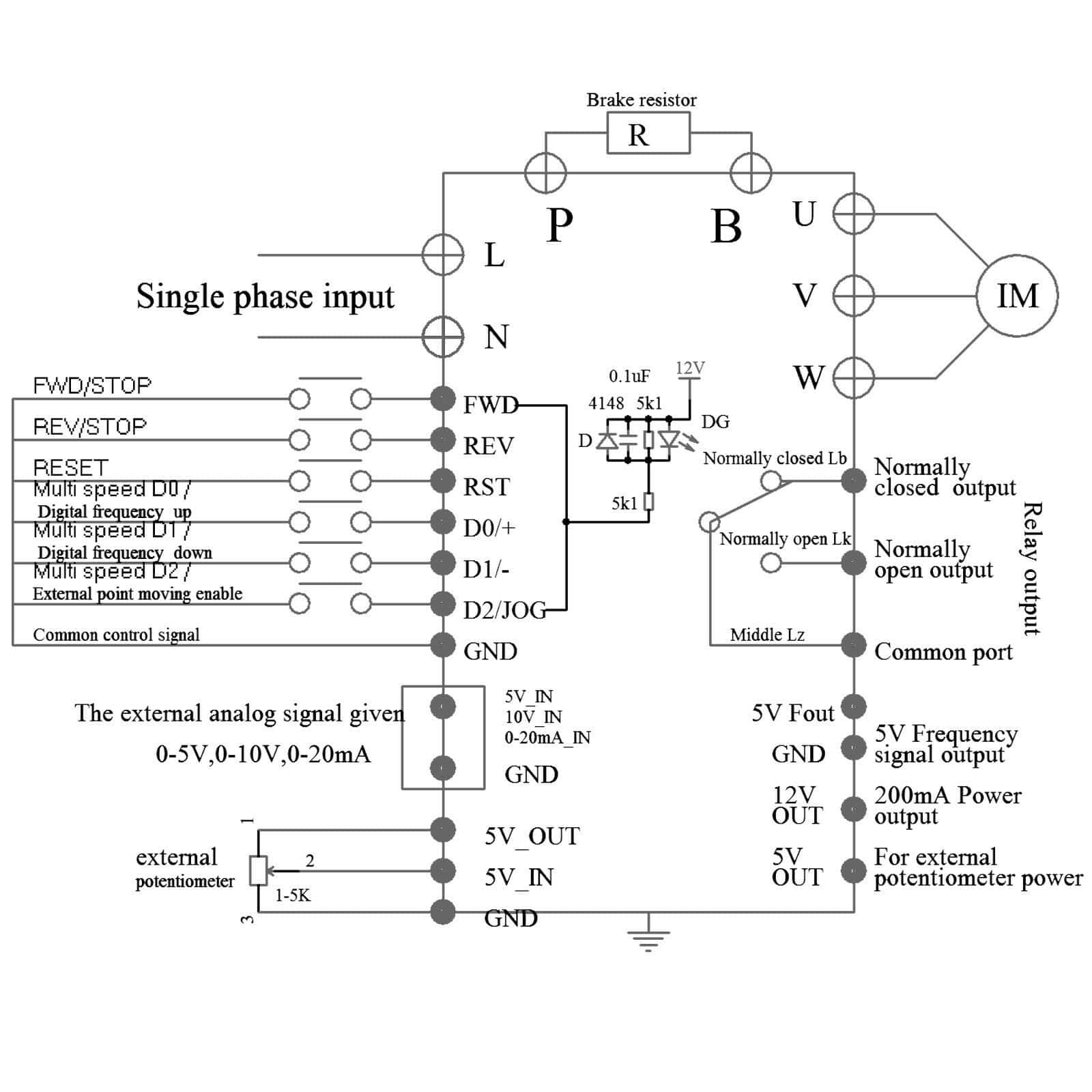

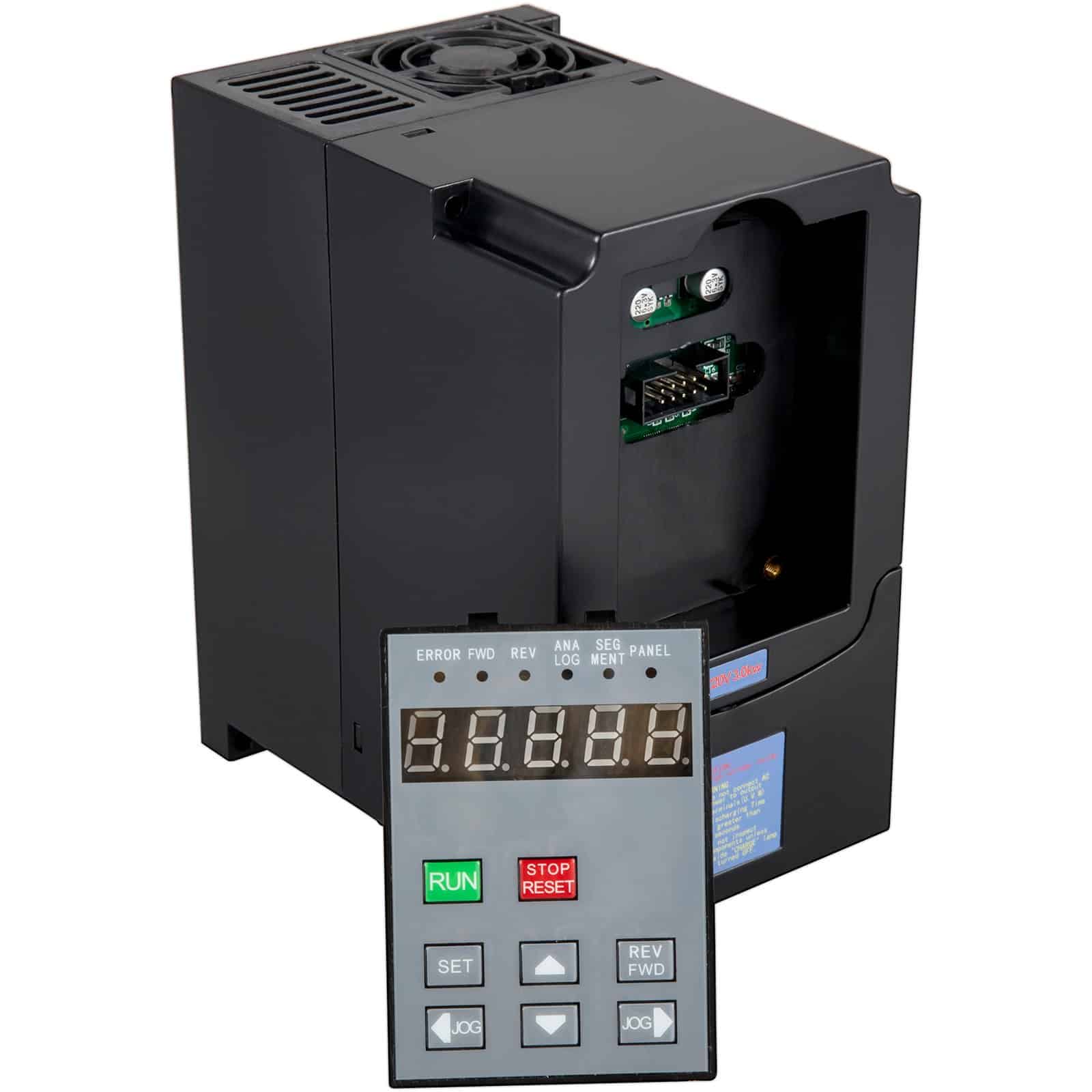

Technical Parameters for Variable Frequency Drive Inverter

• Input Voltage: 220 V
• Rated Current: 13A
• Output Voltage: 208-240VAC (analogous to Input Voltage)
• Input Frequency: 48-63 Hz
• Output Frequency: 0-400 Hz

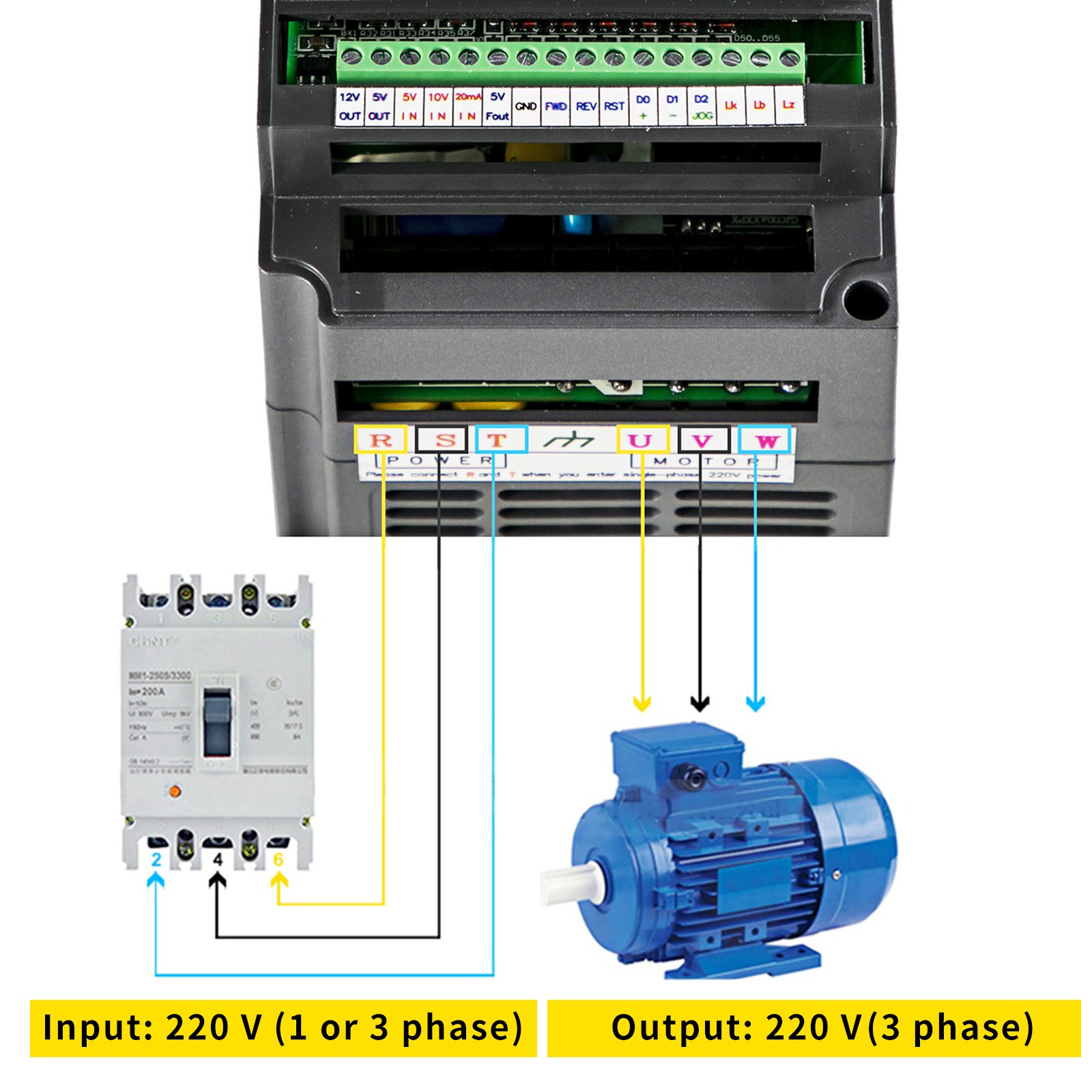

• Input Phase: 1 or 3 phase as you like
• Output Phase: 3 phase
• Item Manufacturer: From a well-known manufacture who manufacture VFD for more than 12 years.
• Series:HY inverters
• Control Mode:SPWM
• Input Power:220 V class：220±15%

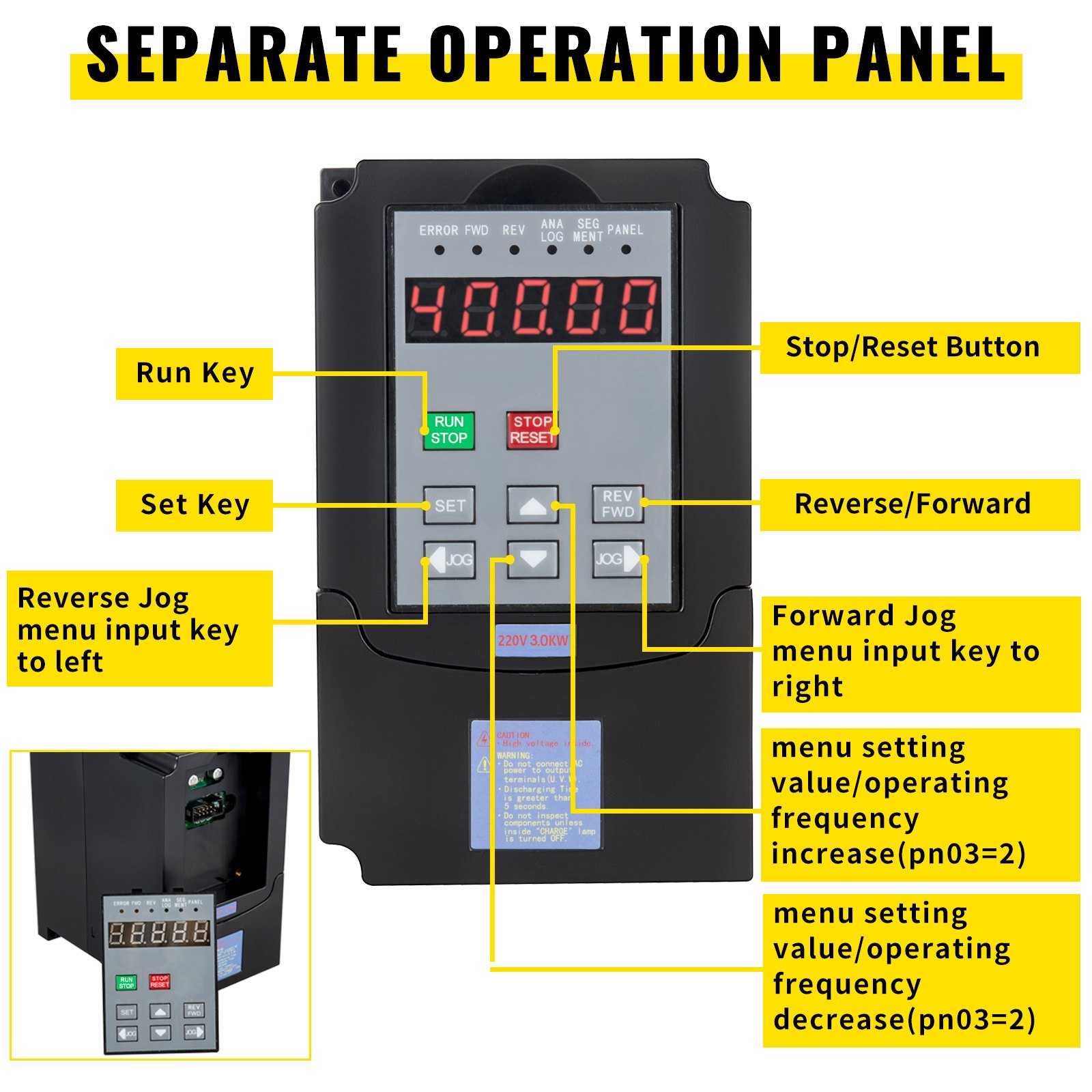

• 5-Digits Display & Status Indicator Lamp:Displaying frequency, current, revolution, voltage, counter, temperature, FOR or REV rotation, and fault, etc.
• Working Temperature: -10~40 ℃
• Humidity: 0-95% Relative Humidity (without dew)
• Vibration: Below 0.5 G

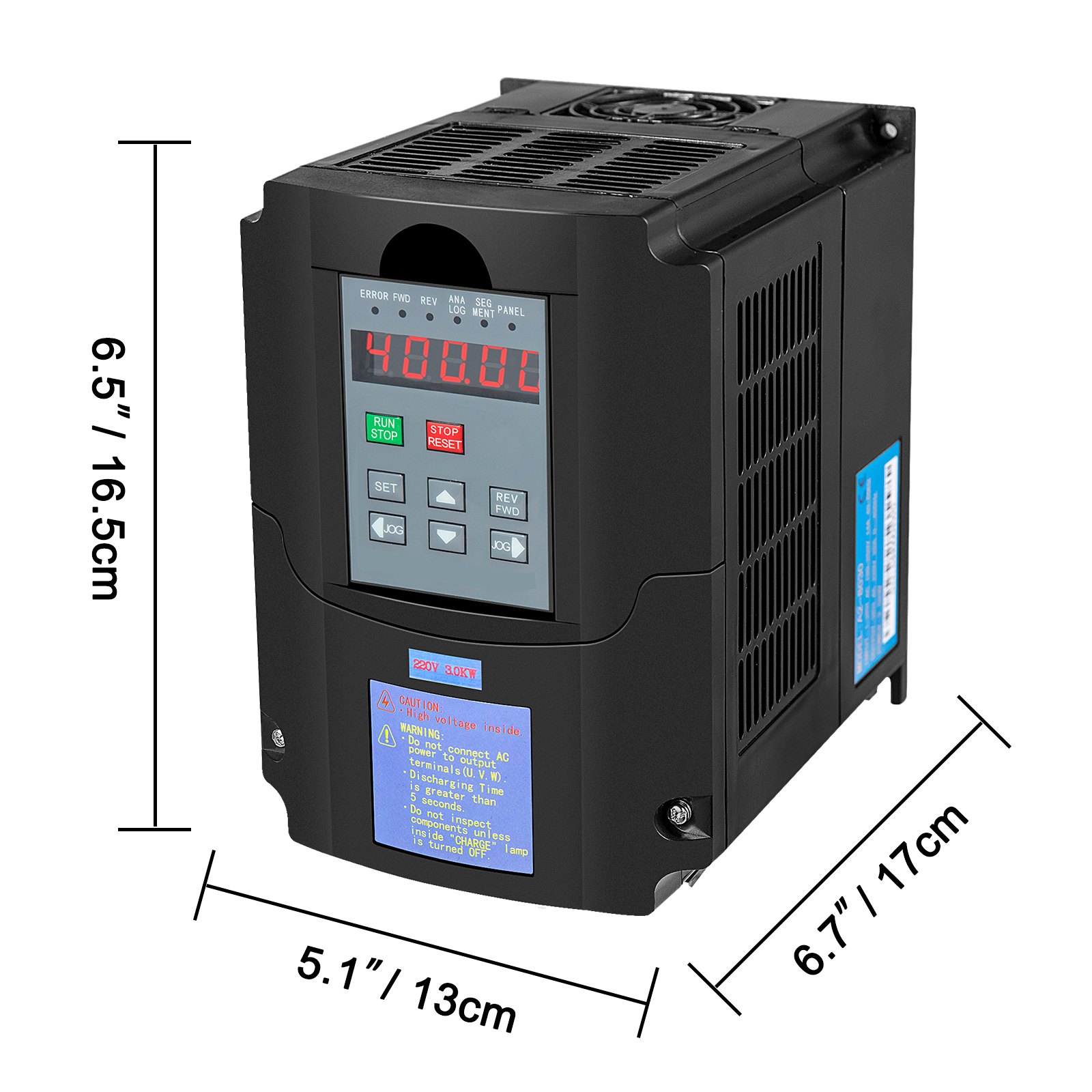

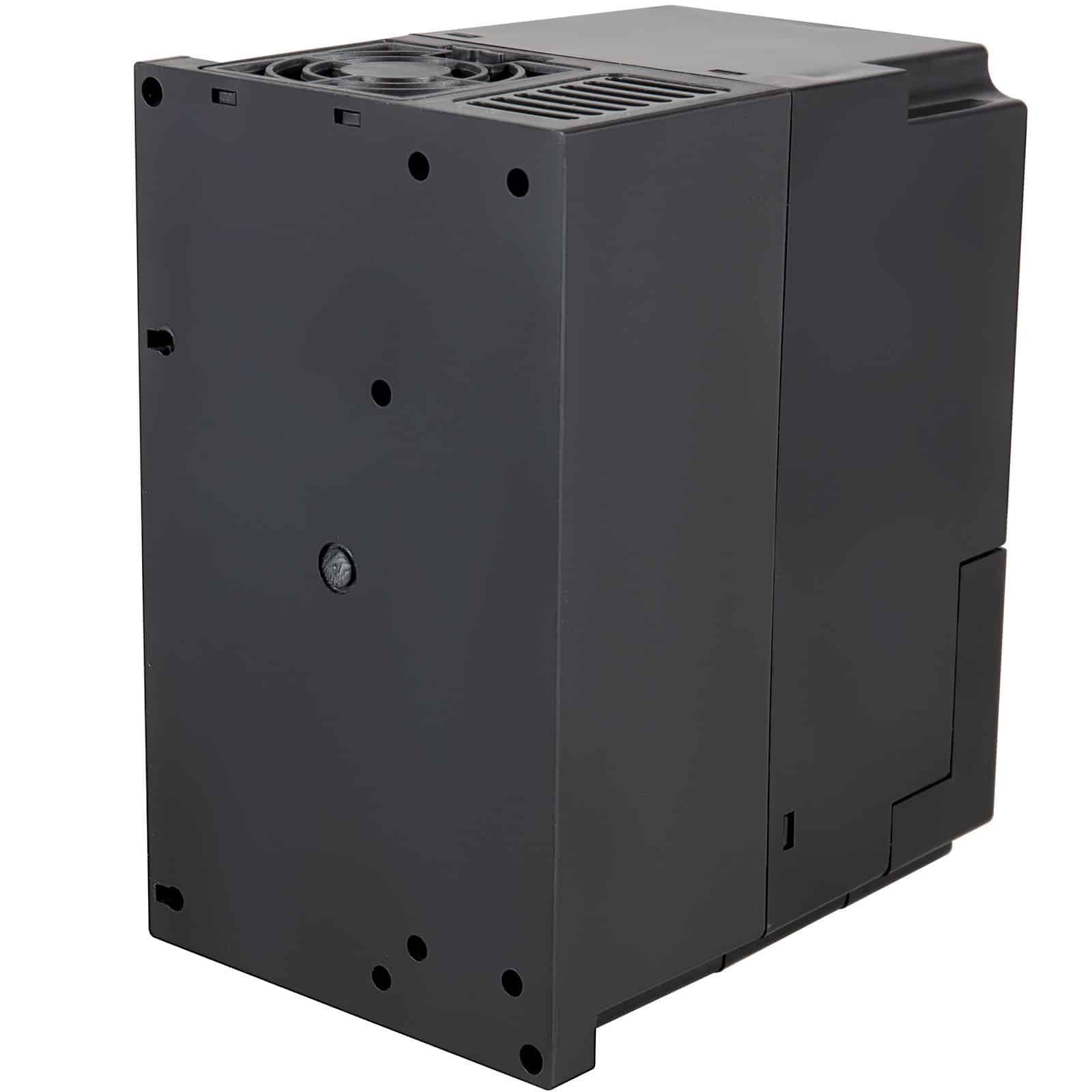

• Dimension: 22 x 18 x 21 cm (L x W x H)

• 1 x 3KW Air Coolded Spindle Motor
• 1 x 3KW Variable Frequency Drive
