VEVOR 2x72 Belt Grinder Wheel Set
Aluminum Knife Grinder Wheels
4 Drive
3 Tracking
2 Idler
Durable Precise

VEVOR Belt Grinder Wheel Set 50×1830 mm, 6061-T6 Aluminum, 100 mm Drive Wheel, 76 mm Tracking & 50 mm Idler Wheels, for Knife Making

  • 【6061-T6 ALUMINUM】- The belt grinder wheel is constructed with durable aluminum material, warp-proof, rust-proof, and corrosion-proof for long-term usage. It is durable and stable, ensuring smooth working.
  • 【4″ DRIVE WHEEL】- 4″ drive wheel is CNC machined with a 0.94 inch/24 mm bore. Bore is equipped with a 0.31 inch/8 mm keyway. The wheel is 2.4 inch/61 mm wide. The surface is truly crowned to ensure the belt won’t jump off the wheel.
  • 【3″ TRACKING & 2″ IDLER WHEEL】- The 3″ tracking wheel is 3″ in diameter and 2.4″ wide. The 2″ idler wheels are 2″ in diameter and 2.4″ wide. 3 x heavy duty 1/2″/12 mm bearings fitted back to back in each wheel for max bearings life. There is a spacer between the bearings to relieve over-tightening.
  • 【EASY INSTALLATION】- This belt grinder wheel set is easy to carry and use with small and lightweight features. The 1/2″/12 mm bearings can easily be replaced when worn. Stalling this wheel on machines is no fatigue.
  • 【FLEXIBLE USES】- The knife grinder wheel set can satisfy your needs and work great in grinding metals, wood, acrylic, and other materials. It is widely used in parts factories, building materials factories, etc., perfect for tool polishing.

119,92 € Ar PVN 21%

Немає в наявності

Date of restocking unknown

Want to be notified when this product is back in stock?

Артикул: M4I4K6GY Категорії: , ,
M4I4K6GY
YCSDJQ424MM235O58V0
VEVOR belt grinder wheel set, 2" x 72", 6061-t6 aluminum.

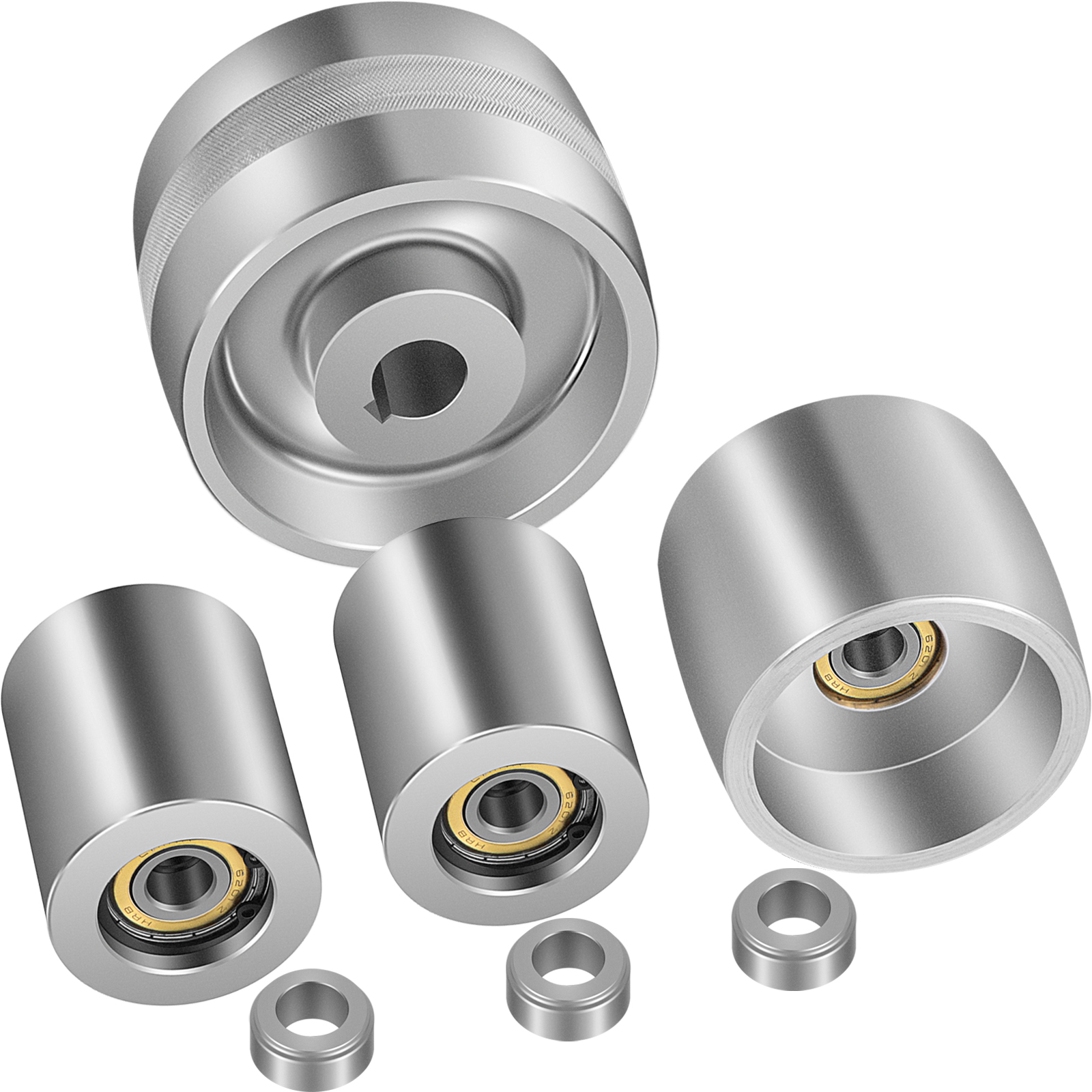

VEVOR belt grinder parts including four metal wheels and bearings on white background
Belt Grinder Wheel
Our wheel is designed to provide prolonged and dependable use with an excellent aluminum frame and compression resistance surface. It is commonly used on 2 x 72-inch belt grinders for hollow-grinding and knife making, a perfect choice for tool polishing metal, wood, acrylic, and other materials.
  • 6061-T6 Aluminum
  • 4" Drive Wheel
  • 3" Tracking & 2" Idler Wheel
  • Easy Installation
VEVOR - провідний бренд, який спеціалізується на обладнанні та інструментах. Разом з тисячами мотивованих співробітників, VEVOR прагне забезпечити наших клієнтів надійним обладнанням та інструментами за неймовірно низькими цінами. Сьогодні VEVOR присутній на ринках більш ніж 200 країн світу з більш ніж 10 мільйонами членів по всьому світу.
Чому варто обрати VEVOR?
  • Преміальна міцна якість
  • Неймовірно низькі ціни
  • Швидка та безпечна доставка
  • 30-денне безкоштовне повернення
  • Уважне обслуговування 24/7
VEVOR - провідний бренд, який спеціалізується на обладнанні та інструментах. Разом з тисячами мотивованих співробітників, VEVOR прагне забезпечити наших клієнтів надійним обладнанням та інструментами за неймовірно низькими цінами. Сьогодні VEVOR присутній на ринках більш ніж 200 країн світу з більш ніж 10 мільйонами членів по всьому світу.
Чому варто обрати VEVOR?
  • Преміальна міцна якість
  • Неймовірно низькі ціни
  • Швидка та безпечна доставка
  • 30-денне безкоштовне повернення
  • Уважне обслуговування 24/7
embossed anodized t6061 aluminum for VEVOR belt grinder with high strength, corrosion-proof.

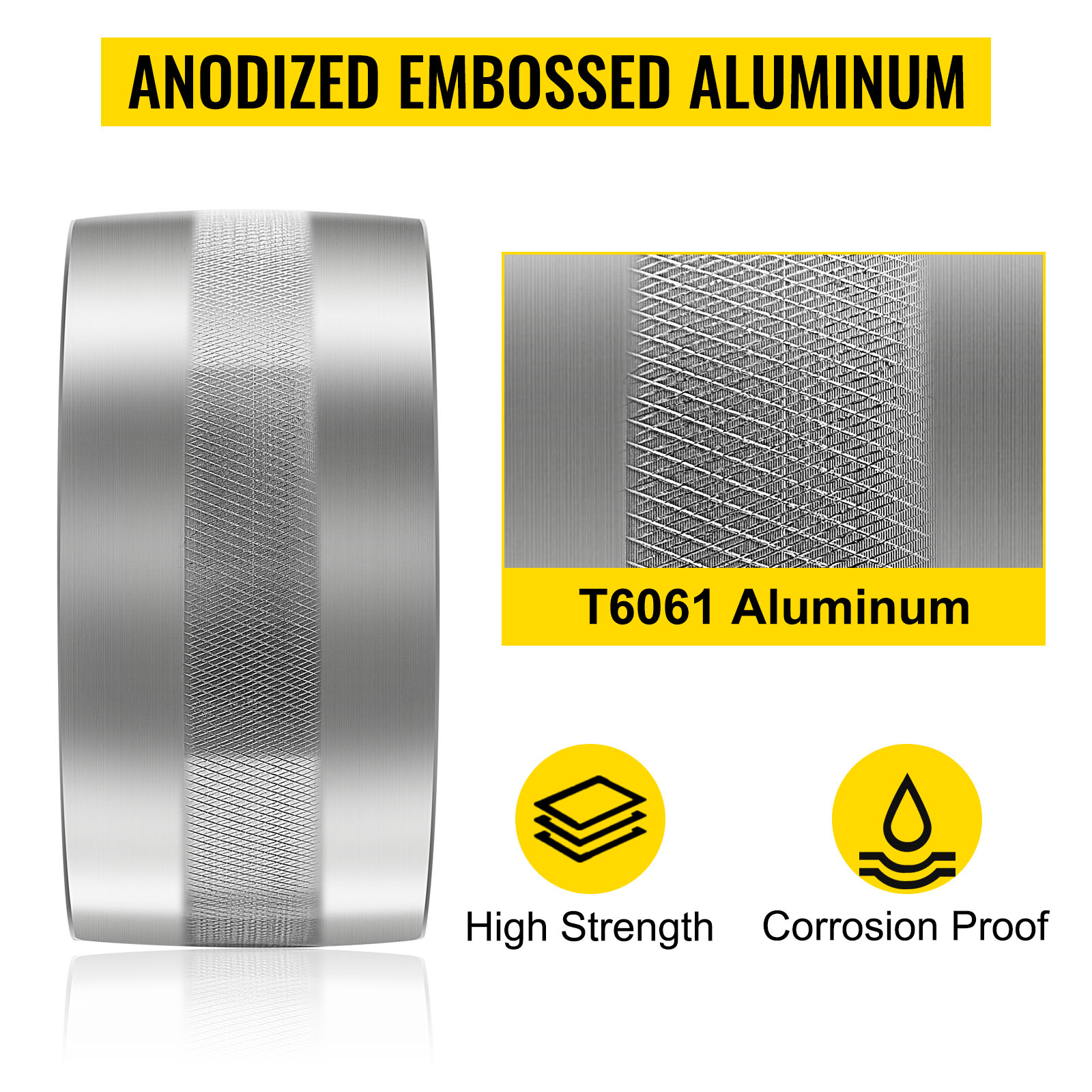

Anodized Embossed Aluminum
Belt wheels are made of anodized embossed aluminum (6061-T6), impervious to humidity, water, corrosion, and compression. It's an excellent option in industry sectors such as processing.
drive wheel with 0.94in hole, 0.31in keyway, and crowned surface for VEVOR belt grinder.

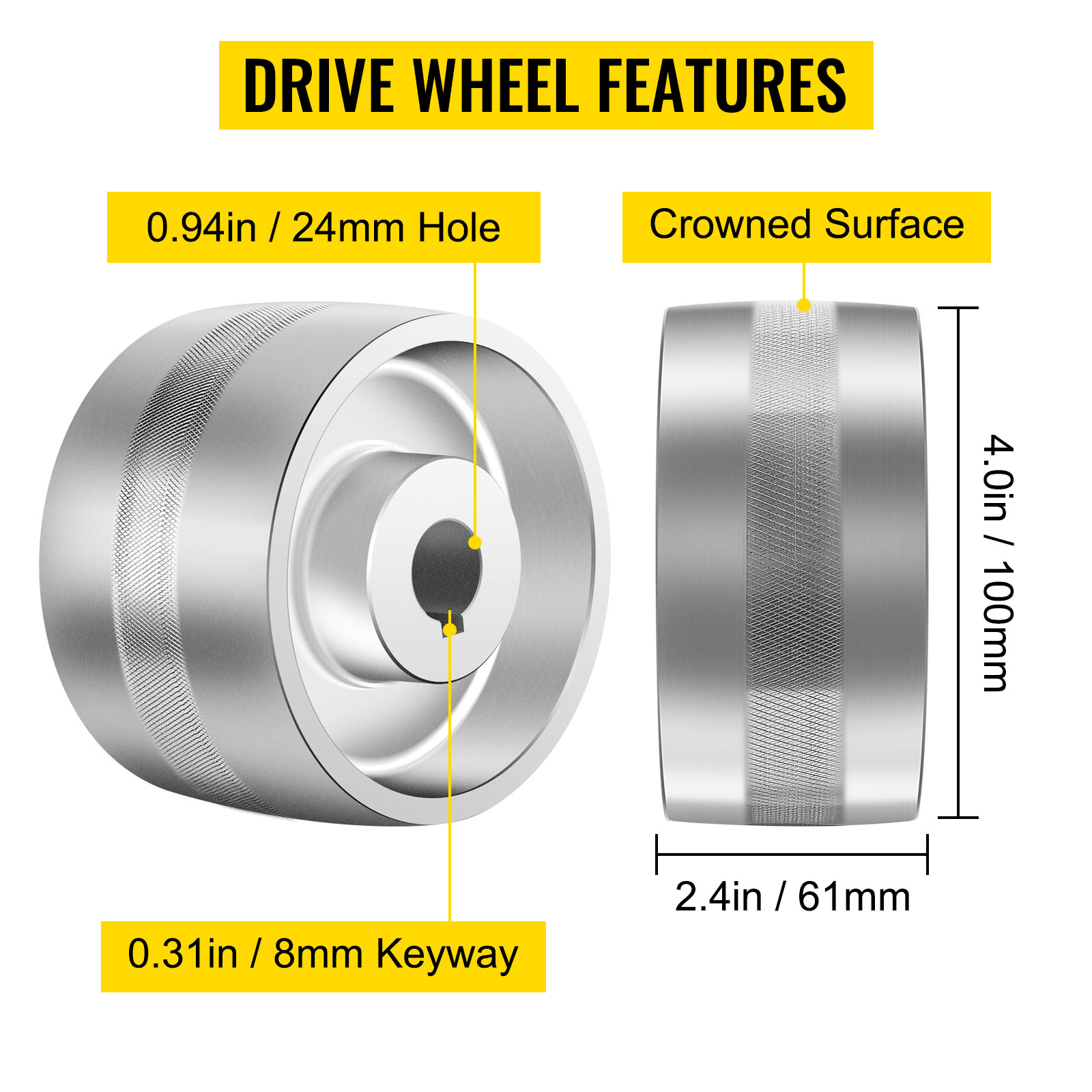

Drive Wheel Features
The drive wheel is 4" in diameter and 2.4" wide. It is crowned to help with belt tracking. It has a 0.94 inch/24 mm bore with a 0.31 inch/8 mm keyway.
tracking wheel features for VEVOR belt grinder with dimensions and bearing details.

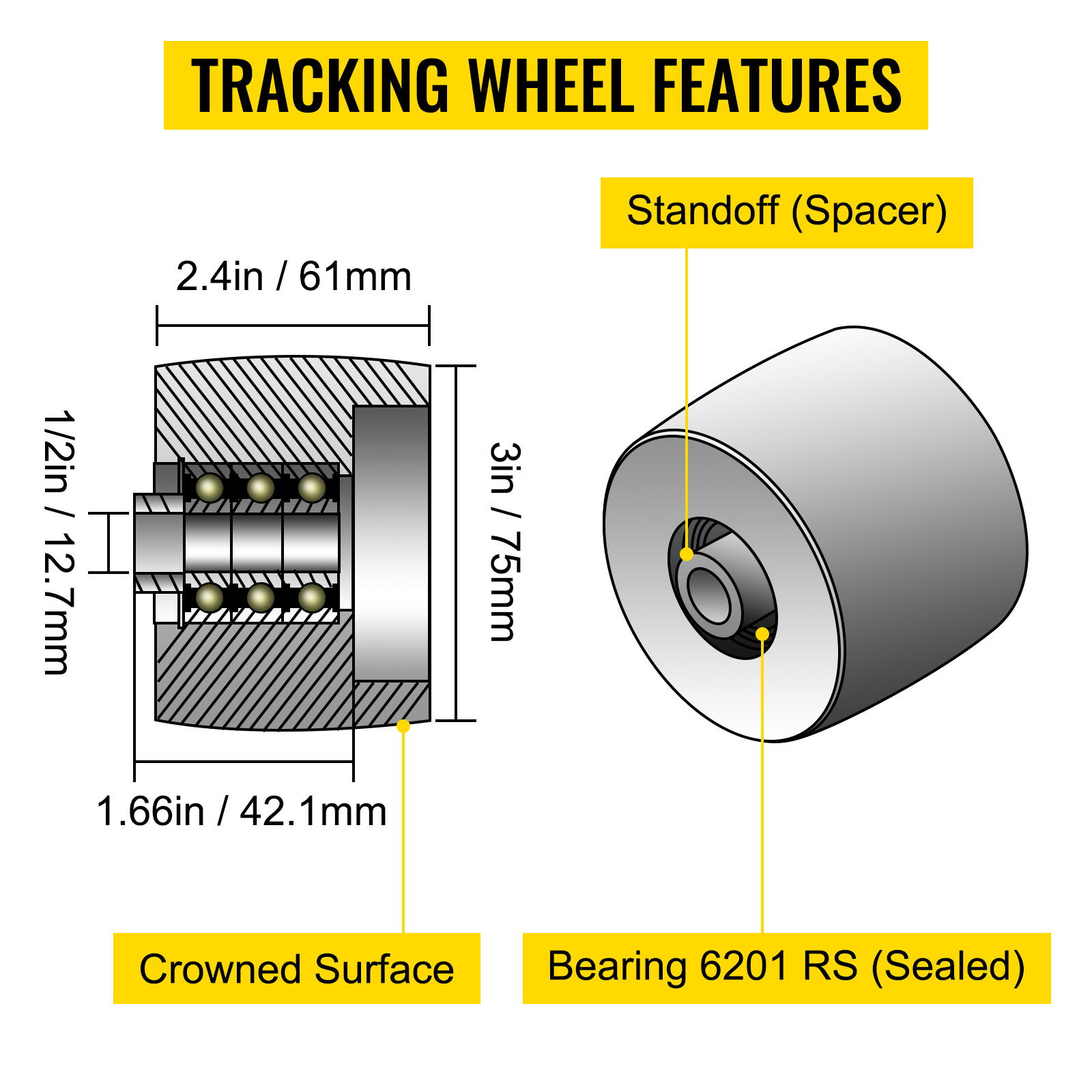

Tracking Wheel Features
The 3" tracking wheel is 3" in diameter and 2.4" wide. It has three 6201 bearings (1/2") installed in the hub and a spacer between the bearings. This bearing combination allows for tightening the mounting bolts without causing any axial force on the bearings.
idler wheel dimensions and components for VEVOR belt grinder.

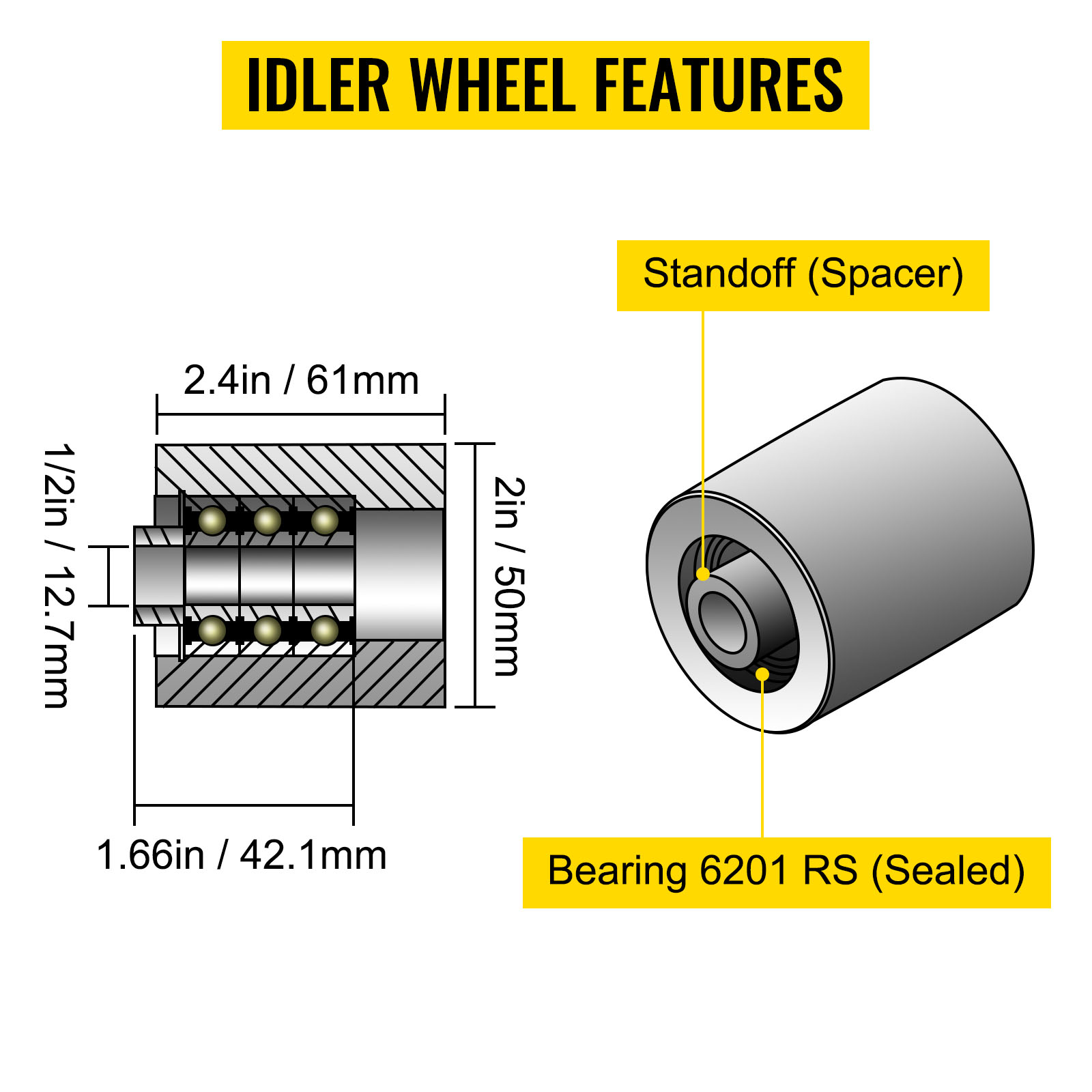

Idler Wheel Features
The 2" idler wheels are 2" in diameter, and 2.4" wide. Bearings are placed back to back. A 3/8 inch/9.5 mm wide standoff (sleeve) will raise the wheel of the mounting plate.
VEVOR belt grinder assembly diagram with recommended mounting instructions and washers.

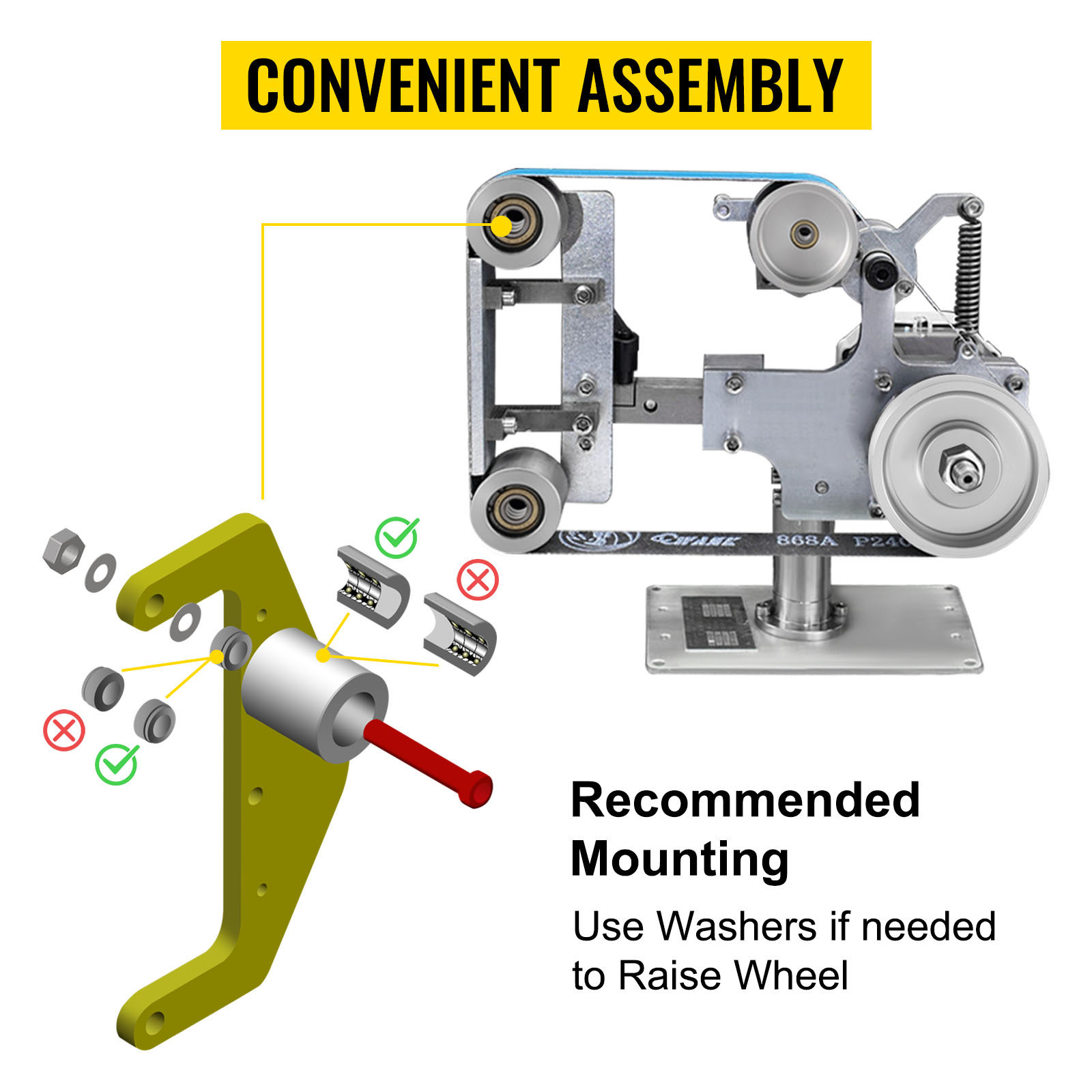

Convenient Assembly
Assembly is pretty straightforward. Make sure the method you use to mount the wheels does not make contact with the inner and outer races on the bearings, simultaneously causing them to bind.

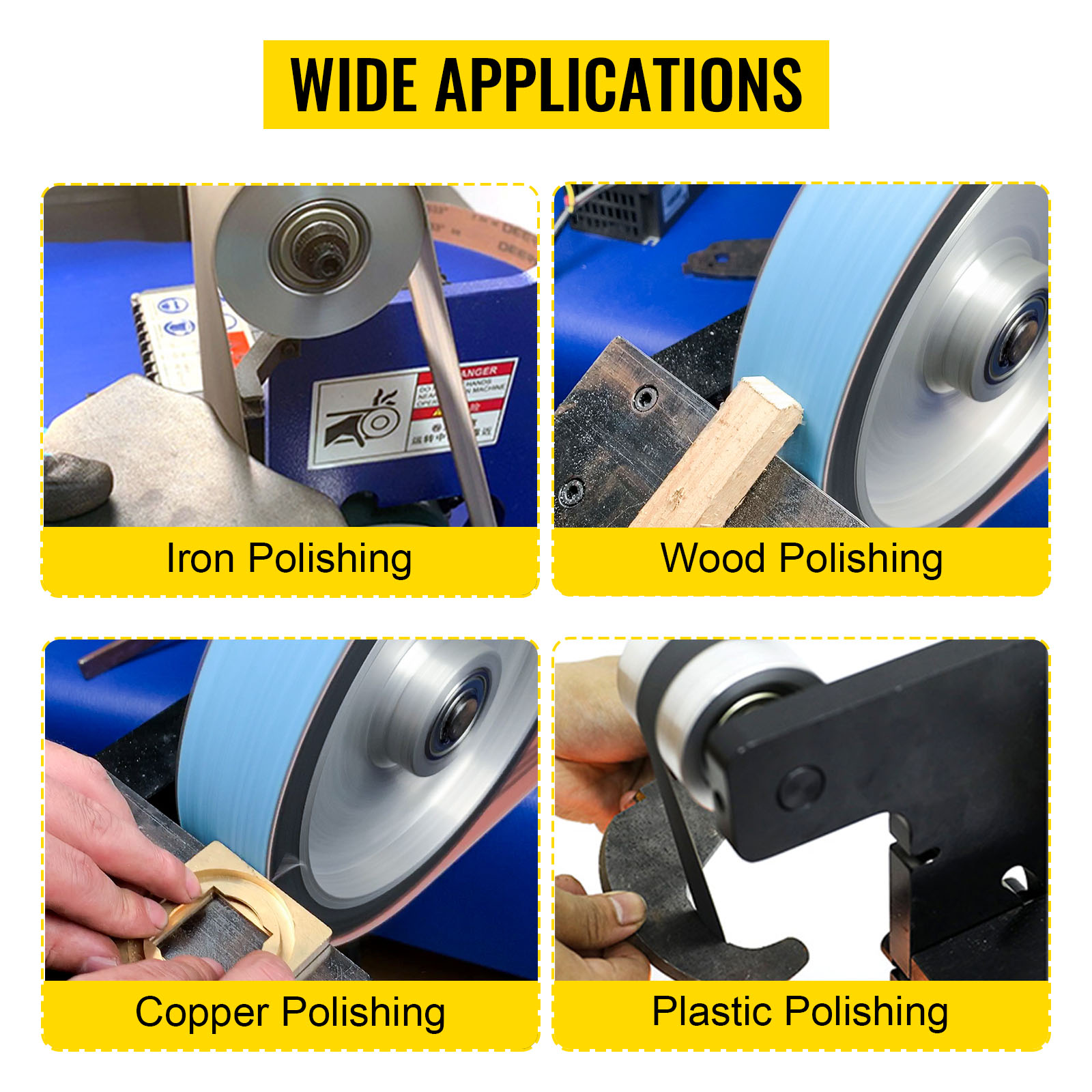

VEVOR belt grinder polishing iron, wood, copper, and plastic with wide applications.
Wide Applications
The suitable belt size is 2" X 72". The wheel is a perfect choice for a hollow-grinding straight razor, pocket knives, hunting knives, axes, etc. It is suitable for metal grinding and non-metal grinding industries.

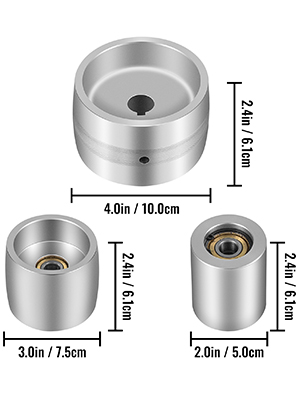

three VEVOR belt grinder parts with dimensions: 4x2.4in, 3x2.4in, and 2x2.4in.
Технічні характеристики
  • Model: VV-BGW-42423
  • Drive Wheel Diameter: 4 inch/100 mm
  • Drive Wheel Width: 2.4 inch/61 mm
  • Bore: 0.94 inch/24 mm
  • Keyway: 0.31 inch/8 mm
  • Tracking Wheel Diameter: 3 inch/75 mm
  • Idler Wheel Diameter: 2 inch/50 mm
  • Tracking/Idler Wheel Width: 2.4 inch/61 mm
  • Standoff Width: 3/8 inch/9.5 mm
  • Product Weight: 3.44 lbs/1.56 kg

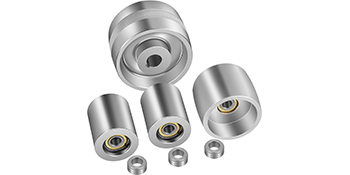

VEVOR belt grinder accessory set with four silver contact wheels and bearings.
Вміст пакету
  • 1 x Drive Wheel
  • 1 x Tracking Wheel
  • 2 x Idler Wheel
  • 1 x Інструкція

Специфікація

Модель
VV-BGW-42423
Drive Wheel Diameter
4 inch/100 mm
Drive Wheel Width
2.4 inch/61 mm
Bore
0.94 inch/24 mm
Keyway
0.31 inch/8 mm
Tracking Wheel Diameter
3 inch/75 mm
Idler Wheel Diameter
2 inch/50 mm
Tracking/Idler Wheel Width
2.4 inch/61 mm
Standoff Width
3/8 inch/9.5 mm
Вага продукту
3.44 lbs/1.56 kg
Вага 2,10 кг
Розміри 29,00 × 14,50 × 11,50 см
