VEVOR 914 мм згинальний верстат для коробів і панелей, 0–135°, товщина сталі до 1,5 мм, 6-сегментний листозгин для алюмінію та сталі

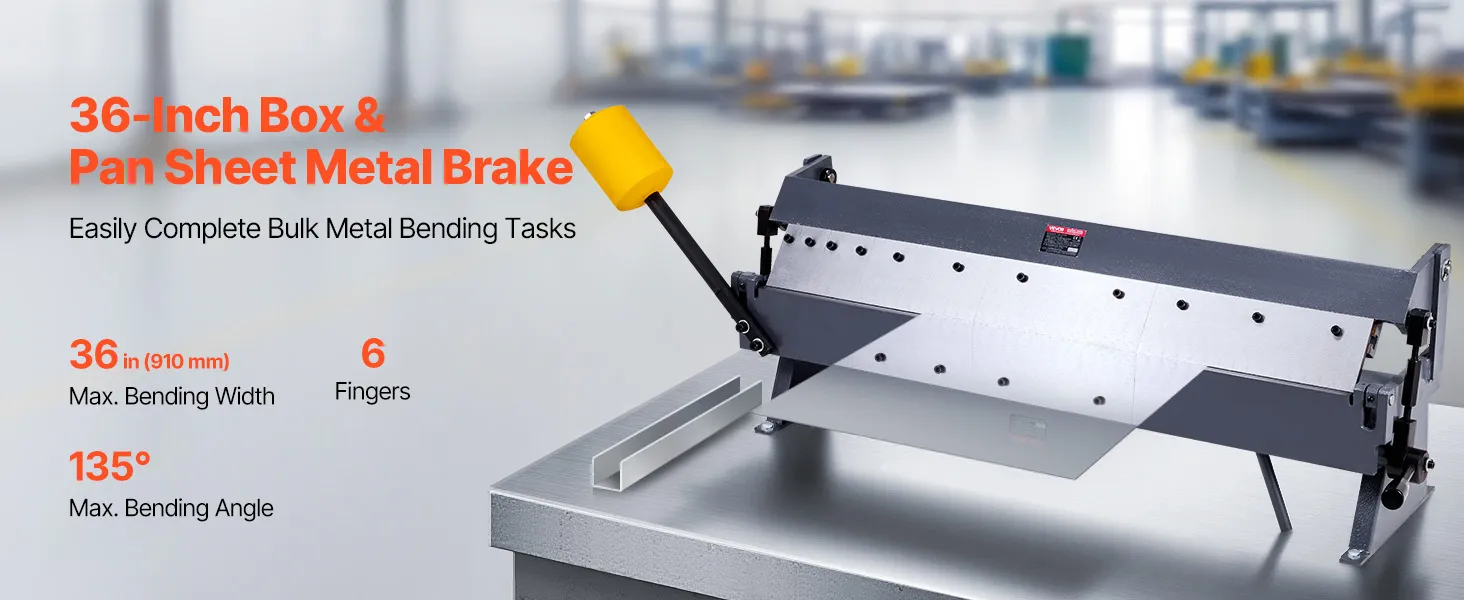

- 36-Inch Bending Capacity: This sheet metal brake can easily bend metal sheets up to 36 in wide with bending angles ranging from 0° to 135°, ideal for medium to large scale pieces in workshop.
- Versatile Material Compatibility: Our box and pan brake supports a variety of materials, including mild steel, stainless steel, copper, and aluminum. It can efficiently bend 16 gauge (1.5 mm) mild steel sheets.
- Modular Bending Dies: Equipped with six different segment fingers (1″, 2″, 3″, 8″, 10″, 12″), the sheet metal bender allows for customizable bending to handle complex projects like electrical enclosures, instrument housings, and ventilation ducts.
- Effortless and Stable Operation: The metal bending machine features a single balancing hammer for secure clamping, reducing the force needed for bending and improving work efficiency. The pre-drilled holes at the base allow for easy mounting on a workbench or floor.

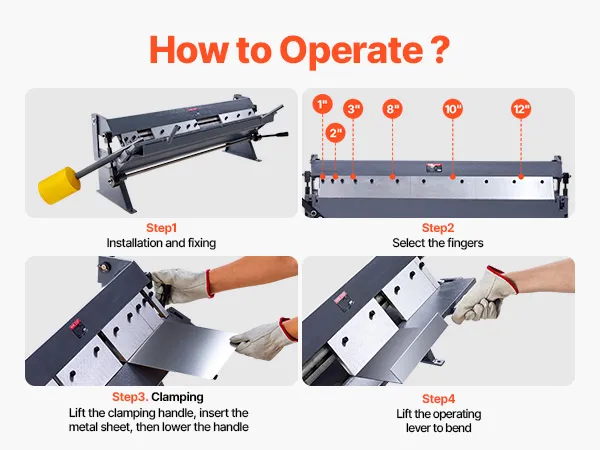

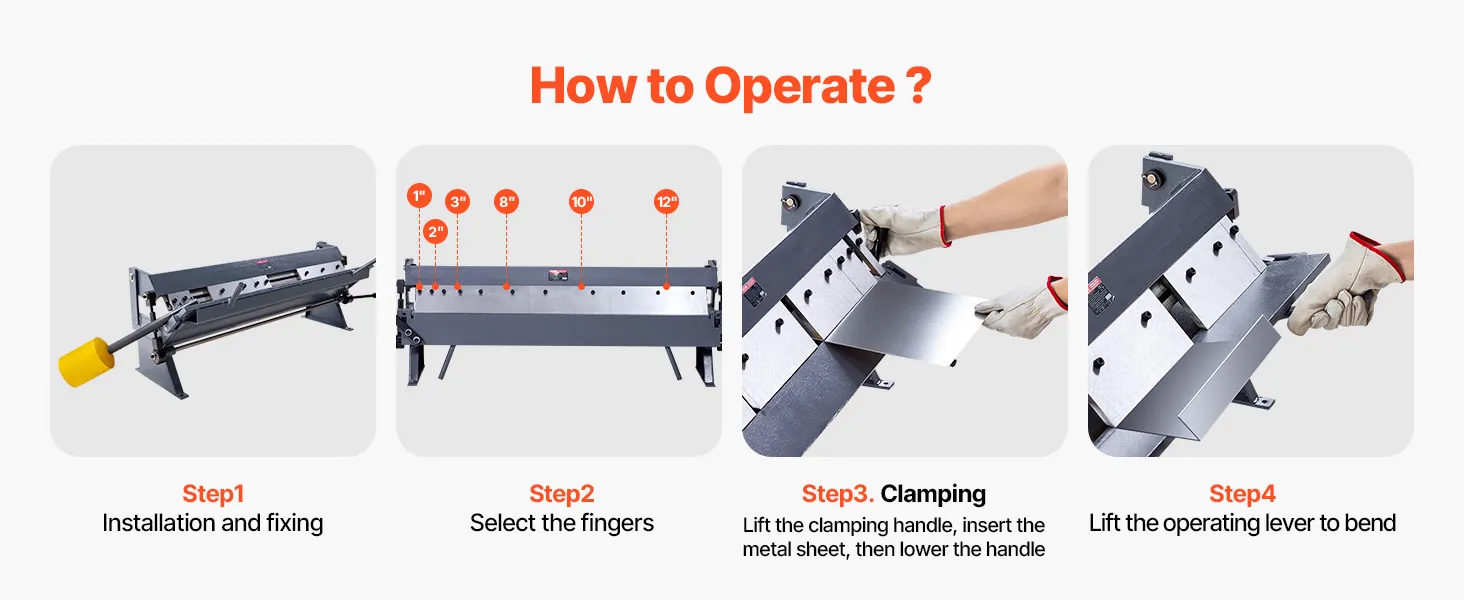

- Easy Operation: It is easy to operate the aluminum brake bender. Simply lift the clamping handle, place the sheet metal, and lower the handle to secure it. Then, slowly raise the lever to the desired angle. Angle adjustments are manual, and keep in mind that all metal bending will experience springback (e.g., for a 90° bend, set the angle to 92°).
740,00 € Ar PVN 21%
Доступно за замовленням
Буде доступний на складі постачальника протягом 1-2 тижнів.
VEVOR 36 in Box and Pan Brake 0-135° 16 Ga Sheet Metal Bending Brake 6 Fingers
MERIQBP6
FDSWQZDQFDSDN0VTX001V0
Sheet Metal Brake for Rapid Batch Bending
Bend metal like a pro with this 36-inch sheet metal brake. Ideal for workshops, the box and pan brake handles 16 gauge steel, supports multiple materials, and features modular fingers for complex bends—easy to use, stable, and built for precision bending.
The box and pan brake handles mild steel, stainless steel, aluminum, and copper with ease. Bends 16-gauge (1.5 mm) mild steel in a single pass—no need to swap between machines for different jobs.

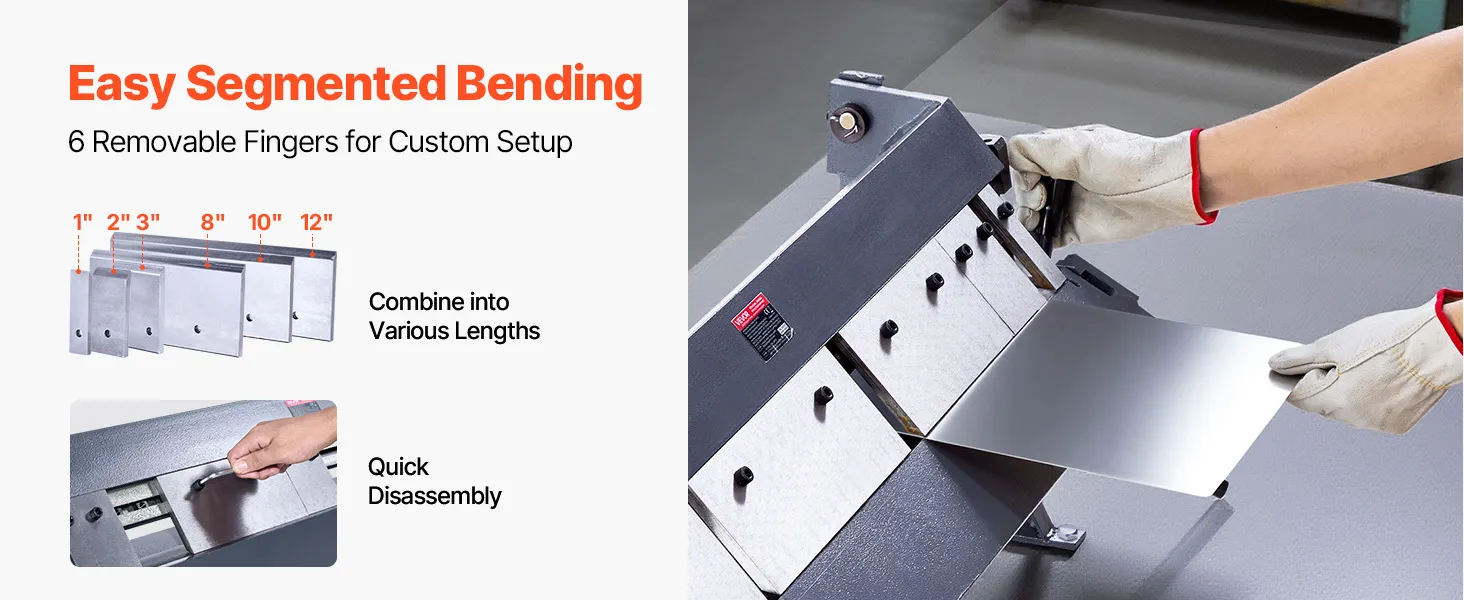

The sheet metal bender includes 6 removable fingers in multiple sizes that can be freely arranged to avoid obstructions on the workpiece. Ideal for forming floor reinforcement channels, corrugated truck beds, bed headers, and inner fenders.

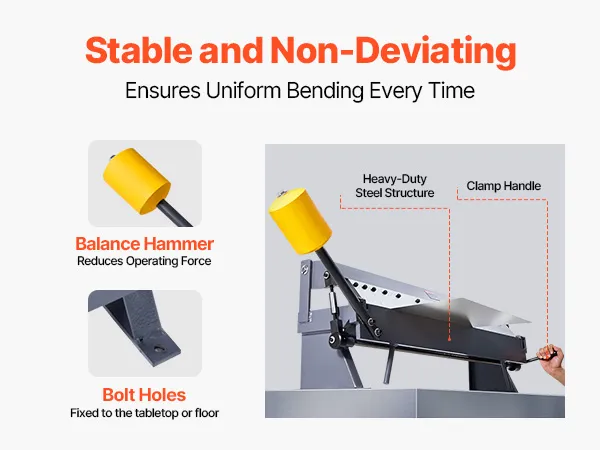

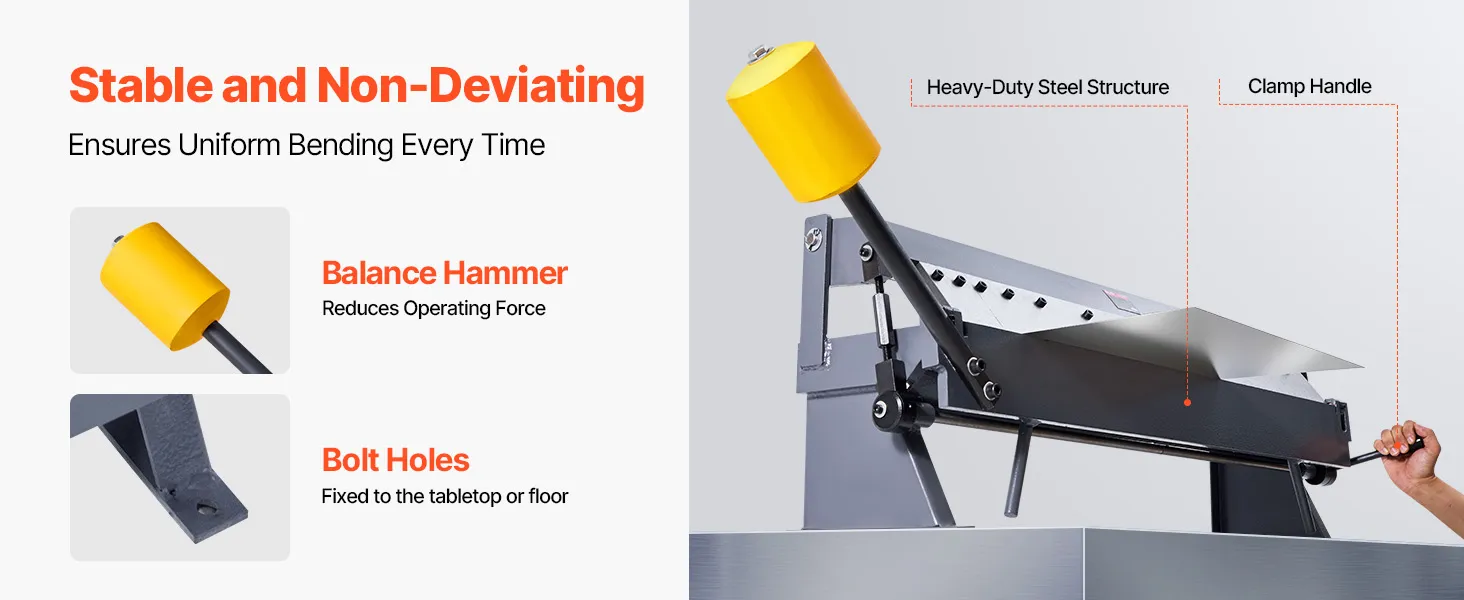

Enhanced with a balancing weight to offset the force during clamping, minimizing deformation—an upgrade over standard brakes. Bolt it down to your workbench to ensure steady, accurate bends.
Always wear goggles, non-slip gloves, and safety shoes before operating the metal bending brake. Stand to the side during bending to avoid injury from springback. For larger sheets, team up with a partner for secure handling.

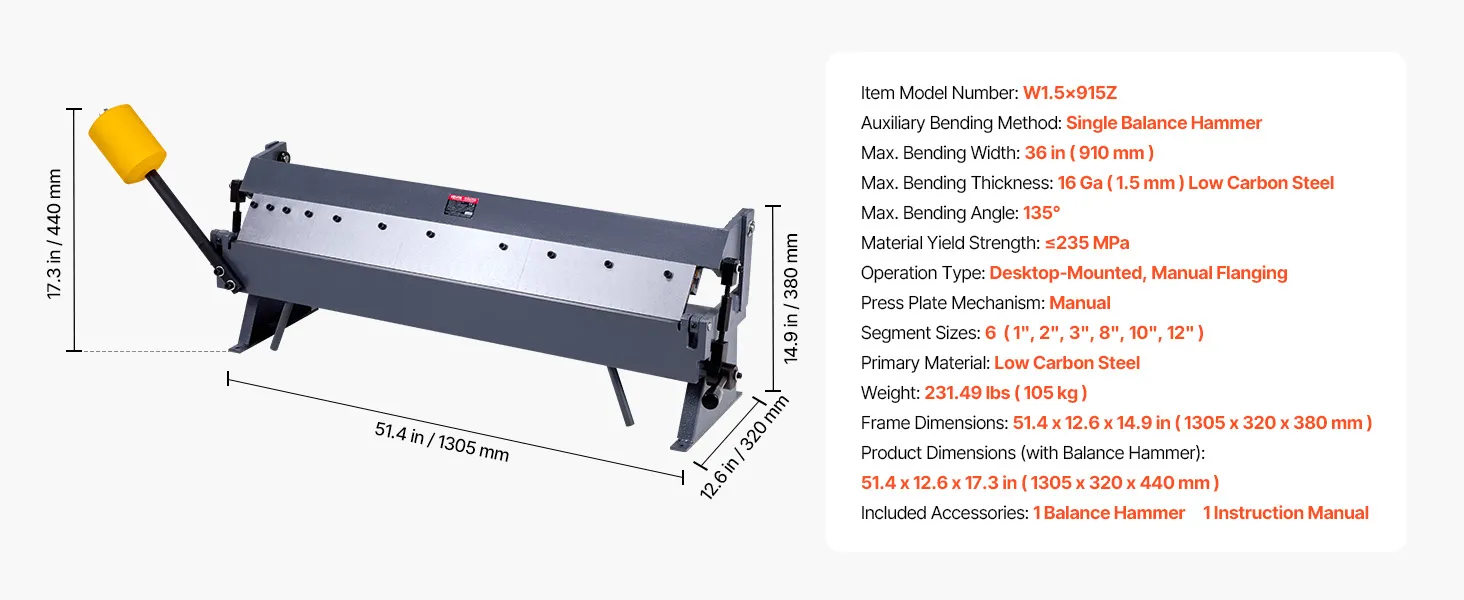

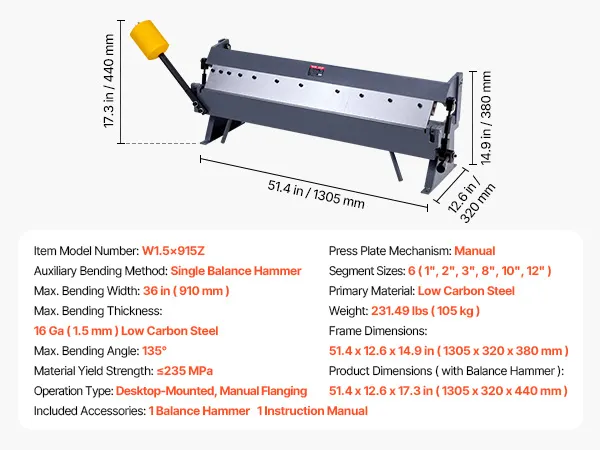

Специфікація
- Номер моделі виробу
- W1.5×915Z
- Auxiliary Bending Method
- Single Balance Hammer
- Max. Bending Width
- 36 in (910 mm)
- Max. Bending Thickness
- 16 Ga (1.5 mm) Low Carbon Steel
- Max. Bending Angle
- 135°
- Material Yield Strength
- ≤235 MPa
- Mounting Type
- Desktop-Mounted, Manual Flanging
- Press Plate Mechanism
- Керівництво користувача
- Segments
- 6 (1", 2", 3", 8", 10", 12")
- Матеріал
- Low Carbon Steel
- Вага
- 10.2 lbs (4.62 kg)
- Product Dimensions(with Balance Hammer)
- 51.4 x 12.6 x 17.3 in (1305 x 320 x 440 mm)
| Вага | 117,37 кг |
|---|
