Lift the Entire Undercarriage for More Repair Freedom

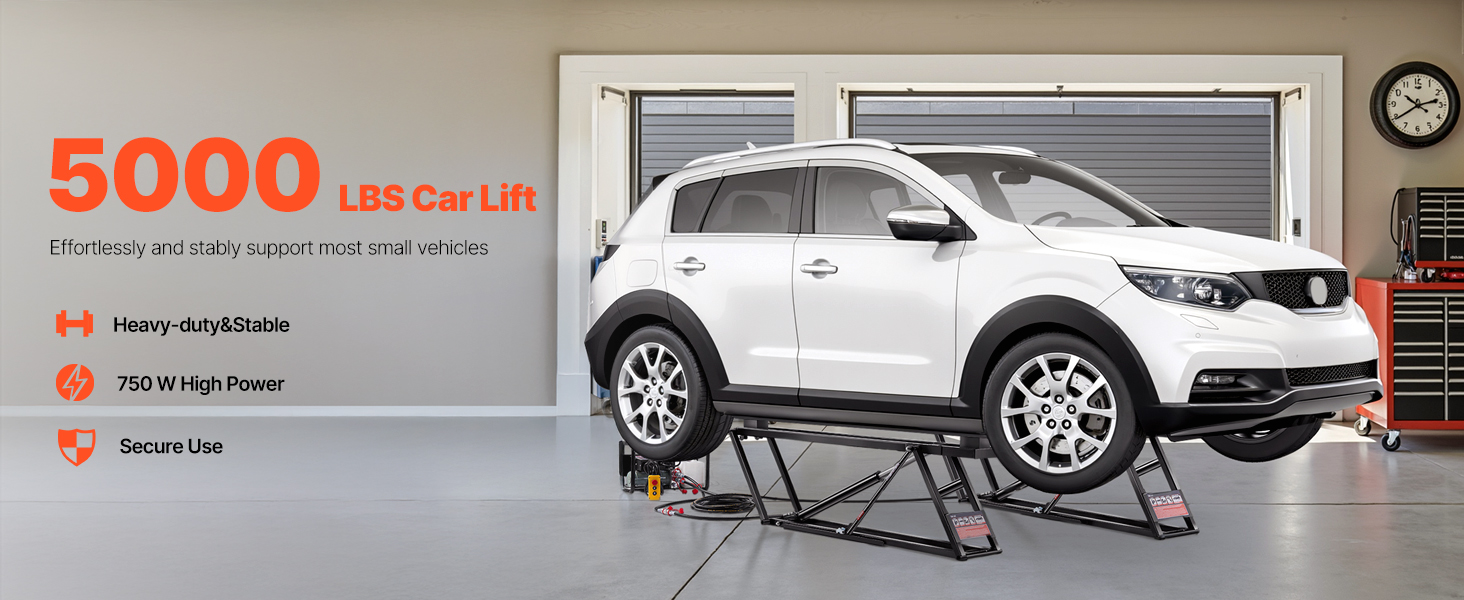

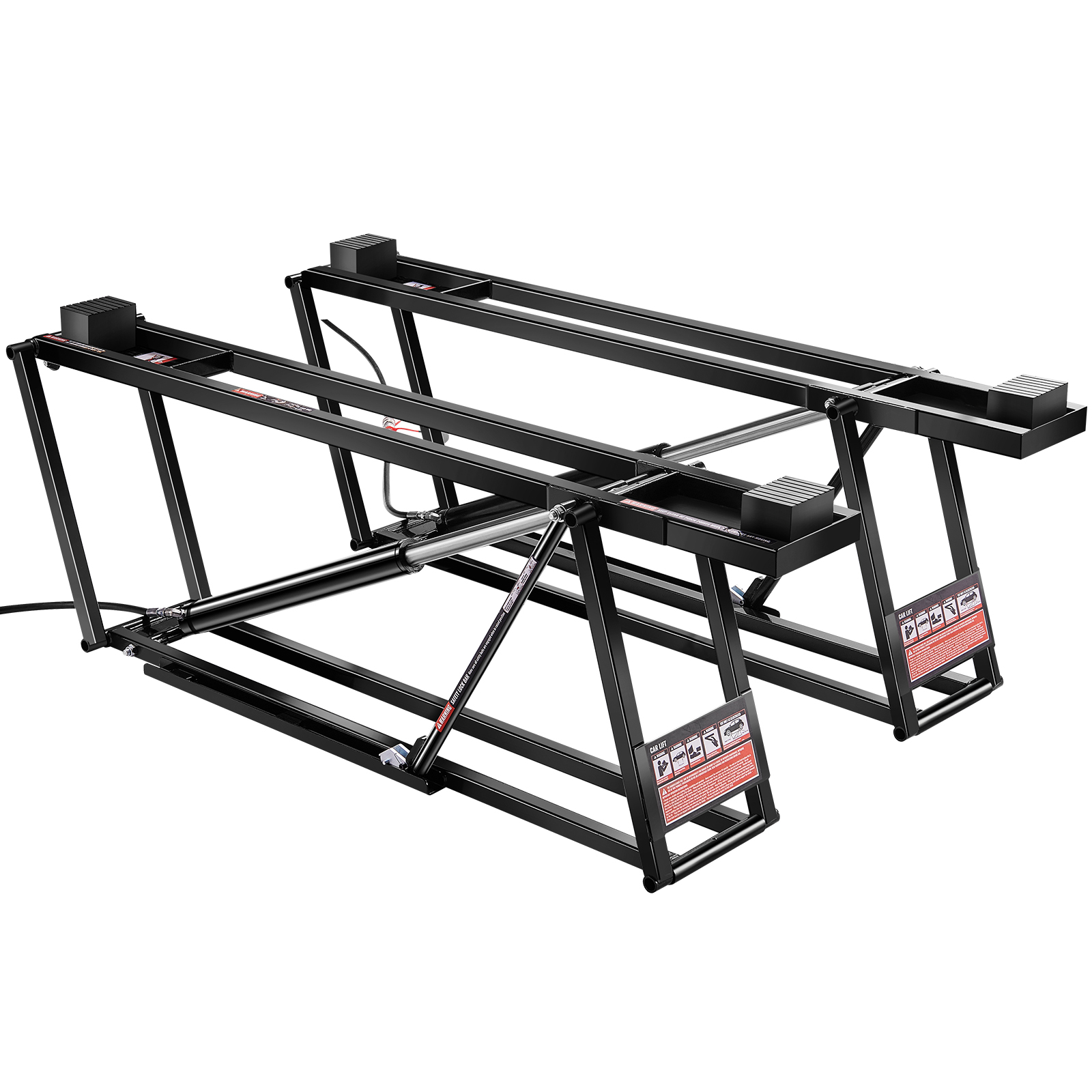

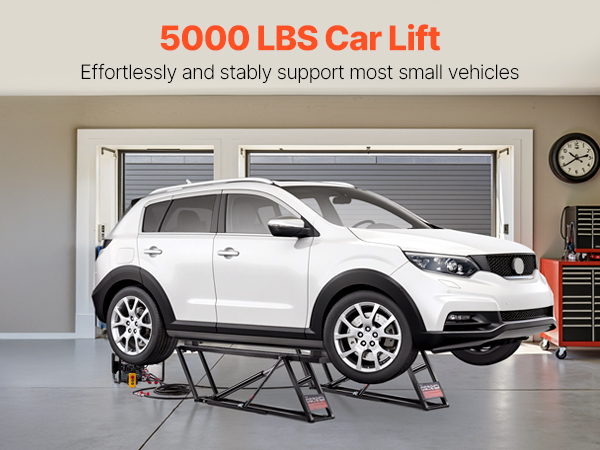

This portable car lift is designed for undercarriage maintenance, with a maximum lifting height of 29.8 inches and a 5,000 lbs (2267.9 kg) capacity. It includes 4 lifting pads and columns to accommodate various undercarriage heights, ideal for chassis inspections and tire replacements.
Key Features

Thickened Frame
Deformation-Resistant

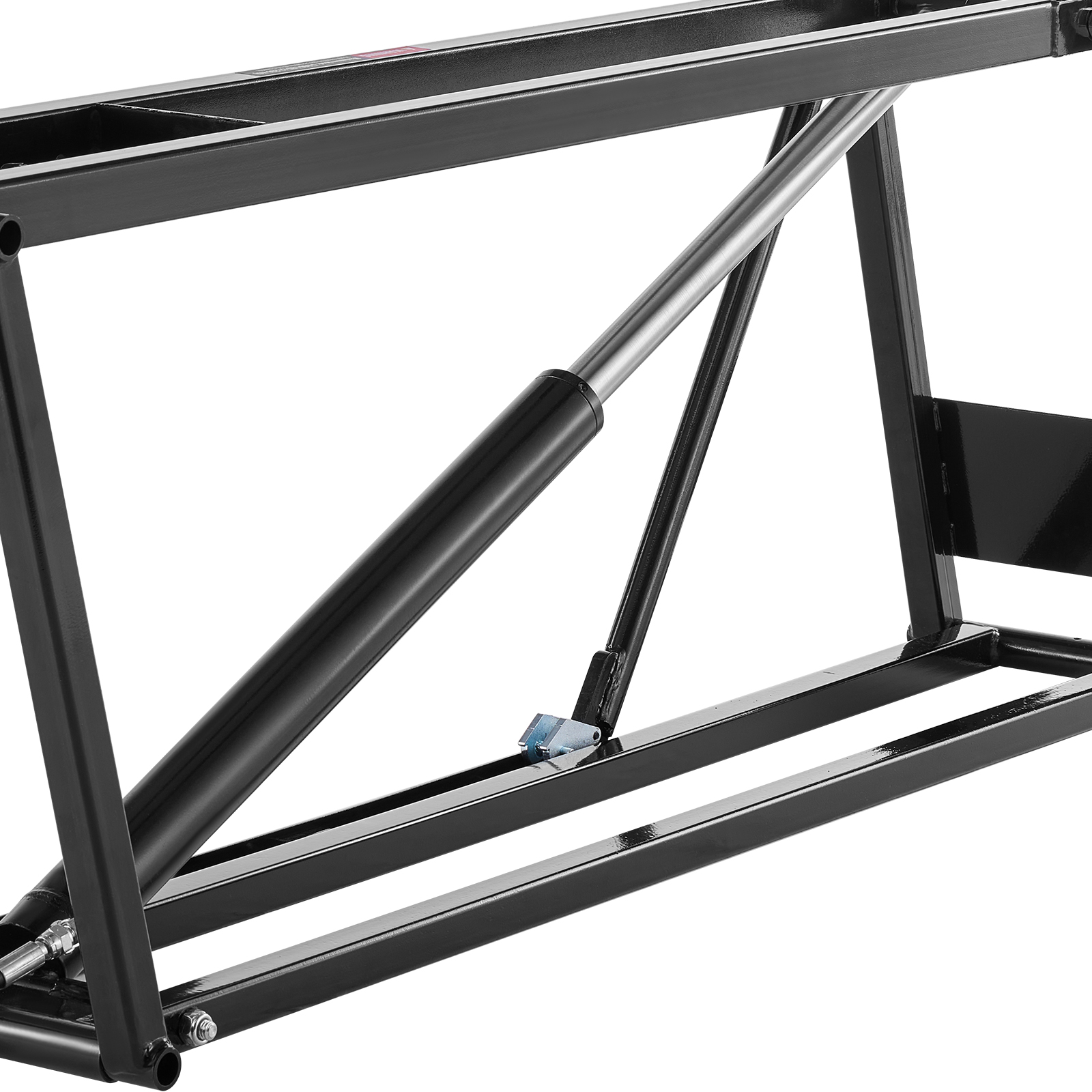

Large Electric Hydraulic Pump
Smooth lifting

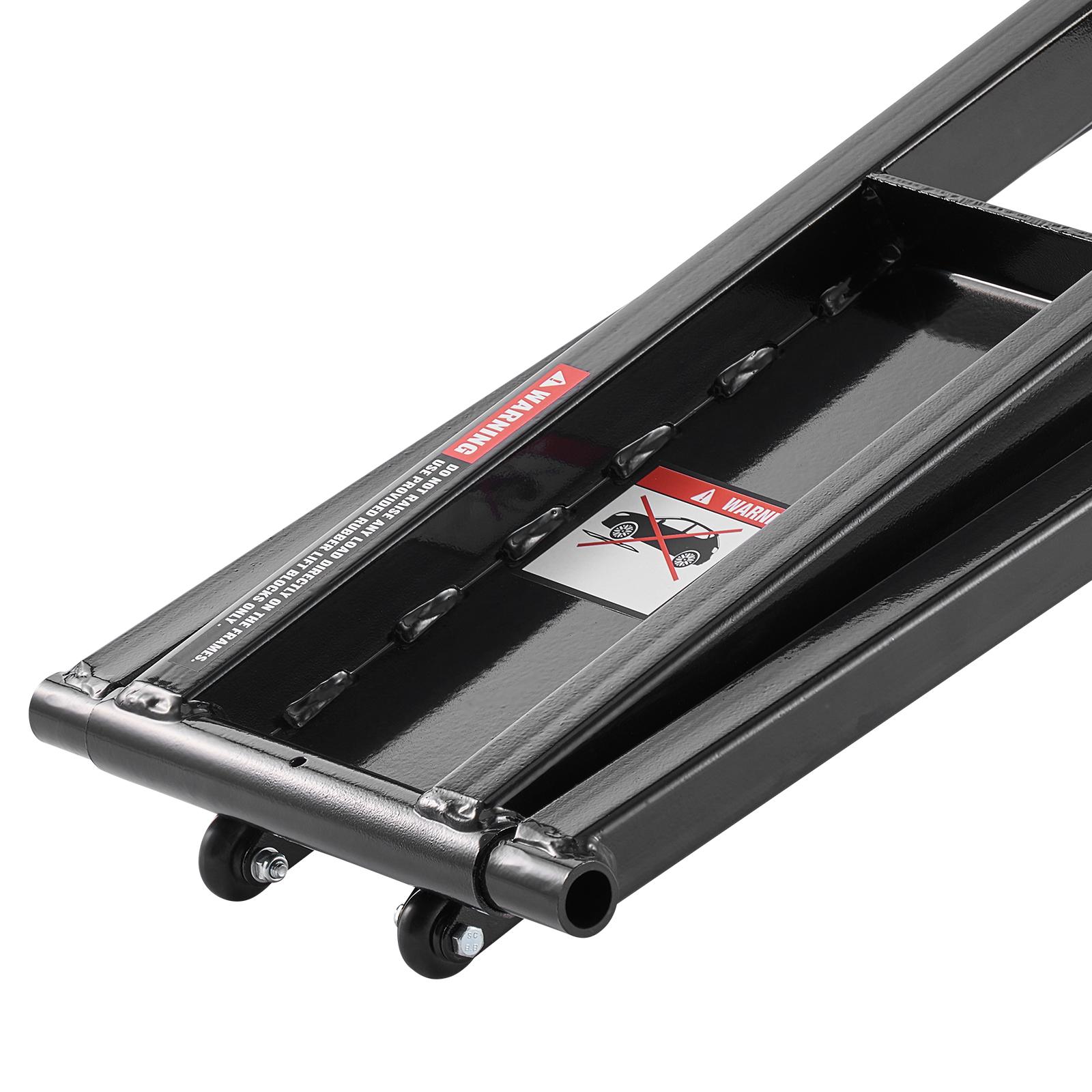

4 x Wear-Resistant Casters
Making mobility effortless

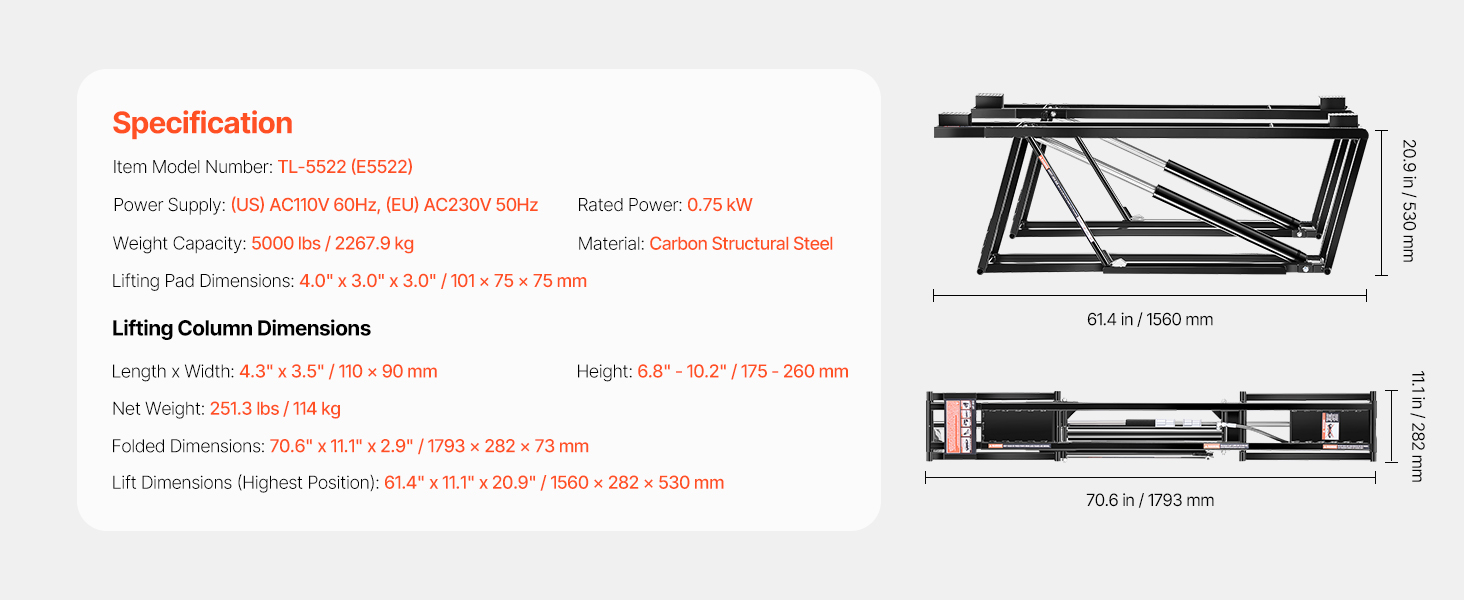

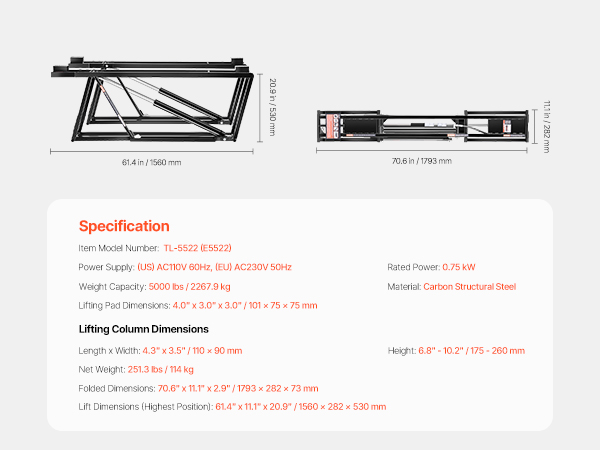

Specification
- Item Model Numbert
- TL-5522(E5522)
- Power Supply
- AC230V 50Hz
- Rated Power
- 0.75 kW
- Weight Capacity
- 5000 lbs / 2267.9 kg
- Material
- Carbon Structural Steel
- Lifting Pad Dimensions
- 4.0" x 3.0" x 3.0" / 101 x 75 x 75 mm
- Lifting Column Dimensions
- Length x Width
- 4.3" x 3.5" / 110 x 90 mm
- Height
- 6.8" - 10.2" / 175 - 260 mm
- Product Weight
- 251.3 lbs / 114 kg
- Folded dimensions
- 70.6" x 11.1" x 2.9" / 1793 x 282 x 73 mm
- Lift Dimensions (Highest Position)
- 61.4" x 11.1" x 20.9" / 1560 x 282 x 530 mm
