A: It can cut materials up to 20 mm thick.
Q: What are the speeds for engraving and cutting?
A: Engraving Speed: 0-800 mm/s; Cutting Speed: 0-500 mm/s.
Q: What is the maximum size block of wood I can fit in the machine to engrave on?
A: The maximum engraving size is 600 x 900 mm.
Q: Does this machine work with LightBurn?
A: Yes. It supports LightBurn, CorelDRAW, AutoCAD, and other software.
Q: Is this machine compatible with macOS?
A: Yes. It works with Windows, Linux, and macOS.

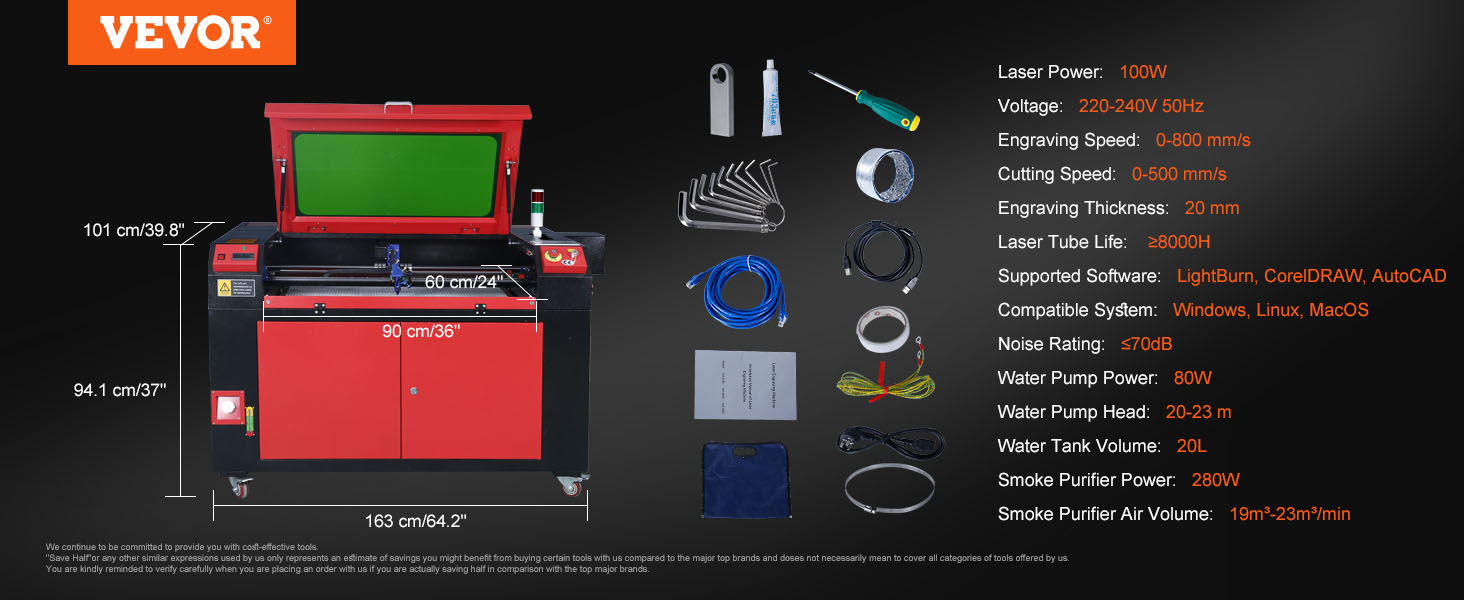

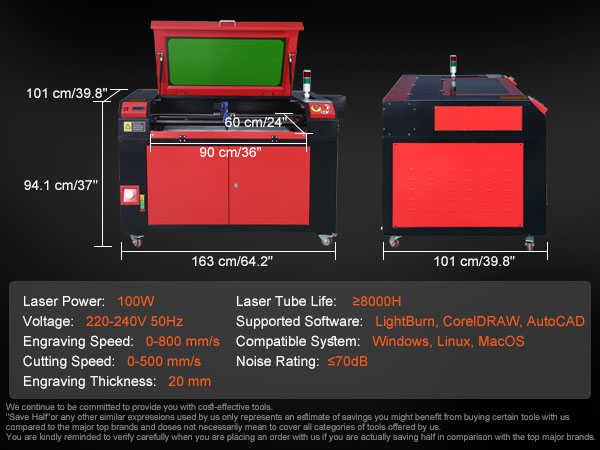

Specification
- Model
- KH9060
- Laser Power
- 100W
- Engraving Area
- 600 x 900 mm/24" x 36"
- Engraving Speed
- 0-800 mm/s
- Cutting Speed
- 0-500 mm/s
- Engraving Thickness
- 20 mm/0.8" (depending on materials)
- Voltage
- 220-240V 50Hz
- Laser Tube Life
- ≥8000H
- Supported Software
- LightBurn, CorelDRAW, AutoCAD
- Compatible Systems
- Windows, Linux, macOS
- Noise Rating
- ≤70dB
- Frame Material
- Iron
- Water Pump Power
- 80W
- Water Pump Head
- 20-23 m/65.6-75.5 ft
- Water Tank Volume
- 20L/5.3 gal
- Smoke Purifier Power
- 280W
- Smoke Purifier Air Volume
- 19 m³-23 m³/min
- Product Size (L x W x H)
- 163 x 101 x 94.1 cm/64.2" x 39.8" x 37"
- Product Weight
- 190.5 kg/420 lbs
- Manual
- Download Link
