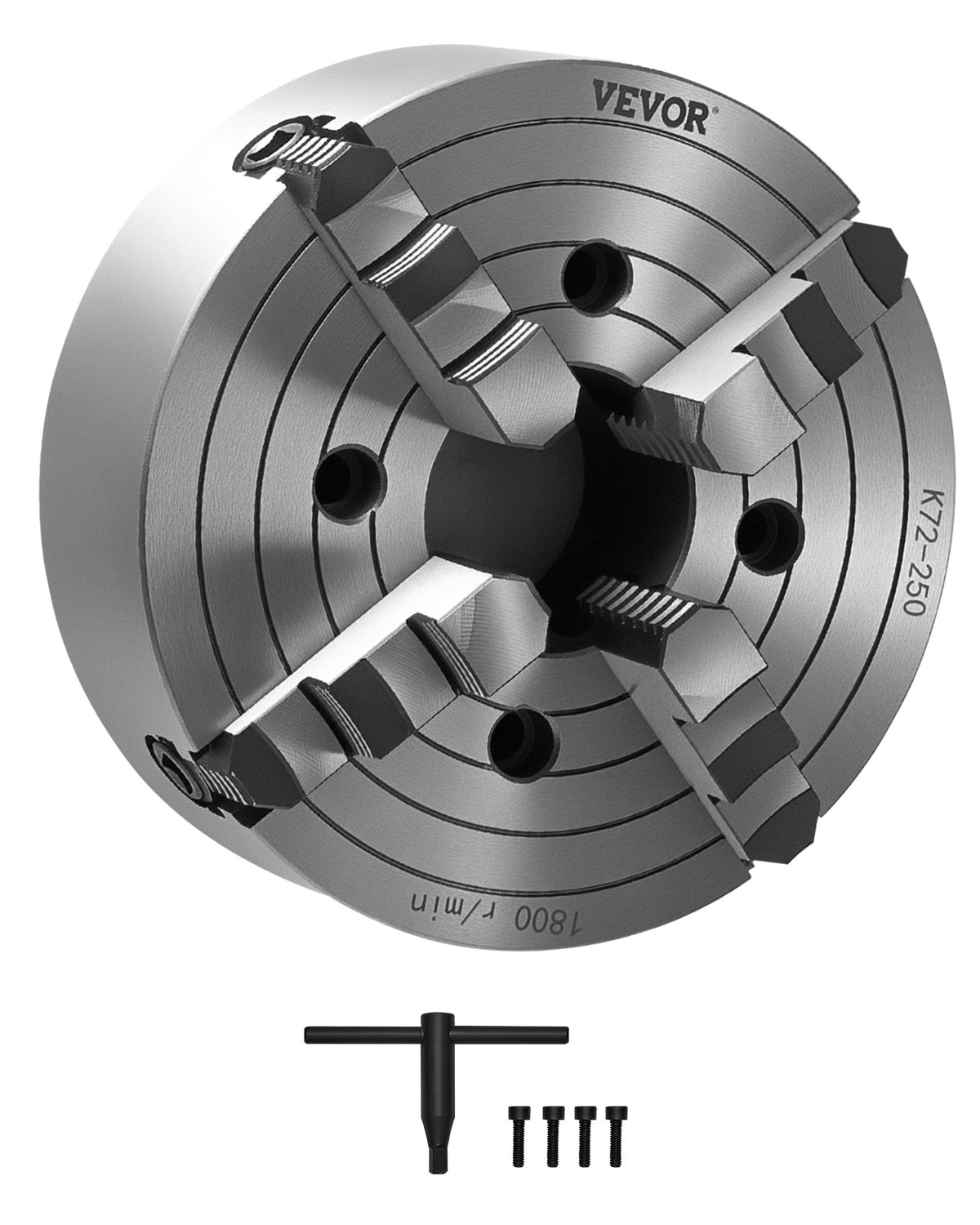

VEVOR 250 mm 4-Jaw Self-Centering Lathe Chuck for Drilling and Milling Machines – Hardened Cast Iron
15–250 mm Clamping Range

VEVOR 250 mm 4-Jaw Self-Centering Lathe Chuck for Drilling and Milling Machines – Hardened Cast Iron, 15–250 mm Clamping Range

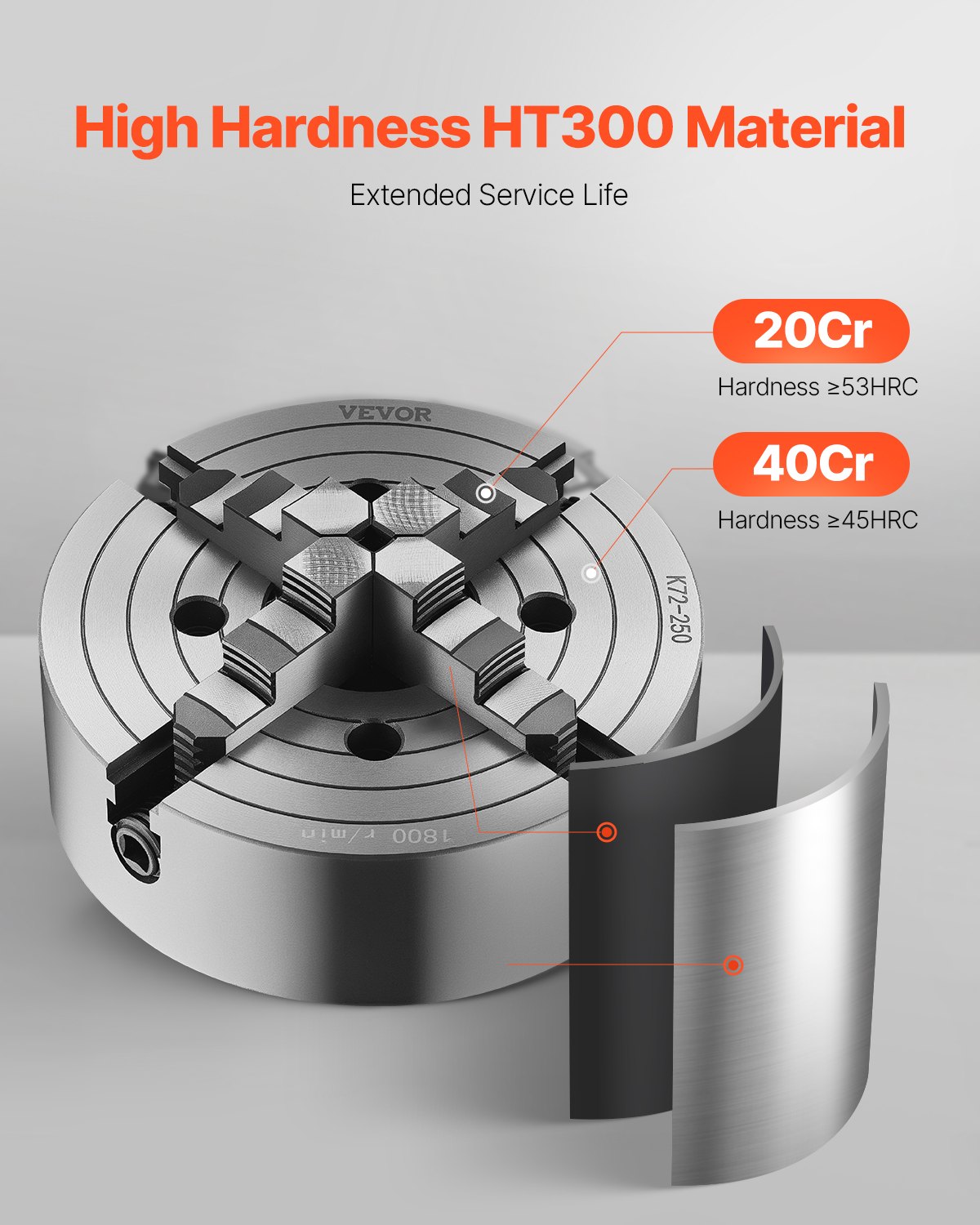

  • Outstanding Hardness: Crafted from premium HT300 cast iron, this lathe chuck features jaws with a hardness of ≥53 HRC and a scroll plate hardness of ≥45 HRC. Quench-hardened for enhanced durability, it ensures excellent hardness and rust resistance, ensuring a long-lasting service life
  • Self-Centering Function: The built-in self-centering feature allows for hassle-free use without repeated calibration. It ensures precise control over clamping accuracy, maintaining the stability and high precision of the lathe chuck for flawless performance
  • 10-Inch 4-Jaw Lathe Chuck: With a 3.15 in (80 mm) inner diameter and 10 in (250 mm) outer diameter, this self centering lathe chuck clamps workpieces ranging from 0.6-9.84 in (15-250 mm), making it ideal for a wide variety of workpiece sizes

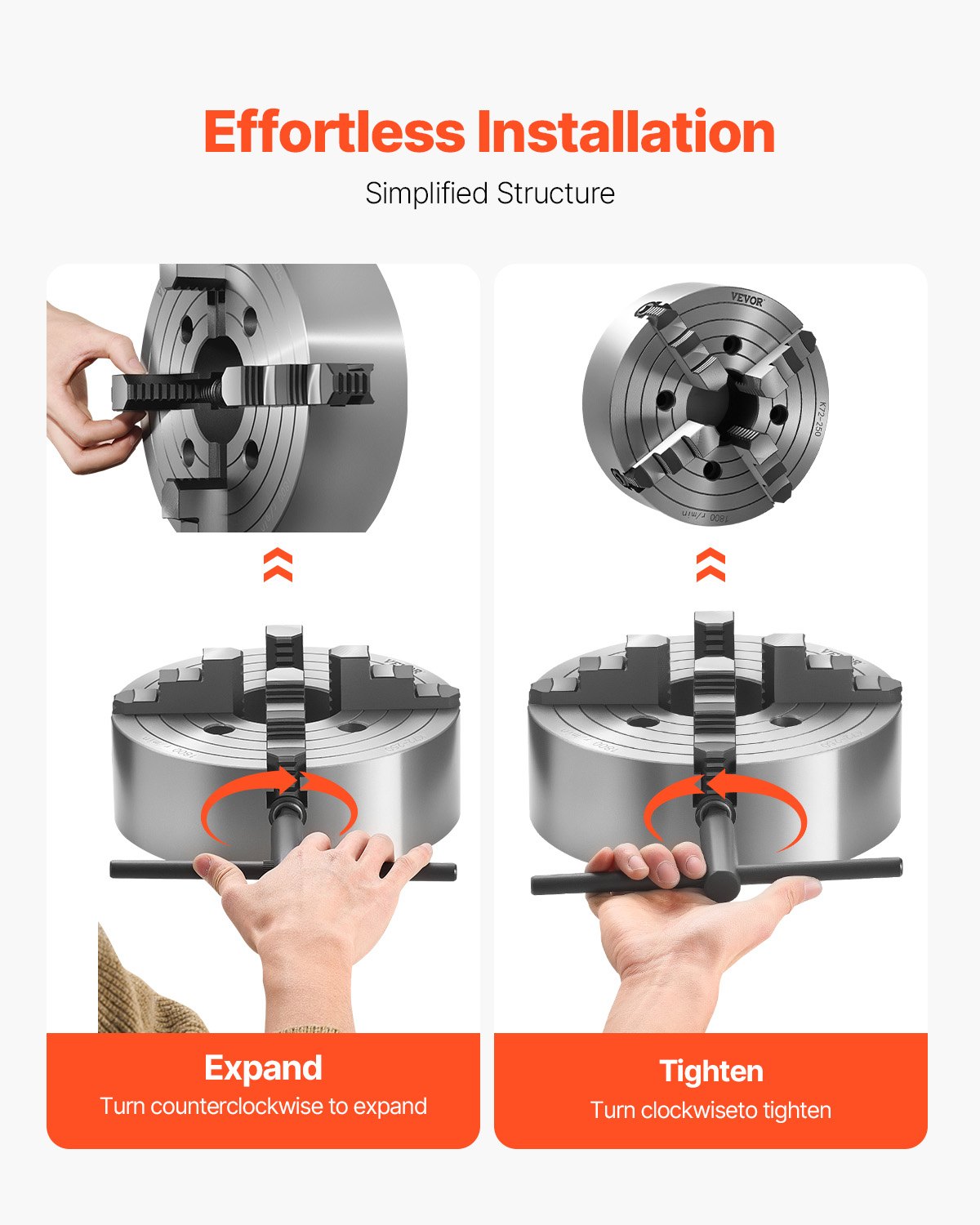

  • Hassle-Free Operation: Featuring a simple, compact design, this lathe chuck balances functionality and reliability. Equipped with a T-shaped tool, installation of our lathe chuck is a breeze. Just follow the correct sequence for a seamless setup

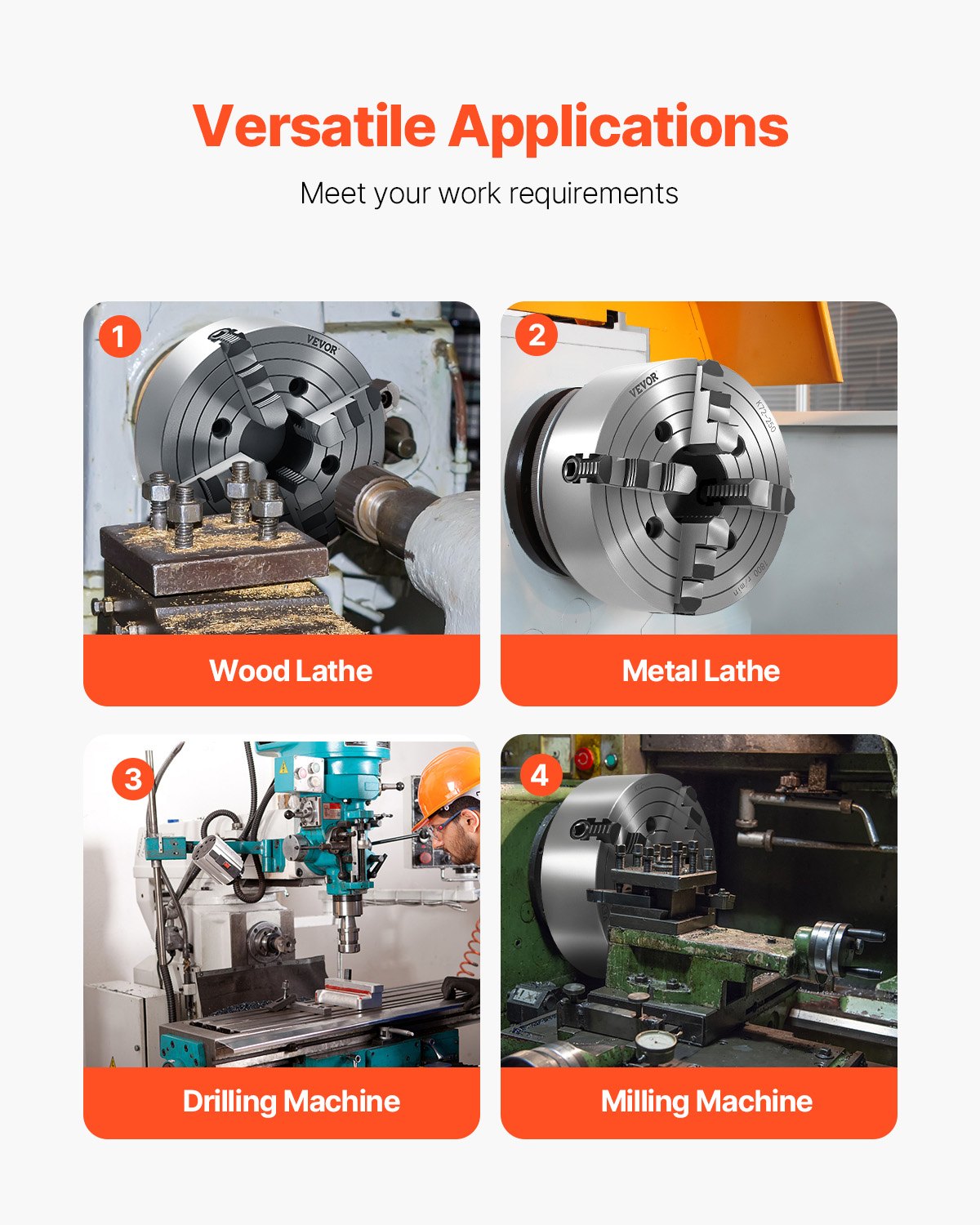

  • Ideal for Most Lathes: Whether you’re working with metal, drilling, or milling, our lathe chuck will enhance your machining efficiency and flexibility. It helps you achieve precise and consistent results every time

170,54 € Ar PVN 21%

Available on backorder, longer delivery

Will be available at the supplier's warehouse within 1-2 weeks.

Add to quote
SKU: M9UUCAT7 Categories: , ,
M9UUCAT7
SZKP10YC4GKZ7LKI4V0
10-Inch 4-Jaw Lathe Chuck, Precision Meets Durability
Crafted from premium HT300 cast iron, jaw hardness ≥53 HRC for long-lasting durability and rust resistance. The self-centering lathe chuck provides high-precision clamping without calibration. Featuring 3.15 in I.D and 10 in O.D, it handles clamping ranges from 0.6 in to 9.84 in with ease.
Key Features
Stable and Reliable
Engineered for high hardness and precision, this lathe chuck features a T-shaped tool for easy installation. Whether you're turning or clamping small workpieces, expect consistent, reliable performance every time.
Precision Machining
With a self-centering function and fine gears, our lathe chuck ensures precise control over the clamping accuracy, making it ideal for precision machining tasks.
Multiple Uses
Designed for both internal and external clamping, this self centering lathe chuck meets a variety of machining needs, providing you with efficient and stable clamping performance.

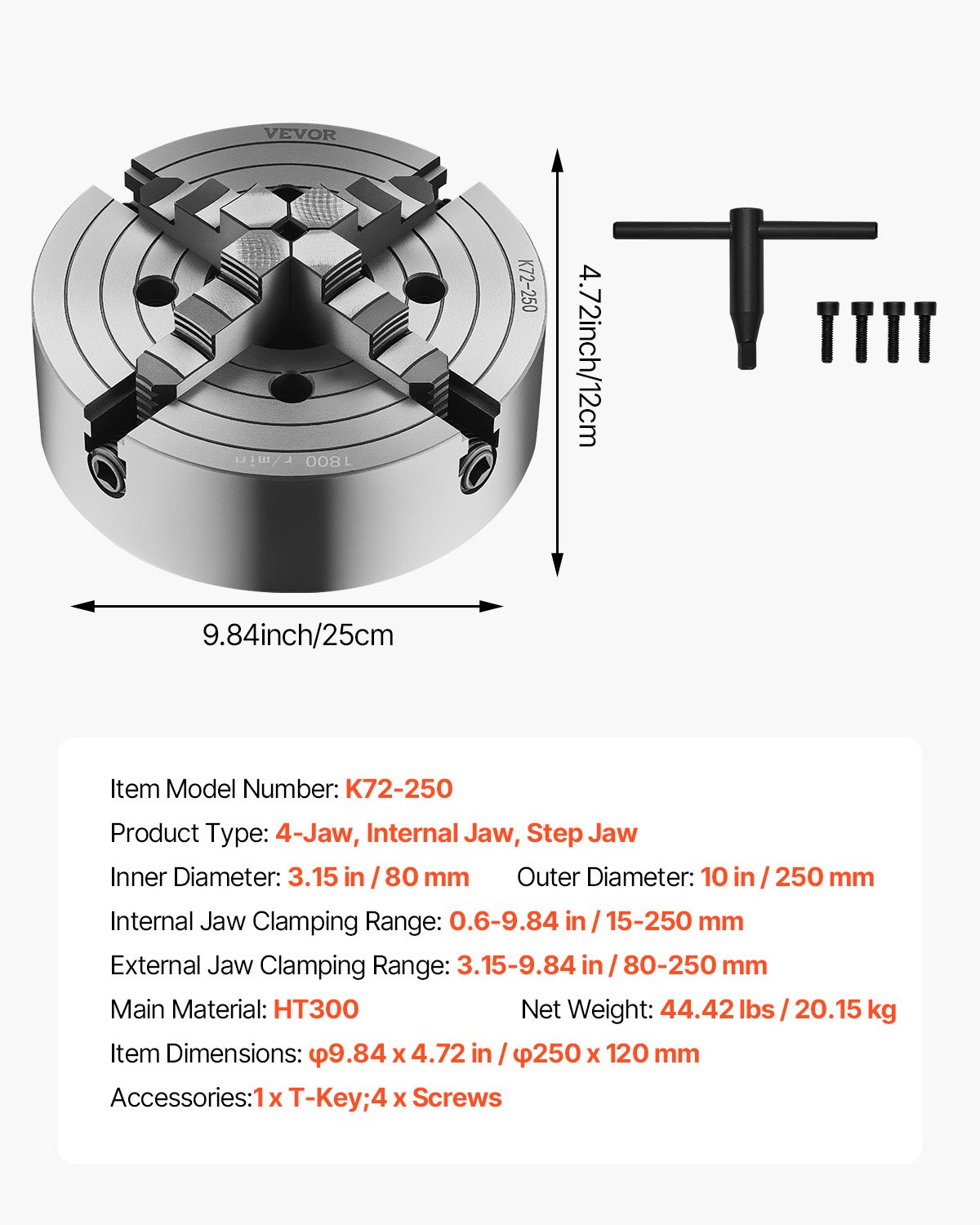

Specification

Item Model Number
K72 250
Product Type
4-Jaw, Internal Jaw, Step Jaw
Inner Diameter
3.15 in / 80 mm
Outer Diameter
10 in / 250 mm

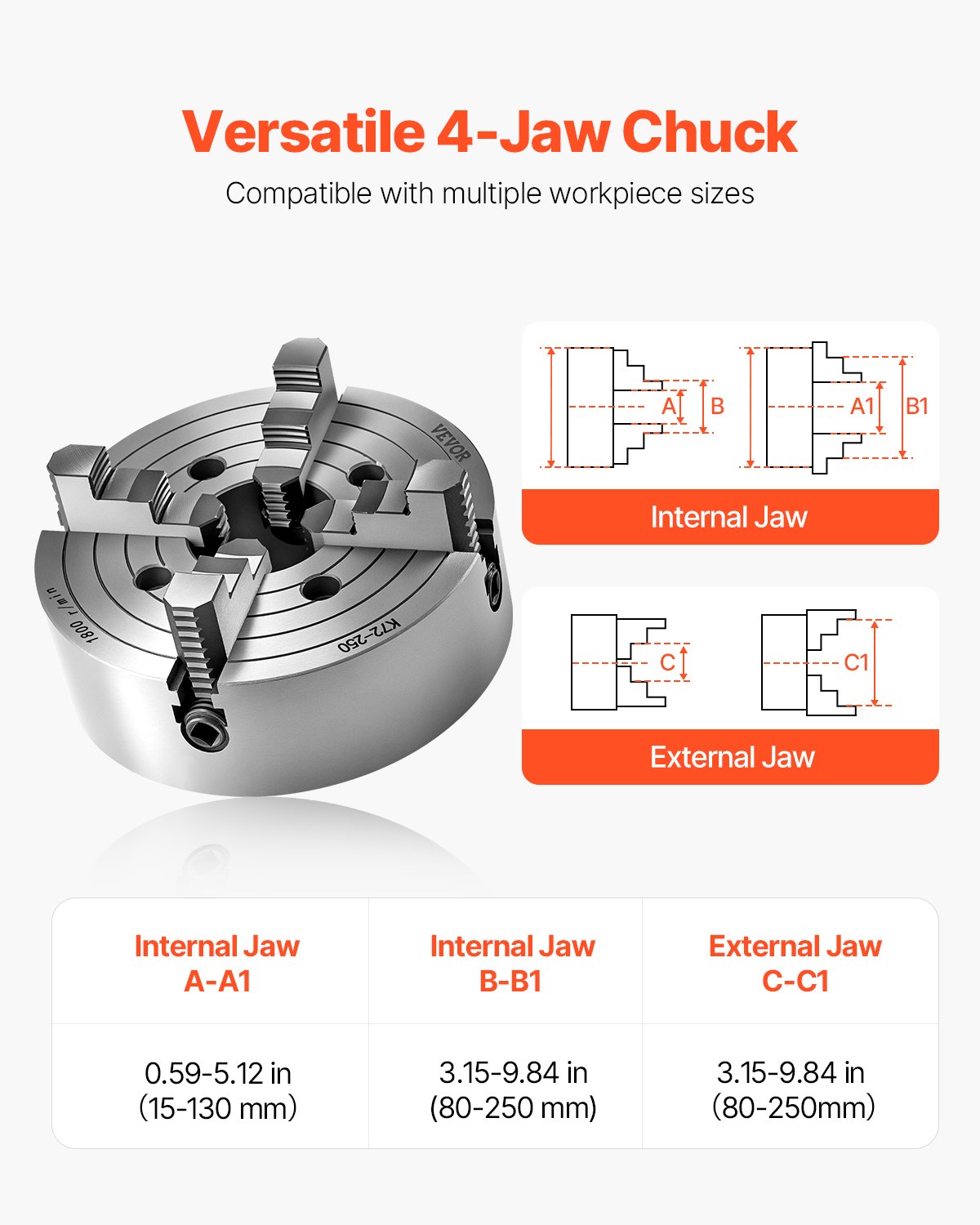

Internal Jaw Clamping Range
0.6-9.84 in / 15-250 mm
External Jaw Clamping Range
3.15-9.84 in / 80-250 mm
Main Material
HT300
Net Weight
44.42 lbs / 20.15 kg
Item Dimensions
φ9.84 x 4.72 in / φ250 x 120 mm
Manual
Download Link
Weight 20,55 kg
