Lift the Entire Undercarriage for More Repair Freedom

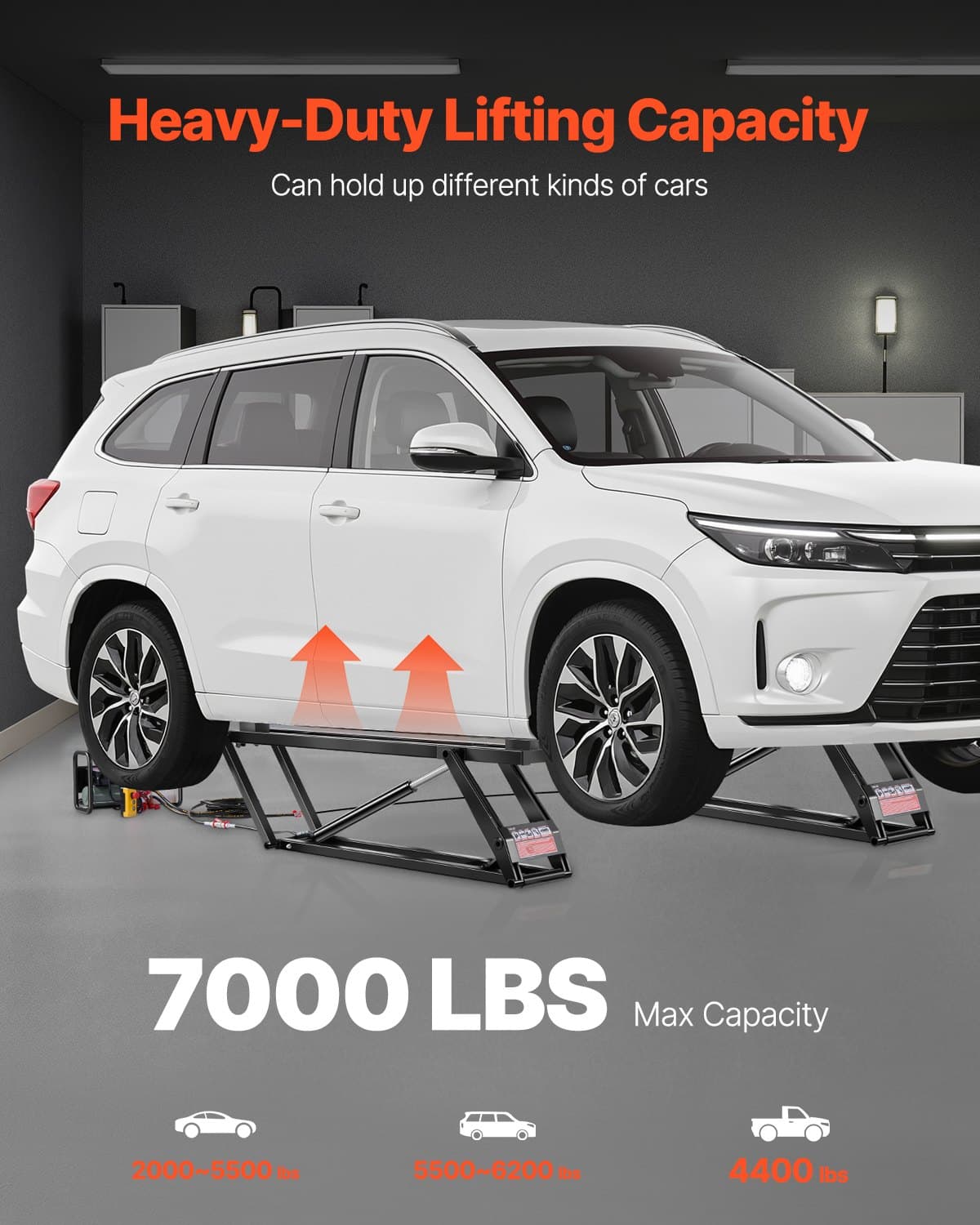

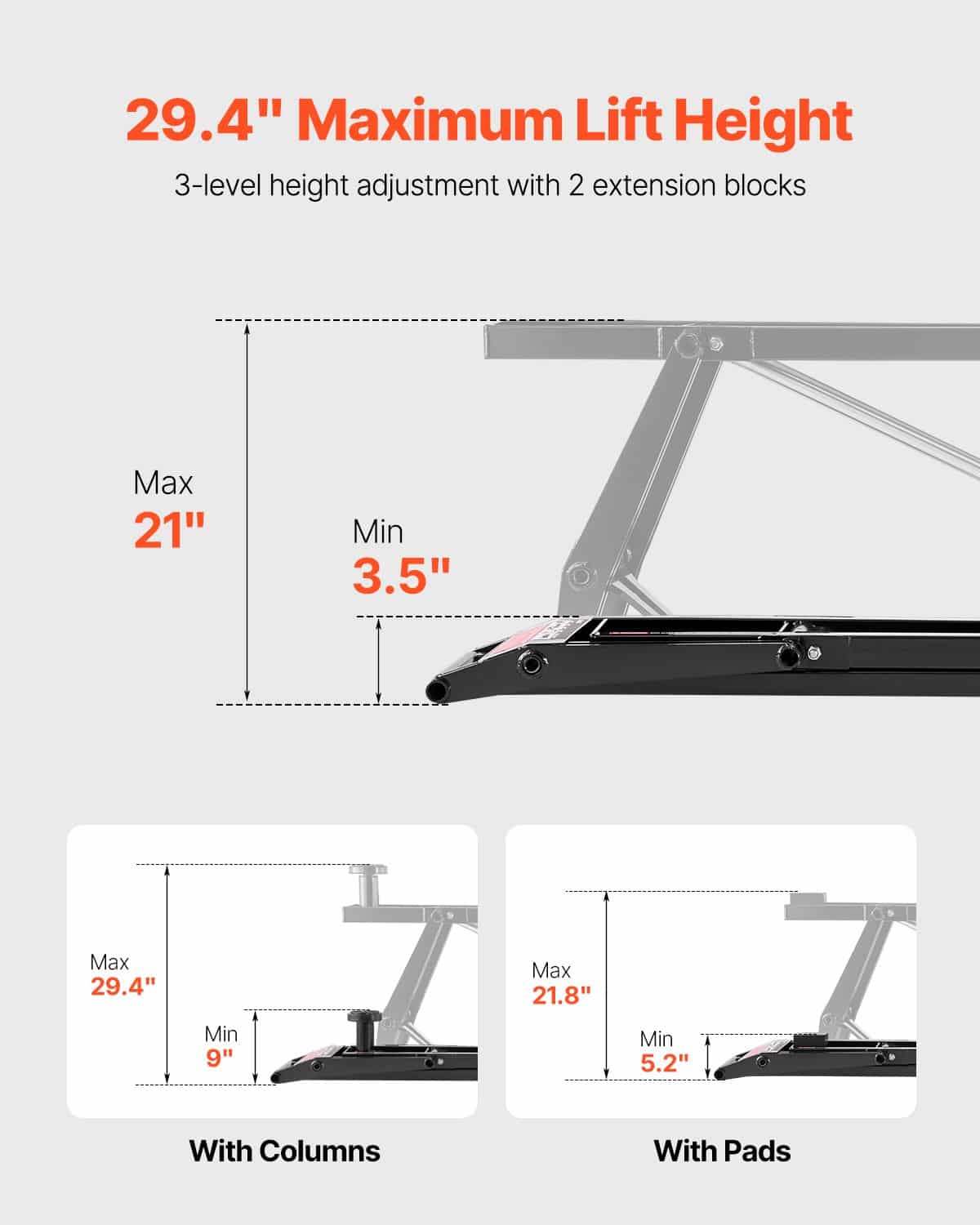

This portable car lift is designed for undercarriage maintenance, with a maximum lifting height of 29.4 inches and a 7,000 lbs (3175.1 kg) capacity. It includes 4 lifting pads and columns to accommodate various undercarriage heights, ideal for chassis inspections and tire replacements.
Key Features

Thickened Frame
Deformation-Resistant

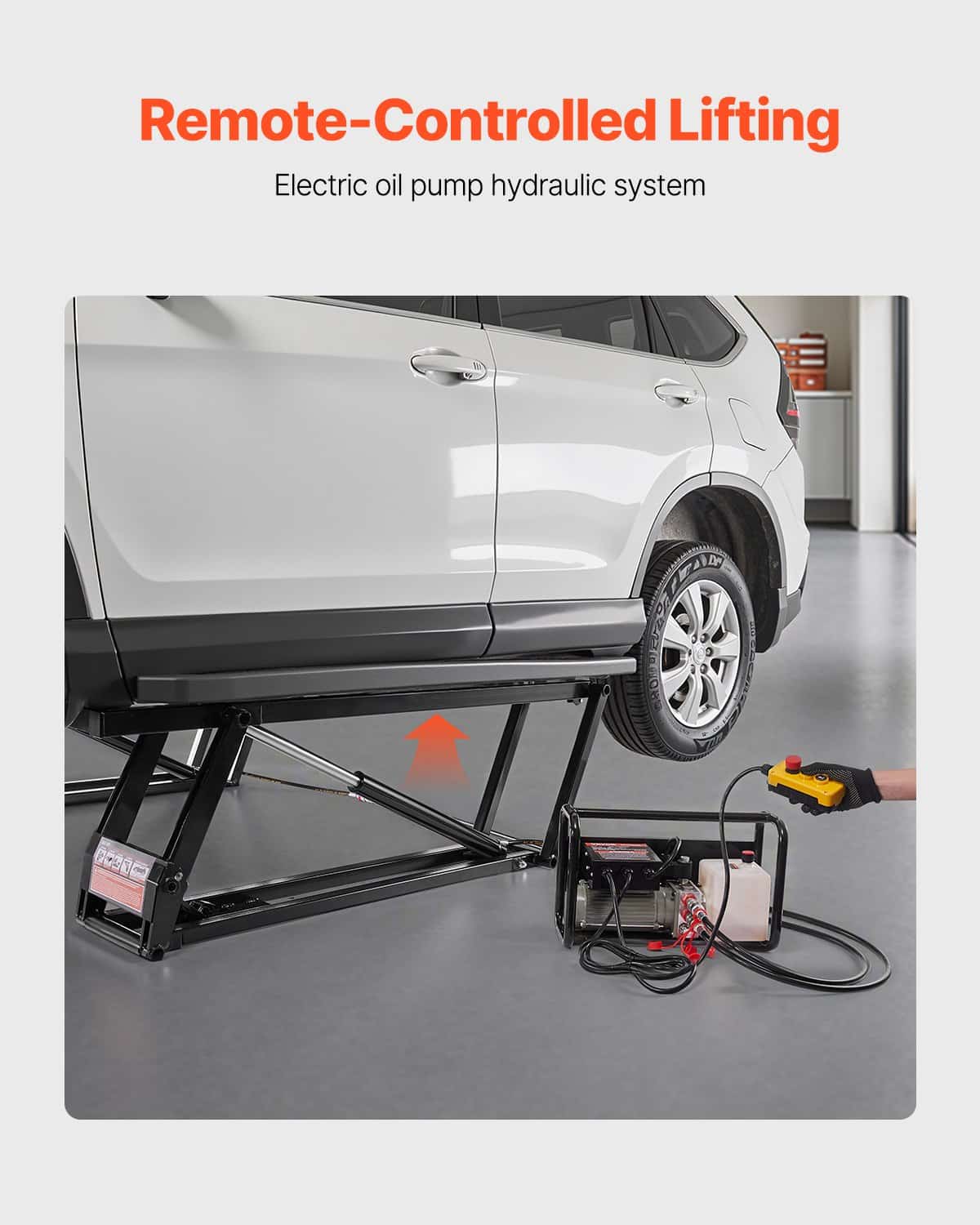

Large Electric Hydraulic Pump
Smooth lifting

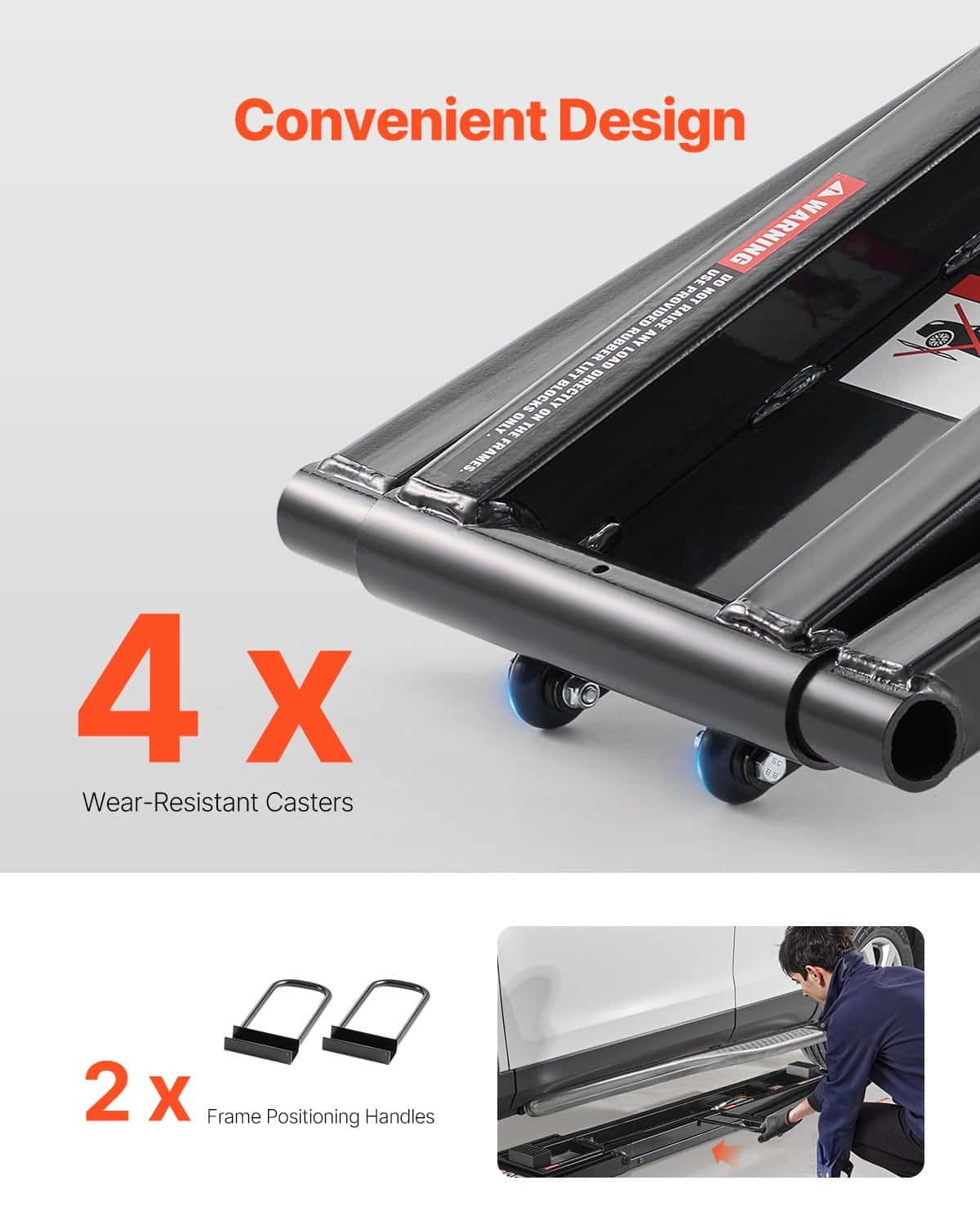

4 x Wear-Resistant Casters
Making mobility effortless


Specification
- Item Model Numbert
- TL-5522 (E5522)
- Power Supply
- AC230V 50Hz
- Rated Power
- 0.75 kW
- Weight Capacity
- 7000 lbs / 3175.1 kg
- Material
- Carbon Structural Steel
- Lifting Pad Dimensions
- 4.0" x 3.0" x 3.0" / 101 x 75 x 75 mm
- Lifting Column Length x Width
- 4.3" x 3.5" / 110 x 90 mm
- Lifting Column Height
- 6.8" - 10.2" / 175 - 260 mm
- Product Weight
- 328.5 lbs / 149 kg
- Folded Dimensions 70.3" x 12.6" x 3.7" / 1785 x 320 x 95 mm
- Lift Dimensions (Highest Position)
- 61.4" x 12.6" x 21.0" / 1560 x 320 x 533 mm
