A: It can cut materials up to 20 mm thick.
Q: What are the speeds for engraving and cutting?
A: Engraving Speed: 0-800 mm/s; Cutting Speed: 0-500 mm/s.
Q: What is the maximum size block of wood I can fit in the machine to engrave on?
A: The maximum engraving size is 400 x 600 mm.
Q: Does this machine work with LightBurn?
A: Yes. It supports LightBurn, CorelDRAW, AutoCAD, and other software.
Q: Is this machine compatible with macOS?
A: Yes. It works with Windows, Linux, and macOS.

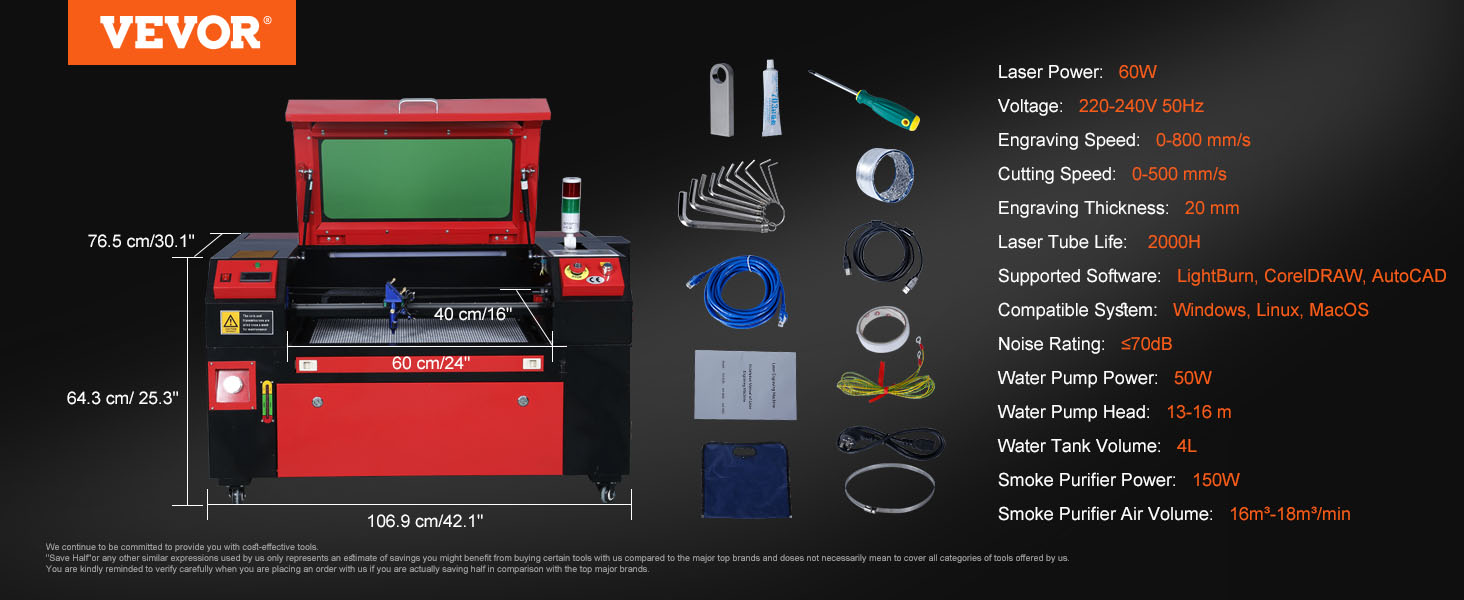

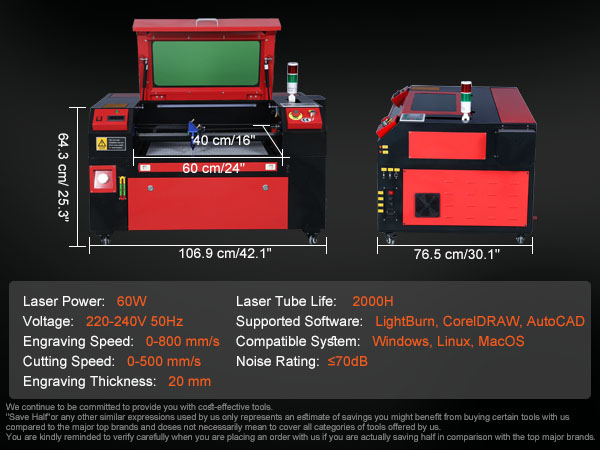

Specification
- Model
- KH6040
- Laser Power
- 60W
- Engraving Area
- 400 x 600 mm/16" x 24"
- Engraving Speed
- 0-800 mm/s
- Cutting Speed
- 0-500 mm/s
- Engraving Thickness
- 20 mm/0.8" (depending on materials)
- Voltage
- 220-240V 50Hz
- Laser Tube Life
- 2000H
- Supported Software
- LightBurn, CorelDRAW, AutoCAD
- Compatible Systems
- Windows, Linux, macOS
- Noise Rating
- ≤70dB
- Frame Material
- Iron
- Water Pump Power
- 50W
- Water Pump Head
- 13-16 m/42.7-52.5 ft
- Water Tank Volume
- 4L/1.1 gal
- Smoke Purifier Power
- 150W
- Smoke Purifier Air Volume
- 16 m³-18 m³/min
- Product Size (L x W x H)
- 106.9 x 76.5 x 64.3 cm/42.1" x 30.1" x 25.3"
- Product Weight
- 89 kg/196.2 lbs
- Manual
- Download Link
