VEVOR SFC20 Linear Guide Rail Set, 1200mm, 2 Rails, 4 SC20 Slide Blocks, 4 Supports, Precision CNC & Automation Kit
- SFC Linear Guide Rail Set: SFC20-1200 mm Linear motion guide rail includes 2 x 47.2 in/1200 mm length SFC20 linear shafts, 4 x SC20 slide blocks and 4 x rail supports. Dynamic Load Per Block: 882 N, Static Load Per Block: 1370 N.
- Durable & Long-lasting: The linear rail is made of carbon steel and aluminum with a chrome-plated surface for rust resistance and high durability. Built-in 4 aluminum slide blocks and ball bearings for smooth and unobstructed sliding.
- Low Noise Sliding: Aluminum fully sealed SC slide blocks and carbon steel linear shaft are perfectly paired. The built-in ball bearing provides low friction movement and is smooth and not tilted, allowing you to control more labor-saving.

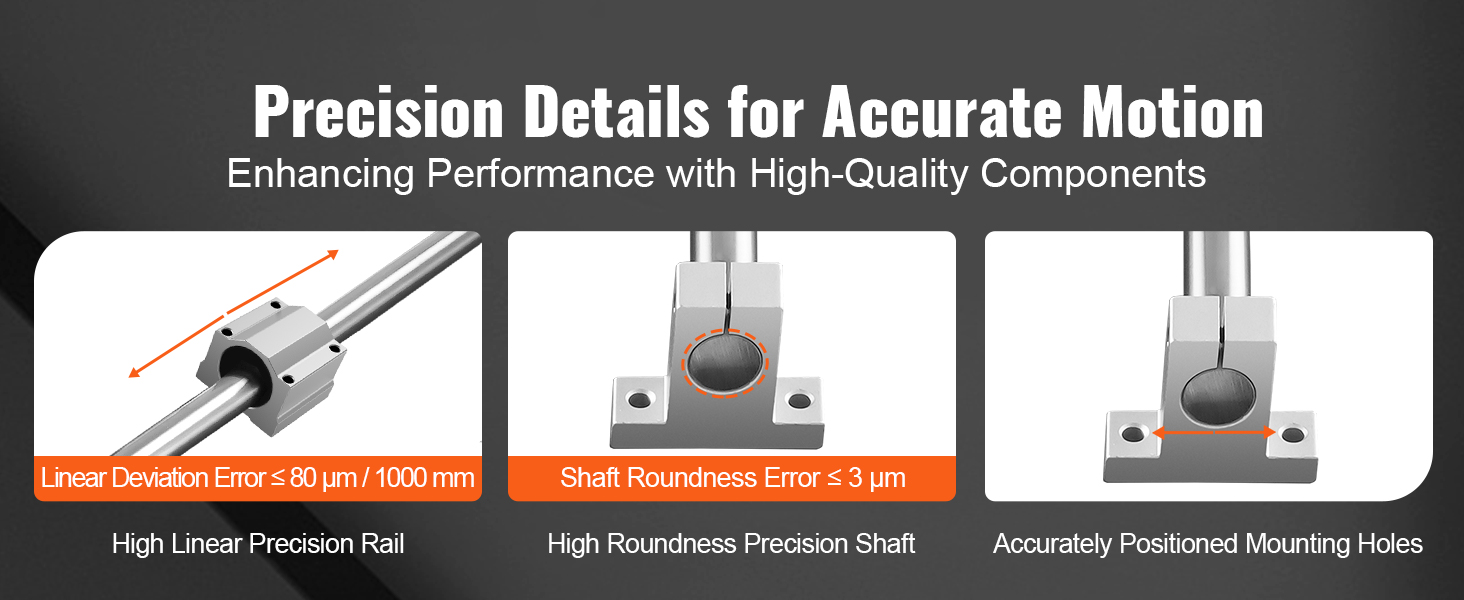

- High Precision: Precise circular shaft dimensions and straightness, ensuring high accuracy, repeatability, and stability in its motion. The sturdy aluminum base and slide block have accurate mounting holes, making it easy for users to perform reliable installation and connection.

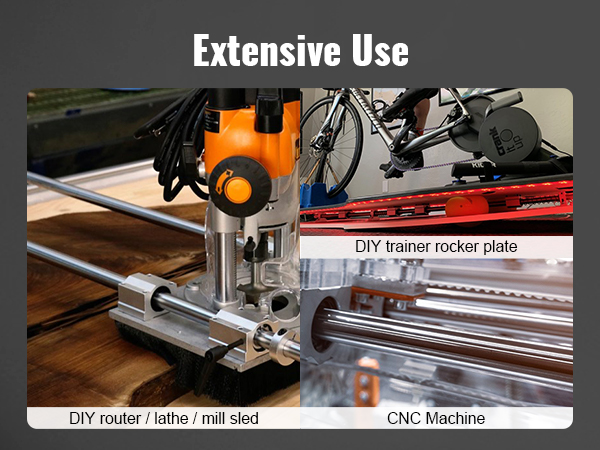

- Wide Application: The SFC linear rail set is versatile and suitable for all kinds of high-load automation equipment and DIY project, such as router/mill/lathe sleds, 3D printers, laser engravers, CNC machines, trainer rocker plates, etc.
68,99 € Ar PVN 21%
59 in stock
M4I4L3SX
ZXH20MM1200MM30G9V0

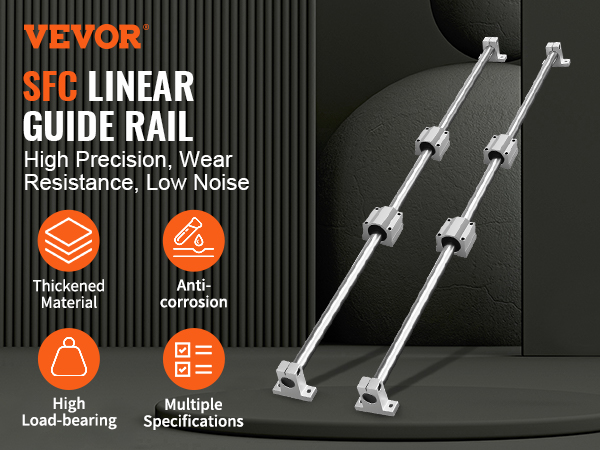

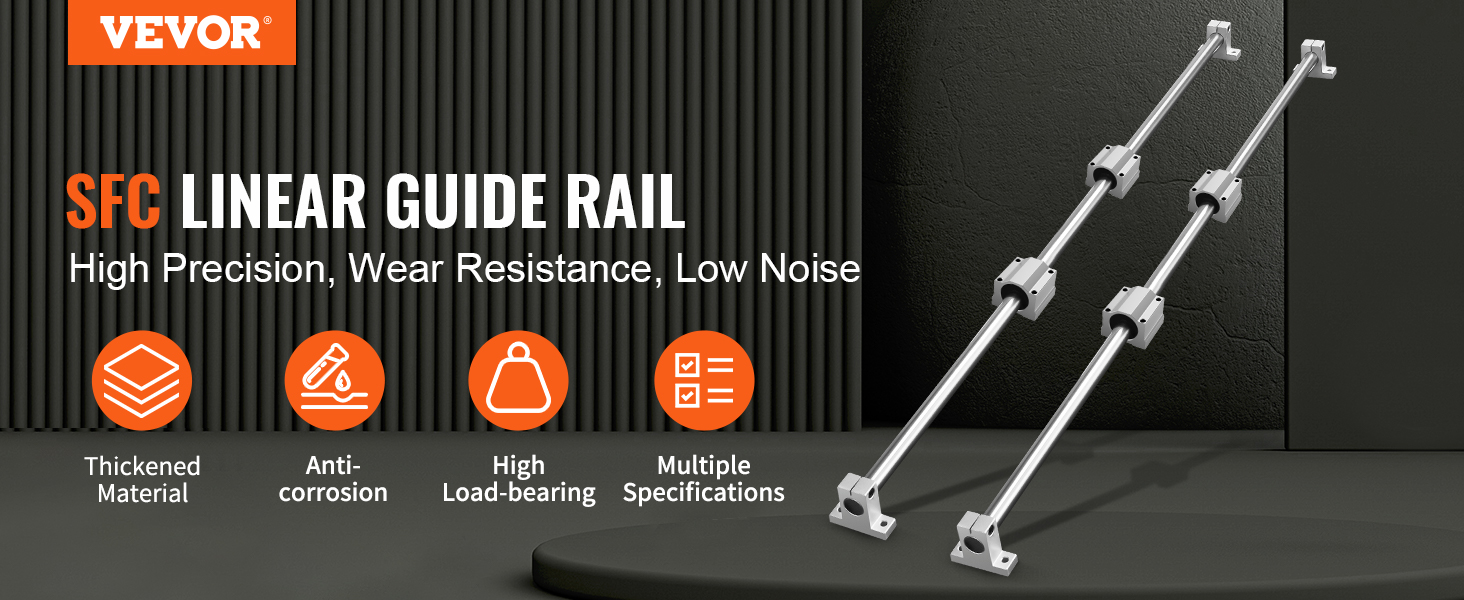

SFC Linear Guide Rail
VEVOR SFC linear guide rail includes 2 guide rails and 4 slide blocks. The durable aluminum guide rails feature precise hole diameter and distance, while the SC slide blocks utilize ball bearings for smooth and unobstructed movement. Multiple specifications are available to perfectly fit your needs.

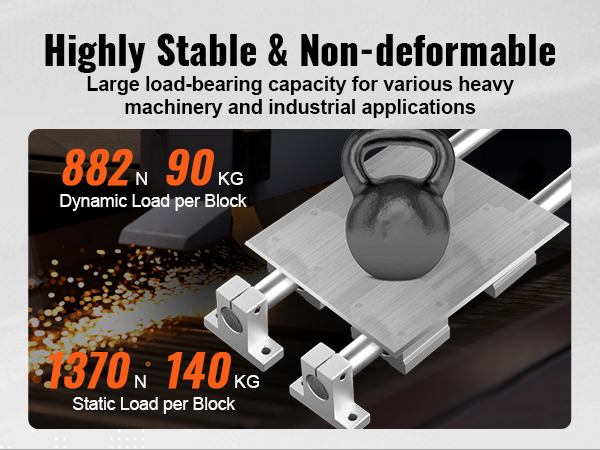

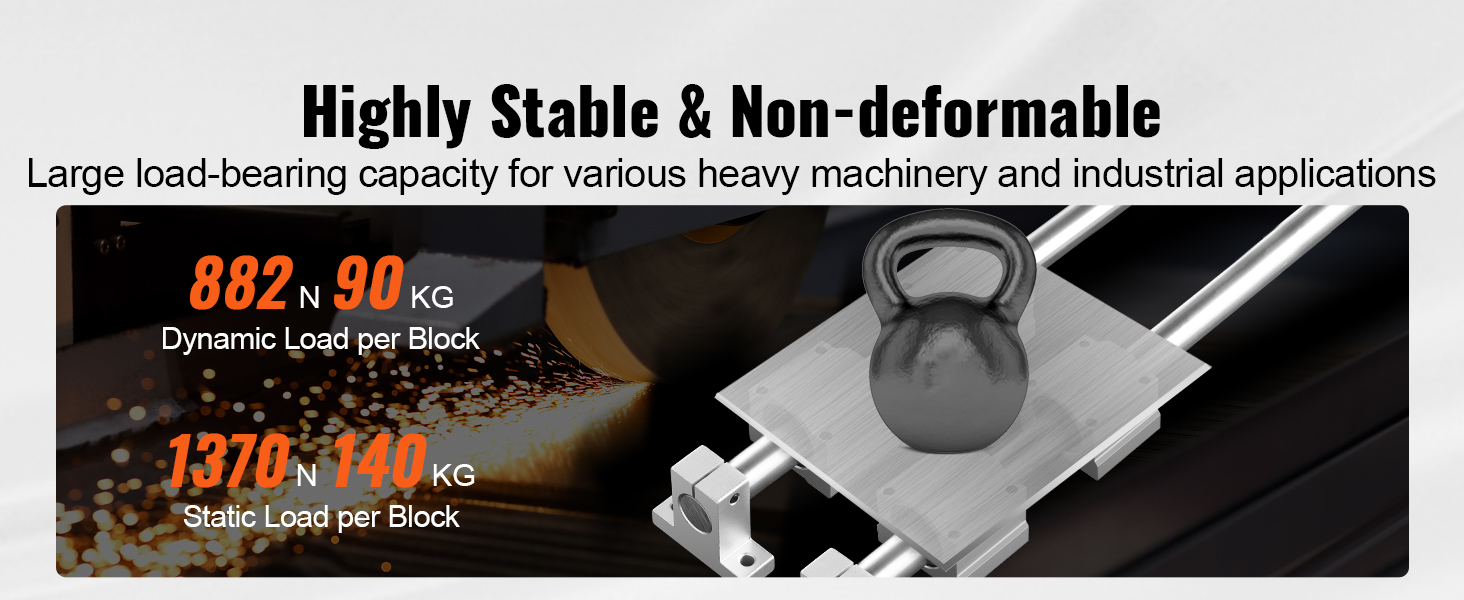

The linear bearing adopts an all-metal structure, and the slide block is tightly locked on the linear shaft, which has a high bearing capacity.

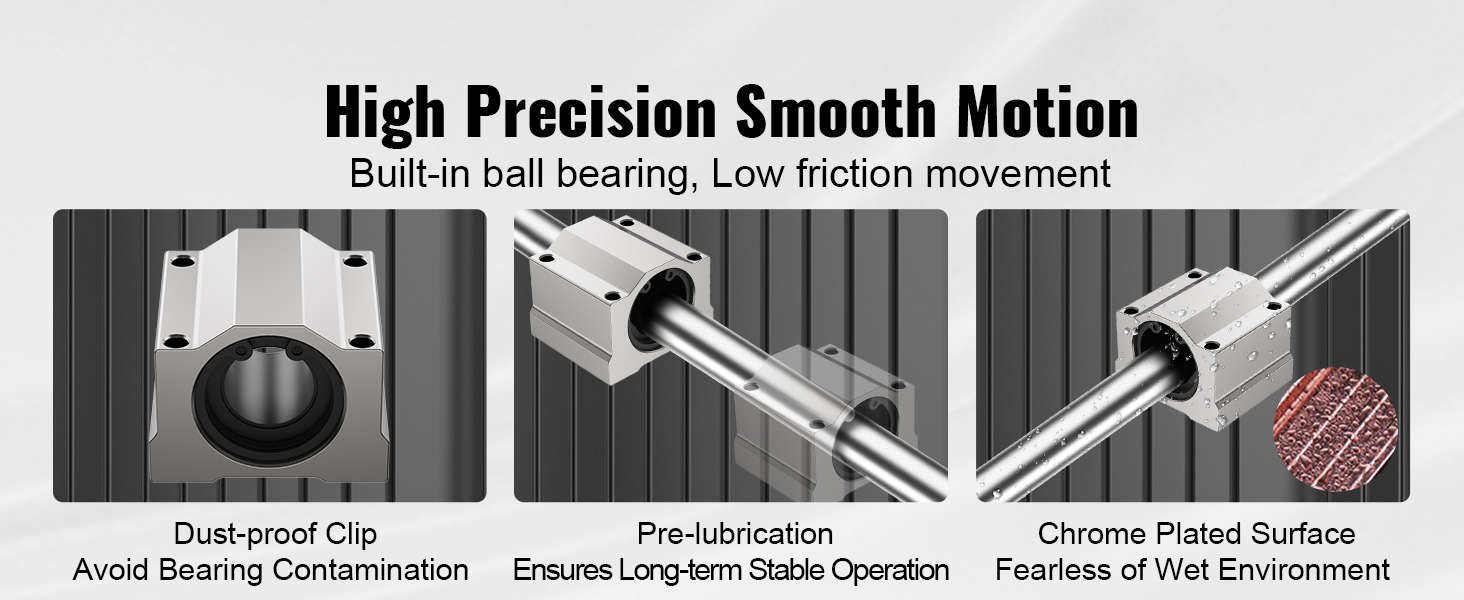

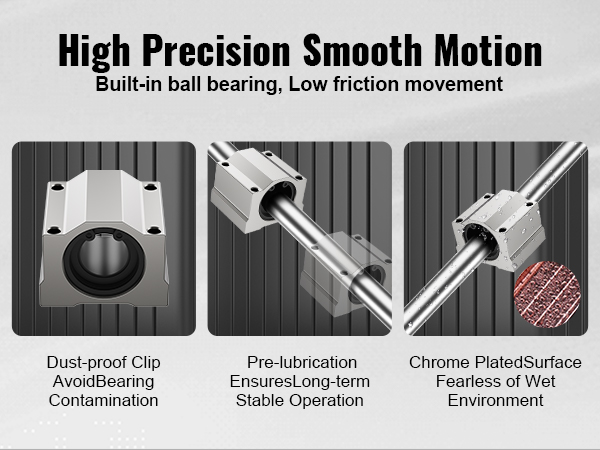

Aluminum fully sealed SC slide block and built-in ball bearings slide smoothly and move more effortlessly to ensure long-term stable operation.

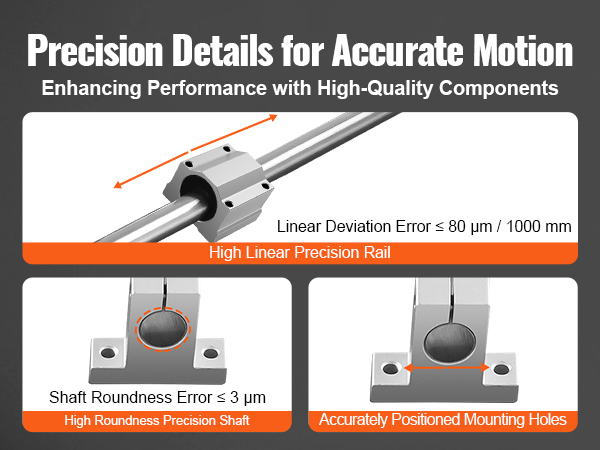

The linear motion guides have accurate hole distance, hole diameter, and standard shaft diameter, allowing you to install your equipment more precisely.
Linear rail kit is widely used in high-load automation equipment and DIY equipment production. For example, DIY CNC engraving machines, lathes, etc.

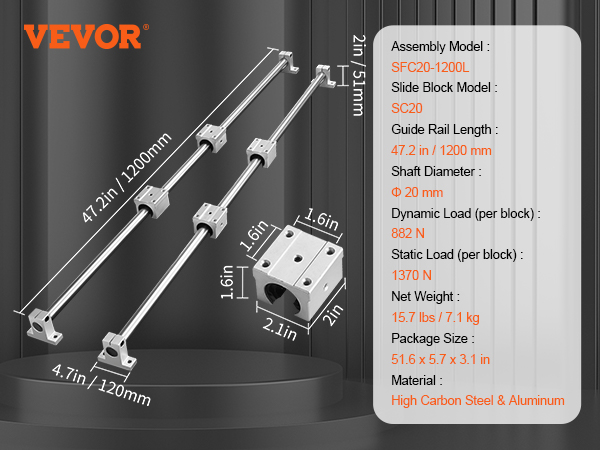

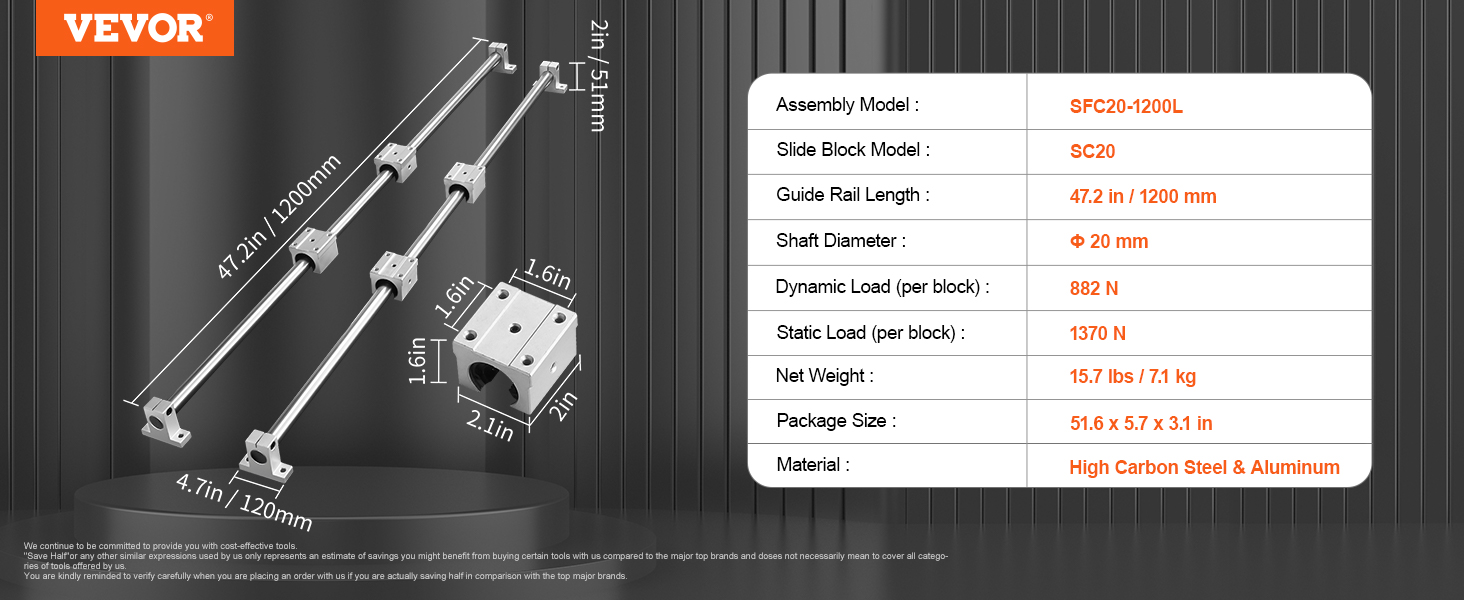

Specification
- Model Number
- SFC20-1200L
- Slide Block Model
- SC20
- Guide Rail Length
- 47.2 in/1200 mm
- Shaft Diameter
- Φ20 mm
- Dynamic Load (per block)
- 882 N
- Static Load (per block)
- 1370 N
- Material
- High Carbon Steel & Aluminum
- Mounting Hole Distance A
- 1.6 in/40 mm
- Mounting Hole Distance B
- 1.6 in/40 mm
- Slide Block Size(L x W x H)
- 2 x 2.1 x 1.6 in/50 x 54 x 41 mm
- Product Dimensions(L x W x H)
- 47.2 x 4.7 x 2 in/1200 x 120 x 51 mm
- Package Size(L x W x H)
- 51.6 x 5.7 x 3.1 in/1310 x 145 x 80 mm
- Net Weight
- 15.7 lbs/7.1 kg
| Weight | 8,00 kg |
|---|---|
| Dimensions | 125,50 × 16,00 × 10,00 cm |
