A: The product size is 10.6x4.7x14.2in/270x120x360mm, applicable voltage/frequency is 220-240V 50/60Hz for EUR.
Q: What kind of materials does the mag press work on? What kind of drill bits are they compatible with?

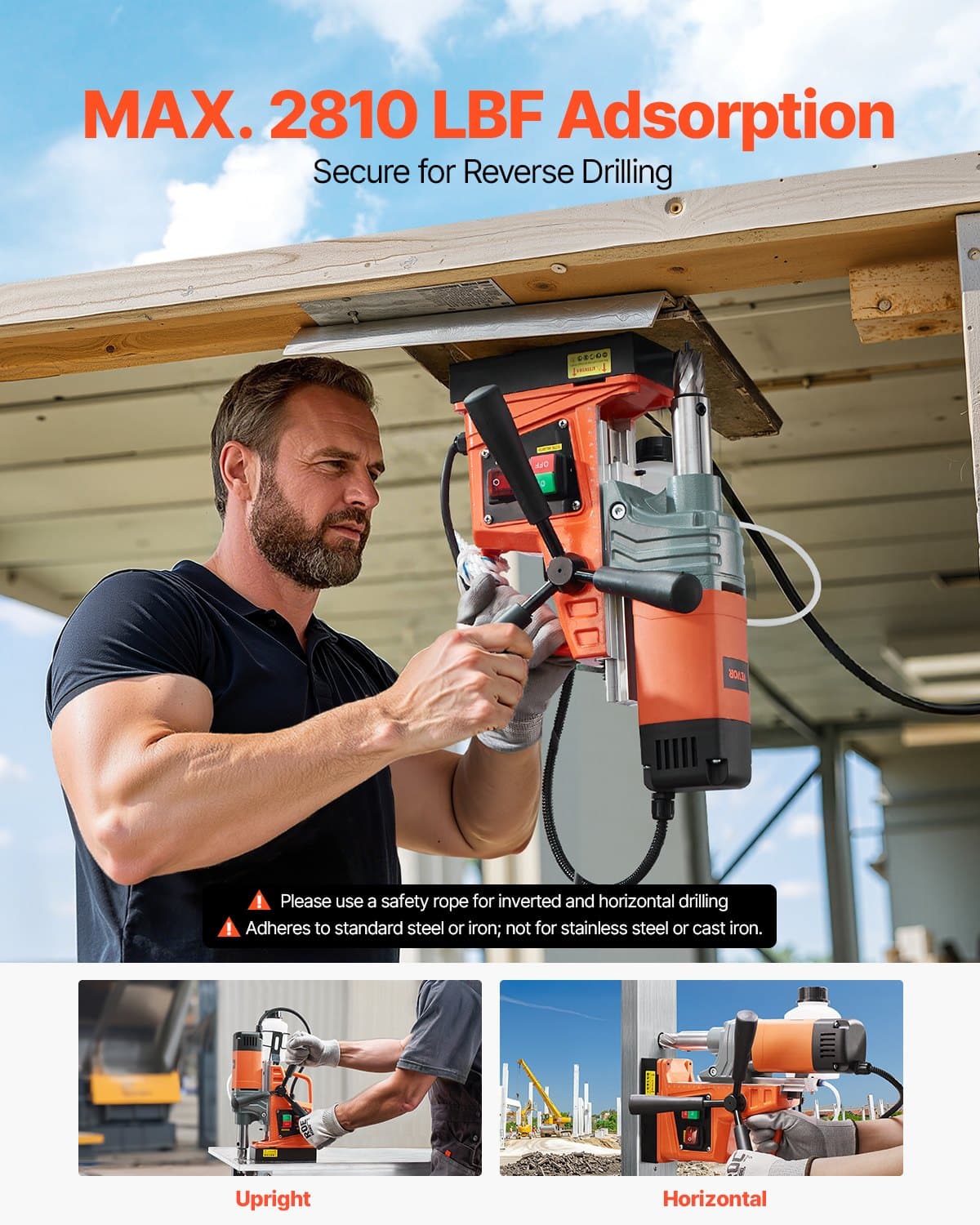

A: The magnetic drill can bore on steel and iron structures above a 10mm thickness by upright, inverted, and horizontal adsorption. Drilling bits with a diameter of less than 50mm are applied.
Q: What is the drilling range of the product?
A: Max boring diameter of the coring drill is 40 mm; Boring diameter of the twist drill is 3-16 mm;
Q: What accessories are in the package?

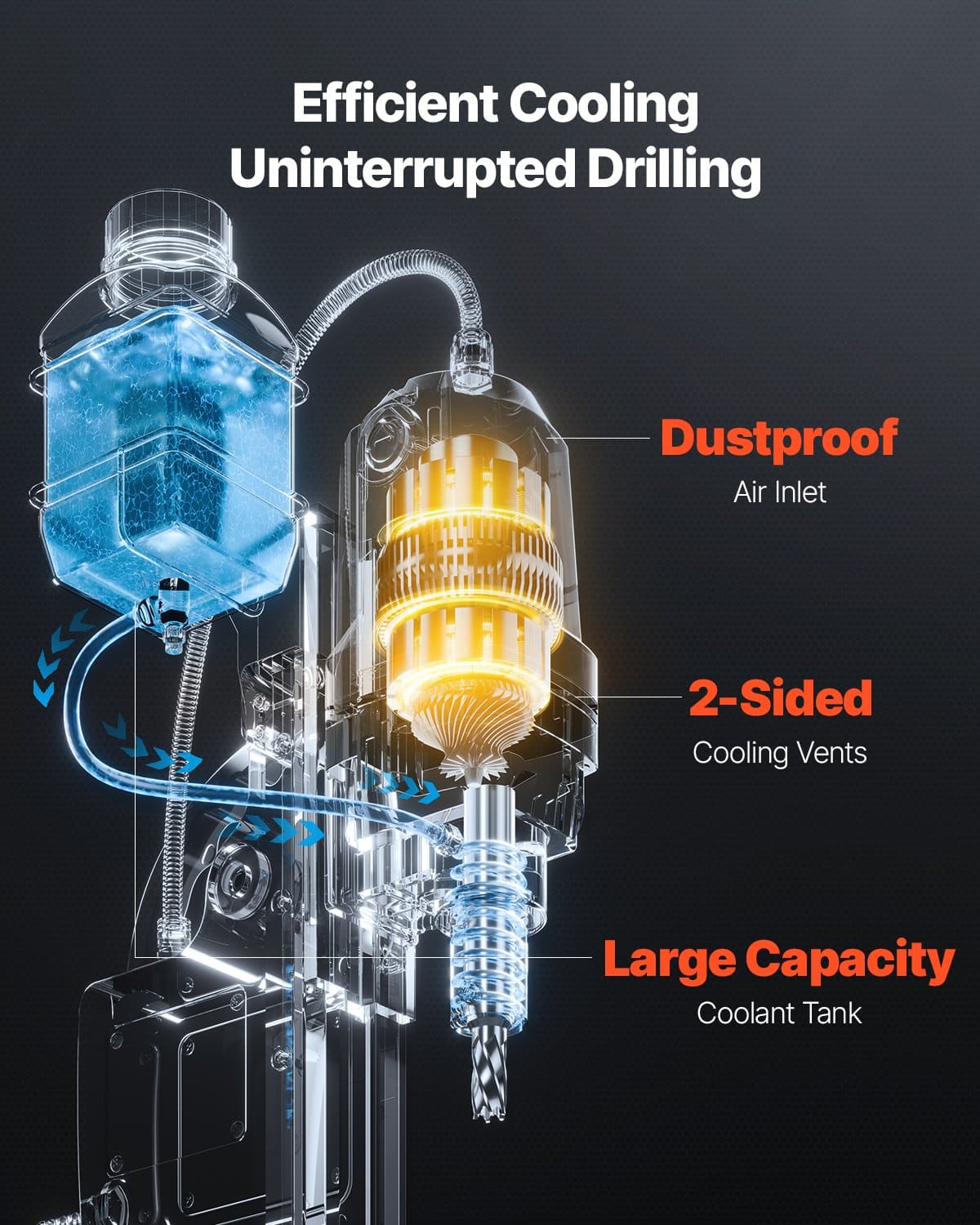

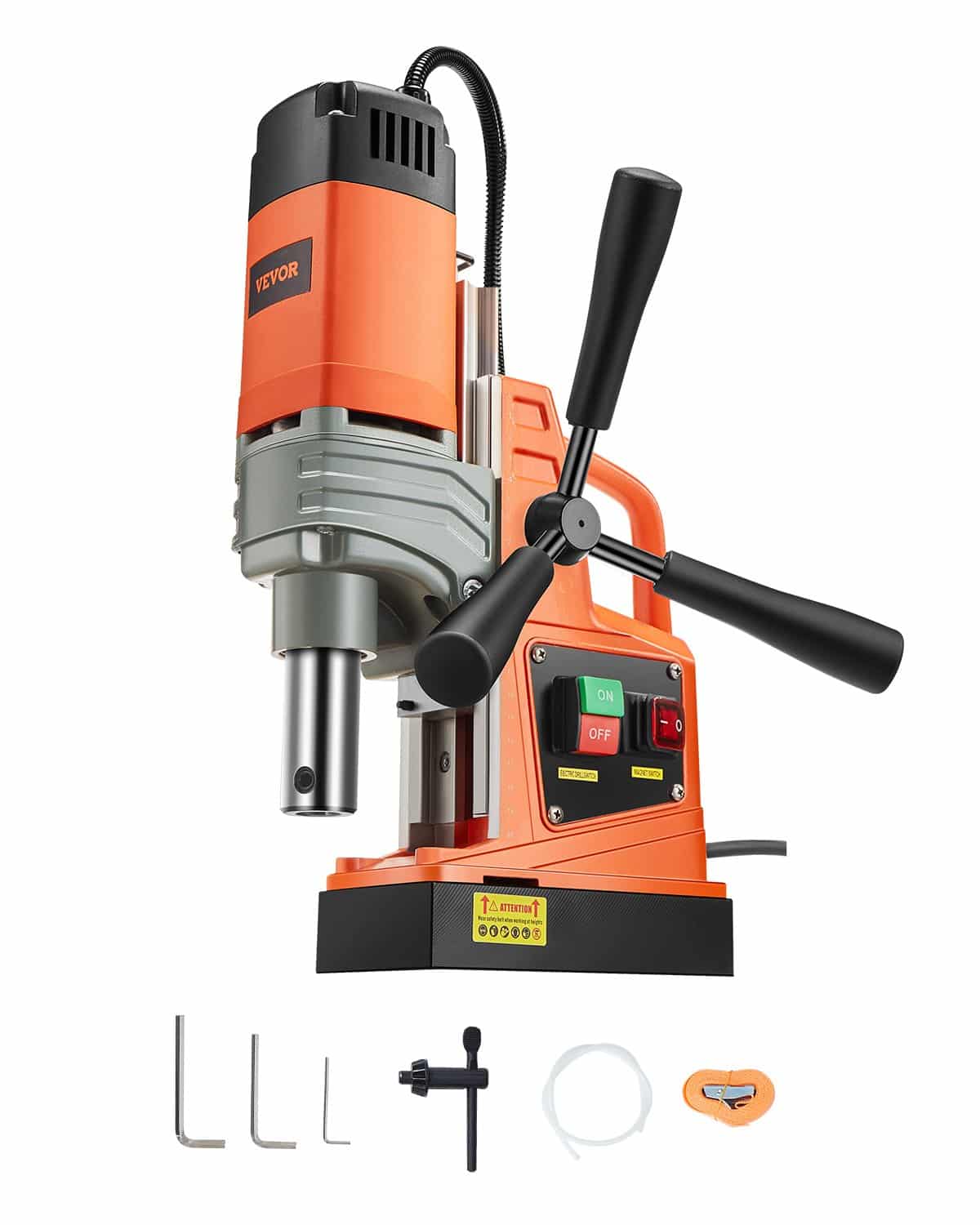

A: Our products are equipped with professional drilling tools, including a coolant tank, a coolant tube, a rope, 3 hex wrenches, and 3 hand cranks.

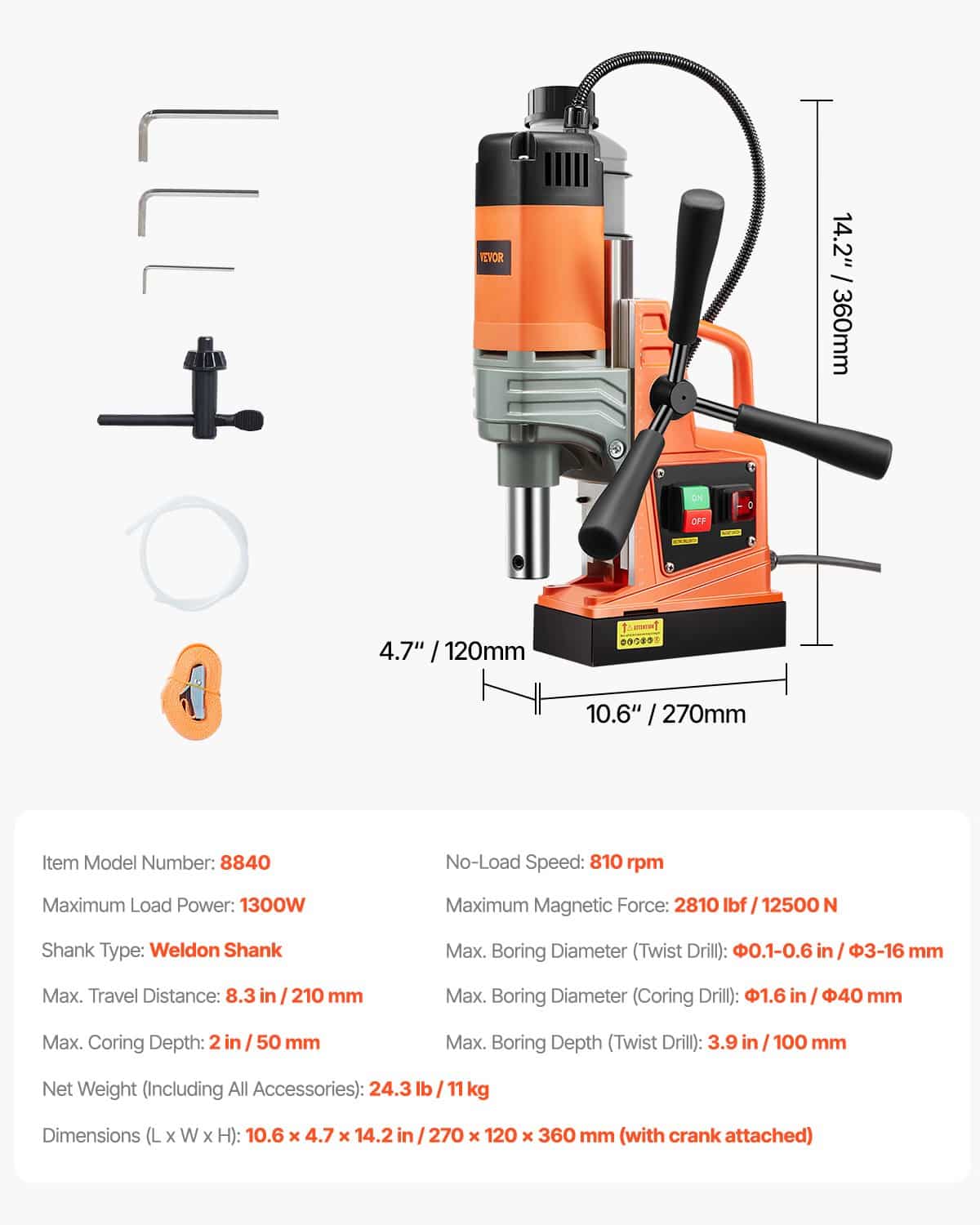

Specification

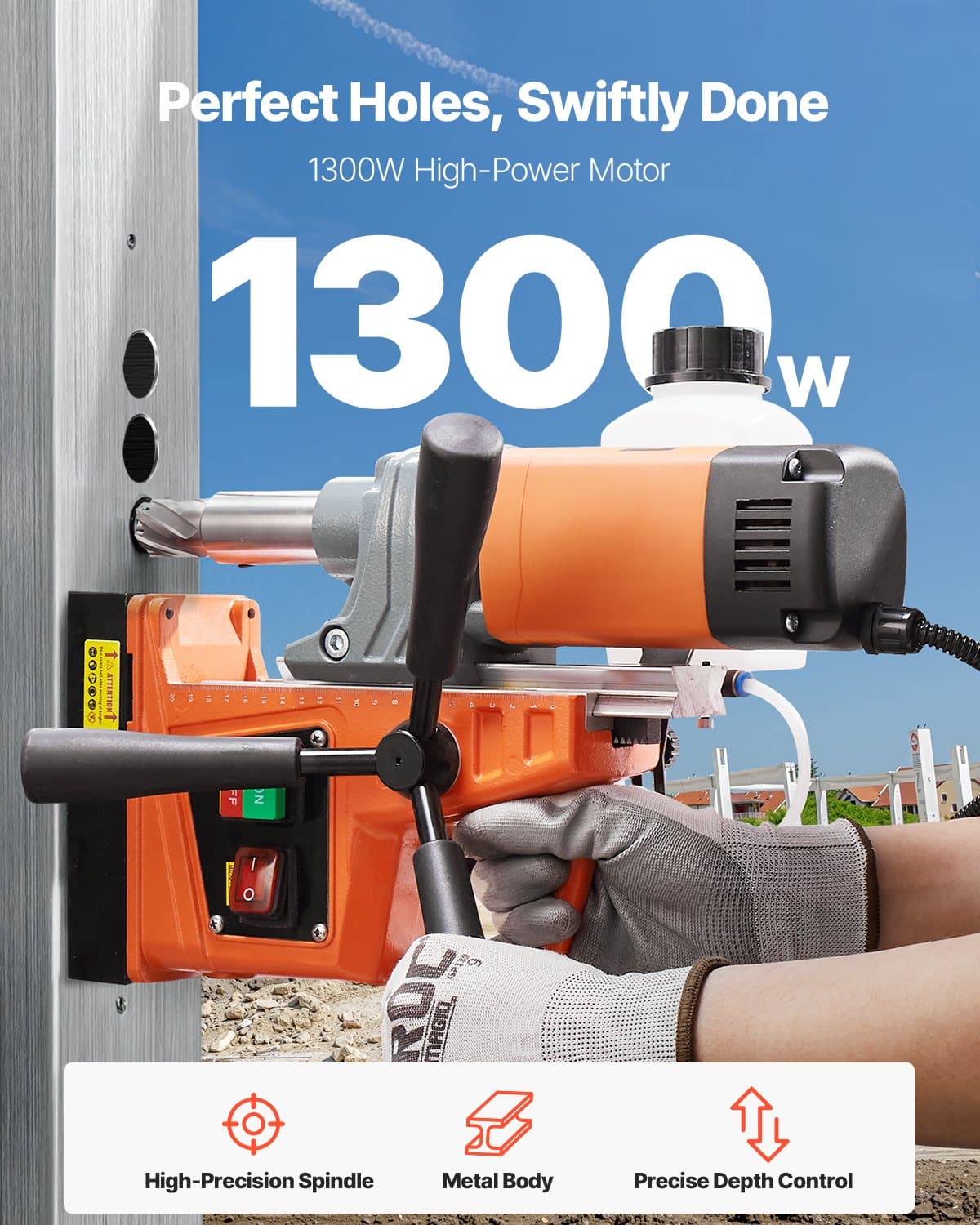

- Power
- 1300W 220-240V 50/60Hz
- Max. Boring Diameter(Coring Drill)
- 1.57 in / 40 mm
- Max. Boring Depth
- 2 in / 50 mm
- Max. Boring Diameter(Twist Drill)
- 0.63 in /16 mm
- Max. Boring Depth (Twist Drill)
- 3.9 in / 100 mm
- Max. Travel Distance
- 8.3 in / 210 mm
- Magnetic Force
- 2922 lbf / 13000 N
- Stepless Speed
- 0 - 810 rpm
- Product Size
- 10.6 × 4.7 × 14.2 in / 270 × 120 × 360 mm
- Product Weight
- 24.3 lbs / 11 kg
- Manual
- Download Link
