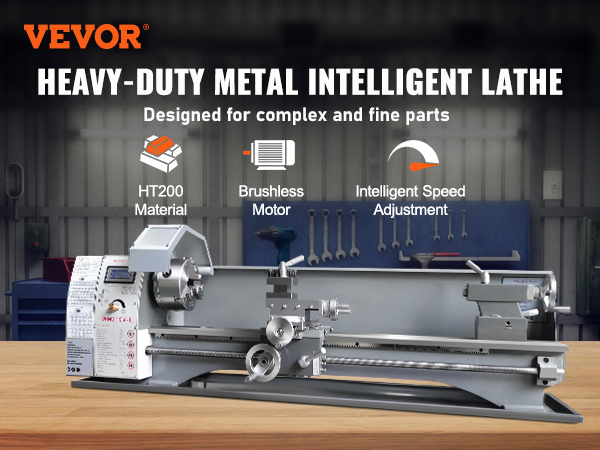

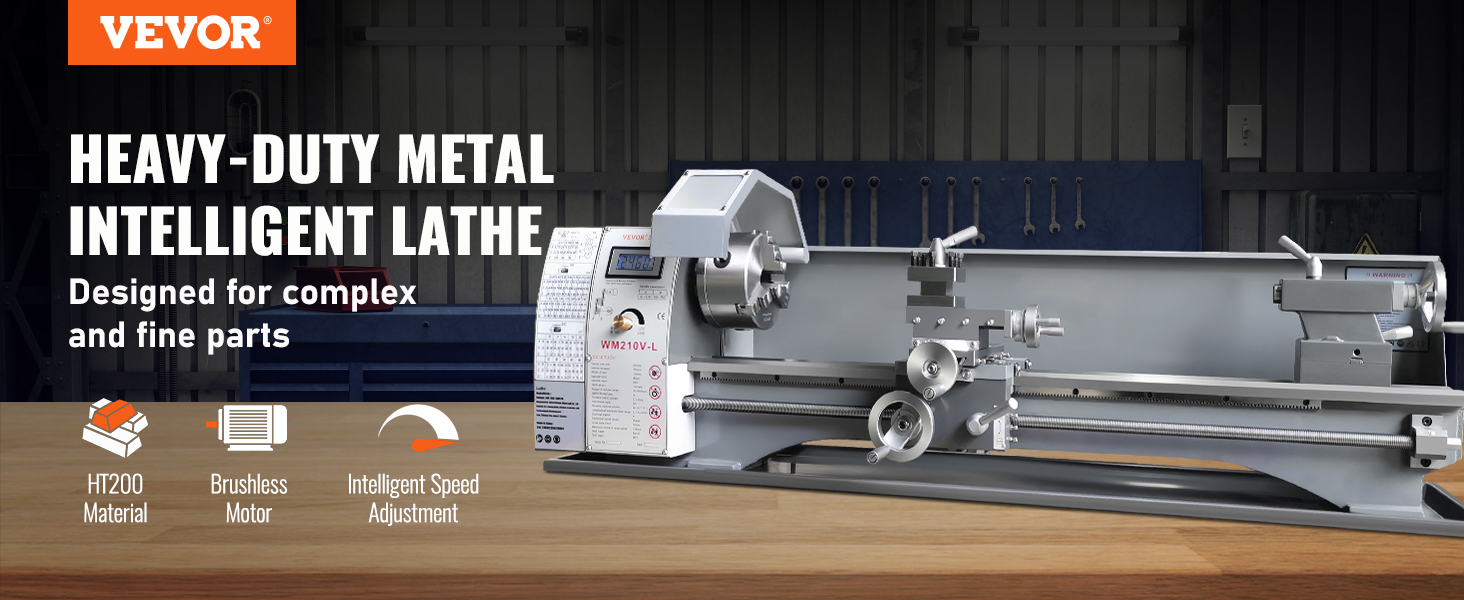

Heavy-Duty Metal Lathe


Are you ready to get more done? Our benchtop metal lathe measures 210mm x 750mm and features a powerful 750W motor for longer service life. The external poly-V belt ensures smooth transmission. VEVOR metal lathe is specifically designed for creating complex and fine parts.
Key Features

Convenient Tool Holder
The 4-way rotation tool holder allows you to install 4 common turning tools simultaneously. To change tools, simply open the latch and rotate it.

Protection Devices
Overload protection, high-speed reverse fool-proofing device, and chuck cover disconnection protection make the processing more secure.

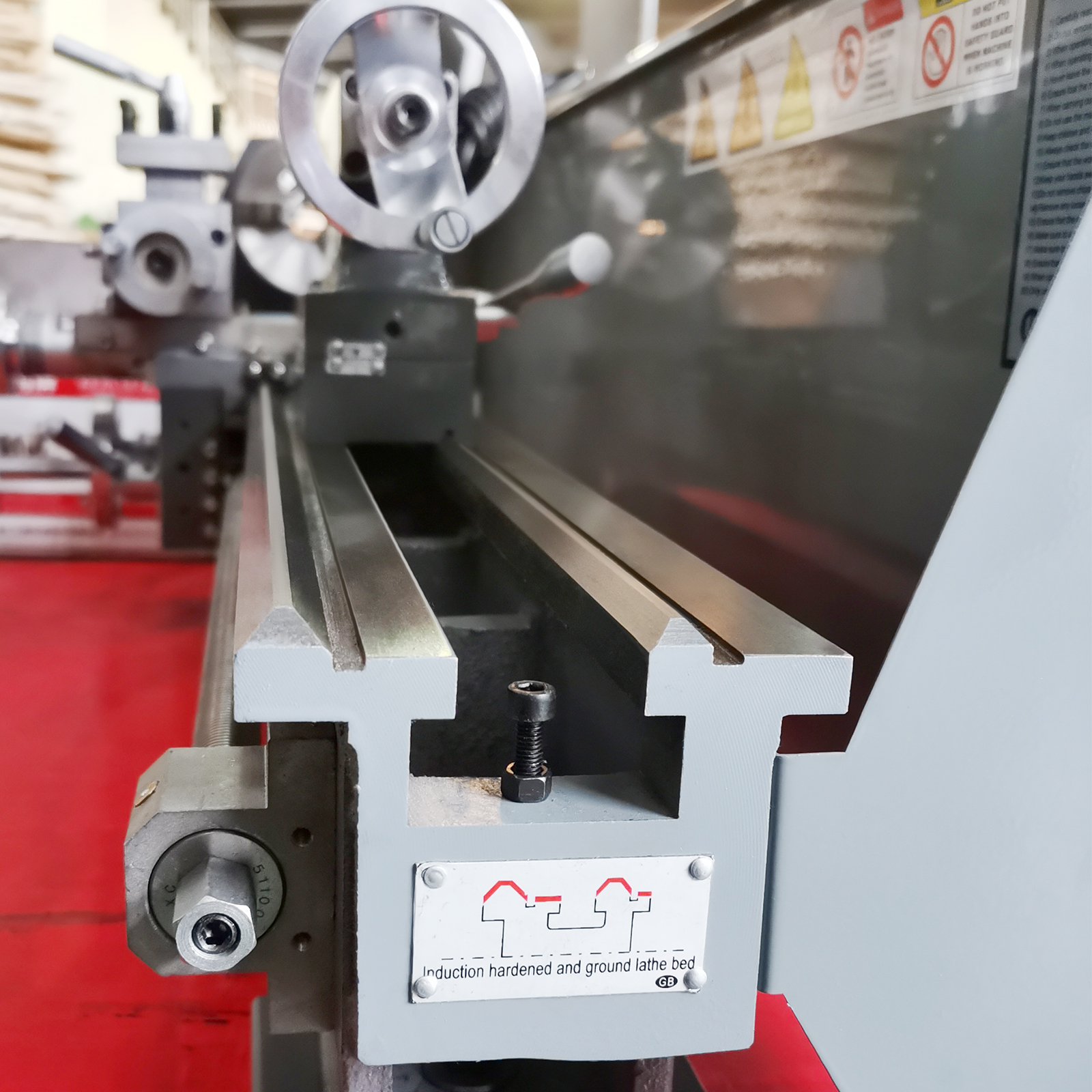

Precision Steel Guide
The V-shaped precision steel guide has an automatic feed screw and high strength, ensuring the parallelism of the main axis and lathe body.

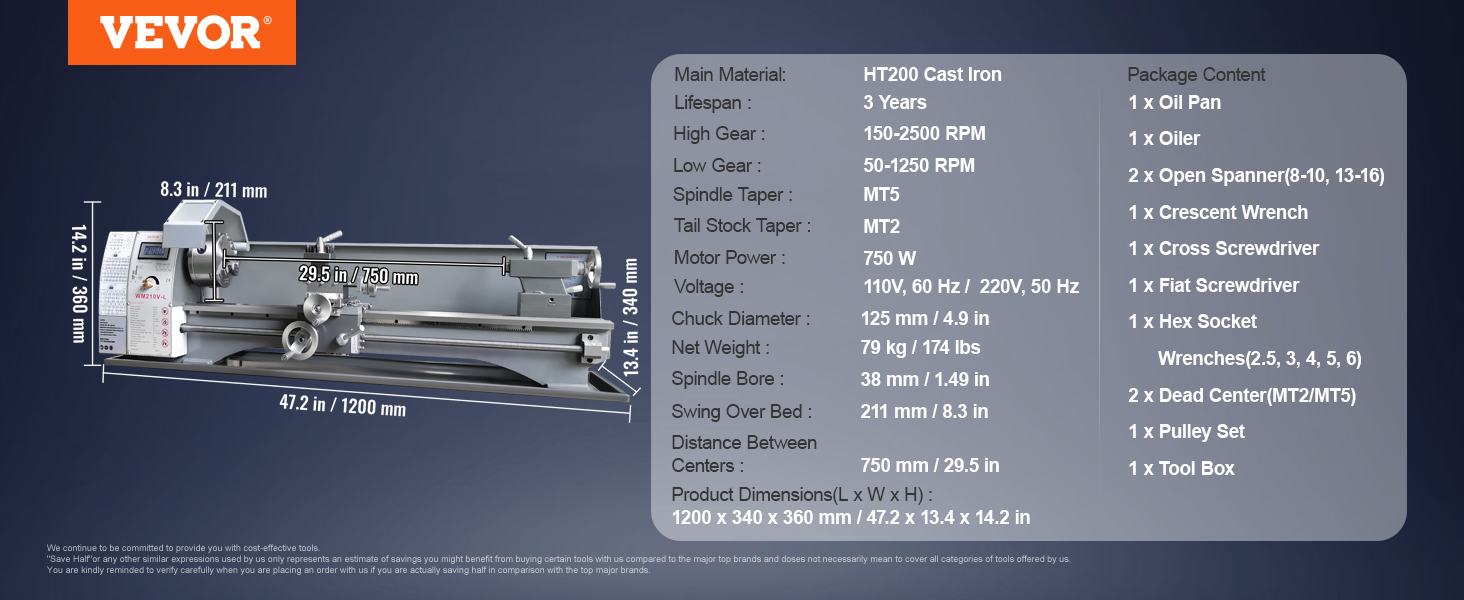

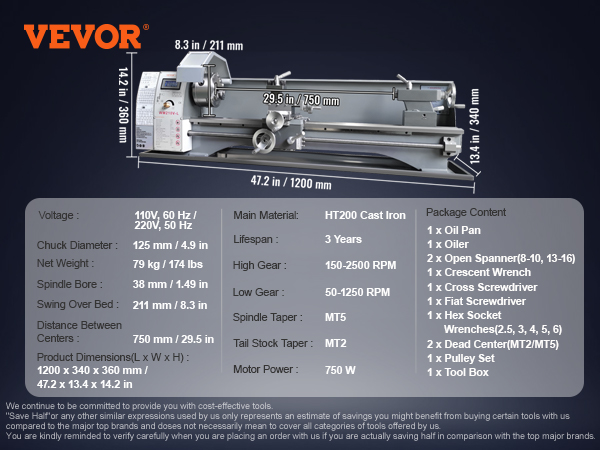

Specification
- Model
- WM210V-L
- Main Material
- HT200 Cast Iron
- Lifespan
- 3 Years
- Spindle Speed
- 50-2500 RPM
- Hole Through Spindle Diameter
- 38 mm / 1.49 in
- Spindle Taper
- MT5
- Tail Stock Taper
- MT2
- Motor Power
- 750W
- Voltage
- 220V, 50 Hz
- Chuck Diameter
- 125 mm / 4.9 in
- Net Weight
- 79 kg / 174 lbs
- Product Dimensions(L x W x H)
- 1200 x 340 x 360 mm / 47.2 x 13.4 x 14.2 in
- Manual
- Download Link
