VEVOR 4-String Solar PV Combiner Box, 15A Fuses, 63A Breaker, Lightning Arrester, IP65, for On/Off Grid Solar Systems
- Professional PV Combiner Box: PV combiner box tidied up connection and confluence of photovoltaic modules. It is used to reduce the connection of the photovoltaic array to the inverter and optimize the system structure. Make it easy to cut off the circuit in maintenance and reduce the scope of the power outage when the photovoltaic system fails. It will make the photovoltaic system at its best and increase output power.

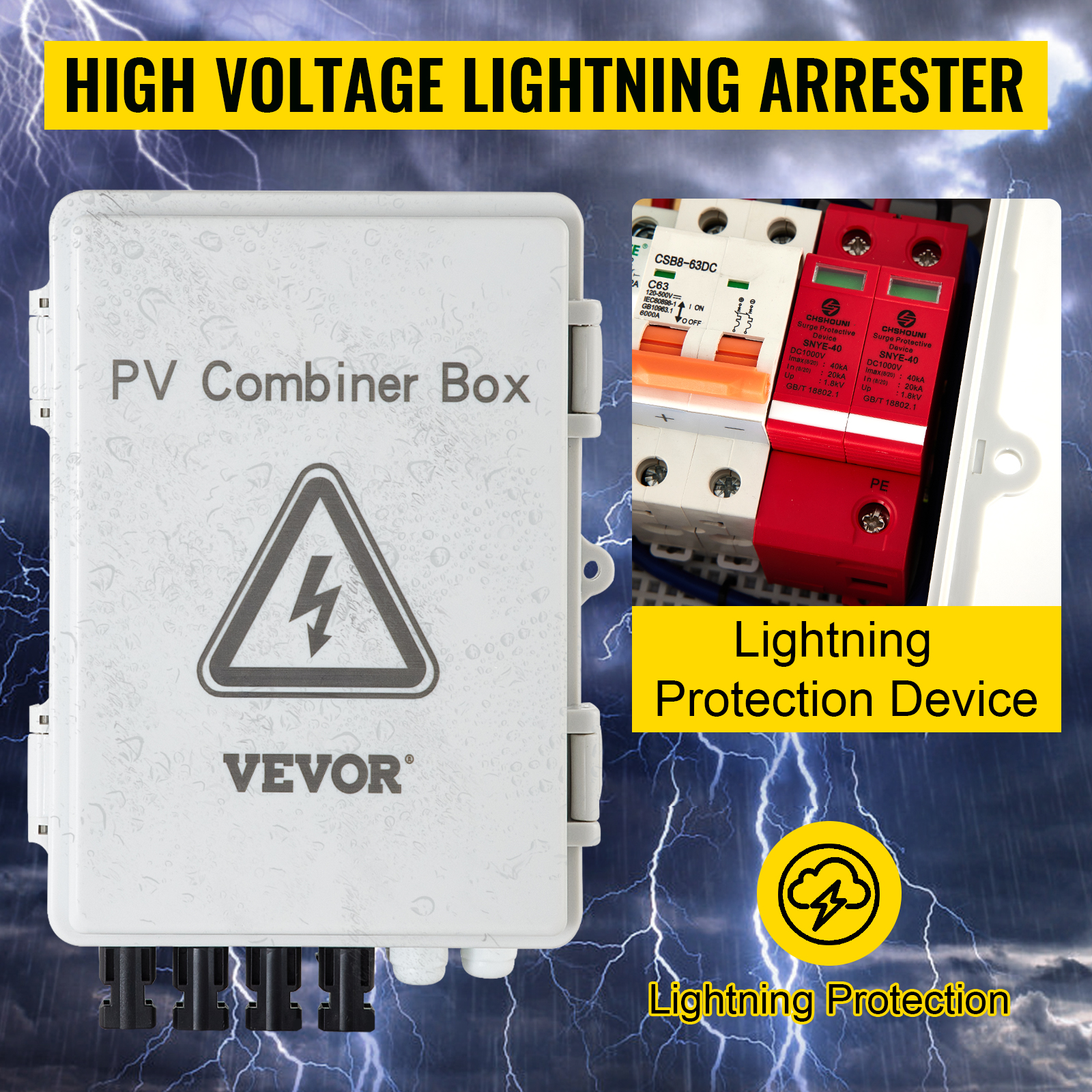

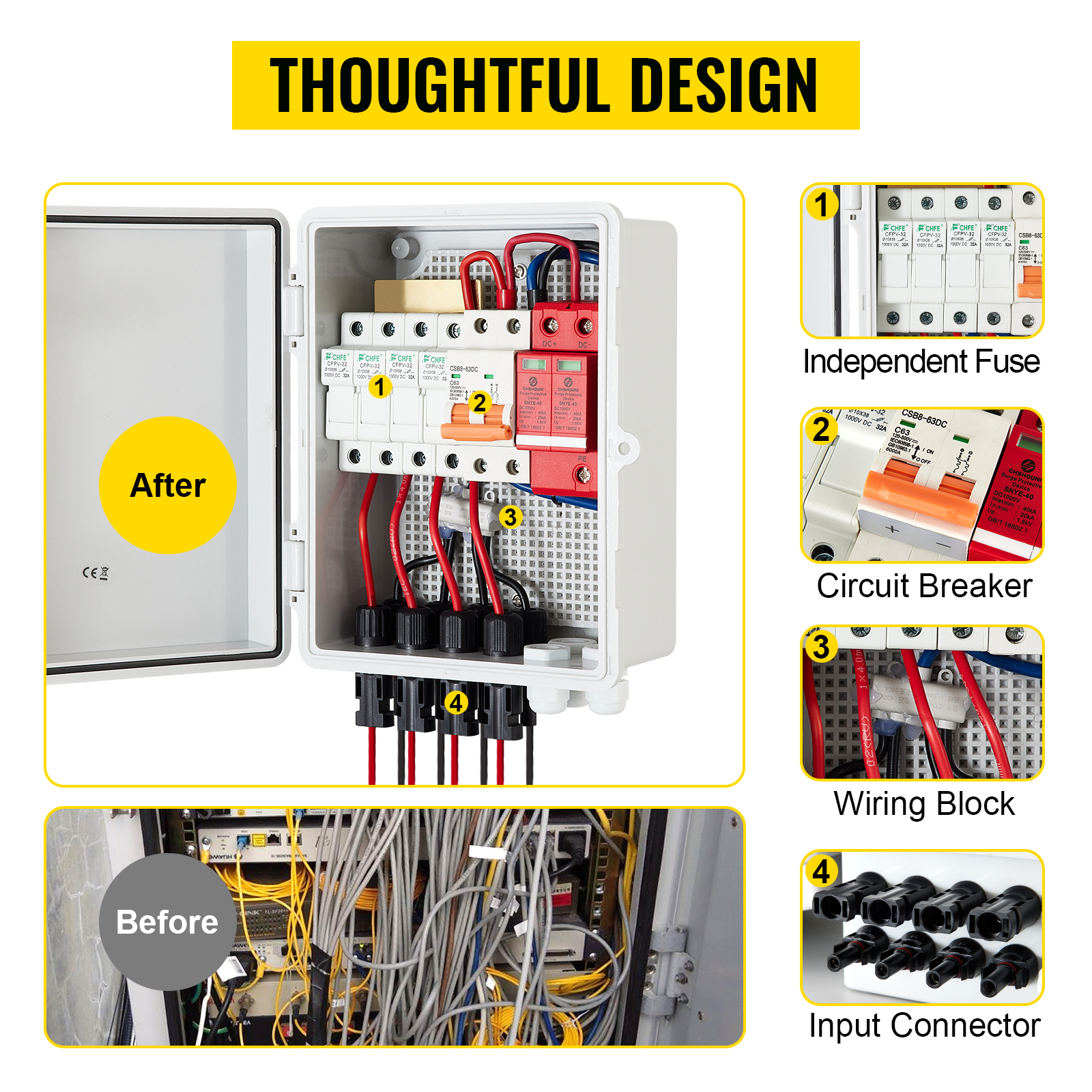

- Secure & Reliable Protection: The solar PV combiner box is equipped with 4 pcs 15A DC fuses, a high-voltage lightning arrester, and a 500V 63A air circuit breaker. It has short circuit/lightning surge/over-voltage/over-current protection/grounding protection to avoid damage to photovoltaic panels and inverters when fault occurs.

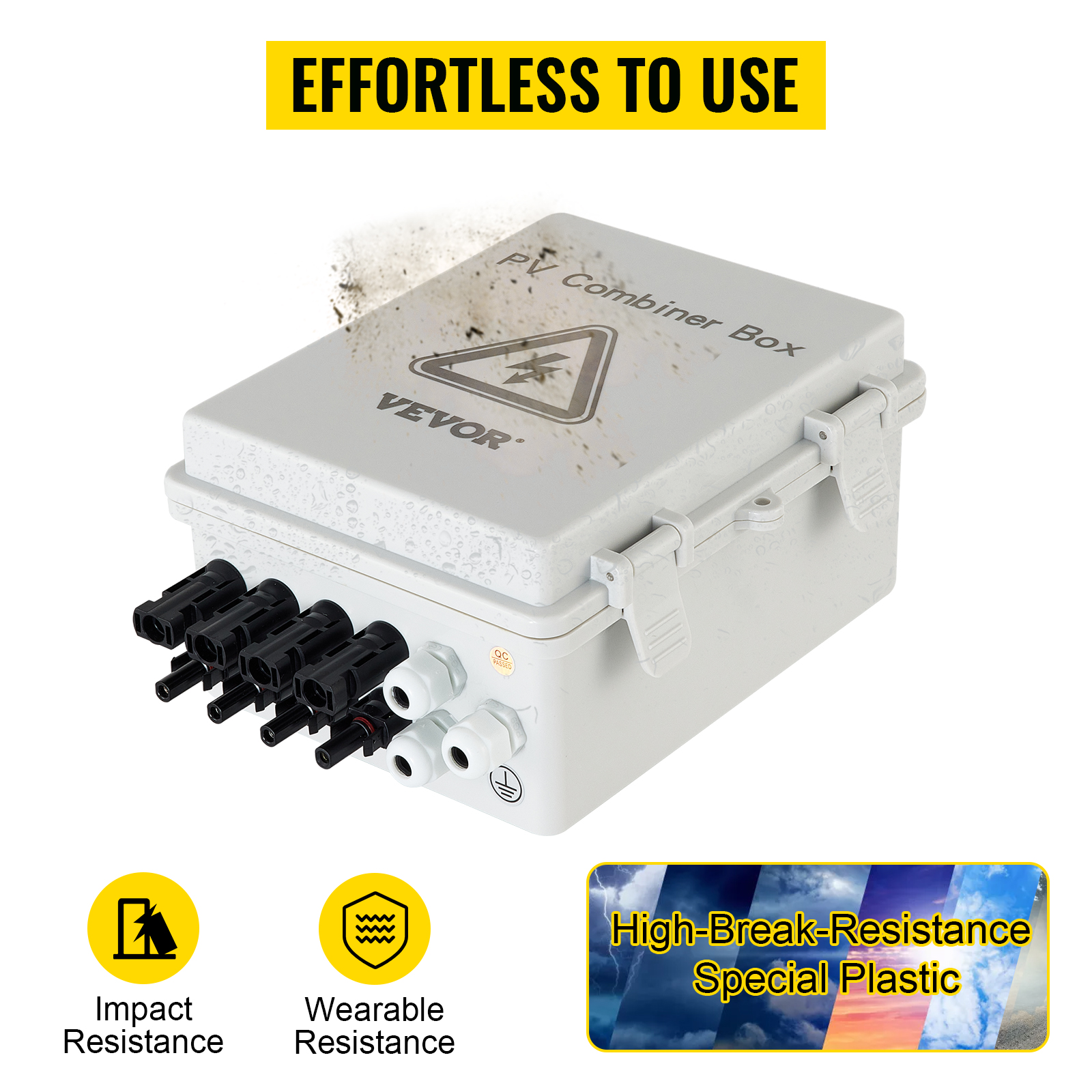

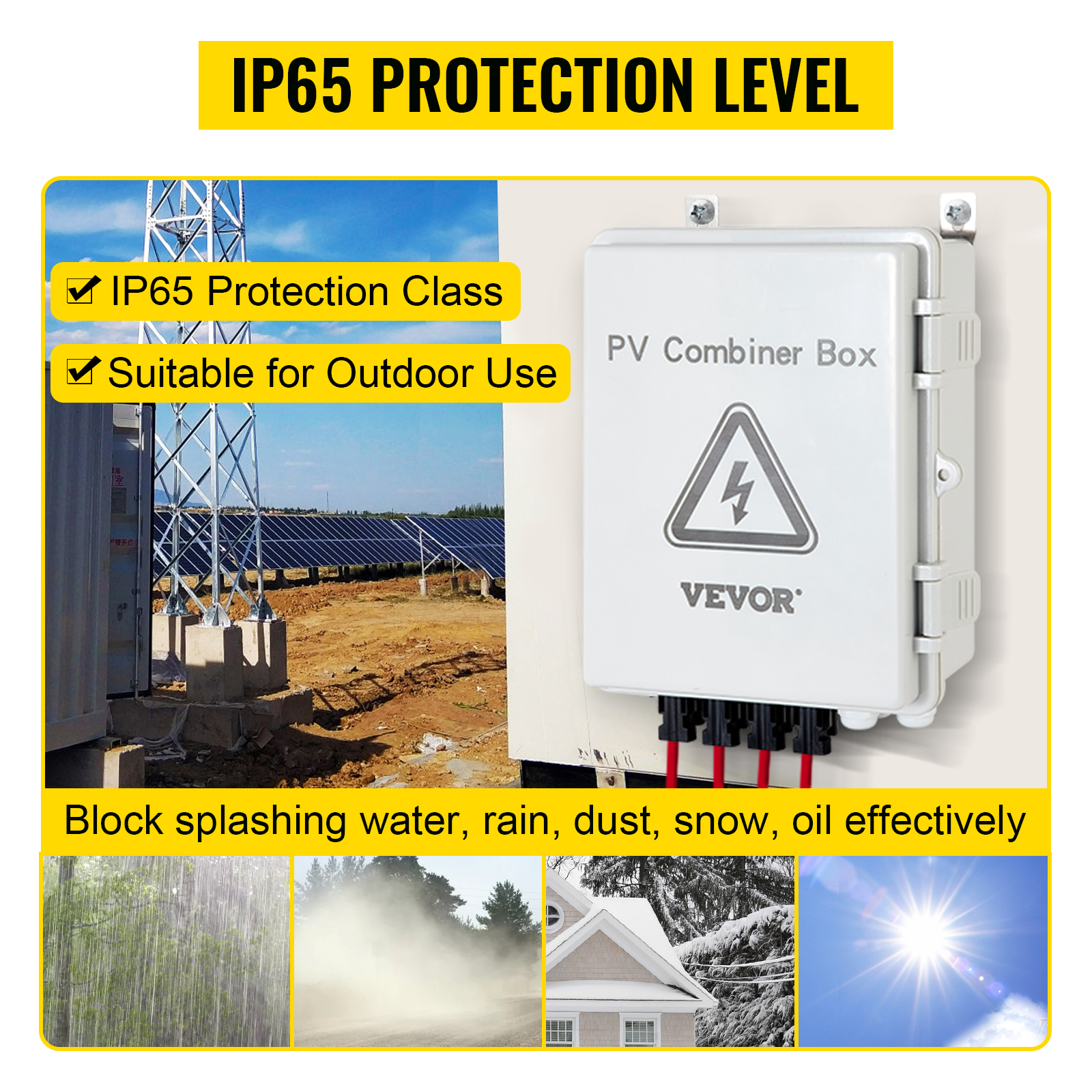

- IP65 Waterproof & ABS Shell: The IP65 design of the solar PV combiner shell is waterproof and dustproof, ensuring that frequent replacement is not needed. The sturdy shell is made of high-quality ABS plastic material, insulating, moisture-proof, and has no dripping. In addition, it has impact resistance and high break resistance, keeping your equipment well protected in harsh environments.
- Easy Installation & Wiring: A plug & play and pre-connected cable offers an easy solution for solar panel connection, saving at least 1-2 hours of wiring by hand. The box PV combiner can be mounted on any regular surface with provided mounting buckles, and no key is needed to open and close the box. Built-in with a ground wire connector, ground wire installation is also available. Compatible with any brand of solar panels with solar connectors.
- Extensive Application: The combiner box is a perfect device for outdoor installation and use. Suitable for photovoltaic on-grid/off-grid solar power generation systems, solar panel systems, PV array, RV solar power, home solar panel systems. It can support solar panel systems up to 720W in 12V system, 1440W in 24V system, 2880W in 48V system.
85,82 € Ar PVN 21%
52 in stock
VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse, 63A Circuit Breaker, Lightning Arreste and Solar Connector, for On / Off Grid Solar Panel System, IP65 Waterproof
M4I4K9HQ
G2415A63AIP654HIKV0

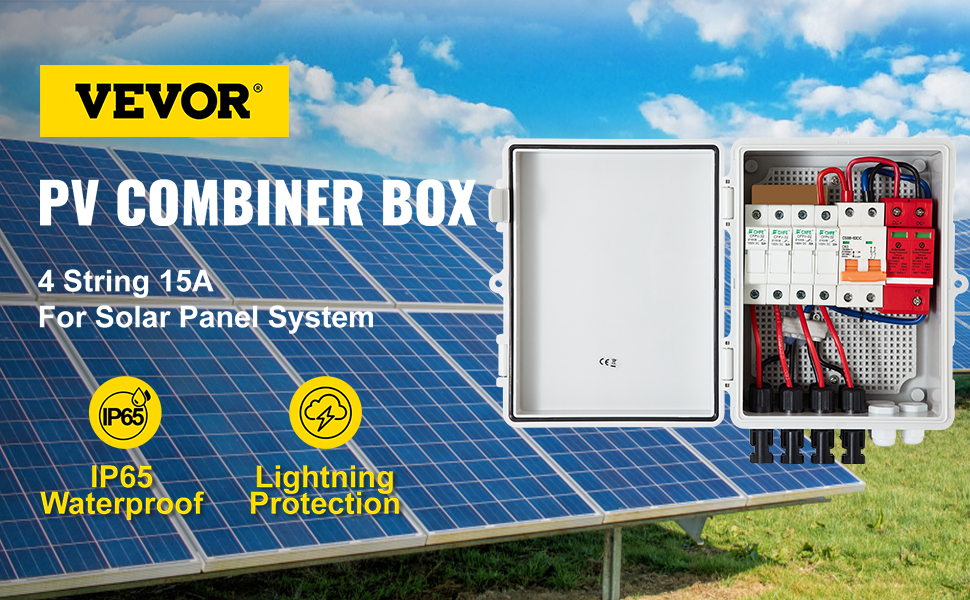

Enhance Your Solar Setup with Our PV Combiner Box
IP65 Protection Grade & Lightning Protection & Premium ABS Material
Looking to upgrade your solar system? Look no further! Our solar combiner box streamlines connections between solar panels and inverters for easy maintenance. With lightning protection, 15A DC fuses, a circuit breaker, it supports PV grid-tied/off-grid solar power systems and solar panel systems.
- Durability Meets Reliability
- IP65 Dust & Water Barrier
- 24/7 Lightning Protection
- Installation Made Easy
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service

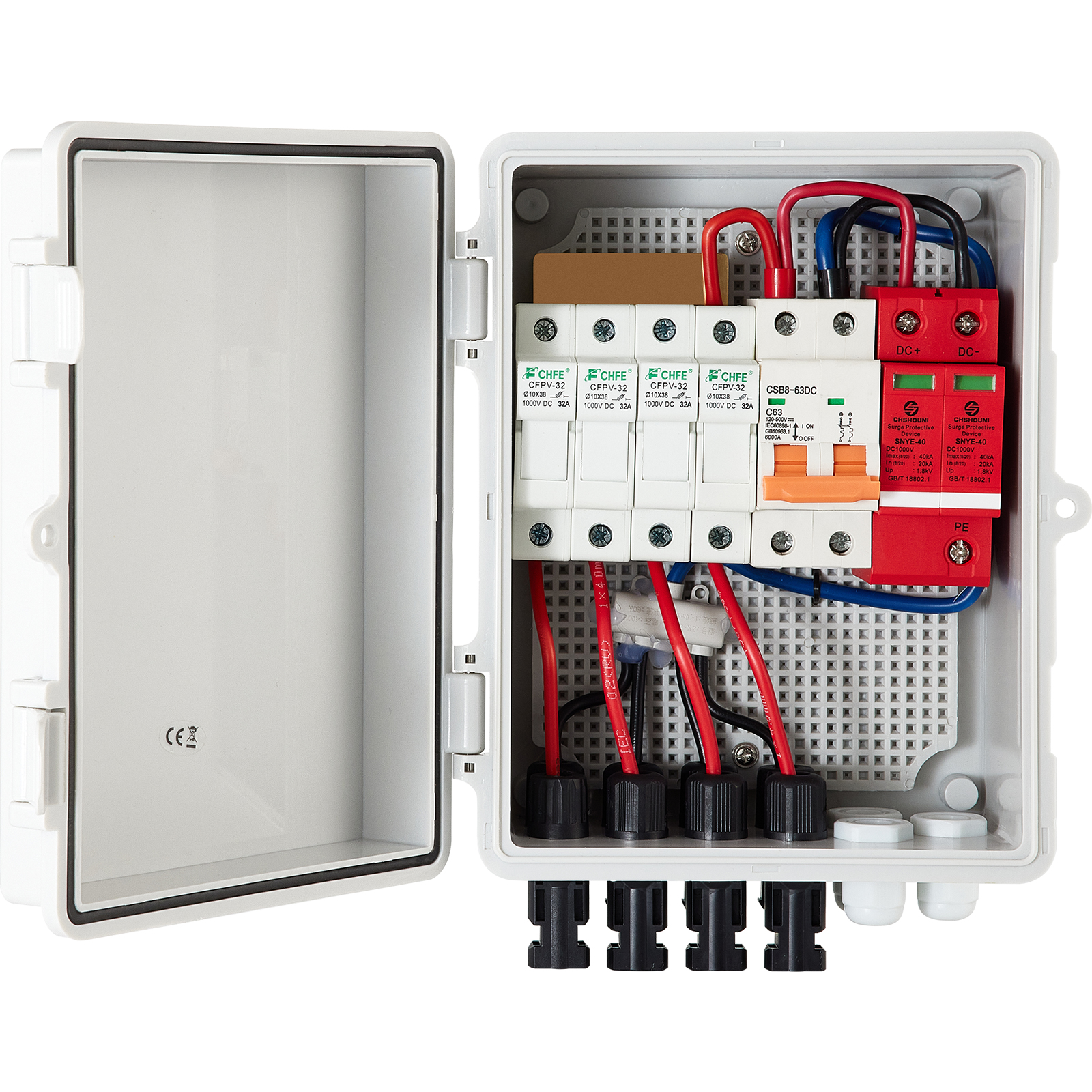

Professional PV Combiner Box
With four 15A DC fuses, lightning protection, and a 500V 63A circuit breaker, our PV combiner box is engineered to streamline connections between your solar array and inverters and optimize system structure.
Easy Opening & Closing
Our PV combiner box features a latch design for you to easily open and close the box without the need for keys. Say goodbye to the hassle of searching for keys and hello to seamless operation, ensuring quick and convenient access whenever needed.
Multiple Layers of Protection
With built-in safeguards, including short-circuit protection, lightning protection, overvoltage protection, overcurrent protection, and ground protection, our solar combiner box offers unparalleled peace of mind, making it the reliable choice for your solar setup.

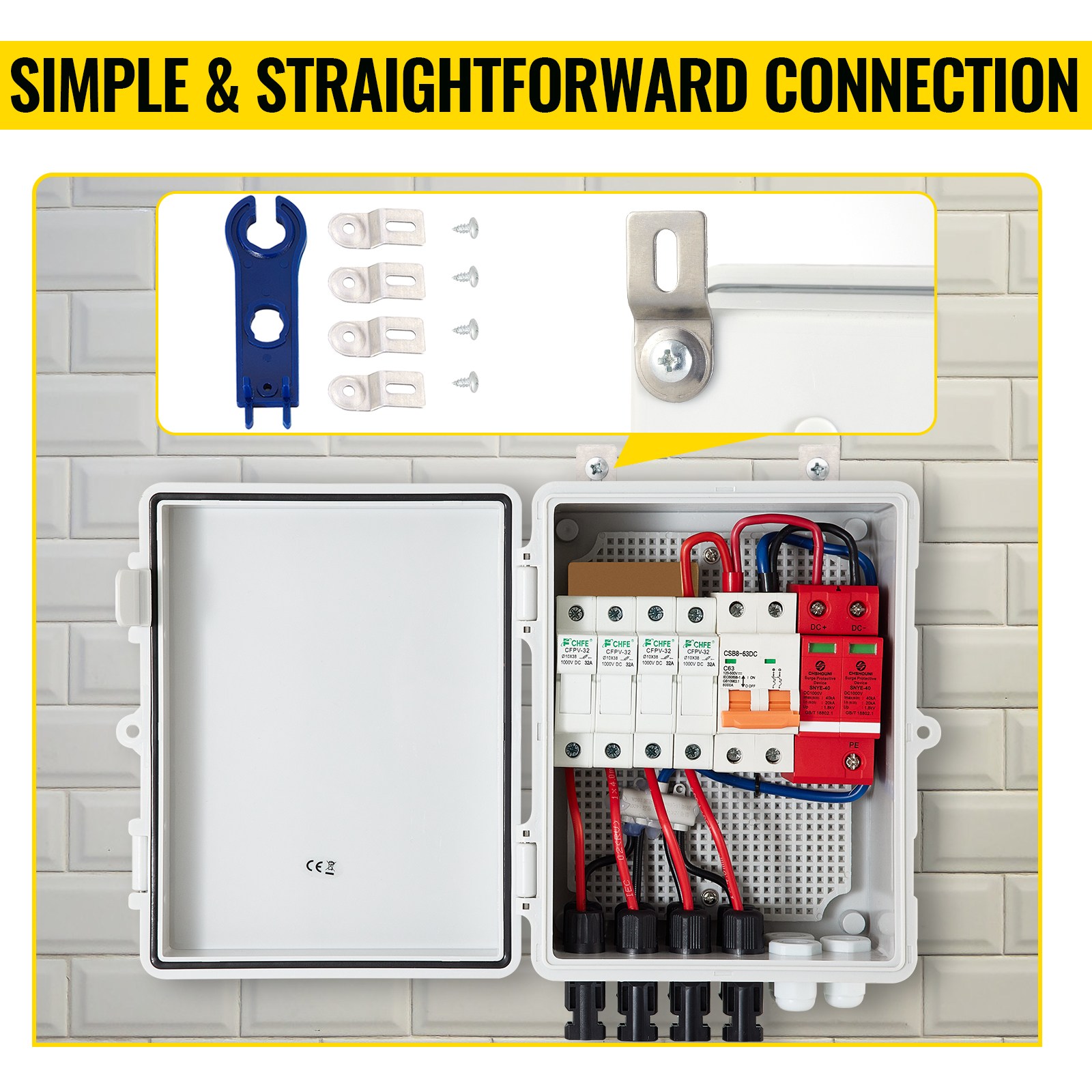

Effortless Installation
Our PV combiner box comes with a complete set of installation accessories, making it a breeze to assemble and integrate into your solar panel system, ensuring seamless connections and hassle-free setup. You can install it anywhere!

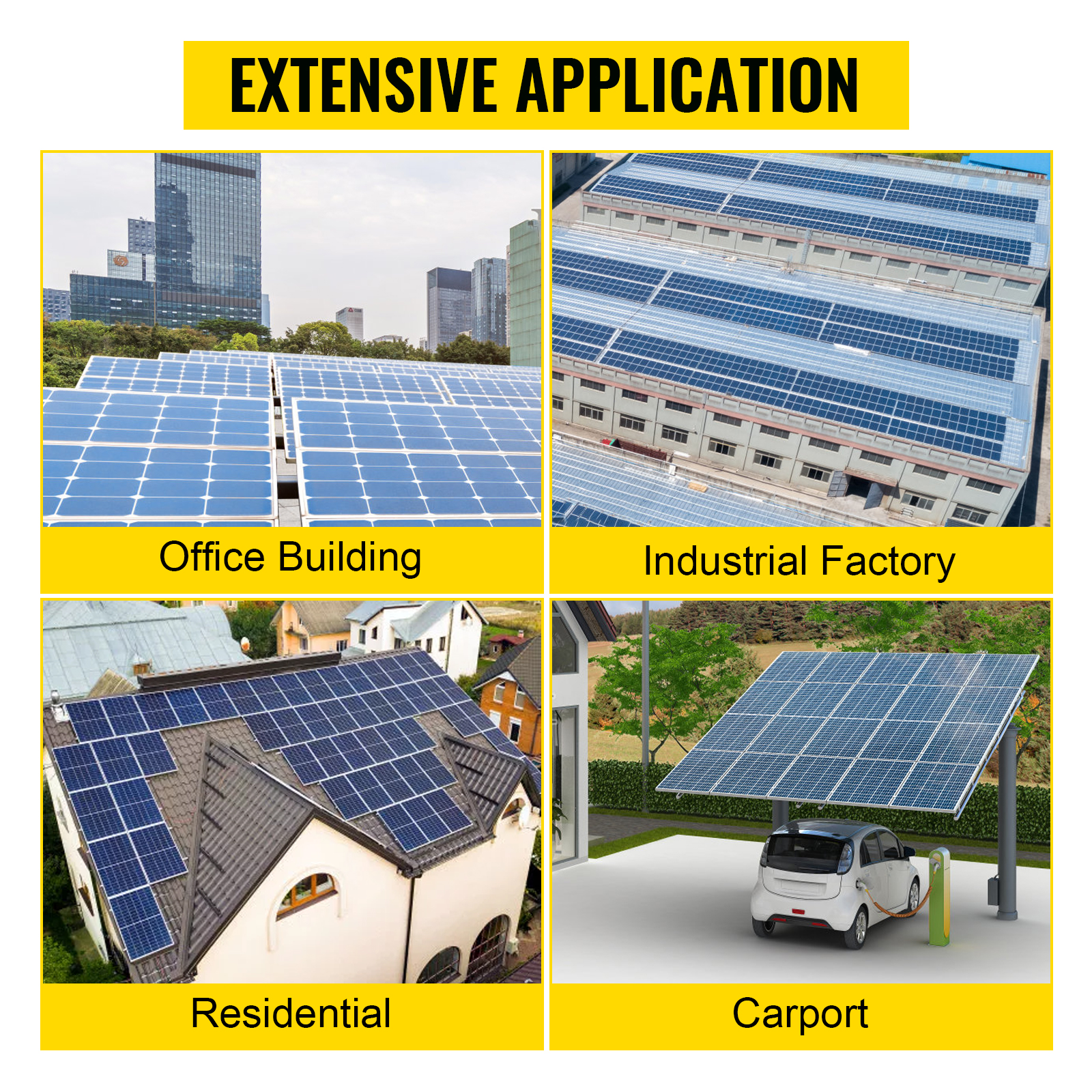

Wide Application
Whether it's for public facilities, engineering projects, residential use, industrial settings, or even recreational vehicles, our PV combiner box is the perfect fit. Trust in our PV combiner box to power up your solar projects across different fields!
Dual-Color Wire
Equipped with dual-color wiring in red and blue, our combiner box for solar panels ensures tidy and efficient connections. You can easily identify and connect the wires with confidence. Say goodbye to tangled and messy wiring!
Specifications
- Item Model Number: SP-HL-P202010-15A
- Number of Inputs: 4
- Number of Outputs: 1
- Rated Operating Voltage: DC 500V
- Fuse Holder Specification: DC 15A/500V
- Rated Current of Fuse: DC 15A
- Specification of Main Circuit Breaker: 63A 2P DC500V
- Surge Protector: 40KA 2P DC500V
- Protection Rating: IP65
- Door Opening Method: Latch Opening
- Mounting Plate: Detachable Mounting Plate(Material: ABS Mesh Plastic Base)
- Sealing Strip: PU Polyurethane Foam Material(Black)
- Main Material: ABS Plastic Material+RAL7035 Grey-White Finish
- Net Weight (including all accessories): 4.1 lbs / 1.86 kg
- Overall Product External Dimensions (L x W x H): 7.87 x 7.87 x 3.94 in / 200 x 200 x 100 mm

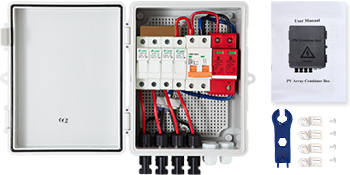

Package Content
- 4 x MCB Female Connectors with Red Wire (2.5 mm²)
- 4 x MCB Male Connectors with Blue Wire (2.5 mm²)
- 2 x PG13.5 Plastic Waterproof Glands
- 1 x PG9 Plastic Waterproof Gland
- 1 x MC4 Tool
- 4 x Cold Rolled Steel Wall Mounting Brackets
- 4 x Screws
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Enhance Your Solar Setup with Our PV Combiner Box
IP65 Protection Grade & Lightning Protection & Premium ABS Material
Looking to upgrade your solar system? Look no further! Our solar combiner box streamlines connections between solar panels and inverters for easy maintenance. With lightning protection, 15A DC fuses, a circuit breaker, it supports PV grid-tied/off-grid solar power systems and solar panel systems.
- Durability Meets Reliability
- IP65 Dust & Water Barrier
- 24/7 Lightning Protection
- Installation Made Easy
Professional PV Combiner Box
With four 15A DC fuses, lightning protection, and a 500V 63A circuit breaker, our PV combiner box is engineered to streamline connections between your solar array and inverters and optimize system structure.
Easy Opening & Closing
Our PV combiner box features a latch design for you to easily open and close the box without the need for keys. Say goodbye to the hassle of searching for keys and hello to seamless operation, ensuring quick and convenient access whenever needed.
Multiple Layers of Protection
With built-in safeguards, including short-circuit protection, lightning protection, overvoltage protection, overcurrent protection, and ground protection, our solar combiner box offers unparalleled peace of mind, making it the reliable choice for your solar setup.
Effortless Installation
Our PV combiner box comes with a complete set of installation accessories, making it a breeze to assemble and integrate into your solar panel system, ensuring seamless connections and hassle-free setup. You can install it anywhere!
Wide Application
Whether it's for public facilities, engineering projects, residential use, industrial settings, or even recreational vehicles, our PV combiner box is the perfect fit. Trust in our PV combiner box to power up your solar projects across different fields!
Dual-Color Wire
Equipped with dual-color wiring in red and blue, our combiner box for solar panels ensures tidy and efficient connections. You can easily identify and connect the wires with confidence. Say goodbye to tangled and messy wiring!
Package Content
- 4 x MCB Female Connectors with Red Wire (2.5 mm²)
- 4 x MCB Male Connectors with Blue Wire (2.5 mm²)
- 2 x PG13.5 Plastic Waterproof Glands
- 1 x PG9 Plastic Waterproof Gland
- 1 x MC4 Tool
- 4 x Cold Rolled Steel Wall Mounting Brackets
- 4 x Screws
Specifications
- Item Model Number: SP-HL-P202010-15A
- Number of Inputs: 4
- Number of Outputs: 1
- Rated Operating Voltage: DC 500V
- Fuse Holder Specification: DC 15A/500V
- Rated Current of Fuse: DC 15A
- Specification of Main Circuit Breaker: 63A 2P DC500V
- Surge Protector: 40KA 2P DC500V
- Protection Rating: IP65
- Door Opening Method: Latch Opening
- Mounting Plate: Detachable Mounting Plate(Material: ABS Mesh Plastic Base)
- Sealing Strip: PU Polyurethane Foam Material(Black)
- Main Material: ABS Plastic Material+RAL7035 Grey-White Finish
- Net Weight (including all accessories): 4.1 lbs / 1.86 kg
- Overall Product External Dimensions (L x W x H): 7.87 x 7.87 x 3.94 in / 200 x 200 x 100 mm
Specification
- Model
- SWHL-4
- Number Of Max. Connection PV Array
- 4
- Max. Input Current of Single PV Array
- 15A
- Total Input Current of PV Array
- 60A
- Max Input Voltage of Single PV Array
- 500V
- Max Output Voltage
- 500V
- Protection Grade
- IP65
- Operational Environment Temperature
- -30℃ to 70℃ / -22℉ to 158℉
- Relative Humidity
- 0-95%, No Condensation
- Cooling Method
- Natural Cooling
- Surge Lightning Protection
- Yes
- Surge Protective Device
- in
- SPD Indicate Light Status
- Green
- Air Circuit Breaker Parameter
- 500V, 63A; ON/OFF
- Fuse Parameter
- DC1000V, 15A, 10 x 38 mm / 0.39 x 1.5 in
- Fuse Holder Parameter
- DC1000V, 32A
- RV Solar System
- 720W in 12V System, 1440W in 24V System, 2880W in 48V System

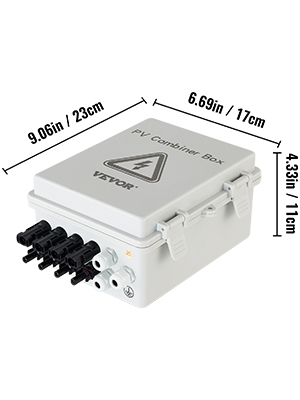

- Product Dimensions(L x W x H)
- 17 x 23 x 11 cm / 6.69 x 9.06 x 4.33 in
- Net Weight
- 1.8 kg / 3.9 lbs
- Manual EN
- Download Link
