VEVOR 0.75kW Electric Motor 1400 RPM 220–240V B3 Frame 19mm Shaft Reversible Single-Phase for Compressor & Machinery

  • Powerful Performance: 0.75KW, Single Phase, Full Load Current: 5.45A, AC 220~240V 50Hz, 1400 RPM High Speed, SF: 1.1.
  • Sturdy Frame Type: 80, B3 Frame, 19mm Keyed Shaft, Shaft length: 40mm, Keyway size: 6mm.
  • Dual Rotation Direction: Our electric motor offers reversible CW/CCW rotation, simplifying wiring installation and providing quick, versatile connections for various applications.
  • Durable and Safe: This air compressor motor features a heavy-duty rolled steel shell that resists rust and corrosion, ensuring a longer service life and reliable performance.
  • Wide Range of Applications: VEVOR general purpose motor is universally applicable, ideal for water pumps, agricultural machinery, and general equipment. It’s perfect for DIY projects and repair replacements, providing versatile and powerful functionality for various needs.

129,95 € Incl. VAT 21%

Only 2 left

PointsEarn 390 🌟 when you buy this product!
Produkto kodas: M4I4LUWD Kategorijas: , , , , , Brand:
VEVOR 0.75KW Electric Motor 1400 rpm, AC 220~240V 5.45A, 80, B3 Frame, Air Compressor Motor Single Phase, 19mm Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment
M4I4LUWD
TYJLIECDJ1406H7Z4V7
Power Up Fast: Revive Your Machine Now
Inject powerful performance into your equipment with the VEVOR 0.75KW electric motor. Operating at AC 220~240V voltage with 5.45A current, it features 1400 RPM high speed, 80, B3 frame, 40mm shaft length, 19mm keyed shaft, and CW/CCW dual rotation direction.
VEVOR 0.75KW electric motor boasts a high speed of 1400RPM, delivering powerful performance across various applications. Its robust power output ensures efficient operation, making it ideal for agricultural machinery and industrial equipment while saving energy and boosting productivity.

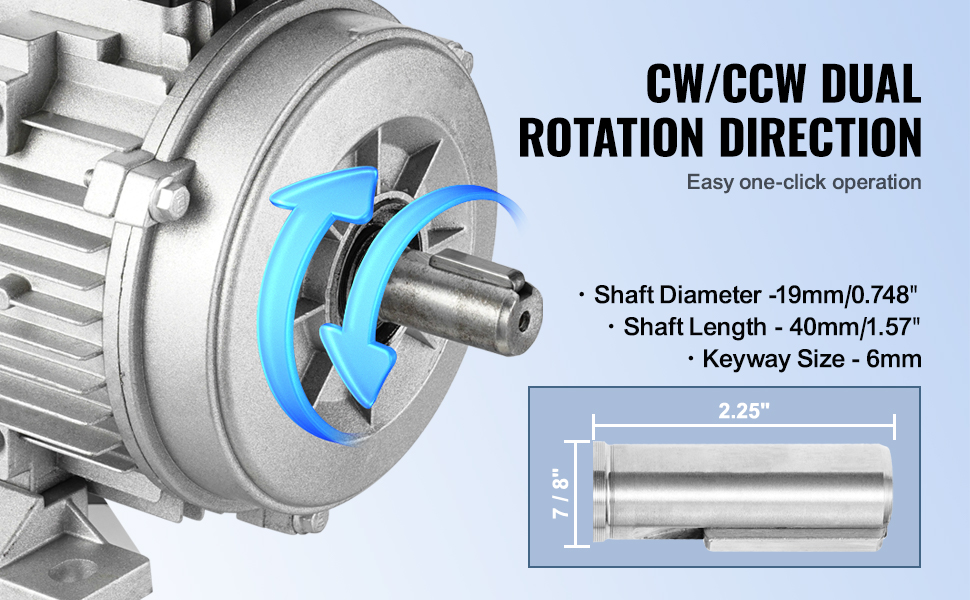

Featuring CW/CCW dual rotation direction, this air compressor motor is easy to install and user-friendly. With 19mm shaft diameter, 40mm shaft length, and 6mm keyway, it easily connects to diverse equipment, offering great versatility for different applications.

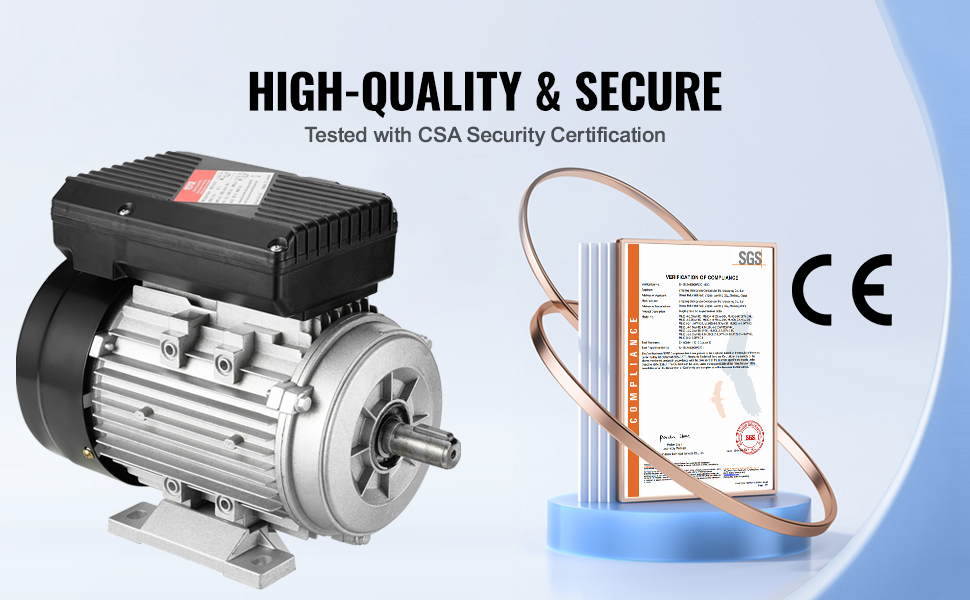

Constructed with a heavy-duty rolled steel shell, the general purpose motor is resistant to rust and corrosion, ensuring long-lasting durability.
Our general purpose AC motor is perfect for a wide range of applications, including water pumps, sprayers, harvesters, and grinders. Whether for agricultural or industrial use, this motor meets your needs and supports your projects with dependable performance.

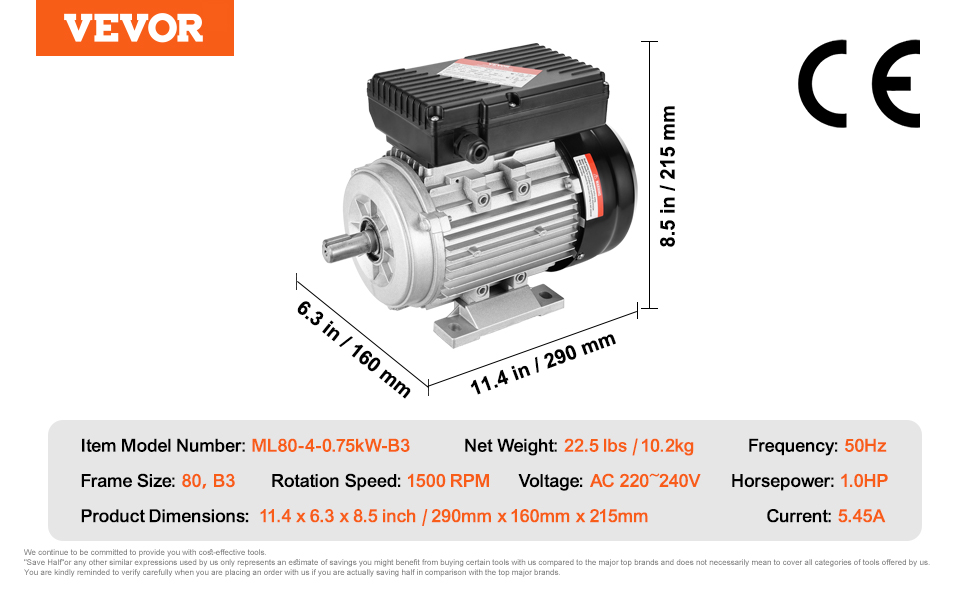

Product specification
Item Model Number
ML80-4-0.75kW-B3
Voltage
AC 220~240V
Frequency
50Hz
Power
0.75KW / 1HP
Current
5.45A
Frame Size
80, B3
Rotation Speed
1400 RPM
Net Weight
22.5 lbs / 10.2kg
Product Dimensions
11.4 x 6.3 x 8.5 in / 290 x 160 x 215 mm
Svars 10,85 кг
Dimensijas 37,50 × 22,50 × 29,50 см
Model

ML80-4-0.75kW-B3
Power

0.75 kW
Voltage

220~240 V
Frequency

50 Hz
Amperage

5.45 A
Rotation Speed

1400 RPM
Service Factor

1 .1
Shank Size

Single Phase
Frame Size

80, B3
Shank Diameter

19 mm
Shaft Length

40 mm
Keyway Size

6 mm
Rotation Direction

CW/CCW Reversible
Wheel Material

Heavy-Duty Rolled Steel
Weight

10.2 kg
Dimensions

290 x 160 x 215 mm
