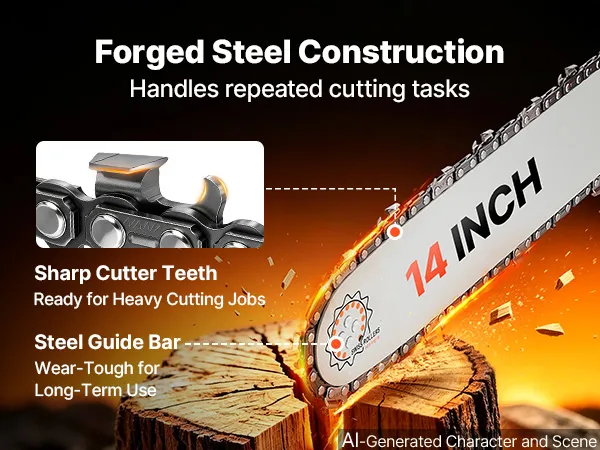

Q: What are the chain and guide bar specifications?
A: The guide bar is 14 inches long. The chain has 52 drive links and a 3/8-inch pitch.
Q: What should I do if the chainsaw does not start?
A: 1. Check the fuel mixture: use 92-octane gasoline and 2-stroke oil at 40:1; 2. Check the spark plug for fuel. If fuel is present, the engine may be flooded; follow the engine-flooding procedure; 3. Restart the chainsaw using the correct steps.
Q: What should I do if the engine is flooded?
A: 1. Detach the air filter and spark plug; 2. Open the choke; 3. Place the chainsaw upright; 4. Pull the starter rope 15–20 times to clear the remaining fuel; 5. Turn off the switch; 6. Reinstall the spark plug and air filter.

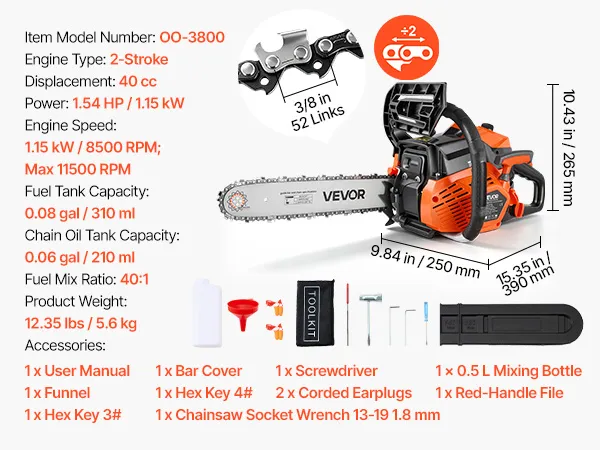

- Item Model Number
- OO-3800
- Engine Type
- 2-Stroke
- Displacement
- 40 cc
- Power
- 1.54 HP / 1.15 kW
- Engine Speed
- 1.15 kW / 8500 RPM; Max 11500 RPM
- Fuel Tank Capacity
- 0.08 gal / 310 ml
- Chain Oil Tank Capacity
- 0.06 gal / 210 ml
- Fuel Mix Ratio
- 40
- Product Weight
- 12.35 lbs / 5.6 kg
- Product Dimensions (Without Guide Bar)
- 15.35 x 9.84 x 10.43 in / 390 x 250 x 265 mm
- Guide Bar Size
- 14 in / 355.6 mm
- Chain Specs
- 3/8 in, 52 Links
