VEVOR 4L Single Acting 12V Hydraulic Power Unit with Metal Reservoir, 3.4 L/min Flow, 22 MPa Pressure for Dump Trailers & Lifting
VEVOR 4L Single Acting 12V Hydraulic Power Unit with Metal Reservoir, 3.4 L/min Flow, 22 MPa Pressure for Dump Trailers & Lifting - Image 2
VEVOR 4L Single Acting 12V Hydraulic Power Unit with Metal Reservoir, 3.4 L/min Flow, 22 MPa Pressure for Dump Trailers & Lifting - Image 3
VEVOR 4L Single Acting 12V Hydraulic Power Unit with Metal Reservoir, 3.4 L/min Flow, 22 MPa Pressure for Dump Trailers & Lifting - Image 4
VEVOR 4L Single Acting 12V Hydraulic Power Unit with Metal Reservoir, 3.4 L/min Flow, 22 MPa Pressure for Dump Trailers & Lifting - Image 5
VEVOR 4L Single Acting 12V Hydraulic Power Unit with Metal Reservoir, 3.4 L/min Flow, 22 MPa Pressure for Dump Trailers & Lifting - Image 6
VEVOR 4L Single Acting 12V Hydraulic Power Unit with Metal Reservoir, 3.4 L/min Flow, 22 MPa Pressure for Dump Trailers & Lifting - Image 7
VEVOR 4L Single Acting 12V Hydraulic Power Unit with Metal Reservoir, 3.4 L/min Flow, 22 MPa Pressure for Dump Trailers & Lifting - Image 8
VEVOR 4L Single Acting 12V Hydraulic Power Unit with Metal Reservoir, 3.4 L/min Flow, 22 MPa Pressure for Dump Trailers & Lifting - Image 9
VEVOR 4L Single Acting 12V Hydraulic Power Unit with Metal Reservoir, 3.4 L/min Flow, 22 MPa Pressure for Dump Trailers & Lifting - Image 10
VEVOR 4L Single Acting 12V Hydraulic Power Unit with Metal Reservoir, 3.4 L/min Flow, 22 MPa Pressure for Dump Trailers & Lifting - Image 11
VEVOR 4L Single Acting 12V Hydraulic Power Unit with Metal Reservoir, 3.4 L/min Flow, 22 MPa Pressure for Dump Trailers & Lifting - Image 12
Add to wishlist

VEVOR 4L Single Acting 12V Hydraulic Power Unit with Metal Reservoir, 3.4 L/min Flow, 22 MPa Pressure for Dump Trailers & Lifting

  • Power You Can Feel: This DC 12V, 1.6 kW hydraulic power unit moves 0.91 GPM with a 4-quart tank, 16–20 MPa working pressure, and up to 3,200 psi, so heavy-lift gear runs with steady, confident force
  • Faster Lifts, Smooth Drops: This single-acting hydraulic pump raises reliably and lowers by gravity. The built-in relief valve auto-vents over-pressure, so operation stays stable and fuss-free

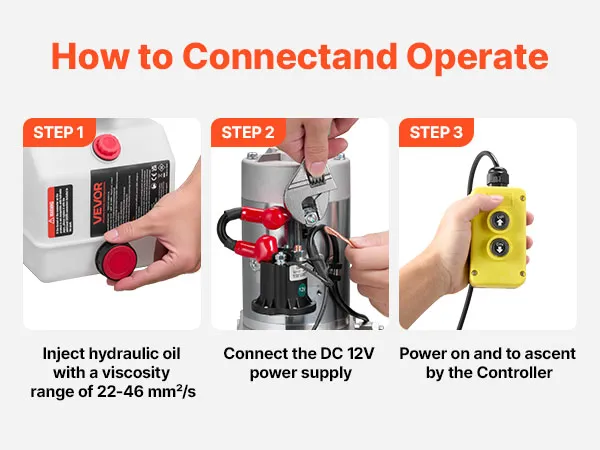

  • Easy to Install: This dump trailer pump arrives pre-assembled. You add hydraulic oil, connect power leads and hoses, and go. The SAE #6 fittings help you hook up standard hydraulic lines fast
  • Heavy-Duty & Reliable: This dump trailer hydraulic pump seals tight to resist leaks, and the durable plastic tank shrugs off daily bumps, so your hydraulic system stays tough and ready for long-term use
  • Built for Many Jobs: This electric hydraulic pump powers dump trailers, liftgates, scissor lifts, lift tables, small presses, and bucket conveyors, so you get versatile power for shop and jobsite

Первоначальная цена составляла 208,24 €.Текущая цена: 184,09 €. Incl. VAT 21%

Available for order

PointsEarn 553 🌟 when you buy this product!
Produkto kodas: MKWNUW2F Kategorijas: , ,
Product QR code
VEVOR 4 L Hydraulic Power Unit, Single Acting Dump Trailer Pump, 22 MPa Max Relief Pressure & 3.4 L/min Flow Rate, DC 12V Hydraulic Pump with Metal Reservoir for Dump Trailer Car Lifting
MKWNUW2F
12VDZYSLYXCZXPBUL001V9
High-Power Hydraulic Power Unit
This hydraulic power unit uses a 1.6 kW motor at 2,600 RPM to deliver 16–20 MPa working pressure and up to 22 MPa (3,200 psi). You drive cylinders with confident, high-performance lifting and steady output for demanding jobs.
The large reservoir of the dump trailer pump teams with a robust pump to kick off quickly and run smooth up/down cycles. You cut stalls, trim wait times, and keep daily operations flowing with consistent hydraulic power.

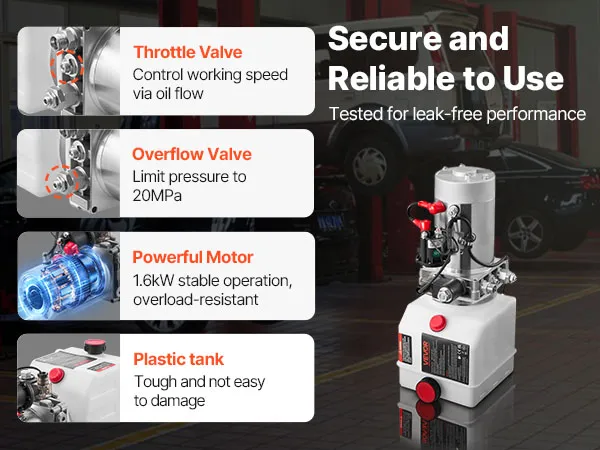

Provide you with reliable hydraulic pump, built-in relief valve and throttle valve, so that the operation is more secure, fuel tank is not easy to damage oil leakage.
Please note that continuous long-term operation is not recommended. When used in an S3 working system, our hydraulic pump motor operates in cycles: 30s on, 270s off, and 180s max continuous working time. For extended operation, there's an intermittent 360s continuous working time.
This dump trailer hydraulic pump helps pro mechanics and auto shops handle jobs fast. It supports dump trailers, stackers, scissor lifts, lift tables, material handling gear, and many other compatible lifting platforms for versatile shop use.

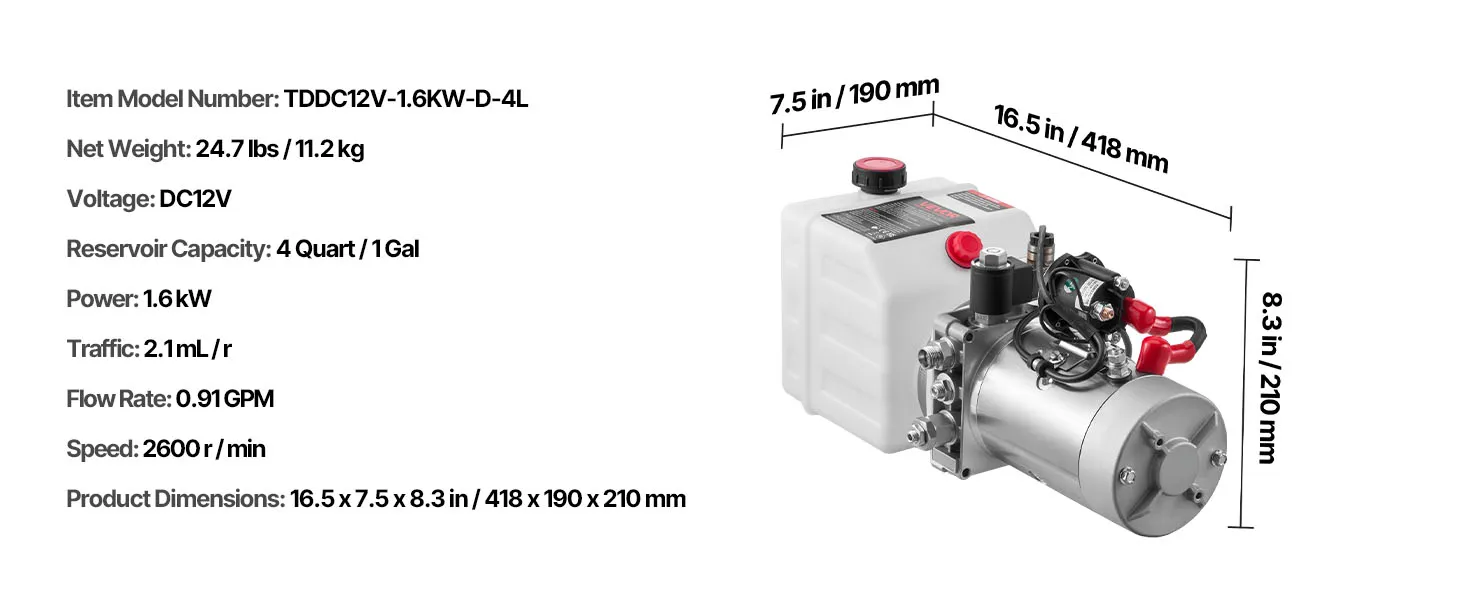

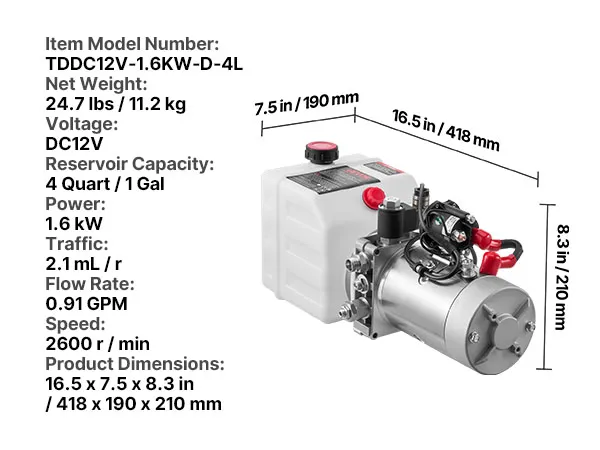

Product specification
Item Model Number
TDDC12V-1.6KW-D-4L
Voltage
DC12V
Function
Single Acting
Reservoir Capacity
4 Quart/1 Gal
Power
1.6 kW
Flow Rate
0.91 GPM(3.4 L/min)
Speed
2600 r/min
Traffic
2.1 mL/r
Net Weight
24.7 lbs/11.2 kg (Include all accessories)
Product Dimensions
16.5 x 7.5 x 8.3 in/418 x 190 x 210 mm
Svars 12,4 кг
Dimensijas 48,5 × 27,5 × 27 см
Model

TDDC12V-1.6KW-D-4L
Voltage

12 V DC
Functions

Single Acting
Reservoir Capacity

3.79 L
Power

1.6 kW
Flow Rate

0.91 GPM
Speed

2600 r/min
Displacement

2.1 mL/r
Working Pressure

16–20 MPa
Max Relief Pressure

22 MPa
Weight

11.2 kg
Dimensions

418 x 190 x 210 mm
Reservoir Material

Metal
Fitting Type

SAE #6
Max Continuous Working Time

180 s
Duty Cycle

30 s on / 270s off
