VEVOR CH-70 Hydraulic Hole Puncher, 35T Force, 4 Dies (10.5-20.5 mm), for Metal Plates, Requires Hydraulic Pump

353,34 € Ar PVN 21%

Excellent Punching: Punching force: 35T/350KN; Depth of throat: 4.3″/109 mm. The punch dies are made of high carbon tungsten steel and not easy to wear off. The max thickness of iron plate: 1/10″ to 2/5″ (3-10 mm), the max thickness of copper/aluminum bar: 1/10″ to 1/2″ (3-12.7 mm), the max thickness of stainless steel: 1/10″ to 3/10″ (3-8 mm).
4 Pairs of Dies: The hydraulic puncher comes with four pairs of punching dies of 3/8″(ф10.5 mm), 1/2″(ф13.8 mm), 5/8″(ф17.5 mm), 3/4″(ф20.5 mm). Different dies are designed for precise hole punching. It also features accurate positioning without offset.
Durable Steel Structure: This hydraulic hole punching tool features high strength and good toughness with premium alloy steel construction. And the heavy-duty metal hole punch tool needs to connect with a hydraulic pump to get ideal performance(The pump is not included). The plastic cap protects the punching tool from dust.
Compact Size & Portable: our hole puncher with compact size is space-saving. A thickened and rubberized handle, increasing the friction, gives you a comfortable and anti-slip using experience. It is suitable for long-lasting use.
Wide Application: The split hole puncher is widely applied in punching metal plates, including iron, aluminum, copper, stainless steel, etc. It is popular in the electricity industry, construction, etc.

Will be available at the supplier's warehouse within 3-4 weeks.

Not available locally

Available on backorder, longer delivery

Add to quote

SKU: M4I4JWI6 Categories: Hand Tools, Hydraulic Knockout Punch, Punching Tools Brand: VEVOR

Apraksts
Papildu informācija

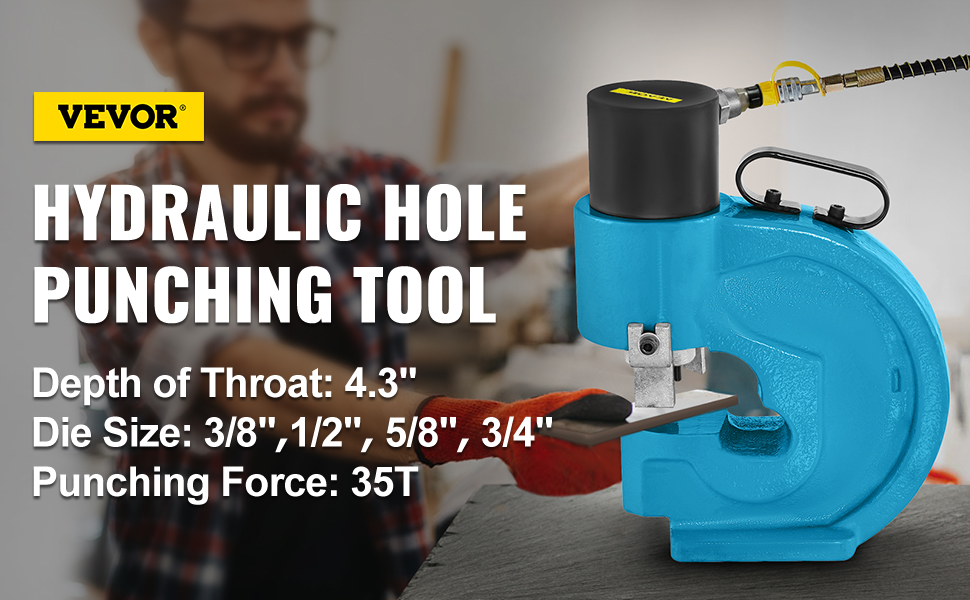

VEVOR hydraulic hole punching tool, 35t force, 4.3" throat, multiple die sizes.

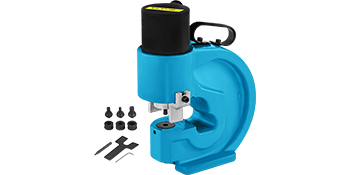

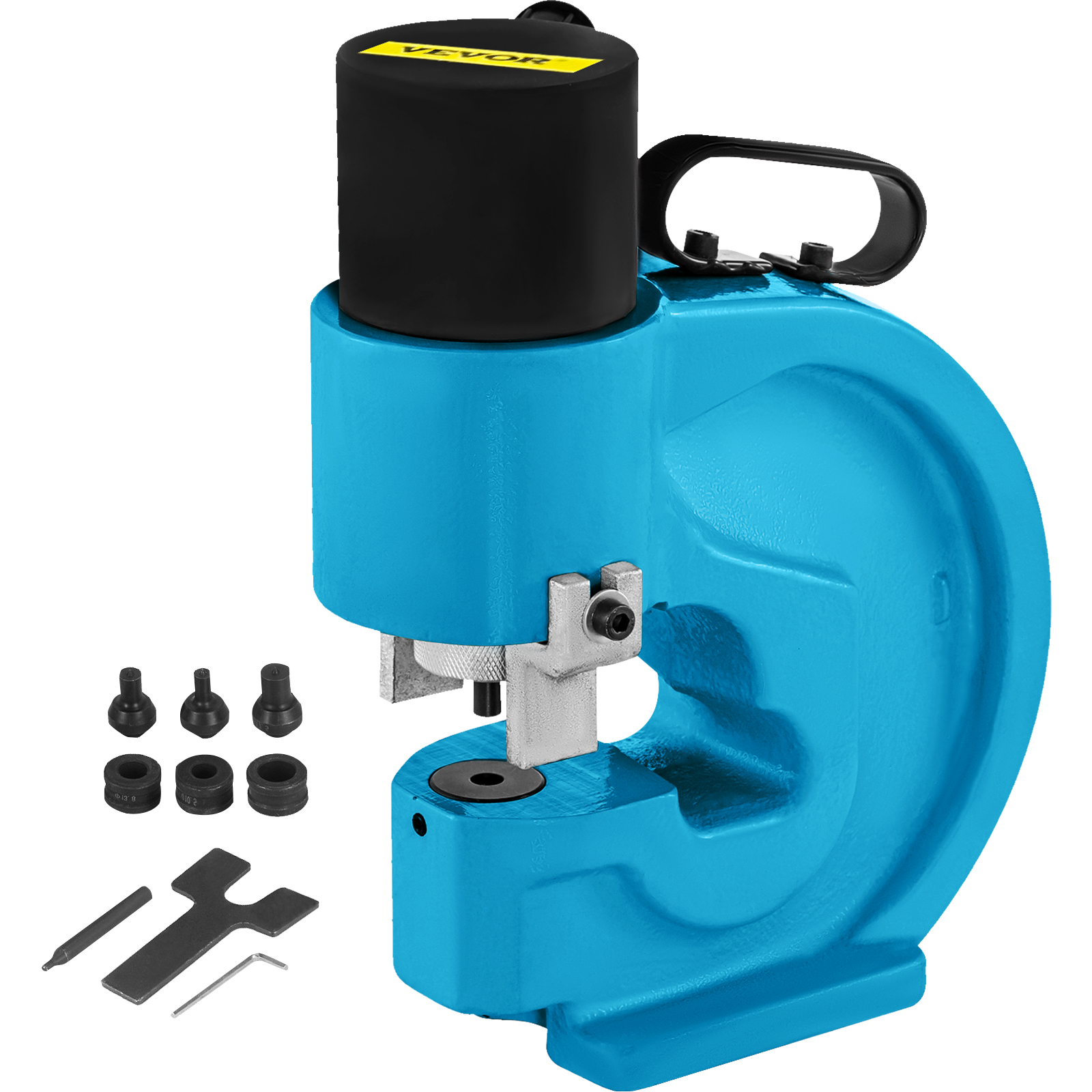

VEVOR hydraulic hole punching tool with accessories, featuring blue and black design.

CH-70 Hydraulic Hole Puncher

4 Pairs of Dies & 1/2" Capacity & 4.3" Throat Depth

There is a superior CH-70 hydraulic hole puncher. It is used to punch metal plates, such as copper, aluminum, iron, and steel, perfect for L and H style flat copper, busbarthe in the electricity industry, construction, etc. A great punching force of 35T/350KN allows you to get easy work done. It is durable and solid with high hardness and strength.

Excellent Punching
4 Pairs of Dies
Durable Steel Structure
Compact Size & Portable

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service

Why Choose VEVOR?

Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service

VEVOR hydraulic hole punching tool with 1/2" capacity and 350kn (35t) punching force.

Max 1/2" Punching Capacity

This hydraulic punch is suitable for an iron plate with a thickness of 1/10" to 2/5" (3-10 mm), copper/aluminum plates with a thickness of 1/10" to 1/2" (3-12.7 mm), stainless steel with a thickness of 1/10" to 3/10" (3-8 mm). Punching Force: 35T/350KN.

4.3" Depth of Throat

This hydraulic punch-down installation tool features a deep throat for convenient operation and excellent punching. A throat depth of 4.3"/109 mm allows you to put a wide plate in.

Puncher Aperture

Our hydraulic hole punching tool could punch a hole of 3/8"(ф10.5 mm), 1/2"(ф13.8 mm), 5/8"(ф17.5 mm), 3/4"(ф20.5 mm). These punch dies are made of high carbon tungsten steel and are not easy to wear off.

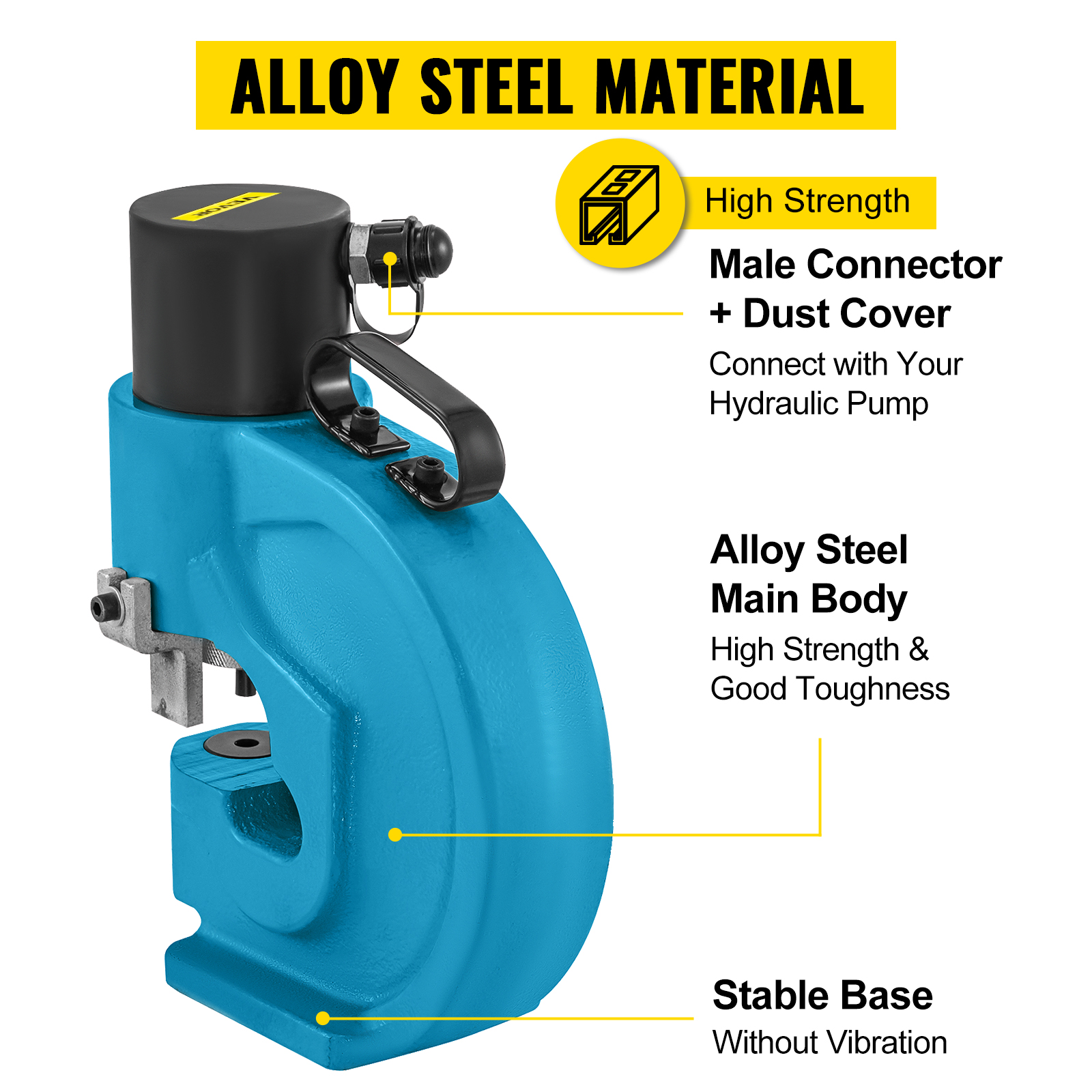

VEVOR hydraulic hole punching tool with alloy steel body, stable base, and dust cover.

Alloy Steel Material

This knockout punch set is made of premium alloy steel with high strength and excellent toughness. It has a flat and sturdy base, ensuring not easy to fall. The male connector is designed to connect with your hydraulic pump (prepare by yourself).

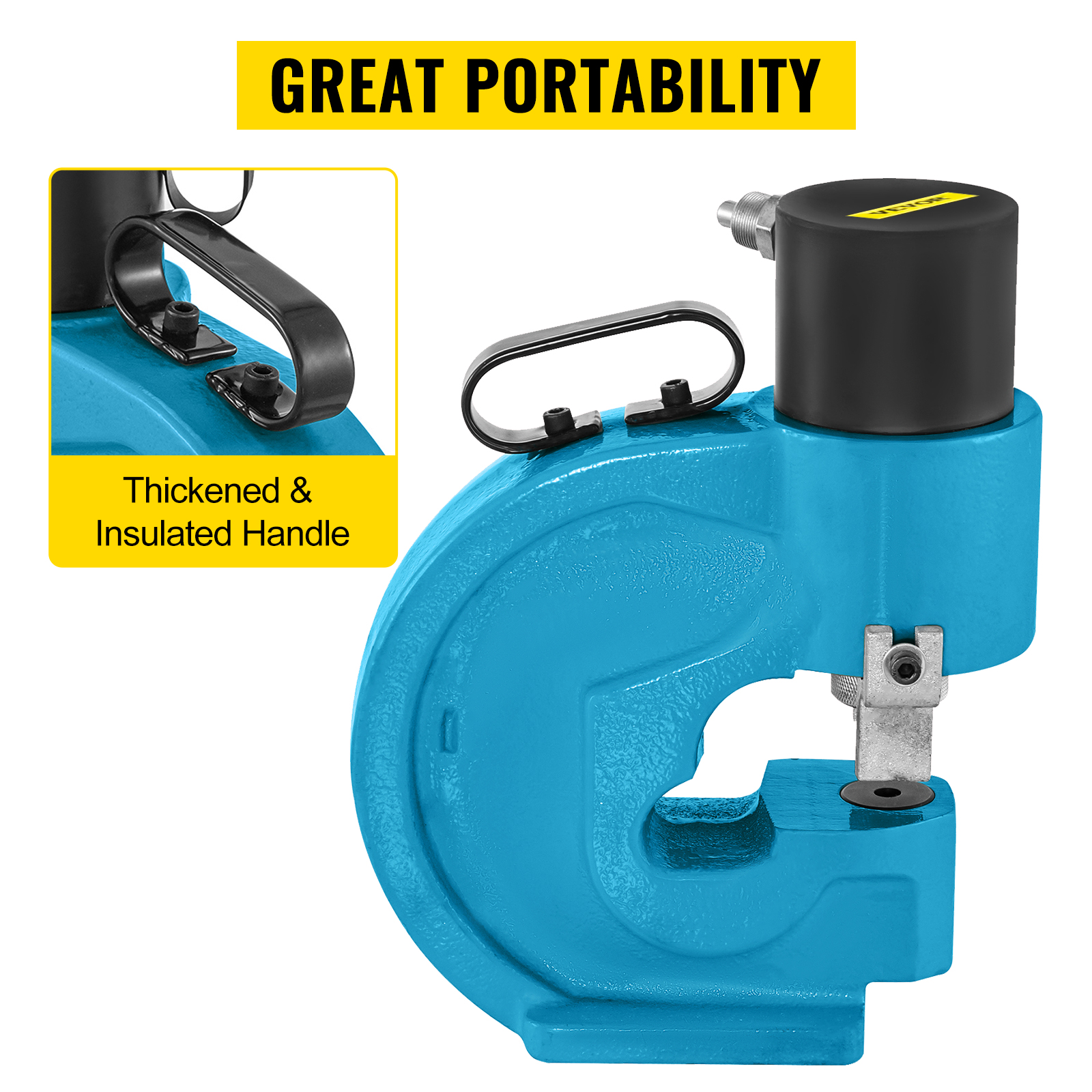

Great Portability

The thickened and insulated handle gives you a comfortable and secure user experience, suitable for long-lasting use. It makes the tool easy to carry.

VEVOR hydraulic hole punching tool usage: power construction, bridge building, decoration, fencing.

For Various Scenarios

This hole punching tool can be applied to L and H style flat copper, busbar, etc. It is commonly used in the electricity industry, construction, and bridge construction, indoor decoration.

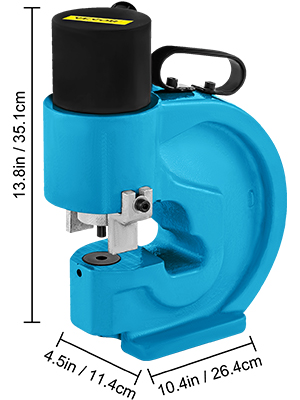

blue VEVOR hydraulic hole punching tool with dimensions labeled.

Specifications

Punching force:350KN(35T)
Depth of throat: 4.3"(110 mm)
Aperture(4 pairs): 3/8"(ф10.5 mm), 1/2"(ф13.8 mm), 5/8"(ф17.5 mm), 3/4"(ф20.5 mm)
Max. Thickness of iron plate: 3-10 mm (1/10 to 2/5 inch)
Max. Thickness of copper bar: 3-12 mm (1/10 to 1/2 inch)
Max. Thickness of aluminum: 3-12 mm (1/10 to 1/2 inch)
Max. Thickness of stainless steel: 3-8 mm (1/10 to 3/10 inch)
