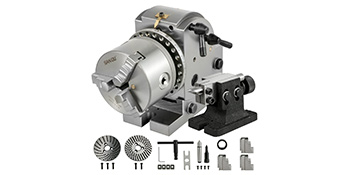

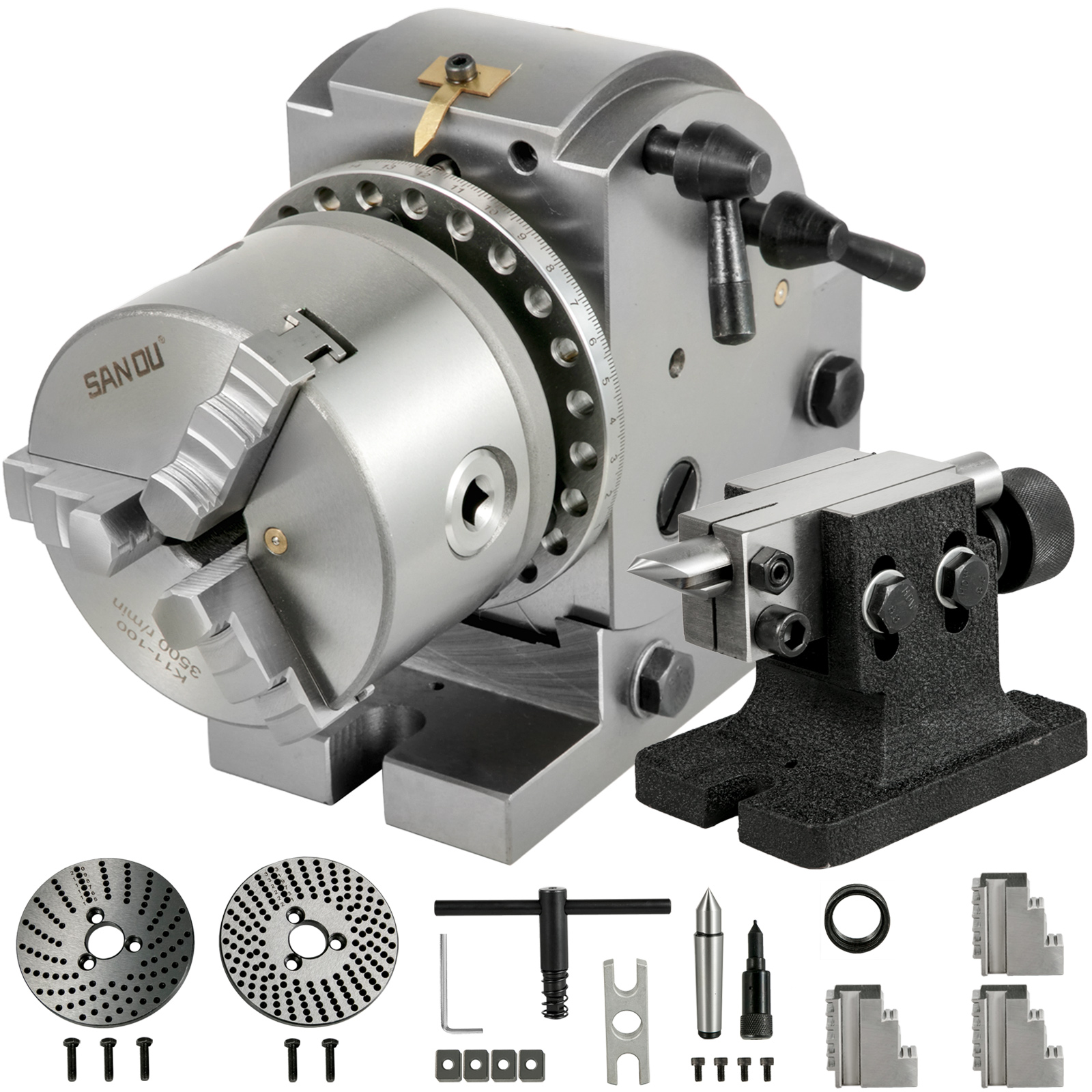

VEVOR 100mm Semi Universal Dividing Head Set with 3 Jaw Chuck

Index Plates Tailstock for Milling Precision Rotary Table

VEVOR 100mm Semi-Universal Dividing Head Set with 3-Jaw Chuck, Index Plates & Tailstock for Milling & Precision Rotary Table

Saņem no 21.03. līdz 27.03.

304,55 € Ar PVN 21%

【ADJUSTABLE DIVIDING HEAD】- The semi-universal dividing head features 4″ 3-jaw chuck, Spindle Hole Diameter: 18mm. The headstock is adjustable from the horizontal position to 90 degrees upward. Center Height: 4″/100mm. Free 3 more jaws for 4″ chuck.
【SOLID CONSTRUCTION】- Made from HT200 to be a long life. The rigid frame provides high accuracy with little backlash for a smooth rotation. Reduction Ratio: 1:40.
【CLEAR & ACCURATE】- Laser engraving scales. The quick-dividing holes can complete 2, 3, 4, 6, 8, 12, 24 division indexing. One circle for 360 degrees, one scale stands for 1 degree.
【MT2 TAILSTOCK ADJUSTABLE】- Huge live center for heavy-duty workpieces. Ball-bearing precision; turns smoothly. Tailstock: MT3. One free dead center.
【RICH DIVIDING HEAD SET】- 3 dividing head index plates are attached along with the dividing head for indirect dividing in any division indexing 2-50, 51-380 except prime numbers and certain other numbers.

Not available locally

66 in stock at the supplier's warehouse (5-7)w.d.

Add to quote

SKU: M4I4JZ6G Categories: Dividing Head, Machining, Milling & Drilling Accessories Brand: VEVOR

Apraksts
Papildu informācija

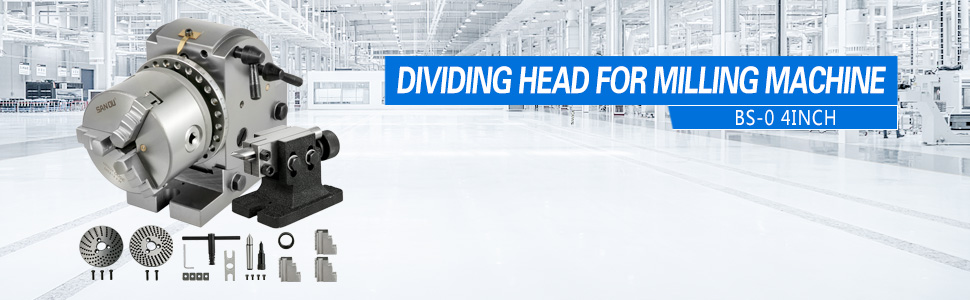

4''/100MM Dividing Head for Milling Machine

Semi-Universal Dividing Head is a simple Index Center and can be used for direct and indirect dividing. Complete the gear, face, flute processing and no need accessories, the same construction as universal type. With rotary indexer, the 24 quick-dividing holes can complete 2,3,4,6,8,12,24 division indexding.

Adjustable Angle
Solid Construction
Clear & Accurate
MT2 Tailstock Adjustable
Rich Dividing Head Set

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service

Why Choose VEVOR?

Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service

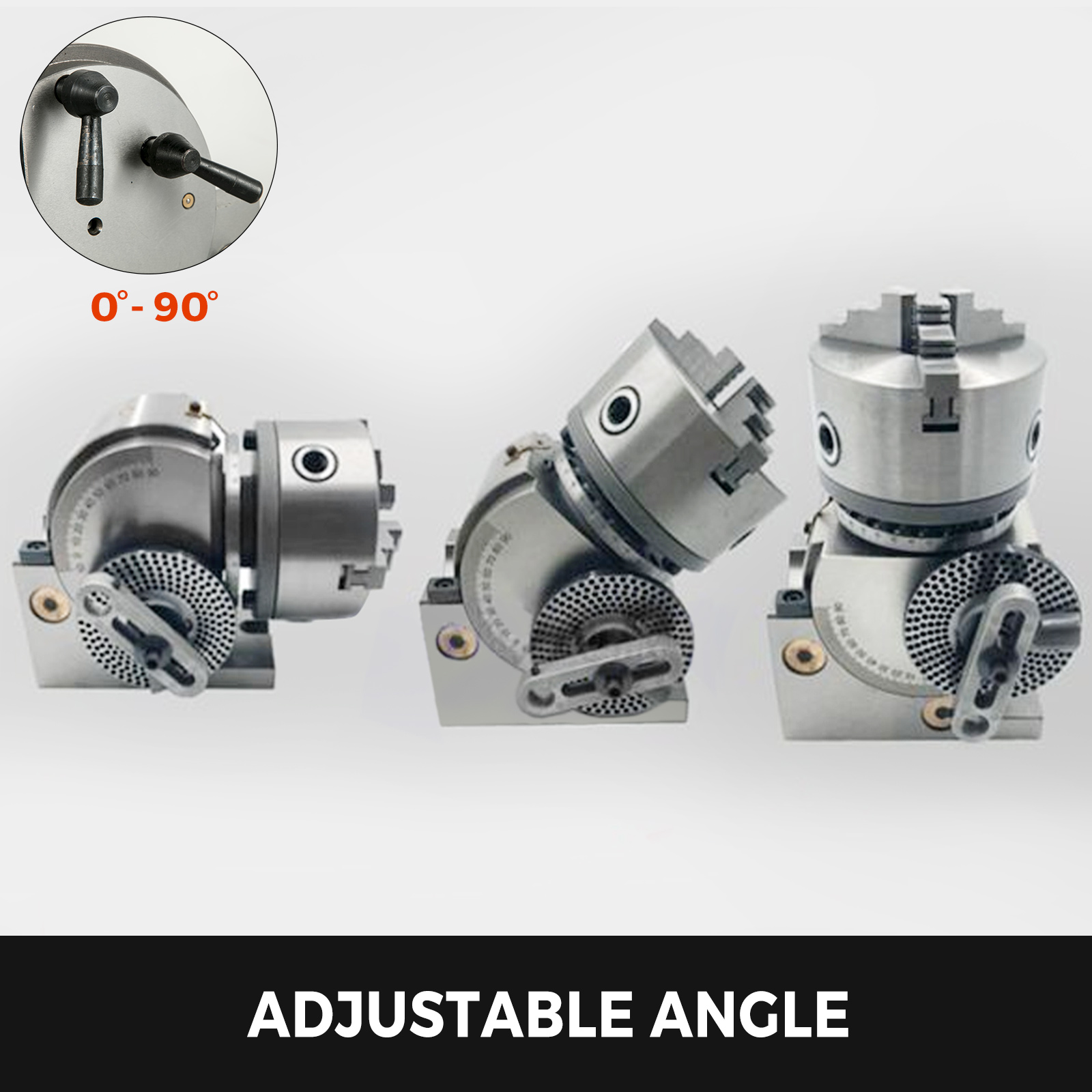

Adjustable Angle

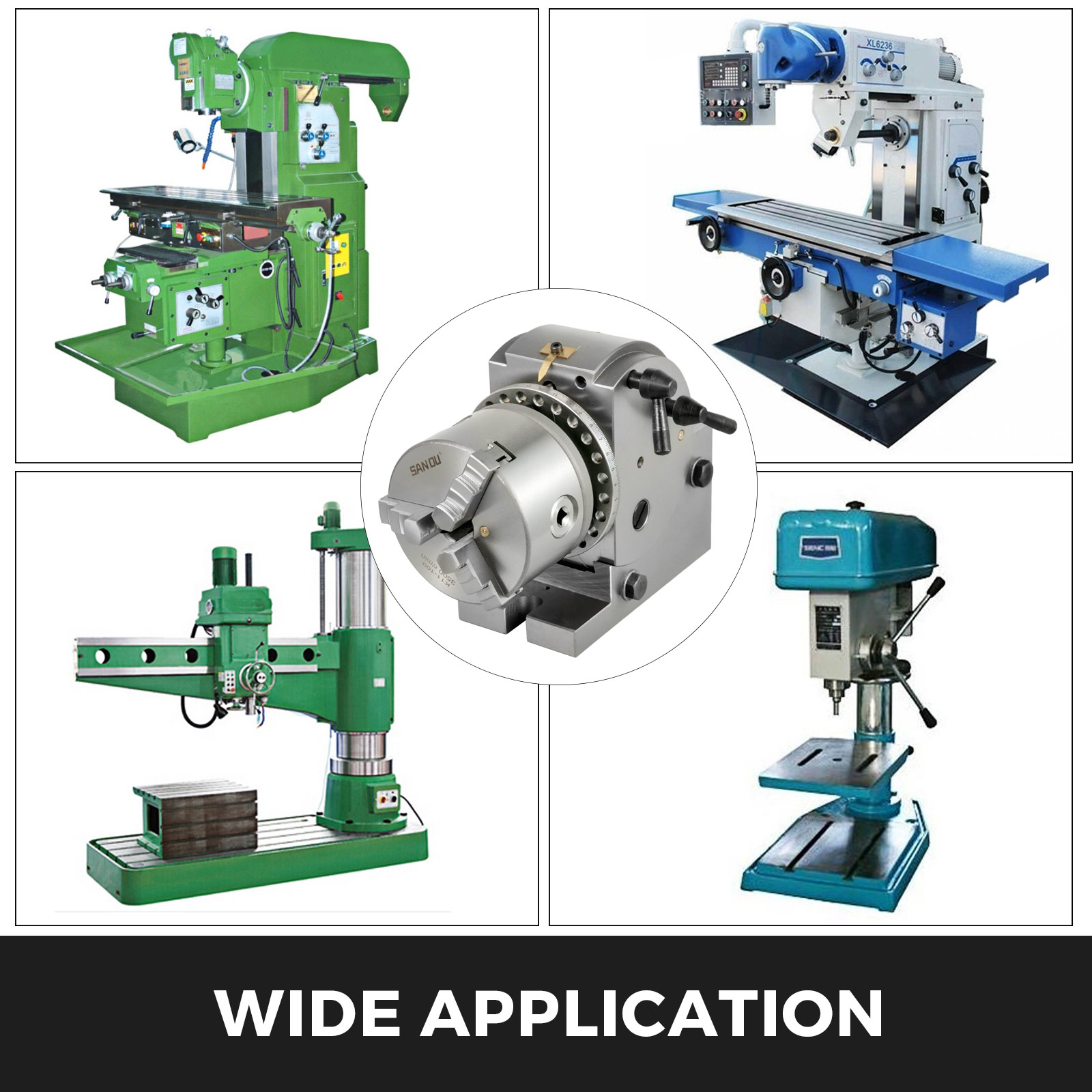

You can adjust the different angle(0-90 degrees)as you need with the handle, Vertical & horizontal milling machine with headstock chuck for a lathe. Center Height: 4"/100mm.

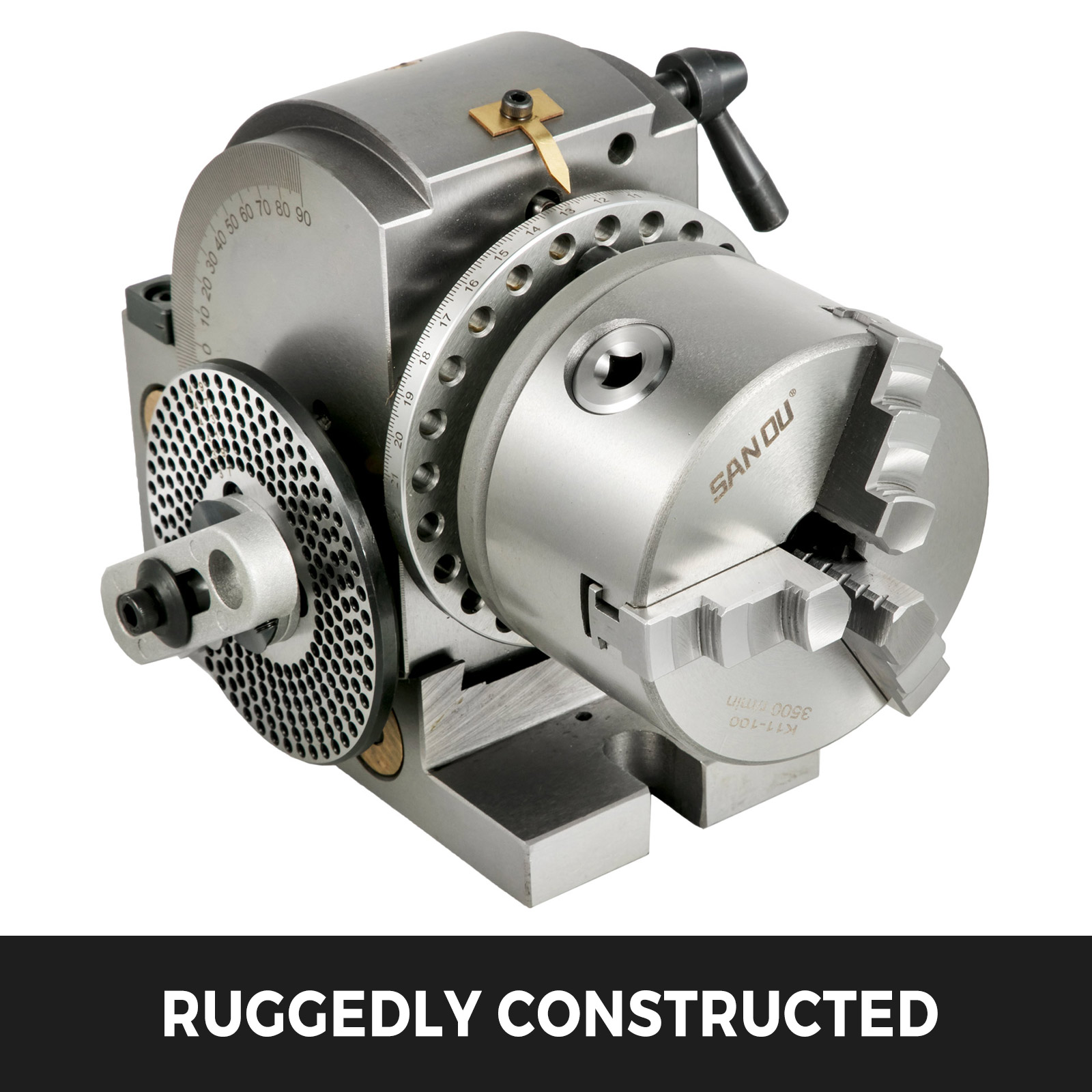

Ruggedly Constructed

Ruggedly constructed hardened and ground worm gear. Designed for long service time. Reduction Ratio: 1:40.

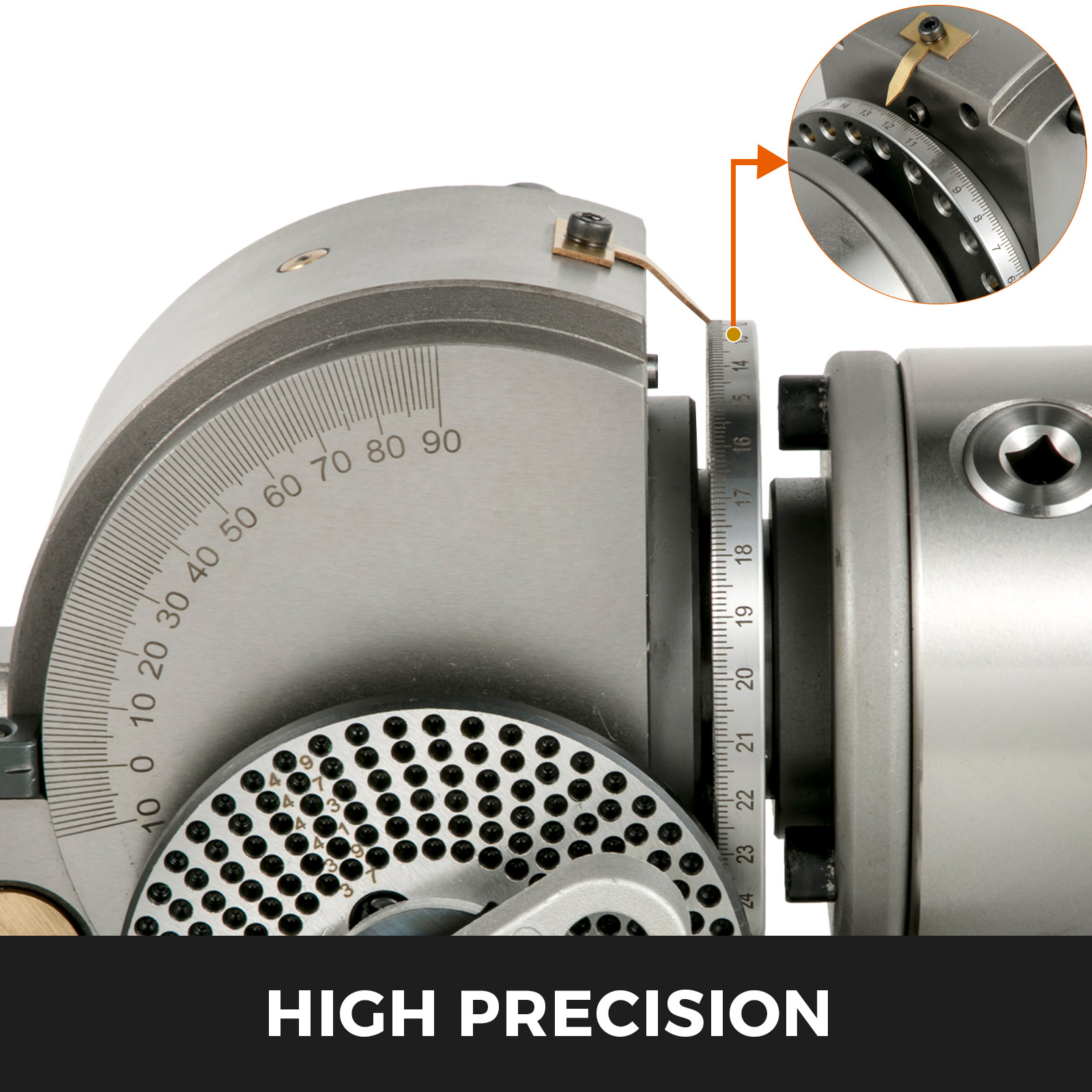

High Precision

Designed with a rotary table and indexing chuck, two dials with precise scales help you to adjust the angle more accurate.

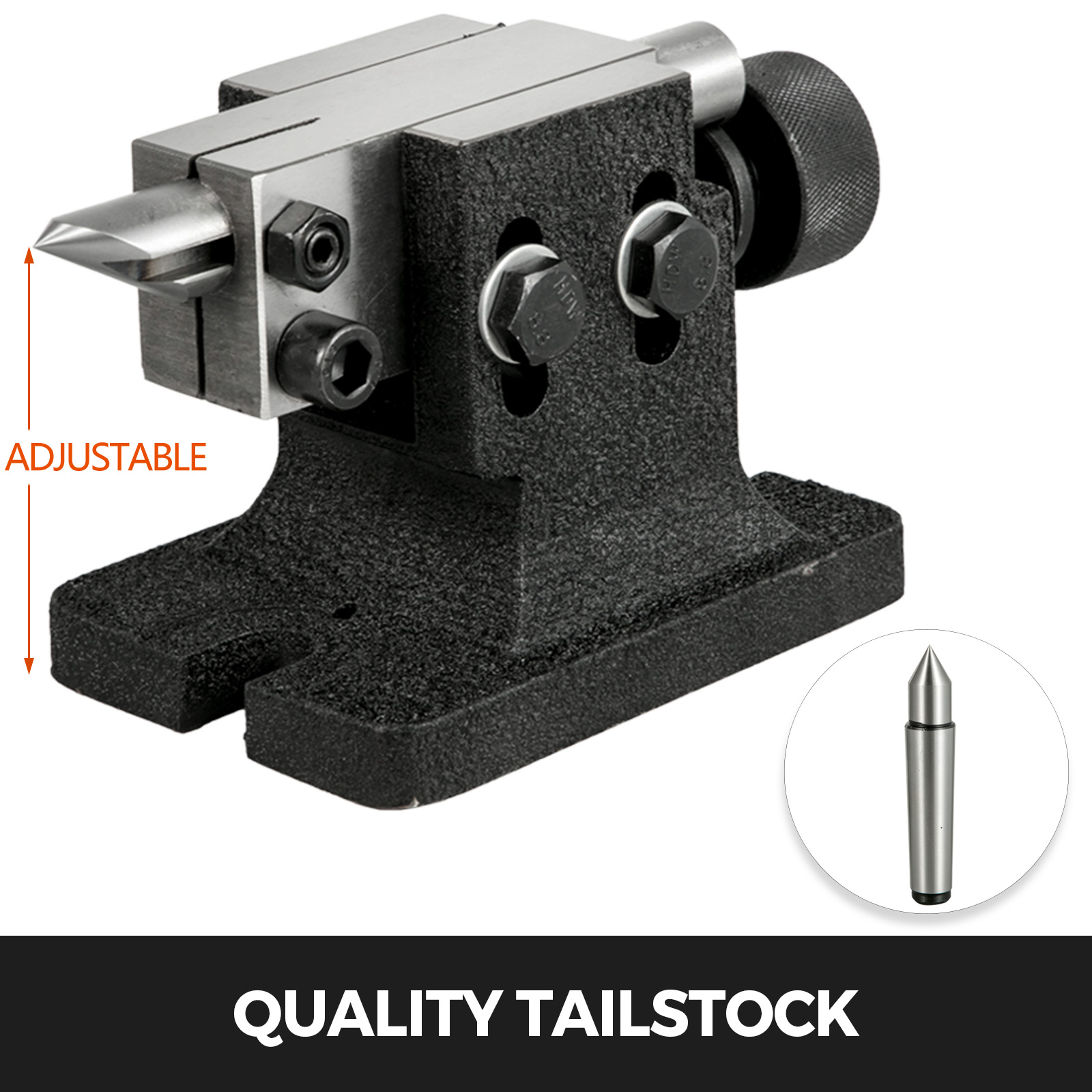

Quality Tailstock

MT2 tailstockBall bearing precision, smooth turning. One more dead center for free.

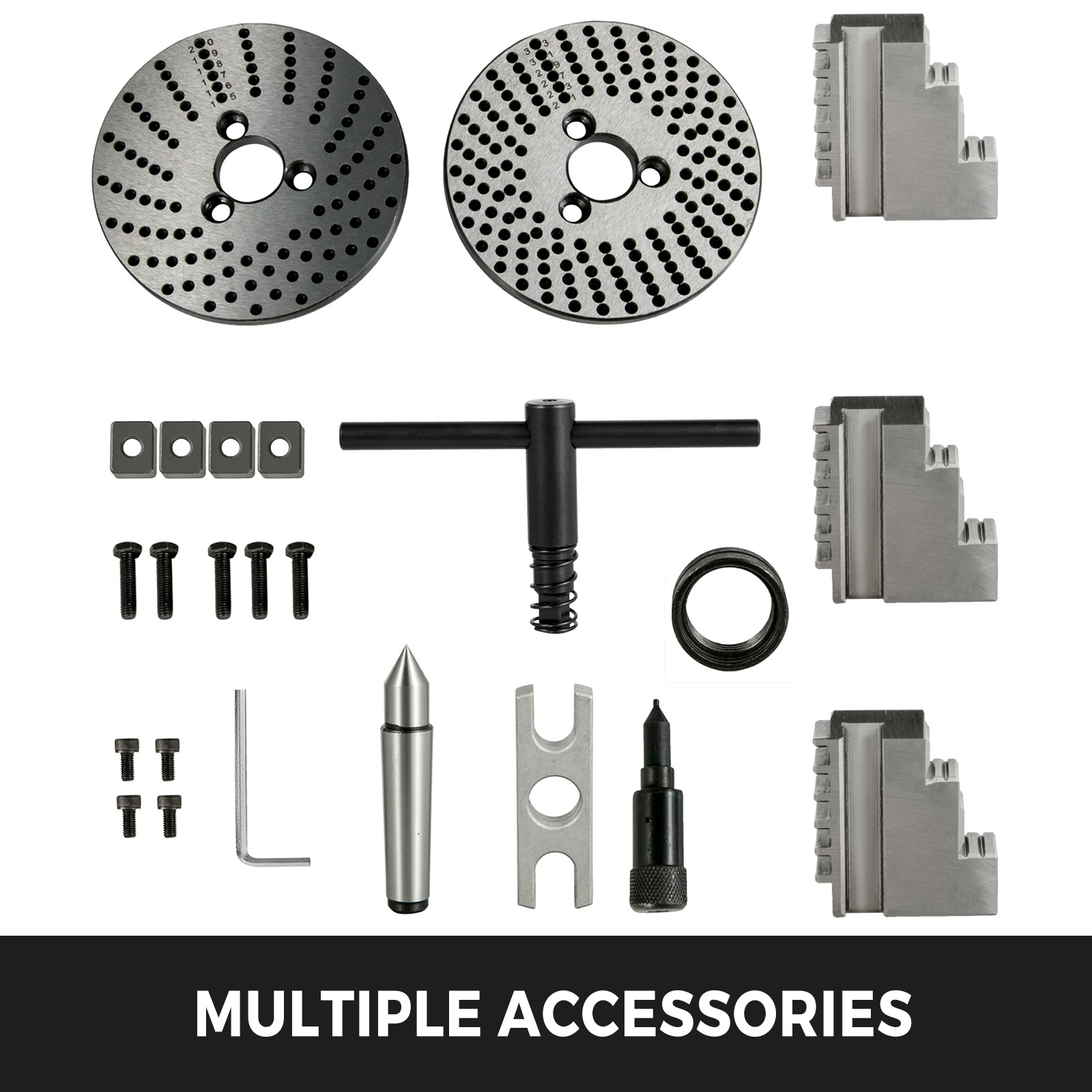

Multiple Accessories

3 dividing plates for different sizes with easy indexing of divisions from 2 to 50 and most numbers up to 380. And a set of operation tool provides extra help.
