VEVOR 100 mm Rotary Table with 80 mm 3-Jaw Chuck, Horizontal Vertical Milling Table for Precision Metal Wood Machining
VEVOR 100 mm Rotary Table with 80 mm 3-Jaw Chuck, Horizontal Vertical Milling Table for Precision Metal Wood Machining - Image 2
VEVOR 100 mm Rotary Table with 80 mm 3-Jaw Chuck, Horizontal Vertical Milling Table for Precision Metal Wood Machining - Image 3
VEVOR 100 mm Rotary Table with 80 mm 3-Jaw Chuck, Horizontal Vertical Milling Table for Precision Metal Wood Machining - Image 4
VEVOR 100 mm Rotary Table with 80 mm 3-Jaw Chuck, Horizontal Vertical Milling Table for Precision Metal Wood Machining - Image 5
VEVOR 100 mm Rotary Table with 80 mm 3-Jaw Chuck, Horizontal Vertical Milling Table for Precision Metal Wood Machining - Image 6
VEVOR 100 mm Rotary Table with 80 mm 3-Jaw Chuck, Horizontal Vertical Milling Table for Precision Metal Wood Machining - Image 7
VEVOR 100 mm Rotary Table with 80 mm 3-Jaw Chuck, Horizontal Vertical Milling Table for Precision Metal Wood Machining - Image 8
VEVOR 100 mm Rotary Table with 80 mm 3-Jaw Chuck, Horizontal Vertical Milling Table for Precision Metal Wood Machining - Image 9
VEVOR 100 mm Rotary Table with 80 mm 3-Jaw Chuck, Horizontal Vertical Milling Table for Precision Metal Wood Machining - Image 10
VEVOR 100 mm Rotary Table with 80 mm 3-Jaw Chuck, Horizontal Vertical Milling Table for Precision Metal Wood Machining - Image 11
VEVOR 100 mm Rotary Table with 80 mm 3-Jaw Chuck, Horizontal Vertical Milling Table for Precision Metal Wood Machining - Image 12
Add to wishlist

VEVOR 100 mm Rotary Table with 80 mm 3-Jaw Chuck, Horizontal Vertical Milling Table for Precision Metal Wood Machining

  • 4-Inch Milling Machine Rotary Table: Elevate your milling capabilities with our φ4” / 100 mm rotary table, which is ideal for small milling machines. It is designed for precise positioning, rotation, indexing, and clamping of wood and metal workpieces for curved surface machining, elongated hole processing, and precision drilling. Widely used in automotive, mold-making, and general machinery, underscores its essential role in mechanical processing.
  • Secure Small Workpieces with Ease: Our rotary table comes with a 3-jaw chuck, and the serrated jaw ensures a firm grip on even the small workpieces. Chuck Diameter: φ 3.1” / 80 mm. The internal jaw can be used for internal & external clamping. External Clamping Range: 0.08”-0.9” / 2-22 mm, Internal Clamping Range: 1.0”-2.8” / 25-70 mm. It includes an external jaw and external clamping range of 0.9”-2.5” / 22-63 mm. Enjoy the precise and secure machining of small components!
  • High Precision at Your Fingertips: The milling machine rotary table is operated by a handwheel, complete with crystal-clear scales on both the wheel and the table for precise measurements. The handwheel scale number is 100, while the table itself is marked with 360 degrees. With a worm gear ratio of 1:36, a single rotation of the handwheel results in a 10-degree turn of the table, aligning perfectly with intuitive operation and allowing for precise control over even the slightest rotation.
  • Horizontal & Vertical Installation: When mounted horizontally, the chuck top height is 4.7” / 120 mm (±3 mm), and when mounted vertically, the chuck center height is 2” / 50 mm. Our rotary table fits industrial and home-use milling machines as long as your milling machine tool height is higher than vertical/horizontal installation heights. Additionally, the table’s bottom features positioning slots for easy and secure attachment to your milling machine.
  • Exceptional Durability, Built to Last: Step up your milling game with our exceptionally durable rotary table crafted from HT250 cast iron for maximum wear resistance and a high-hardness surface that resists scratches and corrosion, ensuring an extended lifespan. Even under heavy loads, high pressure, and rapid rotation, our rotary table maintains its integrity and durability. Choose our HT250 cast iron rotary table for a high-quality performance in your milling operations.

Первоначальная цена составляла 153,90 €.Текущая цена: 147,06 €. Incl. VAT 21%

Available for order

PointsEarn 442 🌟 when you buy this product!
Produkto kodas: M4I4KZFH Kategorijas: , , , ,
Product QR code
Brand:
VEVOR Rotary Table for Milling Machines, 100 mm, Horizontal Vertical Model Precision Milling Rotary Table, with 80 mm 3-Jaw Chuck M10 T-Bolts Nuts, for Milling Engineering Indexing Tools
M4I4KZFH
YXZTLS4C100MYBJD9V0

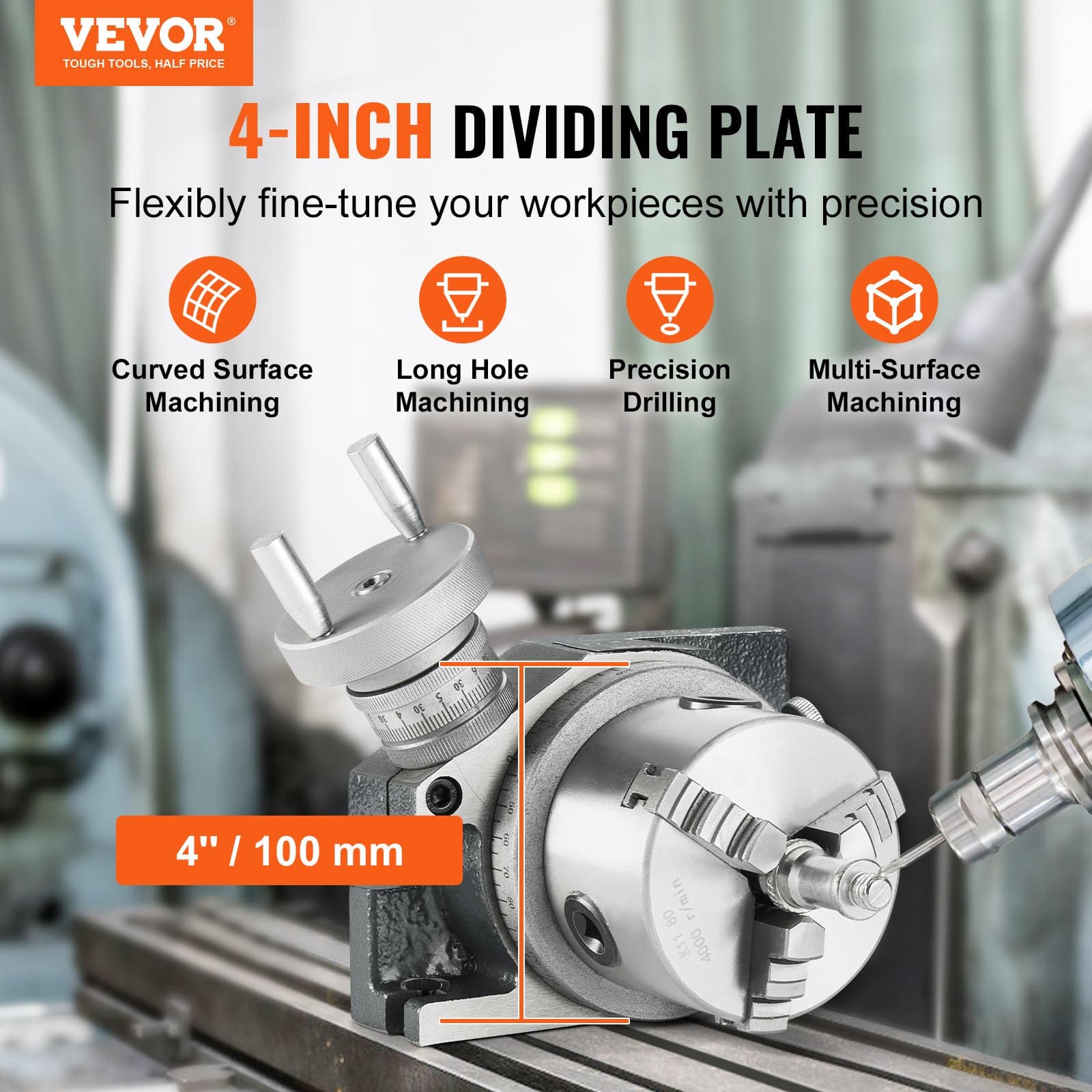

4-Inch Rotary Table for Milling Machine
VEVOR rotary table with 3-jaw chuck, worm gear ratio 1:36, for vertical and horizontal milling.
VEVOR rotary table with 3-jaw chuck, worm gear ratio 1:36, for vertical and horizontal milling.
Our 4''/100 mm diameter rotary table is the perfect companion for small milling machines or specialized machinery and is designed for intricate and complex dividing cuts. Embrace the efficiency and versatility of our 4-inch rotary table and take your milling projects to the next level of accuracy.
VEVOR rotary table with adjustable 3-jaw chuck clamping range for various industrial parts.
VEVOR rotary table with adjustable 3-jaw chuck clamping range for various industrial parts.
Our rotary table comes with a 3-jaw chuck and requires additional installation! We offer two types of jaws, internal jaw and external jaw, which easily open and close with a T-shaped chuck wrench, ensuring a secure and precise grip on your workpieces.
VEVOR rotary table features 10-degree rotation, 100-degree handwheel graduations, and 1:36 worm gear ratio.
VEVOR rotary table features 10-degree rotation, 100-degree handwheel graduations, and 1:36 worm gear ratio.
Enjoy the precise machining with our meticulously designed milling rotary table featuring a worm gear ratio of 1:36 and a fine, clear scale. Every rotation is under your control, with a dedicated degree lock. Once you set your angle, it stays put, ensuring stability and consistency in your work.
VEVOR rotary table with dual-use vertical and horizontal mounting, featuring locating pin and pressure plate groove.
VEVOR rotary table with dual-use vertical and horizontal mounting, featuring locating pin and pressure plate groove.
Discover unparalleled versatility with our milling machine rotary table, ingeniously designed for both horizontal and vertical applications. The precise positioning slot on the bottom ensures the rotary table remains stable and shake-free during operation.
high-hardness cast iron rotary table in use in automotive, woodworking, mold making, and machinery industries.
high-hardness cast iron rotary table in use in automotive, woodworking, mold making, and machinery industries.
Our rotary table is crafted from HT250 cast iron for exceptional wear resistance and high hardness and is a staple in precision and heavy-duty machining industries. Choose our rotary table for a lasting addition to your workshop, where strength meets precision at every turn.

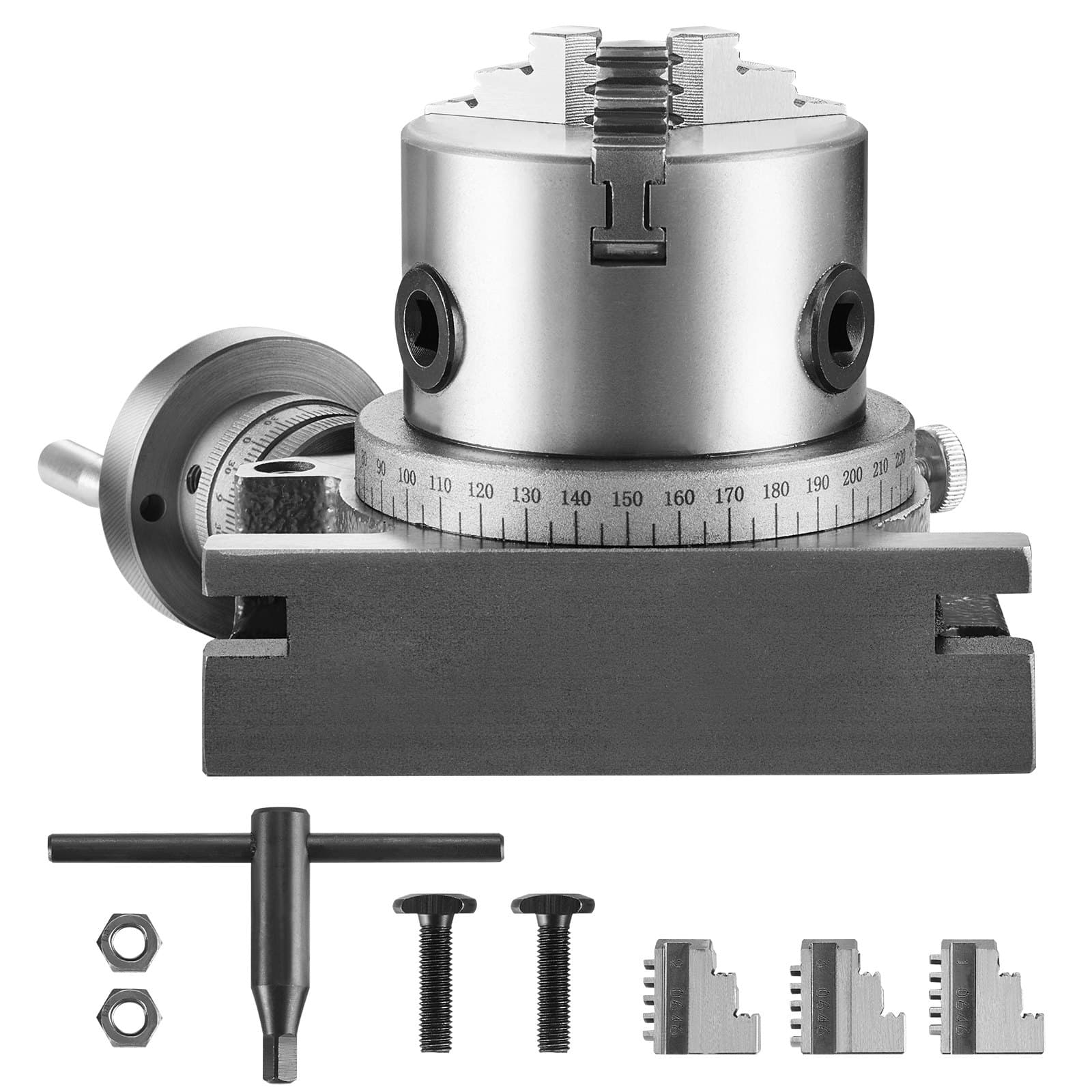

VEVOR rotary table hv-4-kp with 4 inch diameter, 1:36 gear ratio, 3 jaw chuck, and package contents.
VEVOR rotary table hv-4-kp with 4 inch diameter, 1:36 gear ratio, 3 jaw chuck, and package contents.
Product specification
Item Model Number
HV-4-KP
Table Diameter
4 in / 100 mm, ±2 mm
Top Height for Horizontal Mounting Chuck
4.7 in / 120 mm, ±3 mm
Center Height for Vertical Mounting Chuck
2 in / 50 mm
Rotary Table Handwheel Scale Value
6'
Rotary Table Handwheel Scale Number
100
With or Without Vernier Scale
No
Worm Gear Ratio
1
Chuck Diameter
φ 3.1 in / 80 mm
Net Weight
11.7 lbs / 5.3 kg ± 3%
Product Dimensions
6.3 x 5.8 x 4.7 in / 160 × 148 × 120 mm
Svars 5,74 кг
Dimensijas 19,00 × 17,00 × 18,00 см
Model

HV-4-KP
Cable Diameter

4 / 100 in / mm
Cable Diameter Tolerance

±2 mm
Top Height For Horizontal Mounting Chuck

4.7 / 120 in / mm
Horizontal Mounting Tolerance

±3 mm
Center Height For Vertical Mounting Chuck

2 / 50 in / mm
Handwheel Scale Value

6'
Handwheel Scale Number

100
Vernier Scale

No
Worm Gear Ratio

1:36
Chuck Diameter

3.1 / 80 in / mm
Chuck Type

3-jaw
External Clamping Range

0.08-0.9 / 2-22 in / mm
Internal Clamping Range

1.0-2.8 / 25-70 in / mm
Table Degree Markings

360 degrees
Handwheel Rotation Angle

10 degrees
Weight

11.7 / 5.3 lbs / kg
Dimensions

6.3 x 5.8 x 4.7 / 160 x 148 x 120 in / mm
Material

HT250 Cast Iron
Bolt Size

M10
