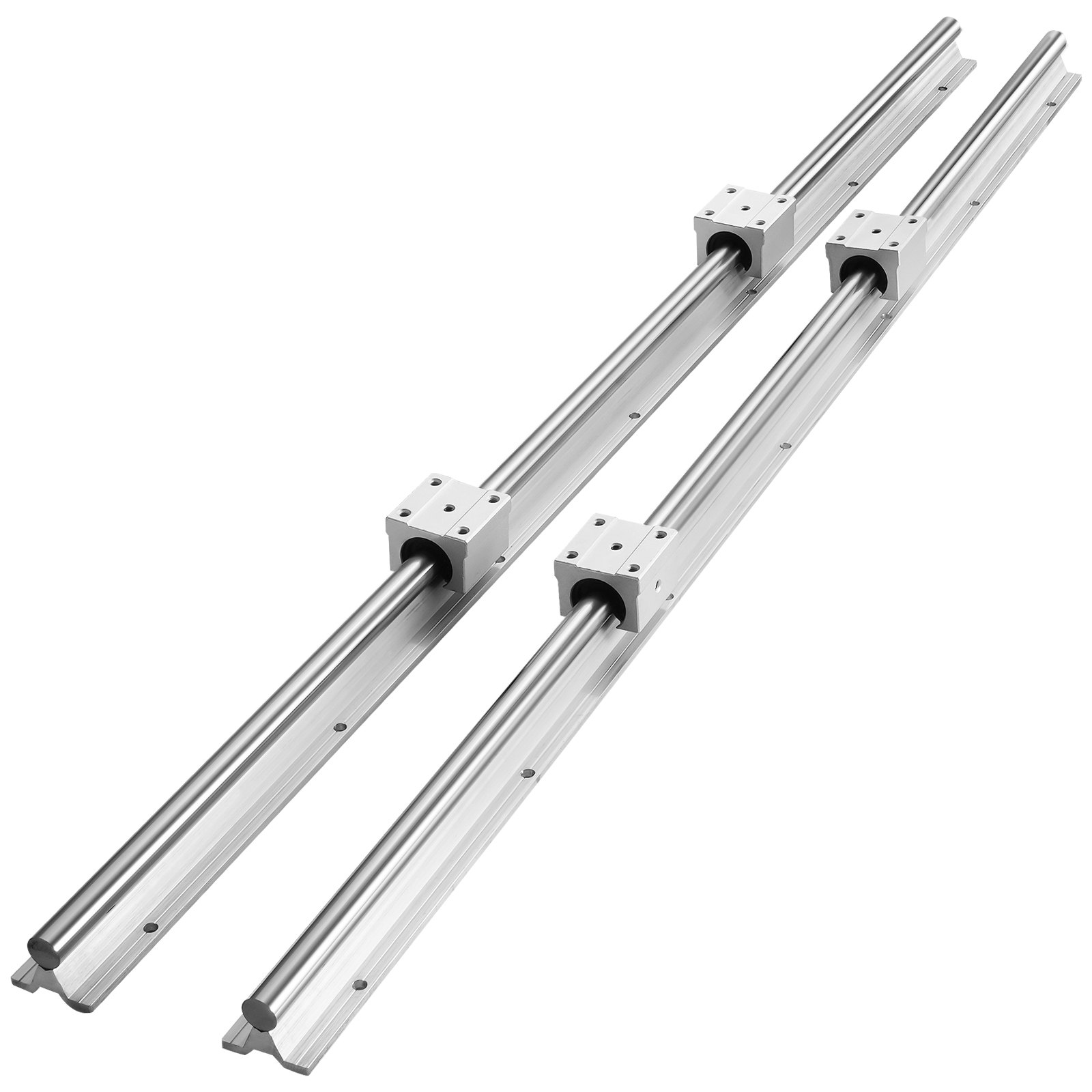

VEVOR SBR16 Linear Guide Rail Set 1000mm – 2 Rails + 4 SBR16UU Blocks, CNC Router & DIY Machine Bearing Kit
VEVOR SBR16 Linear Guide Rail Set 1000mm – 2 Rails + 4 SBR16UU Blocks, CNC Router & DIY Machine Bearing Kit - Image 2
VEVOR SBR16 Linear Guide Rail Set 1000mm – 2 Rails + 4 SBR16UU Blocks, CNC Router & DIY Machine Bearing Kit - Image 3
VEVOR SBR16 Linear Guide Rail Set 1000mm – 2 Rails + 4 SBR16UU Blocks, CNC Router & DIY Machine Bearing Kit - Image 4
VEVOR SBR16 Linear Guide Rail Set 1000mm – 2 Rails + 4 SBR16UU Blocks, CNC Router & DIY Machine Bearing Kit - Image 5
VEVOR SBR16 Linear Guide Rail Set 1000mm – 2 Rails + 4 SBR16UU Blocks, CNC Router & DIY Machine Bearing Kit - Image 6
VEVOR SBR16 Linear Guide Rail Set 1000mm – 2 Rails + 4 SBR16UU Blocks, CNC Router & DIY Machine Bearing Kit - Image 7
VEVOR SBR16 Linear Guide Rail Set 1000mm – 2 Rails + 4 SBR16UU Blocks, CNC Router & DIY Machine Bearing Kit - Image 8
VEVOR SBR16 Linear Guide Rail Set 1000mm – 2 Rails + 4 SBR16UU Blocks, CNC Router & DIY Machine Bearing Kit - Image 9
VEVOR SBR16 Linear Guide Rail Set 1000mm – 2 Rails + 4 SBR16UU Blocks, CNC Router & DIY Machine Bearing Kit - Image 10
VEVOR SBR16 Linear Guide Rail Set 1000mm – 2 Rails + 4 SBR16UU Blocks, CNC Router & DIY Machine Bearing Kit - Image 11
VEVOR SBR16 Linear Guide Rail Set 1000mm – 2 Rails + 4 SBR16UU Blocks, CNC Router & DIY Machine Bearing Kit - Image 12
Add to wishlist

VEVOR SBR16 Linear Guide Rail Set 1000mm – 2 Rails + 4 SBR16UU Blocks, CNC Router & DIY Machine Bearing Kit

  • SBR Linear Guide Rail Set: SBR16-1000 mm Linear motion guide rail includes 2 x 39.4 in/1000 mm length SBR16 guide rails and 4 x SBR16UU slide blocks. Dynamic Load Per Block: 774 N, Static Load Per Block: 1180 N.
  • Durable & Long-lasting: The linear rail is made of carbon steel and aluminum with a chrome-plated surface for rust resistance and high durability. Built-in 4 aluminum slide blocks and ball bearings for smooth and unobstructed sliding.
  • Low Noise Sliding: Aluminum SBR slide blocks and carbon steel linear shaft are perfectly paired. The built-in ball bearing provides low friction movement and is smooth and not tilted, allowing you to control more labor-saving.
  • High Precision: Precise circular shaft dimensions and straightness, ensuring high accuracy, repeatability, and stability in its motion. The sturdy aluminum base and slide block have accurate mounting holes, making it easy for users to perform reliable installation and connection.
  • Wide Application: The SBR linear rail set is versatile and suitable for all kinds of high-load automation equipment and DIY project, such as router/mill/lathe sleds, 3D printers, laser engravers, CNC machines, trainer rocker plates, etc.

57,53 € Incl. VAT 21%

Available for order

PointsEarn 173 🌟 when you buy this product!
Produkto kodas: M4I4KEK4 Kategorijas: , , , ,
Product QR code
Brand:
VEVOR Linear Guide Rail Set, 2 PCS 39.4 in/1000 mm SBR16 Guide Rails and 4 PCS SBR16UU Slide Blocks, SBR16 1000mm, Linear Rails and Bearings Kit for Automated Machines DIY Project CNC Router Machines
M4I4KEK4
ZXDGSBR16MM10H508V0
SBR Linear Guide Rail
VEVOR linear guide rail set, high precision, anti-corrosion, high load-bearing, multiple specs.
VEVOR linear guide rail set, high precision, anti-corrosion, high load-bearing, multiple specs.
VEVOR high-quality SBR linear guide rail includes 2 guide rails and 4 slide blocks. The durable aluminum guide rails feature precise hole diameter and distance, while the SBR slide blocks utilize ball bearings for smooth and unobstructed movement.
VEVOR linear guide rail set highly stable, supports 80 kg dynamic and 120 kg static loads per block.
VEVOR linear guide rail set highly stable, supports 80 kg dynamic and 120 kg static loads per block.

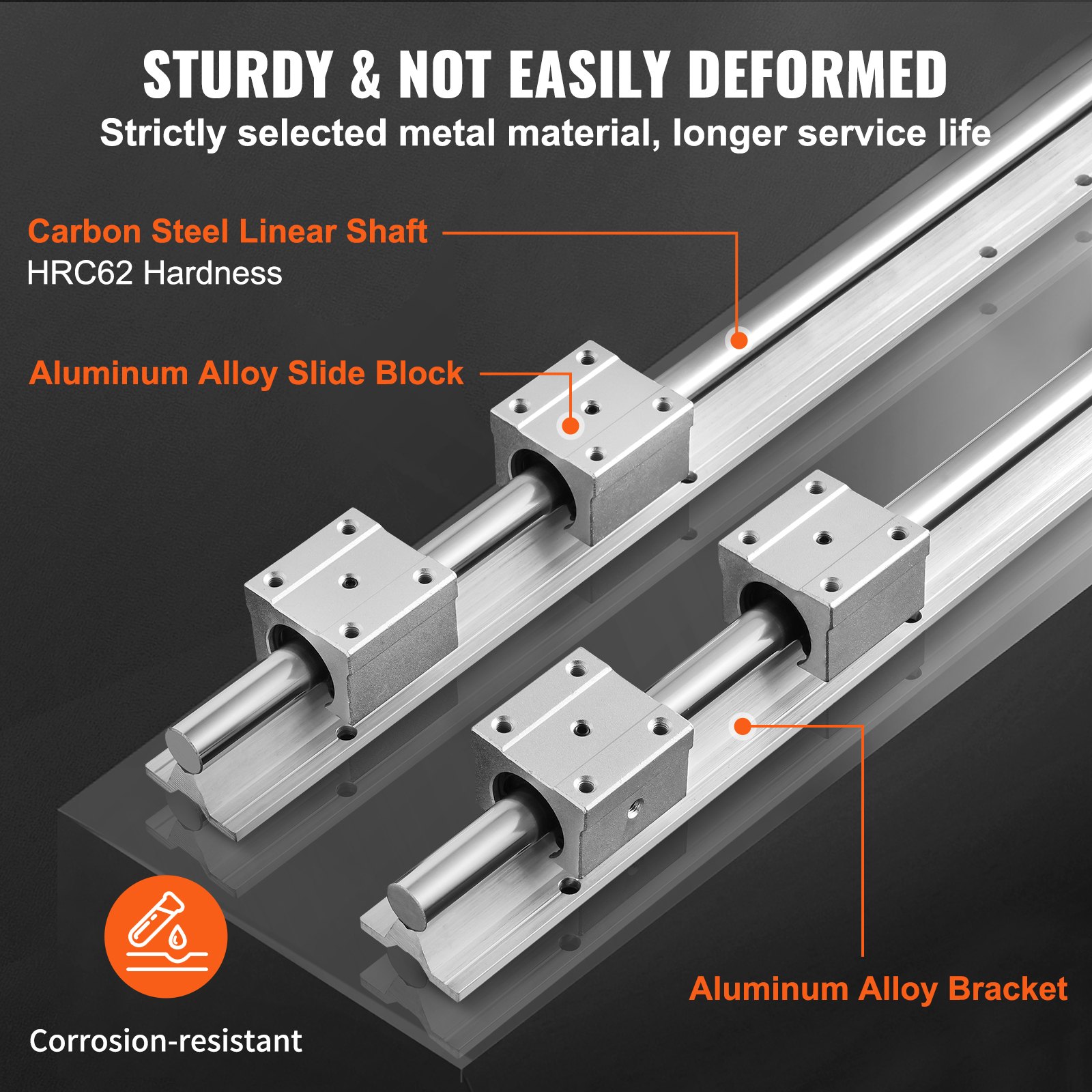

The linear bearing adopts an all-metal structure, and the slide block is tightly locked on the linear shaft, which has a high bearing capacity.

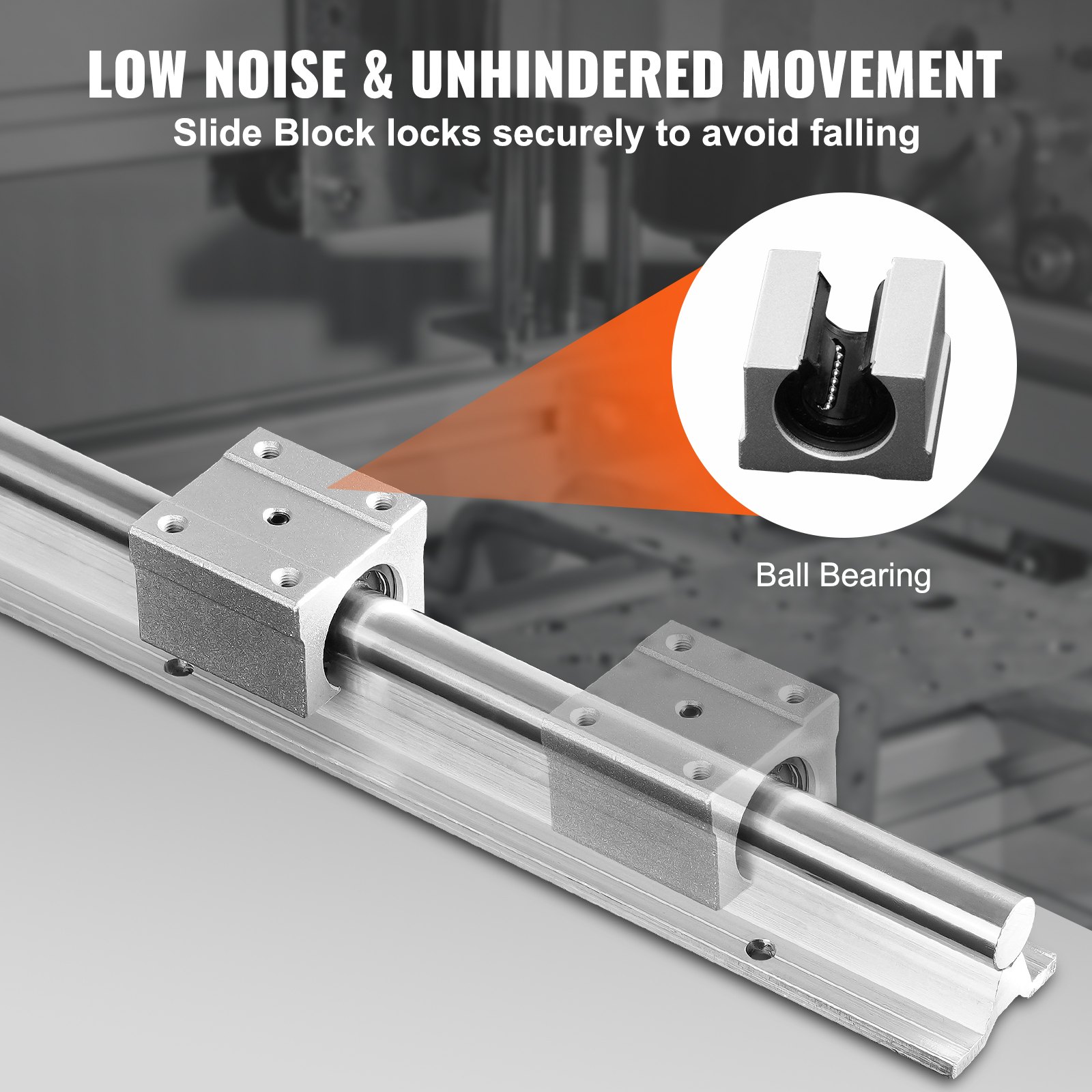

high precision VEVOR linear guide rail set with built-in ball bearing for smooth motion and low friction.
high precision VEVOR linear guide rail set with built-in ball bearing for smooth motion and low friction.
Aluminum SBR slide block and built-in ball bearings slide smoothly and move more effortlessly to ensure long-term stable operation.

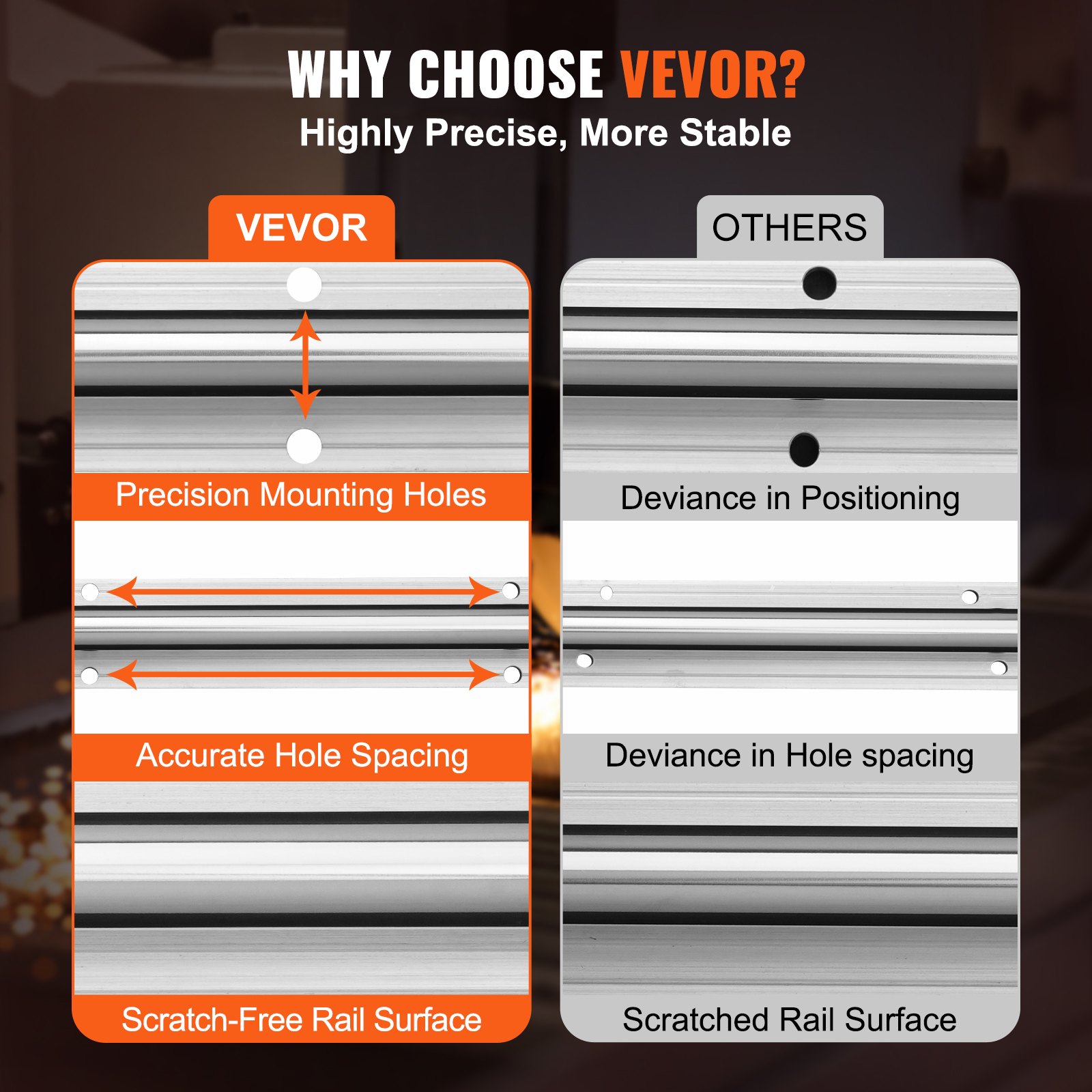

VEVOR linear guide rail set with high precision rail, roundness shaft, and accurate mounting holes.
VEVOR linear guide rail set with high precision rail, roundness shaft, and accurate mounting holes.
The linear motion guides have accurate hole distance, hole diameter, and standard shaft diameter, allowing you to install your equipment more precisely.

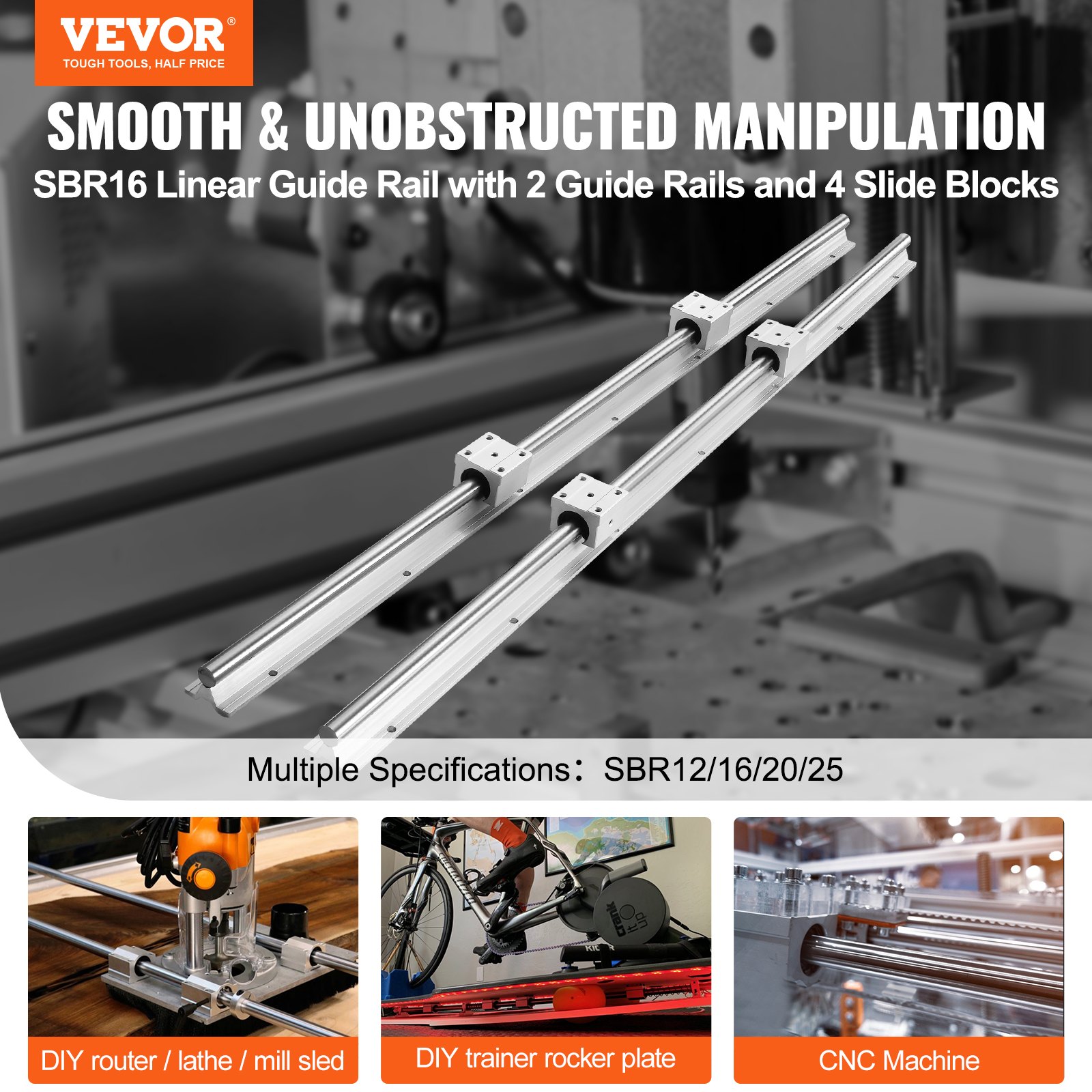

VEVOR linear guide rail set used in diy router, trainer rocker plate, and cnc machine applications.
VEVOR linear guide rail set used in diy router, trainer rocker plate, and cnc machine applications.
Linear rail kit is widely used in high-load automation equipment and DIY equipment production. For example, DIY CNC engraving machines, lathes, etc.
VEVOR linear guide rail set specifications: sbr16-c 1000l, 1000mm rail, 16mm shaft, slide block sbr16uu.
VEVOR linear guide rail set specifications: sbr16-c 1000l, 1000mm rail, 16mm shaft, slide block sbr16uu.

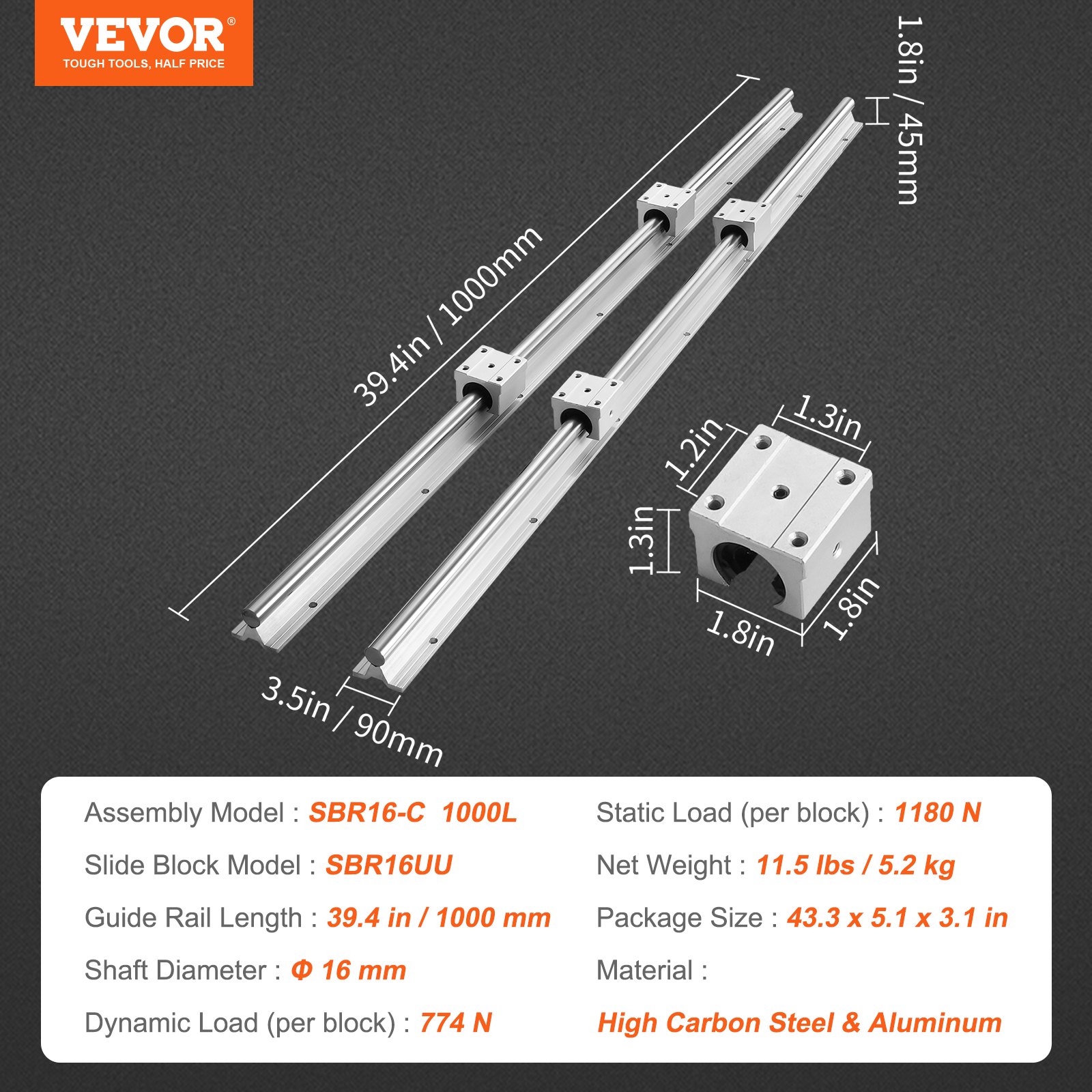

Product specification
Model Number
SBR16-C 1000L
Slide Block Model
SBR16UU
Guide Rail Length
39.4 in/1000 mm
Shaft Diameter
Φ16 mm
Dynamic Load (per block)
774 N
Static Load (per block)
1180 N
Material
High Carbon Steel & Aluminum
Mounting Hole Distance A
1.3 in/32 mm
Mounting Hole Distance B
1.2 in/30 mm
Slide Block Size(L x W x H)
1.8 x 1.8 x 1.3 in/45 x 45 x 33 mm
Product Dimensions(L x W x H)
39.4 x 3.5 x 1.8 in/1000 x 90 x 45 mm
Package Size(L x W x H)
43.3 x 5.1 x 3.1 in/1100 x 130 x 80 mm
Net Weight
11.5 lbs/5.2 kg
Svars 5,66 кг
Dimensijas 104,00 × 14,00 × 8,00 см
Model

SBR16-C 1000L
Slide Block Model

SBR16UU
Guide Rail Length

39.4 / 1000 in / mm
Shank Diameter

16 mm
Dynamic Load Per Block

774 N
Static Load Per Block

1180 N
Material

High Carbon Steel & Aluminum
Surface Treatment

Chrome-plated
Mounting Hole Distance

32 mm
Slide Block Size

45 x 45 x 33 mm
Dimensions

1000 x 90 x 45 mm
Package Size

1100 x 130 x 80 mm
Weight

5.2 kg
Guide Rails Included

2
Glide Blocks Included

4
