VEVOR 76mm Manual Jewelry Rolling Mill, 1:2.5 Gear, 0.1–7mm Adjustable, 3-in-1 Metal Sheet & Wire Roller for Jewelry Making
VEVOR 76mm Manual Jewelry Rolling Mill, 1:2.5 Gear, 0.1–7mm Adjustable, 3-in-1 Metal Sheet & Wire Roller for Jewelry Making - Image 2
VEVOR 76mm Manual Jewelry Rolling Mill, 1:2.5 Gear, 0.1–7mm Adjustable, 3-in-1 Metal Sheet & Wire Roller for Jewelry Making - Image 3
VEVOR 76mm Manual Jewelry Rolling Mill, 1:2.5 Gear, 0.1–7mm Adjustable, 3-in-1 Metal Sheet & Wire Roller for Jewelry Making - Image 4
VEVOR 76mm Manual Jewelry Rolling Mill, 1:2.5 Gear, 0.1–7mm Adjustable, 3-in-1 Metal Sheet & Wire Roller for Jewelry Making - Image 5
VEVOR 76mm Manual Jewelry Rolling Mill, 1:2.5 Gear, 0.1–7mm Adjustable, 3-in-1 Metal Sheet & Wire Roller for Jewelry Making - Image 6
VEVOR 76mm Manual Jewelry Rolling Mill, 1:2.5 Gear, 0.1–7mm Adjustable, 3-in-1 Metal Sheet & Wire Roller for Jewelry Making - Image 7
VEVOR 76mm Manual Jewelry Rolling Mill, 1:2.5 Gear, 0.1–7mm Adjustable, 3-in-1 Metal Sheet & Wire Roller for Jewelry Making - Image 8
VEVOR 76mm Manual Jewelry Rolling Mill, 1:2.5 Gear, 0.1–7mm Adjustable, 3-in-1 Metal Sheet & Wire Roller for Jewelry Making - Image 9
VEVOR 76mm Manual Jewelry Rolling Mill, 1:2.5 Gear, 0.1–7mm Adjustable, 3-in-1 Metal Sheet & Wire Roller for Jewelry Making - Image 10
VEVOR 76mm Manual Jewelry Rolling Mill, 1:2.5 Gear, 0.1–7mm Adjustable, 3-in-1 Metal Sheet & Wire Roller for Jewelry Making - Image 11
Add to wishlist

VEVOR 76mm Manual Jewelry Rolling Mill, 1:2.5 Gear, 0.1–7mm Adjustable, 3-in-1 Metal Sheet & Wire Roller for Jewelry Making

  • 【THREE-IN-ONE ROLLING MILL】 – The rolling mills, with three-in-one performance, can press gold and silver into multiple sizes of sheet, square, and semicircle. Its rollers are also easy to change to satisfy your different requirements, a necessary machine for jewelry processing.
  • 【ADJUSTABLE PRESS THICKNESS】 – The distance between the rollers can be precisely adjusted from 0.1 mm to 7 mm through the T-shape Bar. With a reduced gear ratio of 1:2.5, the roller makes one complete turn for every two and a half turns of the handle, relieving the amount of force needed to operate the wire roller mill.
  • 【DURABLE CAST IRON & STEEL】 – This jewelry rolling mill machine comes with a cast-iron frame and chrome steel forged rollers for sturdiness and long service life. The blue powdered coating on the surface provides good wearability and corrosion resistance to enable the device to work steadily.
  • 【PREMIUM DETAIL & ACCESSORY】 – The design of the ergonomic handle and mounting holes makes the operation more labor-saving. Besides, for your convenience, we provide you with complete accessories. The silver cloth, silver bar, and agate knife help you clean and polish the processed metals in a few seconds.
  • 【MULTIPLE USAGE SCENARIOS】 – Our manual rolling mill machine is designed for cold rolling metal to produce thinner gauges of sheet metal and wire, transferring textures to your metal. It is an ideal option for both jewelers and craftspeople to create your handicraft works.

222,60 € Incl. VAT 21%

Sold out

Date of restocking unknown

Want to be notified when this product is back in stock?

Produkto kodas: M4I4K3BY Kategorijas: , , , ,
Product QR code
Brand:
VEVOR Rolling Mills 3"/76mm Jewelry Rolling Mill Machine Gear Ratio 1:2.5 Wire Roller Mill 0.1-7mm Press Thickness Manual Combination Rolling Mill for Metal Jewelry Sheet Square Semicircle Pattern
M4I4K3BY
SDYJ75MM3GQ2G72AHV0

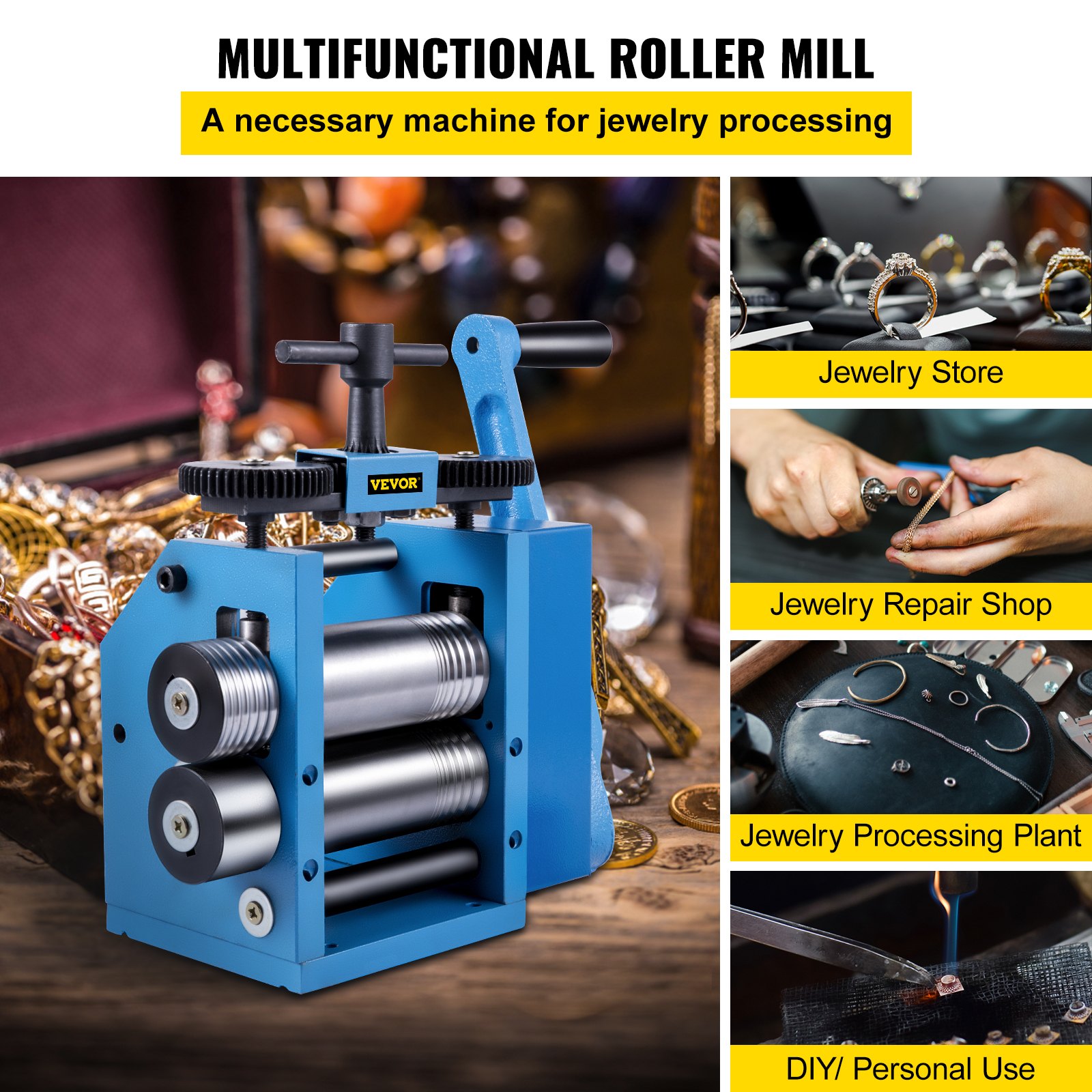

VEVOR jewelry rolling mill machine with gears in a jewelry-making setting.

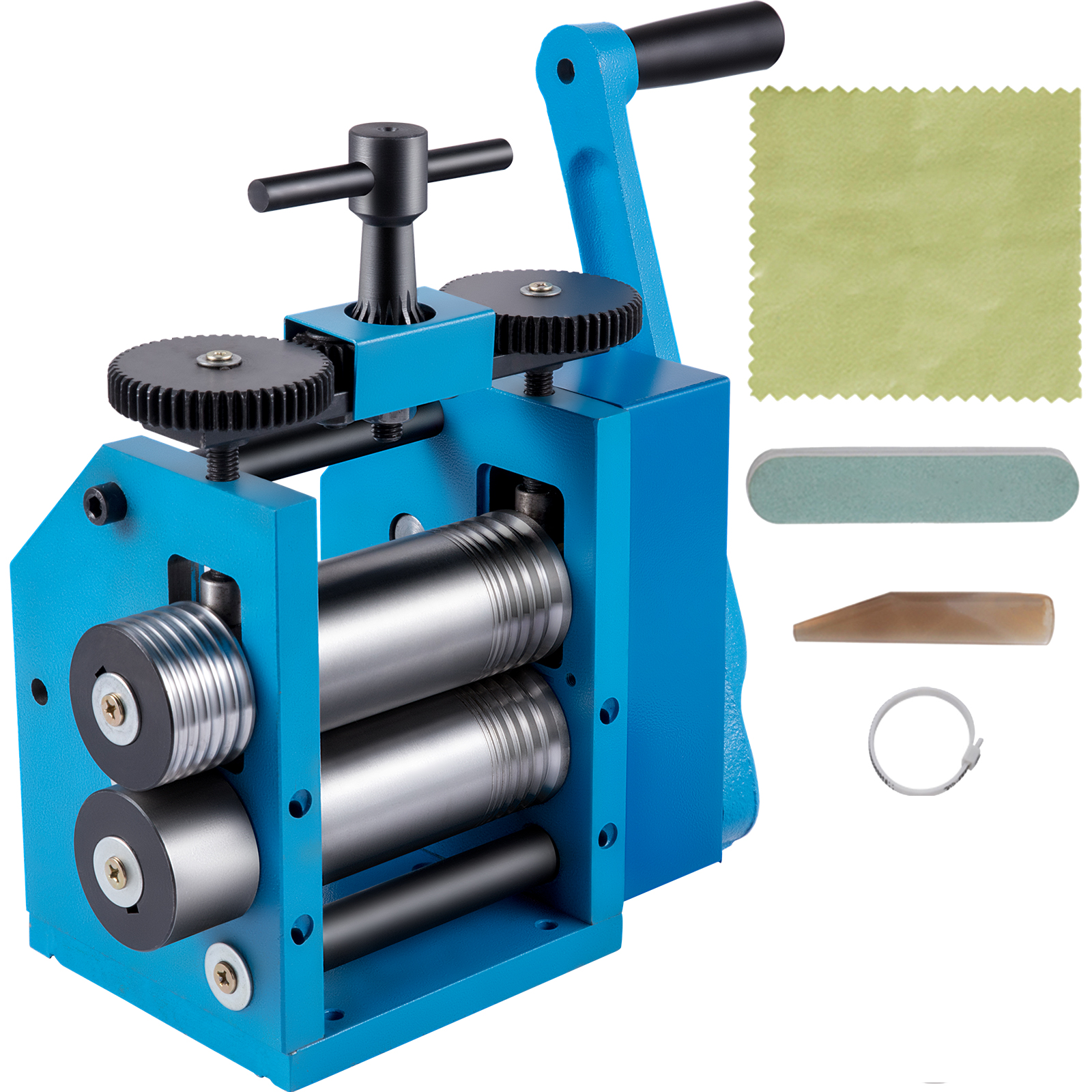

VEVOR jewelry rolling mill with rollers, cleaning cloth, ring, and tools.
76 mm Manual Rolling Mill
The combination mill is designed for cold rolling metal to produce thinner gauges of sheet metal and wire, transferring textures to your metal and making the thickness uniform. With adjustable press thickness, reduced gear ratio, and practical accessories, the tool is ideal for jewelers and artisans.
  • Three-in-One Rolling Mill
  • Adjustable Press Thickness
  • Durable Cast Iron & Steel
  • Premium Detail & Accessory
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

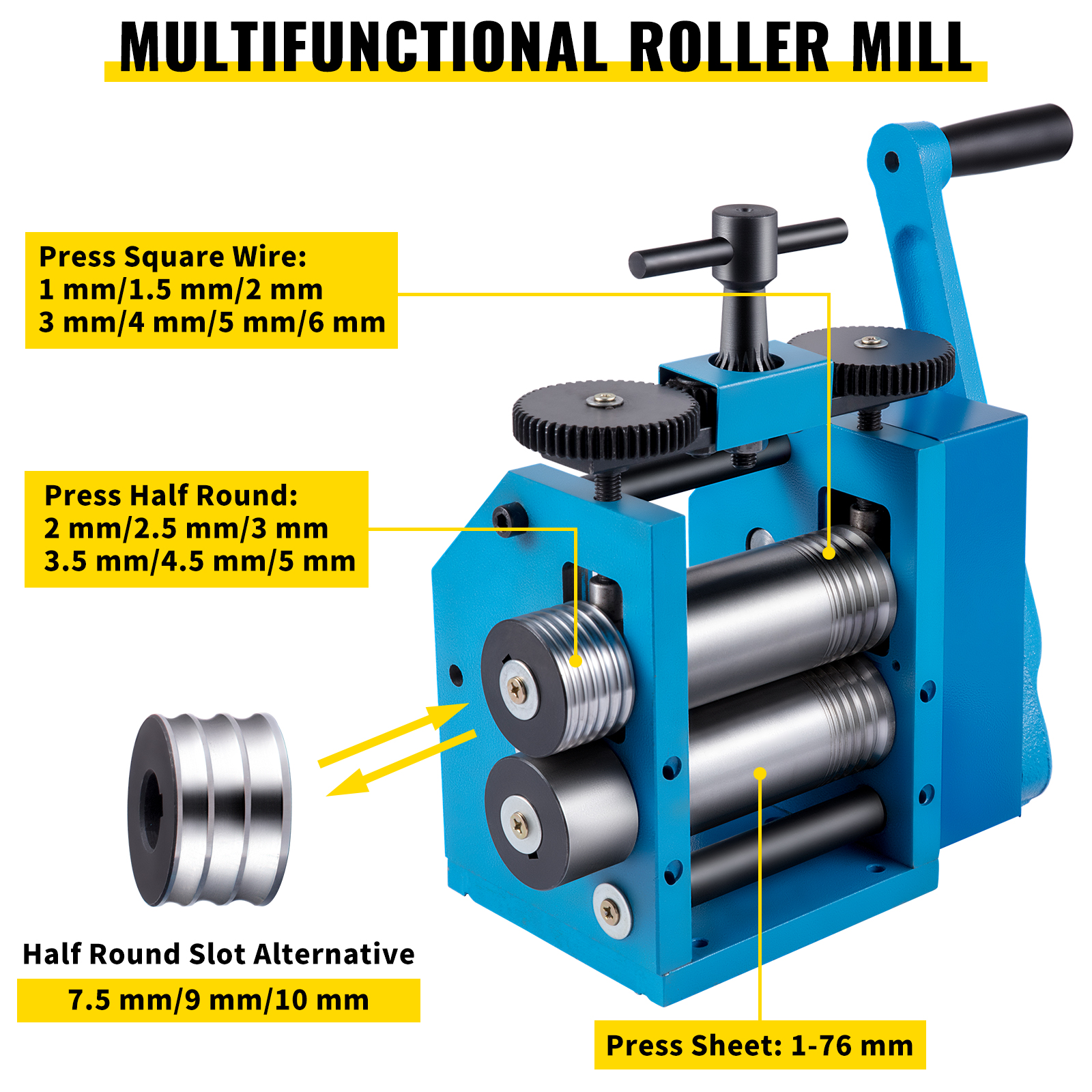

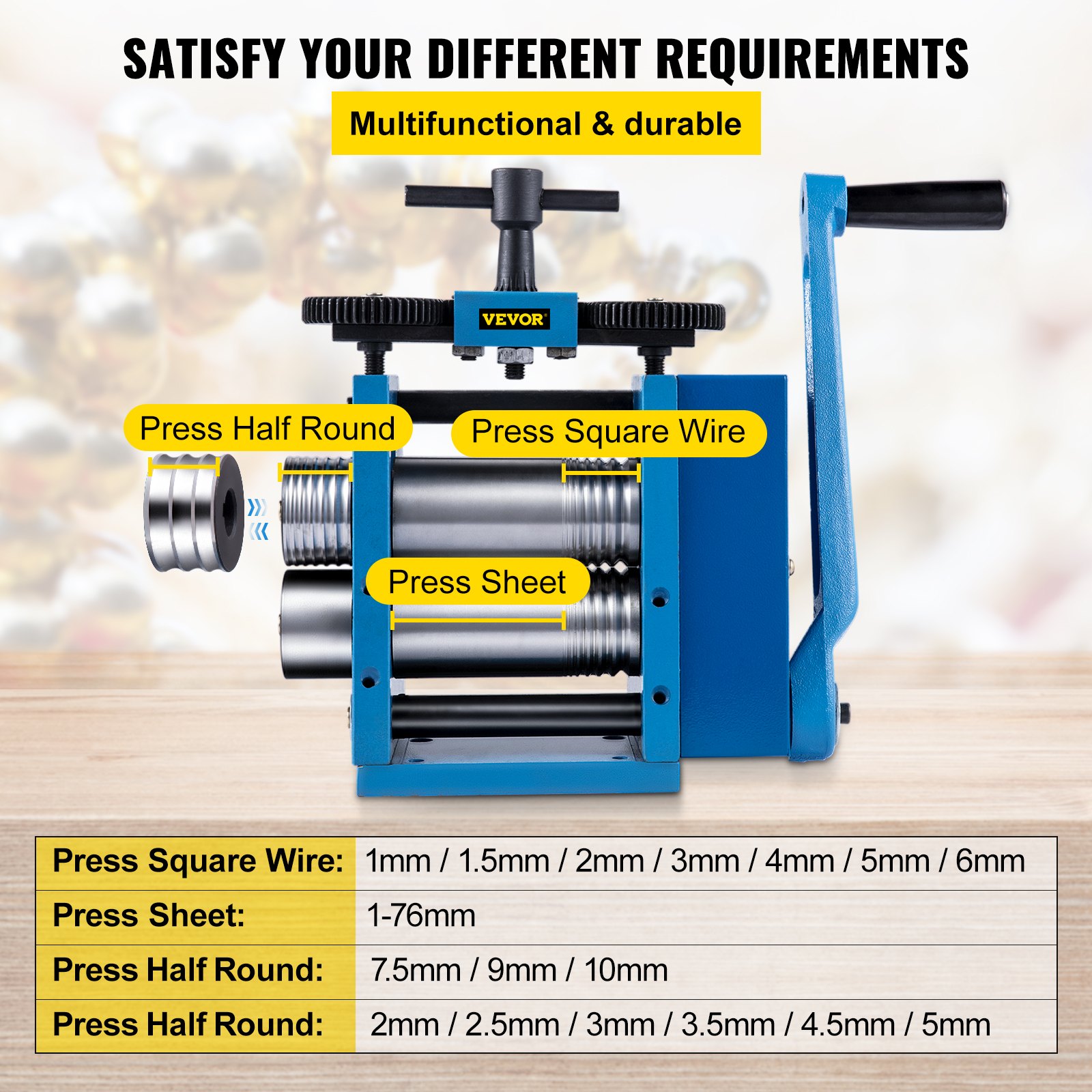

VEVOR jewelry rolling mill with various roller specifications for wire, half-round, and sheets.
Multifunctional Roller Mill
Three forms of roll slots, half-round, square & smooth side, are arranged in decreasing sizes to allow gradual reduction of item diameters. So you can process various thicknesses of sections according to your requirements.

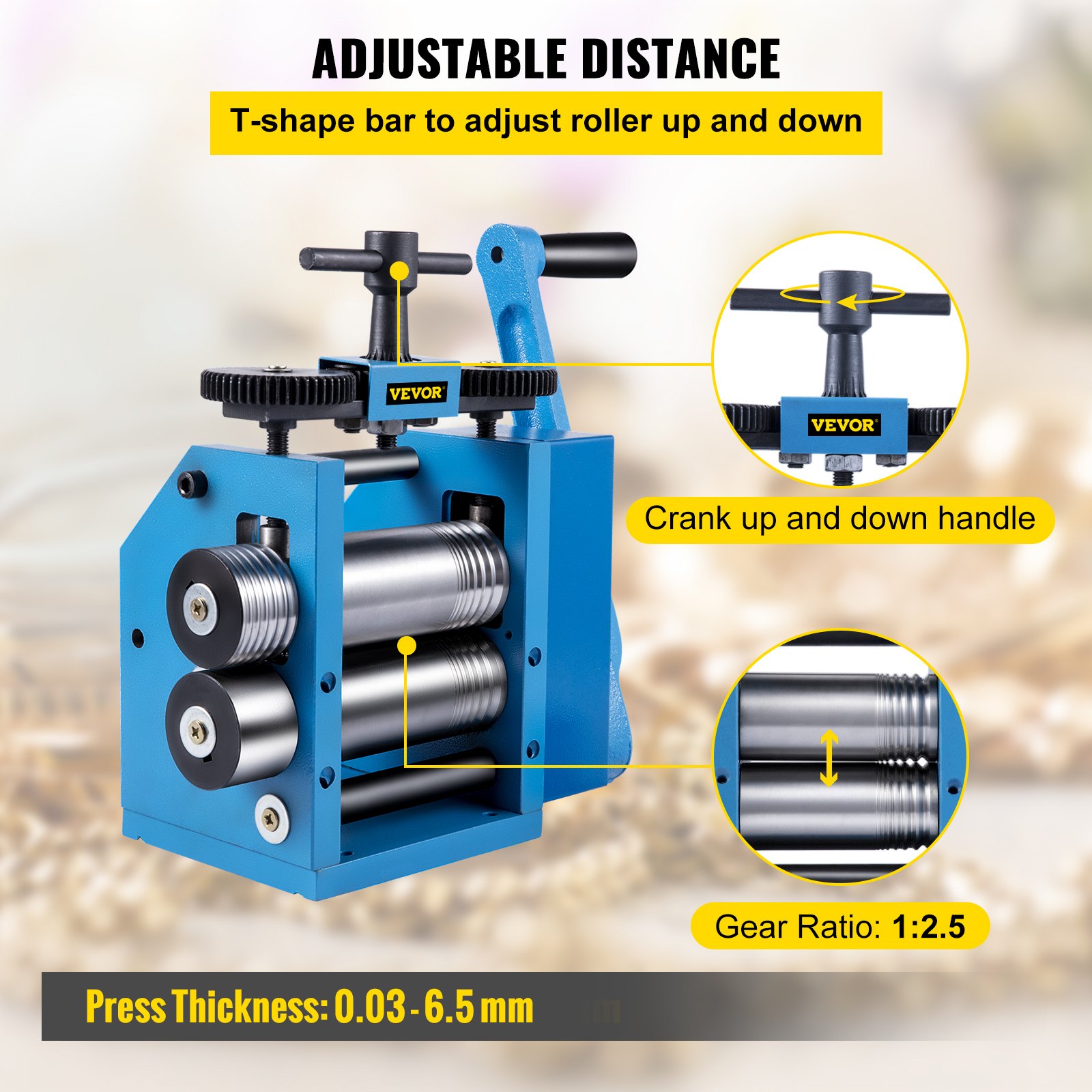

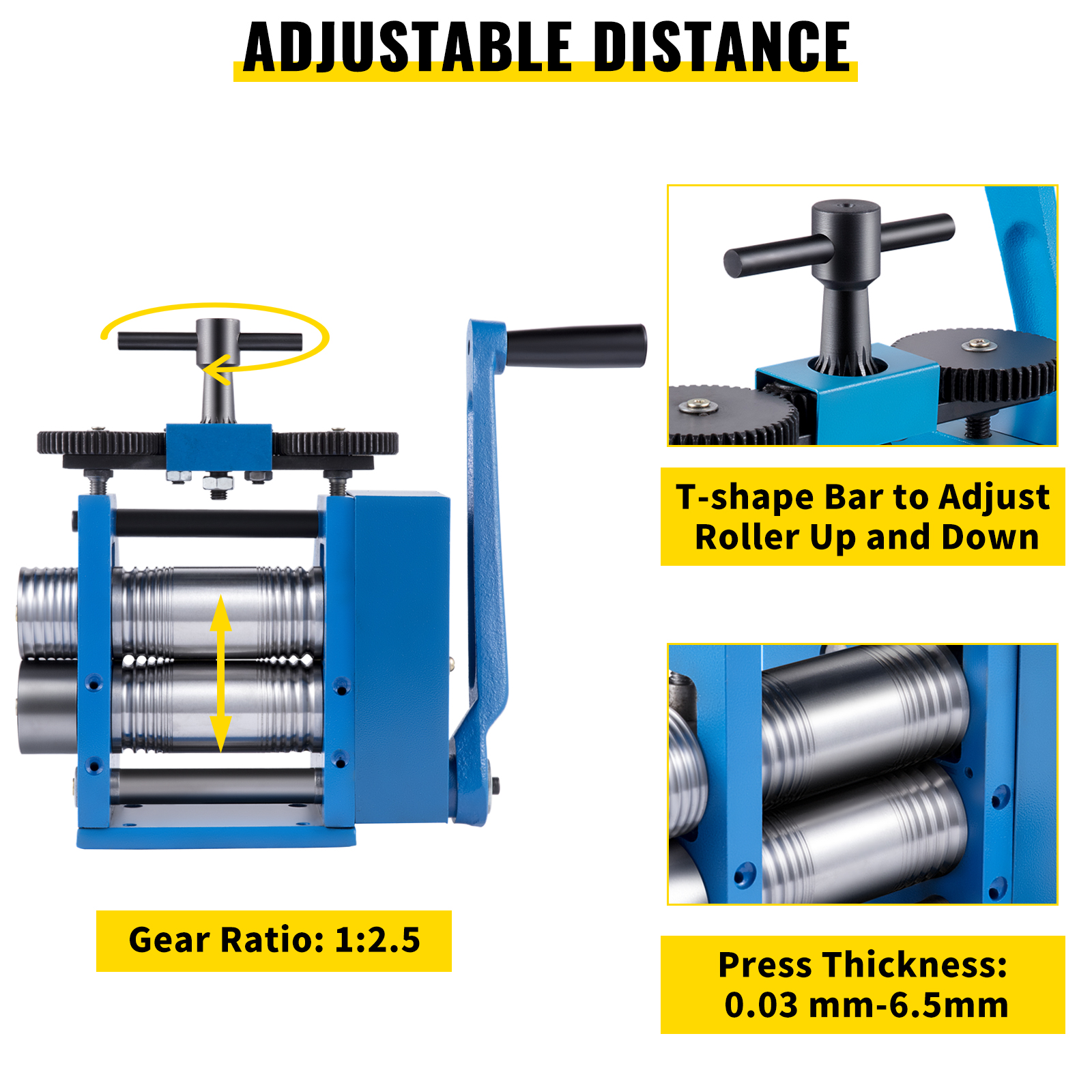

VEVOR jewelry rolling mill with adjustable distance, gear ratio 1:2.5, t-shaped bar.
Adjustable Roll Distance
The T-shape bar at the top of the rolling jewelry effectively opens, closes, and adjusts the roller's distance. When you completely close the rollers, you should measure "true" with no visible gaps.

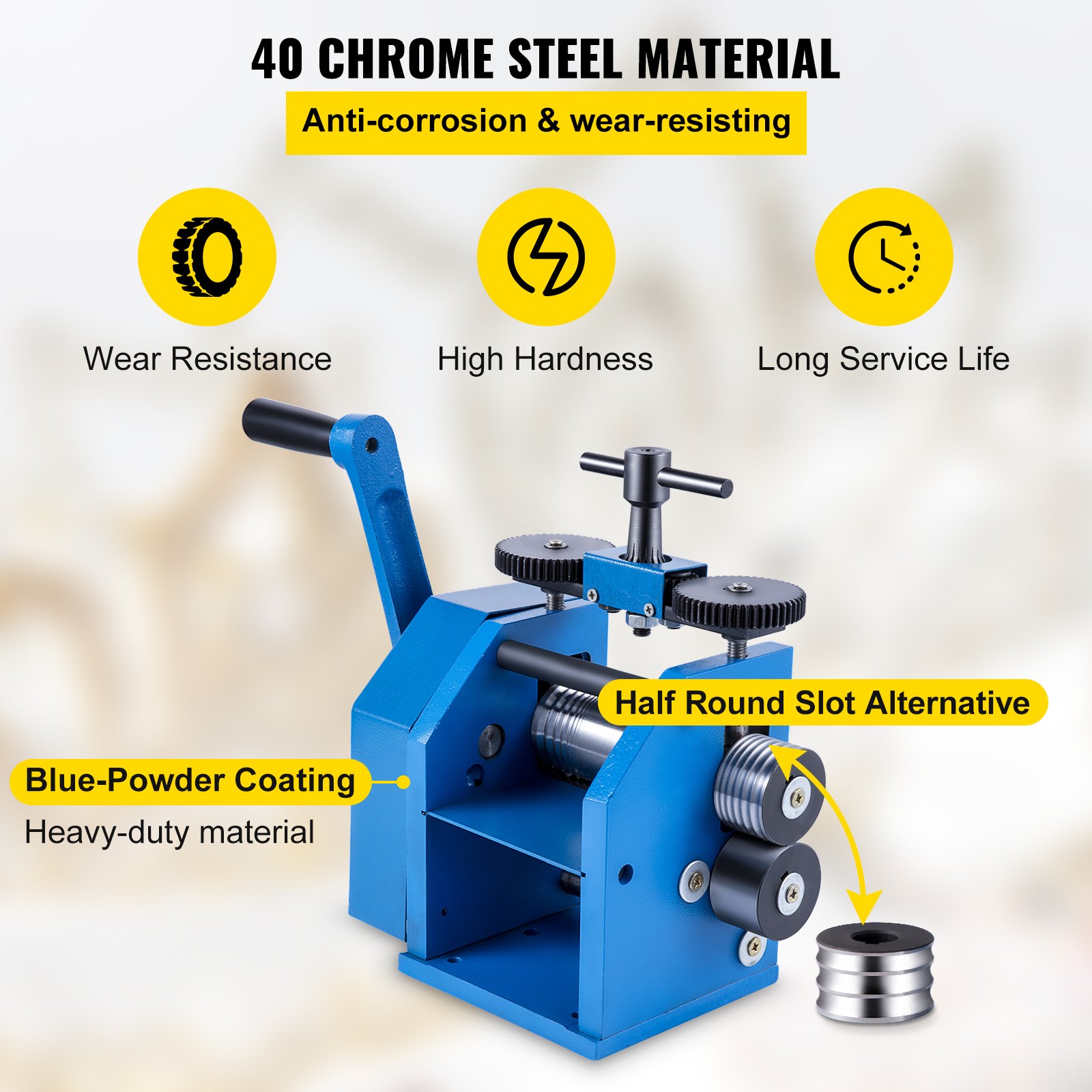

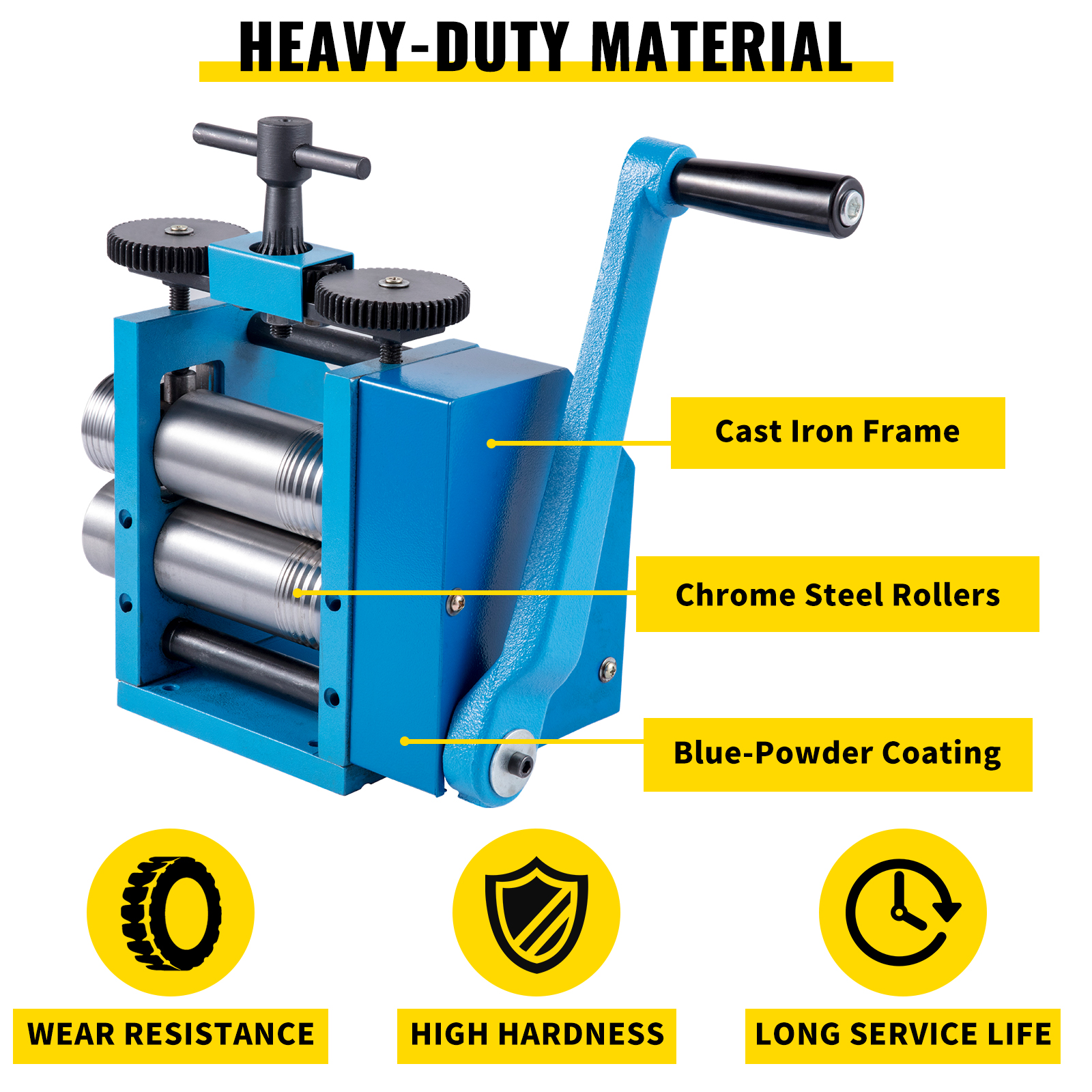

VEVOR jewelry rolling mill with cast iron frame, chrome steel rollers, and blue-powder coating.
Iron Frame & Steel Roller
Constructed with cast iron & chrome steel, the manual rolling mill has the advantages of high hardness & deformation resistance. The blue-coated appearance keeps the tool from rusting to improve its performance.

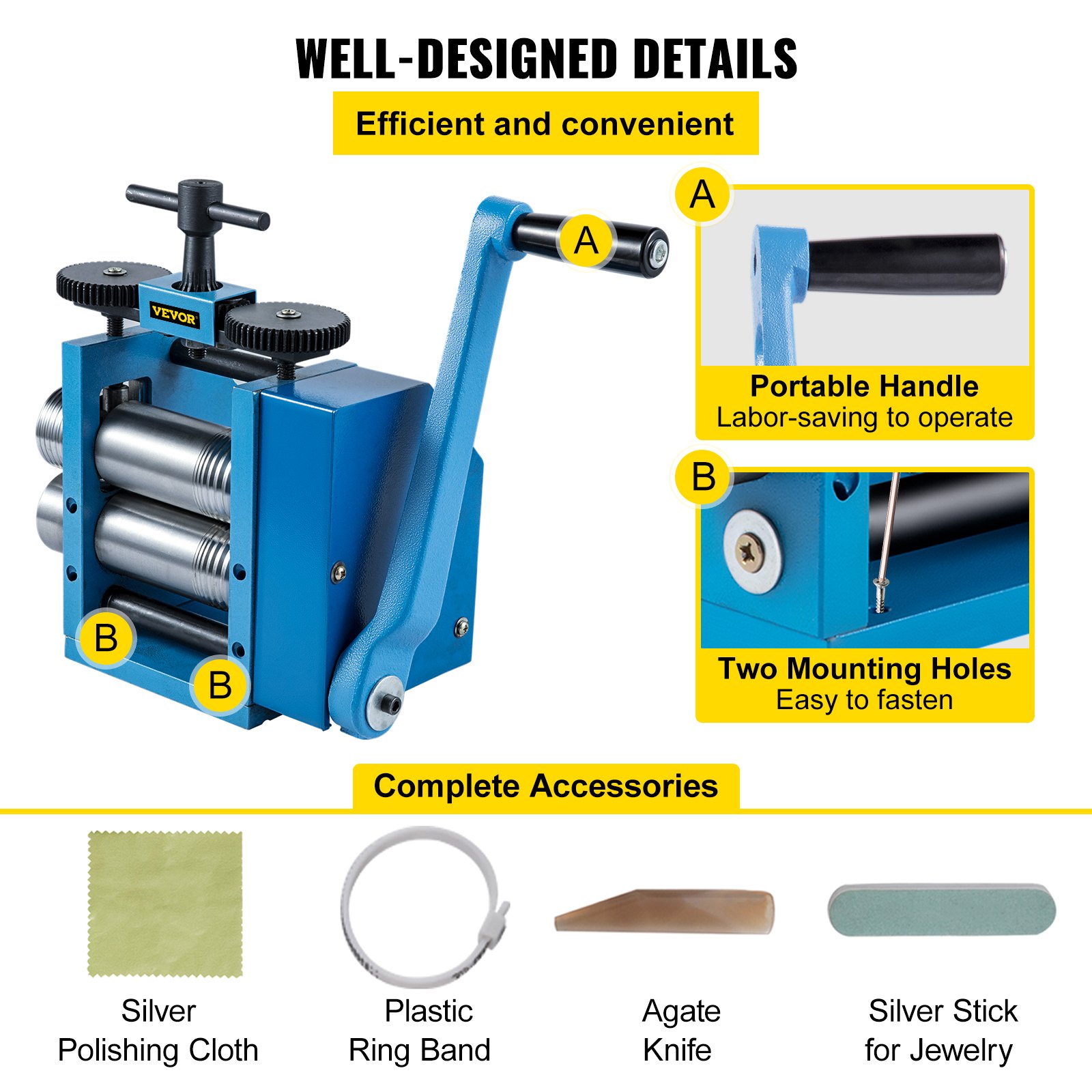

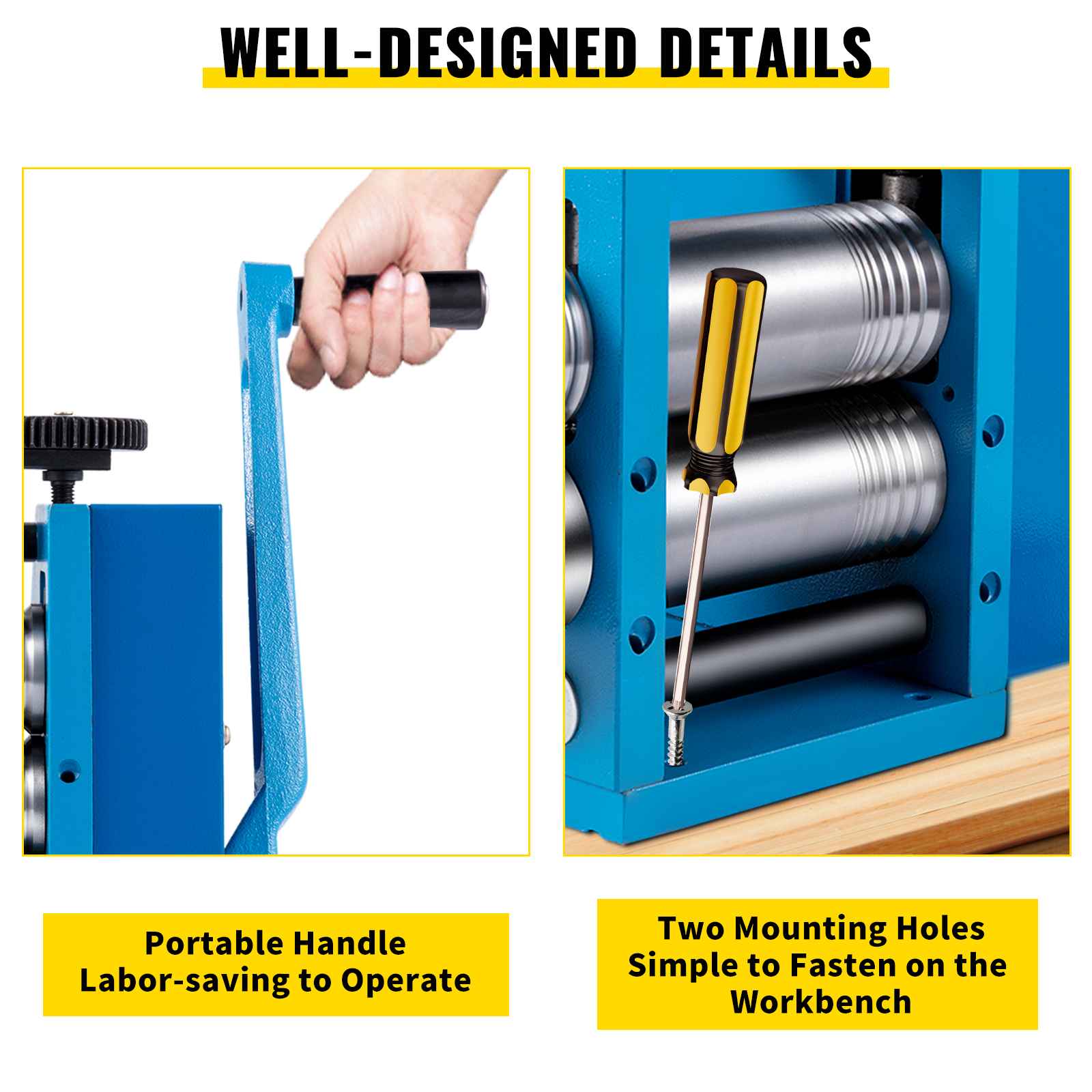

VEVOR jewelry rolling mill with a portable handle and simple mounting holes.
ABS Handle & Mounting Hole
The forged handle with ABS crank is comfortable to hold. And using the pre-drilled mounting holes, it is effortless to install the rolling mill on the workbench easily for a more stable operation.

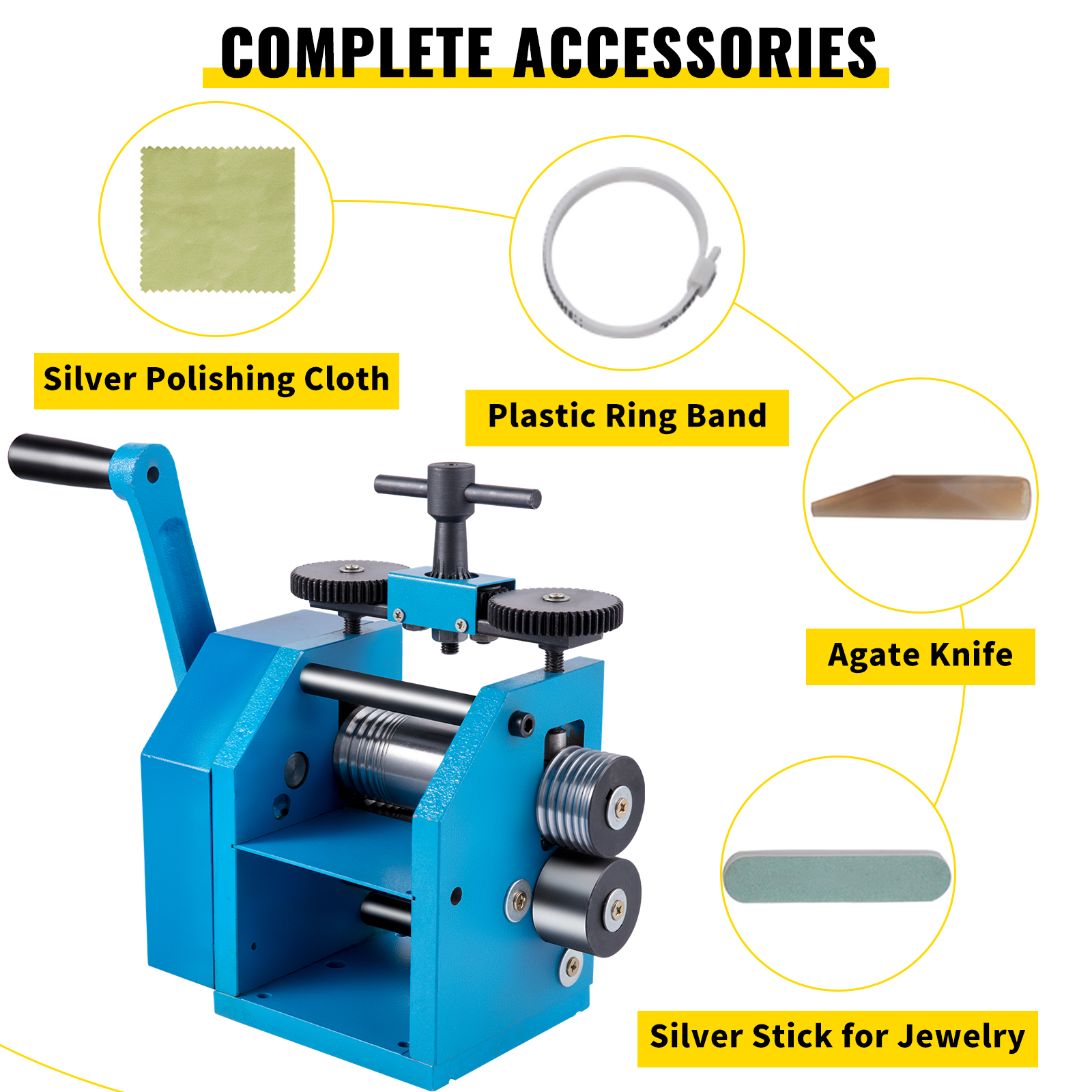

VEVOR jewelry rolling mill with silver polishing cloth, plastic ring band, agate knife.
Complete Accessory Kit
There are a set of user-friendly accessories. The plastic ring band is simple for storage. If there is a surface scratch to the workpiece, you can use the silver polishing cloth and bar on the spot without secondary processing.
VEVOR jewelry rolling mill for stores, repair shops, processing plants, and diy use.
Extensive Application
The rolling mill is suitable for pressing the gold & silver nuggets into thin, uniform sheets. It is widely applicable in jewelry stores, jewelry repair shops, DIY, and personal use.

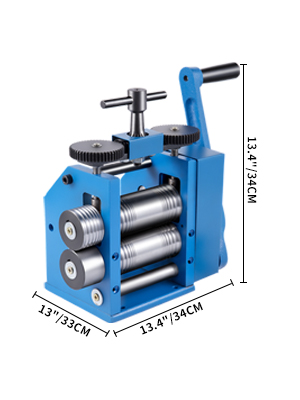

blue VEVOR jewelry rolling mill, 13.4" height, 13" width, and 13.4" length.
Specifications
  • Model: Single-slot Rolling Mill
  • Gear Ratio: 1:2.5
  • Press Square: 0.04" / 1 mm; 0.06" / 1.5 mm; 0.08" / 2 mm; 0.12" / 3 mm; 0.16" / 4 mm; 0.2" / 5 mm; 0.24" / 6 mm
  • Press Smooth Sheet: 3" / 76 mm
  • Press Semicircle: 0.08" / 2 mm; 0.1" / 2.5 mm; 0.12" / 3 mm; 0.14" / 3.5 mm; 0.18" / 4.5 mm; 0.2" / 5 mm; 0.3" / 7.5 mm; 0.35" / 9 mm; 0.4" / 10 mm
  • Min. Press Thickness: 0.001" / 0.03 mm
  • Max. Press Thickness: 0.26" / 6.5 mm
  • Material: Cast Iron & Chrome Steel
  • Roller Dimension: 2.1" x 4.5" / 53 x 113 mm
  • Item Dimension: 13.4" x 13" x 13.4" / 34 x 33 x 34 cm
  • Weight: 39.7 lbs / 18 kg

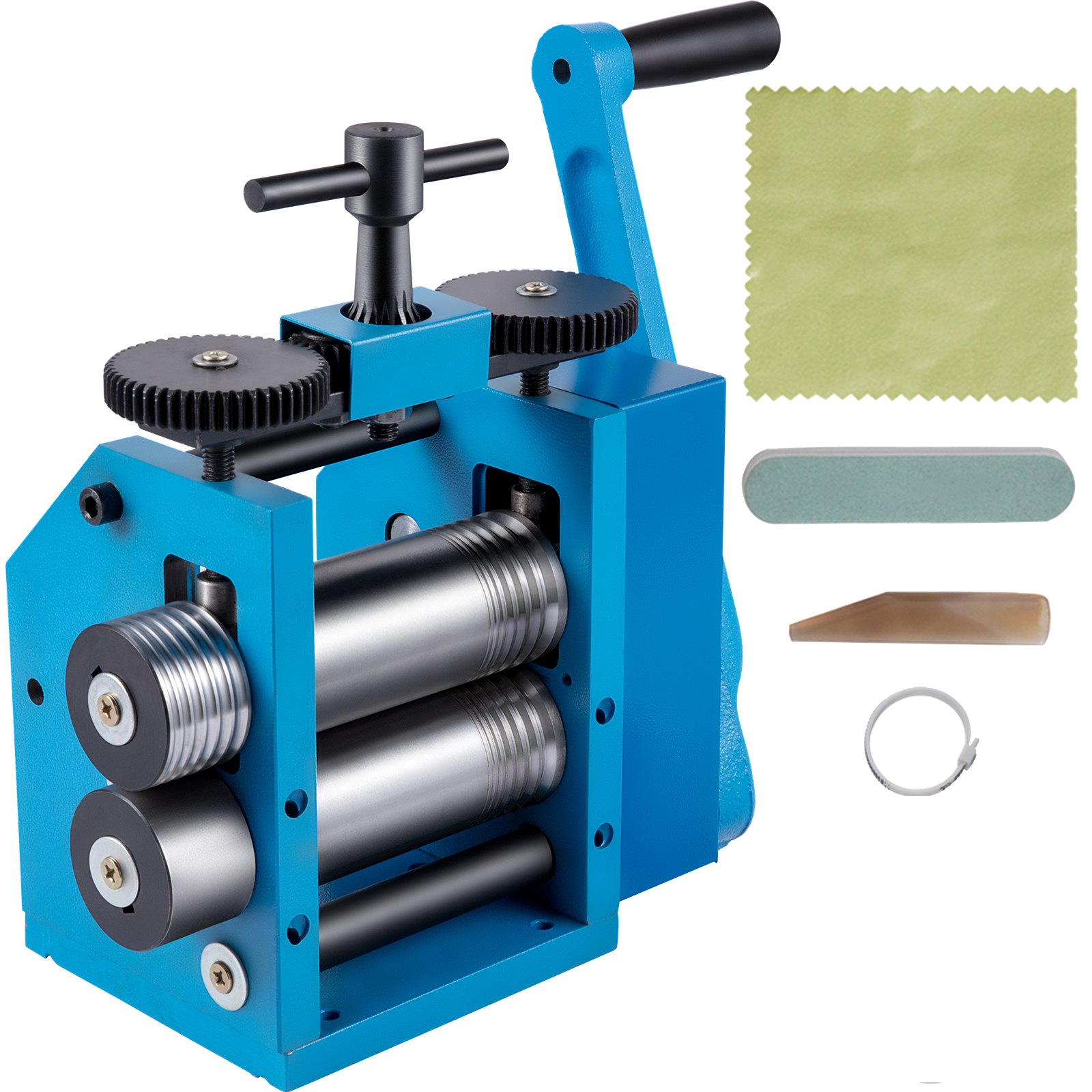

blue VEVOR jewelry rolling mill with crank handle, tools, and polishing cloth.
Package Content
  • 1 x Combination Rolling Mill
  • 1 x Silver Polishing Cloth
  • 1 x Silver Stick for Jewelry
  • 1 x Agate Knife
  • 1 x Plastic Ring Band
VEVOR jewelry rolling mill machine with gears in a jewelry-making setting.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR jewelry rolling mill with rollers, cleaning cloth, ring, and tools.
76 mm Manual Rolling Mill
The combination mill is designed for cold rolling metal to produce thinner gauges of sheet metal and wire, transferring textures to your metal and making the thickness uniform. With adjustable press thickness, reduced gear ratio, and practical accessories, the tool is ideal for jewelers and artisans.
  • Three-in-One Rolling Mill
  • Adjustable Press Thickness
  • Durable Cast Iron & Steel
  • Premium Detail & Accessory
VEVOR jewelry rolling mill with various roller specifications for wire, half-round, and sheets.
Multifunctional Roller Mill
Three forms of roll slots, half-round, square & smooth side, are arranged in decreasing sizes to allow gradual reduction of item diameters. So you can process various thicknesses of sections according to your requirements.
VEVOR jewelry rolling mill with adjustable distance, gear ratio 1:2.5, t-shaped bar.
Adjustable Roll Distance
The T-shape bar at the top of the rolling jewelry effectively opens, closes, and adjusts the roller's distance. When you completely close the rollers, you should measure "true" with no visible gaps.
VEVOR jewelry rolling mill with cast iron frame, chrome steel rollers, and blue-powder coating.
Iron Frame & Steel Roller
Constructed with cast iron & chrome steel, the manual rolling mill has the advantages of high hardness & deformation resistance. The blue-coated appearance keeps the tool from rusting to improve its performance.
VEVOR jewelry rolling mill with a portable handle and simple mounting holes.
ABS Handle & Mounting Hole
The forged handle with ABS crank is comfortable to hold. And using the pre-drilled mounting holes, it is effortless to install the rolling mill on the workbench easily for a more stable operation.
VEVOR jewelry rolling mill with silver polishing cloth, plastic ring band, agate knife.
Complete Accessory Kit
There are a set of user-friendly accessories. The plastic ring band is simple for storage. If there is a surface scratch to the workpiece, you can use the silver polishing cloth and bar on the spot without secondary processing.
VEVOR jewelry rolling mill for stores, repair shops, processing plants, and diy use.
Extensive Application
The rolling mill is suitable for pressing the gold & silver nuggets into thin, uniform sheets. It is widely applicable in jewelry stores, jewelry repair shops, DIY, and personal use.
blue VEVOR jewelry rolling mill with crank handle, tools, and polishing cloth.
Package Content
  • 1 x Combination Rolling Mill
  • 1 x Silver Polishing Cloth
  • 1 x Silver Stick for Jewelry
  • 1 x Agate Knife
  • 1 x Plastic Ring Band
blue VEVOR jewelry rolling mill, 13.4" height, 13" width, and 13.4" length.
Specifications
  • Model: Single-slot Rolling Mill
  • Gear Ratio: 1:2.5
  • Press Square: 0.04" / 1 mm; 0.06" / 1.5 mm; 0.08" / 2 mm; 0.12" / 3 mm; 0.16" / 4 mm; 0.2" / 5 mm; 0.24" / 6 mm
  • Press Smooth Sheet: 3" / 76 mm
  • Press Semicircle: 0.08" / 2 mm; 0.1" / 2.5 mm; 0.12" / 3 mm; 0.14" / 3.5 mm; 0.18" / 4.5 mm; 0.2" / 5 mm; 0.3" / 7.5 mm; 0.35" / 9 mm; 0.4" / 10 mm
  • Min. Press Thickness: 0.001" / 0.03 mm
  • Max. Press Thickness: 0.26" / 6.5 mm
  • Material: Cast Iron & Chrome Steel
  • Roller Dimension: 2.1" x 4.5" / 53 x 113 mm
  • Item Dimension: 13.4" x 13" x 13.4" / 34 x 33 x 34 cm
  • Weight: 39.7 lbs / 18 kg
Product specification
Model
Single-slot Rolling Mill
Gear Ratio
1
Press Square
0.04" / 1 mm; 0.06" / 1.5 mm; 0.08" / 2 mm; 0.12" / 3 mm; 0.16" / 4 mm; 0.2" / 5 mm; 0.24" / 6 mm
Press Smooth Sheet
3" / 76 mm
Press Semicircle
0.08" / 2 mm; 0.1" / 2.5 mm; 0.12" / 3 mm; 0.14" / 3.5 mm; 0.18" / 4.5 mm; 0.2" / 5 mm; 0.3" / 7.5 mm; 0.35" / 9 mm; 0.4" / 10 mm
Min. Press Thickness
0.001" / 0.03 mm
Max. Press Thickness
0.26" / 6.5 mm
Material
Cast Iron & Chrome Steel
Roller Dimension
2.1" x 4.5" / 53 x 113 mm
Item Dimension
13.4" x 13" x 13.4" / 34 x 33 x 34 cm
Weight
39.7 lbs / 18 kg
Svars 18,00 кг
Dimensijas 36,00 × 32,50 × 33,00 см
Brand

VEVOR
Model

Single-slot Rolling Mill
Roller Width

76 mm
Gear Ratio

1:2.5
Min Press Thickness

0.03 mm
Press Thickness Range

0.1–7 mm
Press Smooth Sheet Width

76 mm
Press Square Sizes

1 / 1.5 / 2 / 3 / 4 / 5 / 6 mm
Press Semicircle Sizes

2 / 2.5 / 3 / 3.5 / 4.5 / 5 / 7.5 / 9 / 10 mm
Material

Cast Iron & Chrome Steel
Unfolded Dimensions

53 x 113 mm
Dimensions

34 x 33 x 34 cm
Weight

18 kg
Surface Coating

Blue Powder Coating
Handle Material

ABS
Operation Type

Manual
Rolling Forms

Sheet, Square, Semicircle
