VEVOR 40×40 cm Water to Air Heat Exchanger, 3-Row Copper Tubes, 193 Fins, High-Efficiency Heating
- High-Quality Materials: The entire unit is copper brazed at edges and contact points, forming a durable and leak-resistant piece that withstands high pressure and temperature. UL and CE certified for reliable quality.
- Durable and Corrosion-Resistant: Features epoxy-coated fins, providing high hardness, wear resistance, and corrosion protection. This reduces internal water vapor scaling, promoting maximum heat exchange between air and fins. Suitable for operating temperatures of -40-356℉ / -40-180°C.

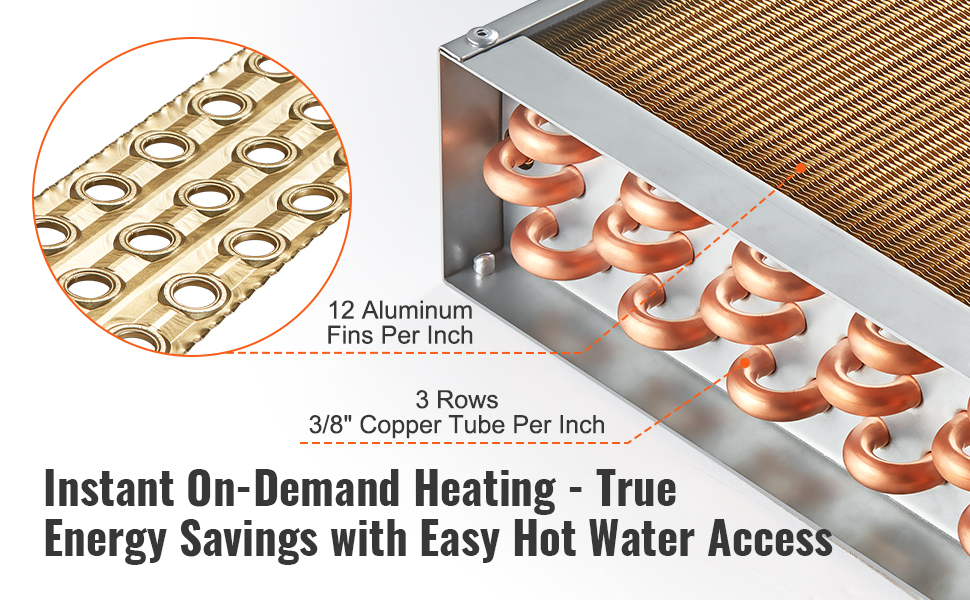

- Efficient Heat Transfer: The heat exchanger generates up to 160kBtu per hour, with 12 aluminum fins per inch and 3 rows of 3/8″ seamless copper tubes. The threaded copper tubes increase the contact area and capacity of the fluid medium, significantly enhancing the heat exchanger’s performance.
- Large Heat Exchange Area: With an effective heat exchange area of 16”x16” and 193 fins, this heat exchanger provides excellent heat transfer performance to meet various needs.
- Tight and Leak-Proof: To eliminate the possibility of micro-leaks, the heat exchanger uses high-pressure vacuum brazing and undergoes rigorous leak testing, ensuring long life and high reliability.
171,66 € Ar PVN 21%
5 in stock
M4I4LSJ6
CPGSHRQ161606S869V0
Unleashing Ultimate Heat Efficiency
Our heat exchanger is compact and lightweight, offering excellent thermal performance. Made with 316L stainless steel and 99% copper brazing for durability, it is perfect for solar heating, oil heat recovery, engine cooling, and condensation.

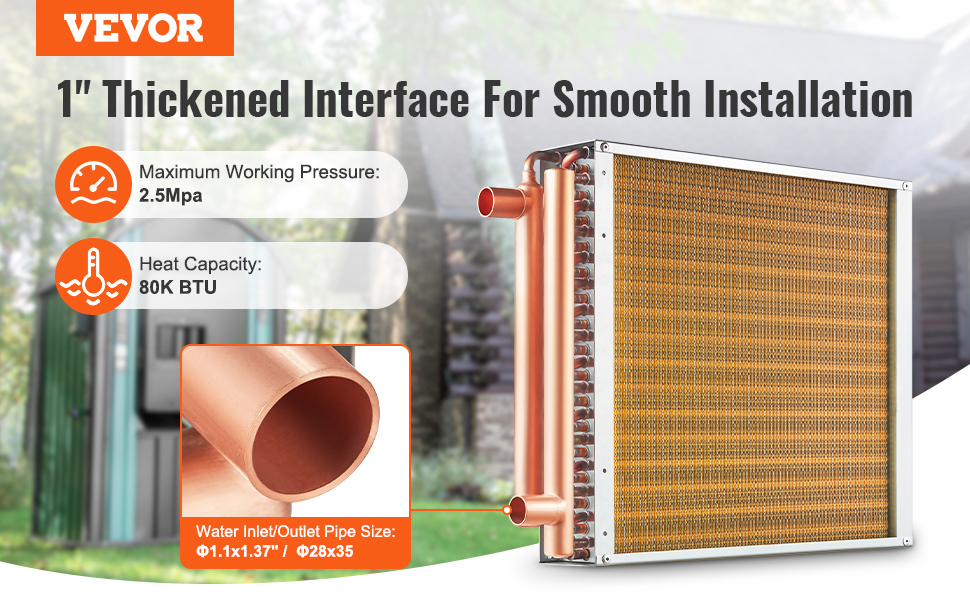

Our heat exchanger features a thickened interface with smooth threads for easy and convenient connection.

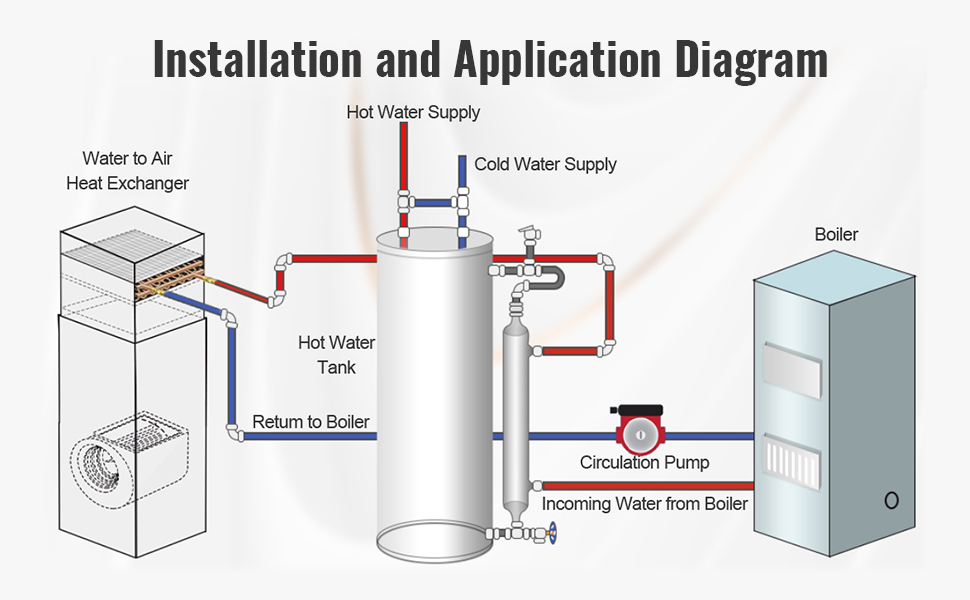

This heat exchanger heats liquids with irregular plates, requiring no electricity or wood burning, providing hot water at low cost, making it cost-effective and practical.
The heat exchanger has 2 interfaces, suitable for operating temperatures of -40-356℉/-40-180°C, with the outlet positioned above the inlet.

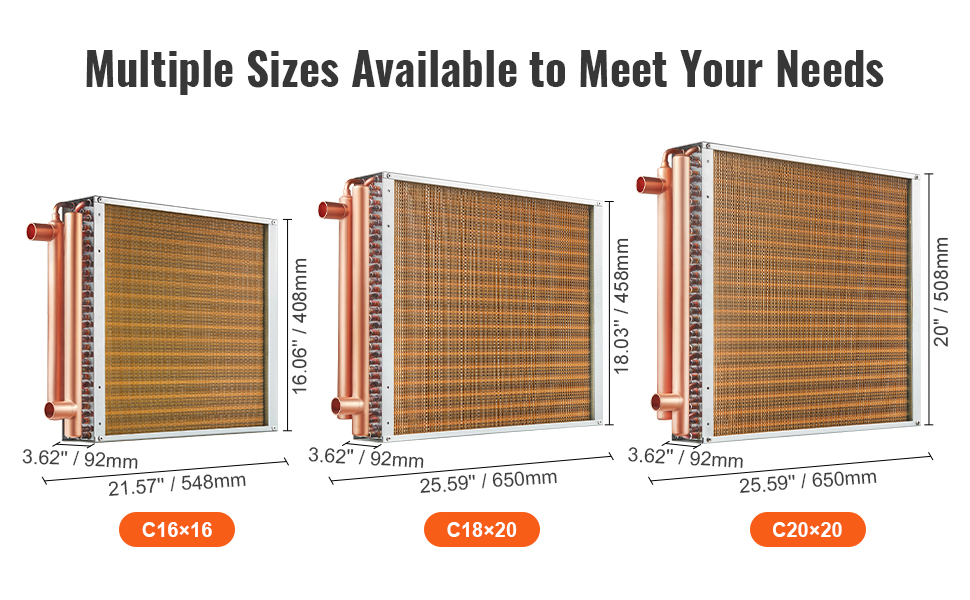

Our heat exchanger comes in 3 different sizes to meet your needs.

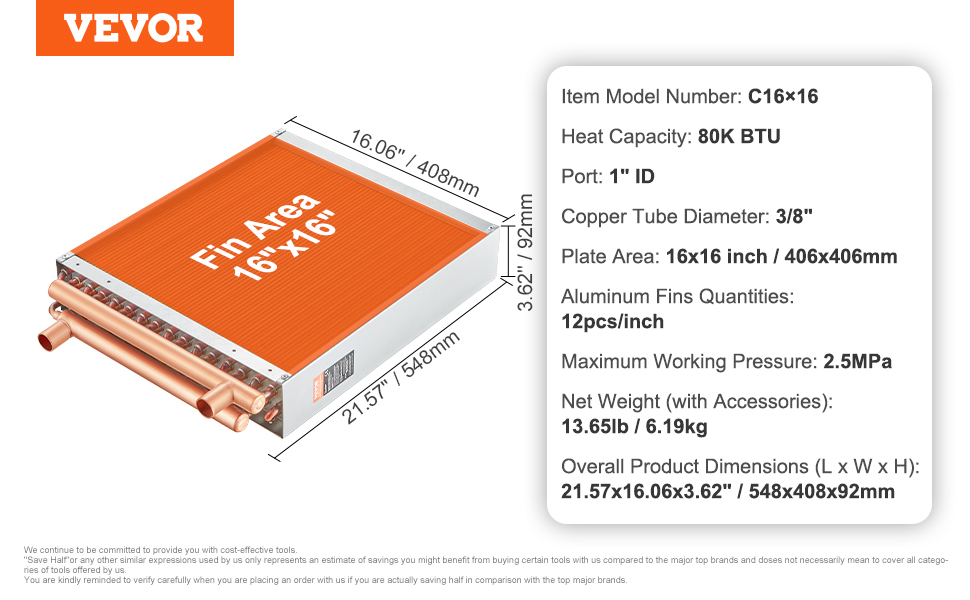

Specification
- Model
- C16×16
- Heat Capacity
- ≥80K BTU
- Plate Area
- 16 x 16 in / 40.64 x 40.64 cm
- Number of Copper Tubes
- 3-Row 3/8"
- Number of Aluminum Fins
- 193 Pcs
- Maximum Working Pressure
- 2.5MPa
- Operating Temperature
- -40°C-180°C / -40°F -356°F
- Color
- Gold
- Main Materials
- Copper
- Net Weight (with Accessories)
- 13.65lb / 6.19kg
- Product Dimensions (L x W x H)
- 21.57x16.06x3.62" / 548x408x92 mm
| Weight | 7,90 kg |
|---|---|
| Dimensions | 60,50 × 46,00 × 15,50 cm |
