VEVOR 50-Plate Brazed Plate Heat Exchanger, 127×305 mm, 316L Stainless Steel, Copper Brazed, for Water Heating & Cooling

  • High-Quality Materials: Made of 316L stainless steel with 99% copper brazing at edges and contact points, forming a robust and leak-resistant unit that withstands high pressure and temperature. CE certified for reliable quality.

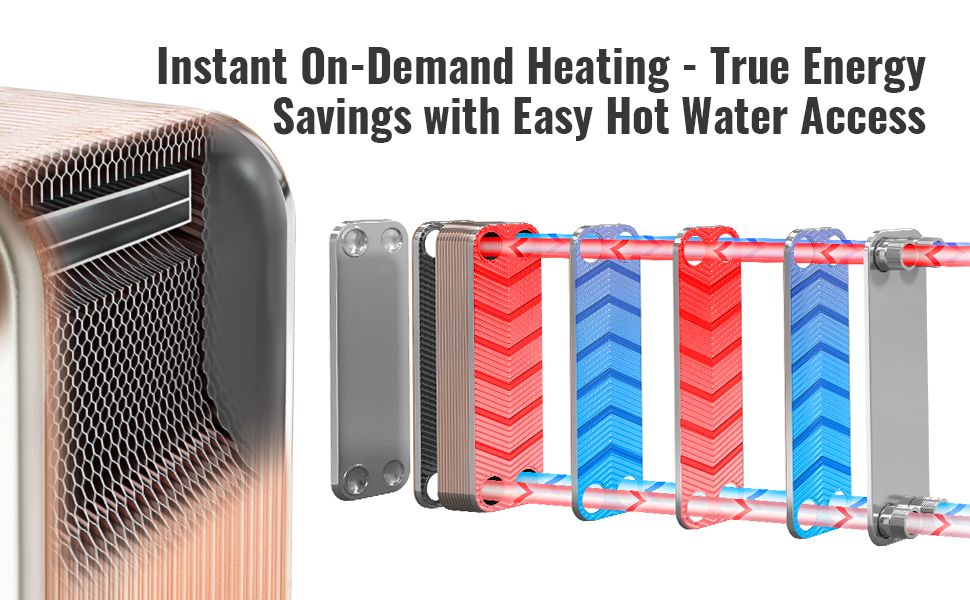

  • Efficient Heat Transfer: The high-conductivity stainless steel plates feature an asymmetrical herringbone pattern, creating intense pressure turbulence for efficient heating/cooling. With up to 99% heat efficiency, it generates 500-660K BTU per hour, saving pump power and electricity, reducing overall application costs.
  • Large Heat Exchange Area: The heat exchanger features 5”x12” plates with up to 50 plates, providing excellent heat transfer performance for maximum efficiency. Suitable for operating temperatures from -292℉ to 392℉.
  • Tight and Leak-Proof: To eliminate the possibility of micro-leaks, the heat exchanger uses high-pressure vacuum brazing and undergoes helium leak testing, ensuring long life and high reliability.
  • Stable Installation: Includes two stainless steel brackets made of 304 stainless steel, offering excellent rust resistance and stability for easy and secure mounting of the heat exchanger.

178,91 € Incl. VAT 21%

Sold out

Will be available at the supplier's warehouse within 3-4 weeks.

Want to be notified when this product is back in stock?

Produkto kodas: M4I4LRLH Kategorijas: , , , Brand:
VEVOR Heat Exchanger, 5"x 12" 50 Plates Brazed Plate Heat Exchanger, Copper/316L Stainless Steel Water To Water Heat Exchanger For Floor Heating, Water Heating, Snow Melting, Beer Cooling
M4I4LRLH
QHBSHRQ512506DE54V0
Unleashing Ultimate Heat Efficiency
Our heat exchanger is compact and lightweight, offering excellent thermal performance. Made with 316L stainless steel and 99% copper brazing for durability, it is perfect for solar heating, oil heat recovery, engine cooling, and condensation.

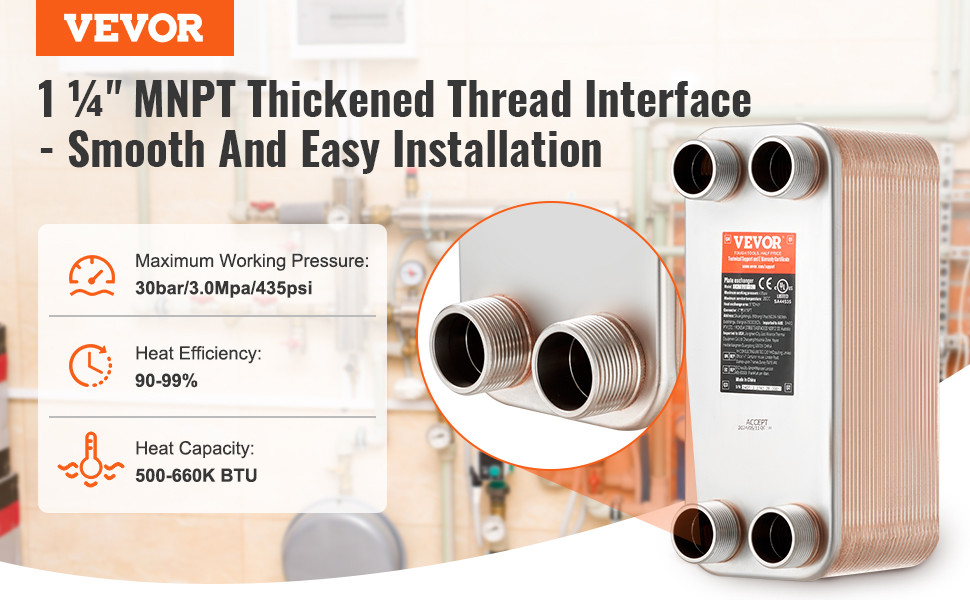

Our heat exchanger features a 1 ¼” MNPT interface with smooth threads for easy and convenient connection.
This heat exchanger heats liquids with irregular plates, requiring no electricity or wood burning, providing hot water at low cost, making it cost-effective and practical.
Equipped with 4 interfaces, the heat exchanger accommodates different media needs with correct piping and operates within -292℉ to 392℉ temperature range.

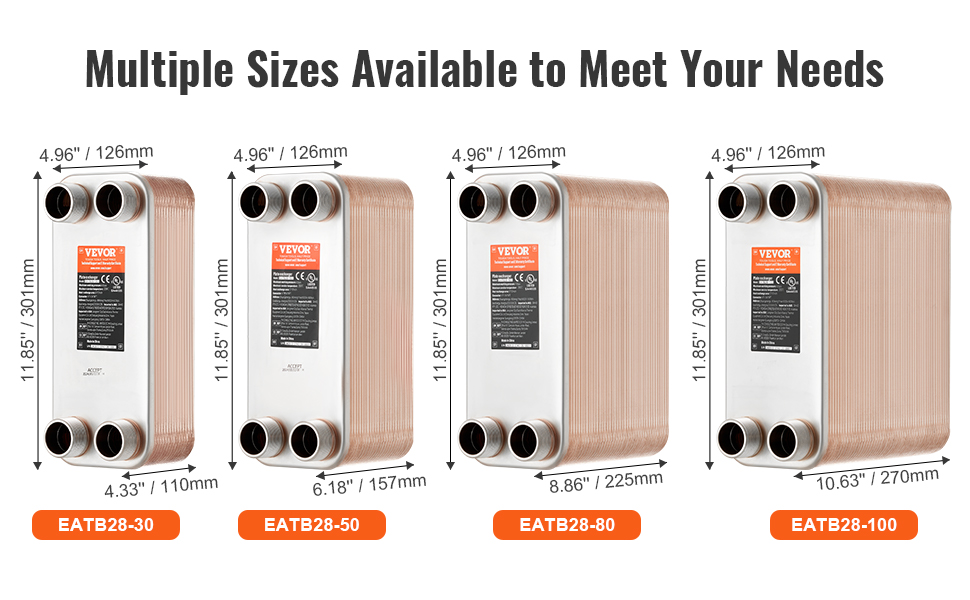

Our heat exchanger comes in 4 different sizes to meet your needs.
Product specification
Model
EATB28-50
Thermal Efficiency
90～99%
Heat Capacity
500-660K BTU
Plate Area
5x12 inch/ 127x305mm
Plates Quantity(pcs)
50
Port
4*1-1/4" MNPT External Thread
Color
Stainless Steel + Copper Color
Material
304/316 Stainless Steel, Solder
Net Weight (with Accessories)
18.78lb / 8.52kg
Product Dimensions (L x W x H)
11.85x4.96x6.18" / 301x126x157 mm
Svars 9,5 кг
Dimensijas 33,30 × 18 × 26 см
Model

EATB28-50
Plates Quantity

50 pcs
Plate Area

127 x 305 mm
Material

316 L Stainless Steel
Sealing Material

99% Copper
Bucket Material

304 Stainless Steel
Thermal Efficiency

90～99 %
Tank Capacity

500-660K BTU
Pool Size

4 x 1-1/4" MNPT External Thread
Color

Stainless Steel + Copper Color
Operating Temperature Range

-292 to 392 ℉
Weight

8.52 kg
Dimensions

301 x 126 x 157 mm
Certification

CE
